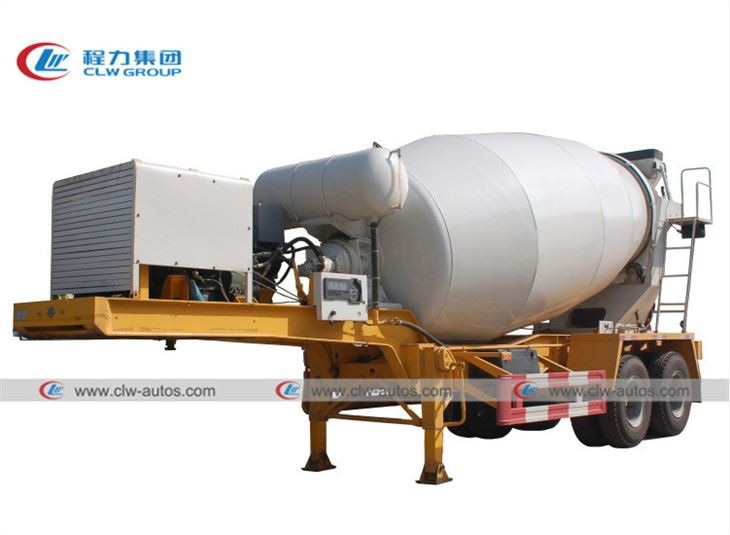

12CBM Concrete Mixer Drum Tank Semi Trailer
Concrete Mixer Drum Tank Semi Trailer Cement Mixer Tank Semitrailer Mixer Drum: 12CBM, 14CBM With Cummins or WeiChai Diesel Engine.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 12cbm concrete mixer drum tank semi trailer in China. If you're going to buy high quality 12cbm concrete mixer drum tank semi trailer, welcome to get more information from our factory. For price consultation, contact us.
Good Description:
Concrete mixer trailer, The concrete mixing and transporting trailer is a trailer used for concrete transportation, and needs to be matched with a tractor to transport. This trailer can choose to configure the diesel engine drive, or obtain rotary power from the tractor. High transportation efficiency and low investment.
1, Made by high tensile strengh steel, Q345B, Q610, 700
2, Heave duty loading capacity. Mixer body volume: 12M3-16M3.
3, Nice appearance.
4, Hydraulic pump, motor: USA or Italian TOP brand.
5, Factory directly selling, high quality and compective price.
For more information, please contact: Ms. Helen Jiang from Chengli Special Automobile Co., Ltd.
Mob/WhatsApp: +8613554195719.
Product Advantages:
1.The hydraulic system uses internationally renowned brands, such as Italy PMP,USA SAUER-DANFOSS, Germany Rexroth, Italy IPH, etc., with good reliability and long life.
2.Equipped with high-strength rear axle, strong bearing capacity; with Wheel Reductor, Strong climbing ability ;free of disassembly and maintenance, saving labor and saving money.
3.The classic driving room has good soundproofing effect and the whole is more solid and safer! Luxury center console, luxury mobile home.
4.Create the best profit model with high speed, high efficiency, high reliability and fuel economy.
5.Efficient stirring technology.
6.Comprehensive reliability improvement of key components.
7.More convenient details application.
Parameter for 2 Axle 12CBM Concrete Mixer Drum Tank Semi Trailer:
| Main Dimensions | ||||||
| Overall Length | 10000mm | |||||
| Overall Height | 3780mm | |||||
| Overall Width | 2500 mm | |||||
| Tare Weight | 10800 KGS | |||||
| Photo only for reference, final product can be made according to exact requirements | ||||||
| Tank | ||||||
| Capacity | 14 cbm | |||||
| Mixing tanker sloping angle | 10-14 degree | |||||
| Mixing tanker revolving speed | 12-20 (r/min) | |||||
| Engine | Cummins diesel engine, 140 hp | |||||
| Hydraulic pump | USA Eaton 6423-279 or Italian TOP brand | |||||
| Hydraulic motor | Eaton 6433-042 or Italian TOP brand | |||||
| Gearbox | Italy Bonfiglioli 580 L | |||||
| Radiator | Italian brand YS26, 26 liters | |||||
| Chassis | ||||||
| Axle | 2 axle or 3 axles | |||||
| BPW 13 Ton , or FUWA 13TONS, L1 13TONS | ||||||
| Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |||||
| King Pin | JOST brand 2" bolt-in king pin | |||||
| Suspension | German design heavy duty mechanical suspension , 13-pcs leaf spring | |||||
| Pneumatic Braking System | WABCO RE 4 relay valve; T30/30 Spring brake chamber; 40L air tanks. | |||||
| Wheel rim | 9.00-22.5 wheel rim, 9 pcs Including one spare | |||||
| Tire | 12R22.5 tubeless tire, 9 pcs Including one spare | |||||
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |||||
| Accessories | One standard tool box, one spare tyre and carrier | |||||

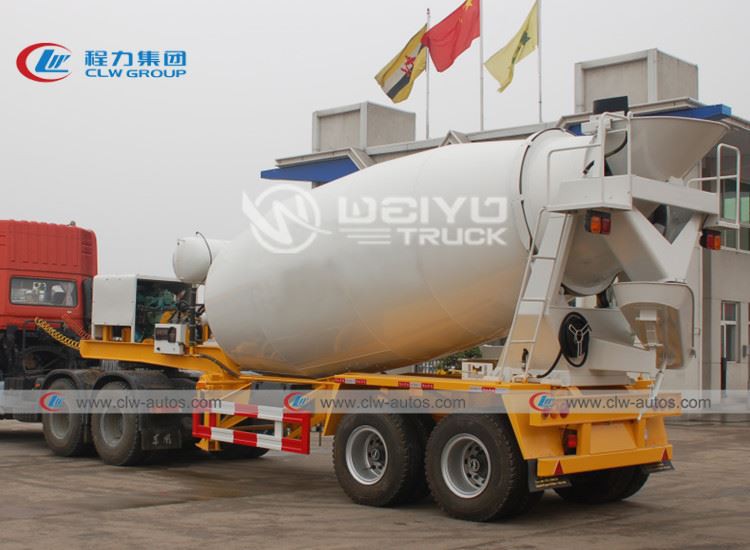

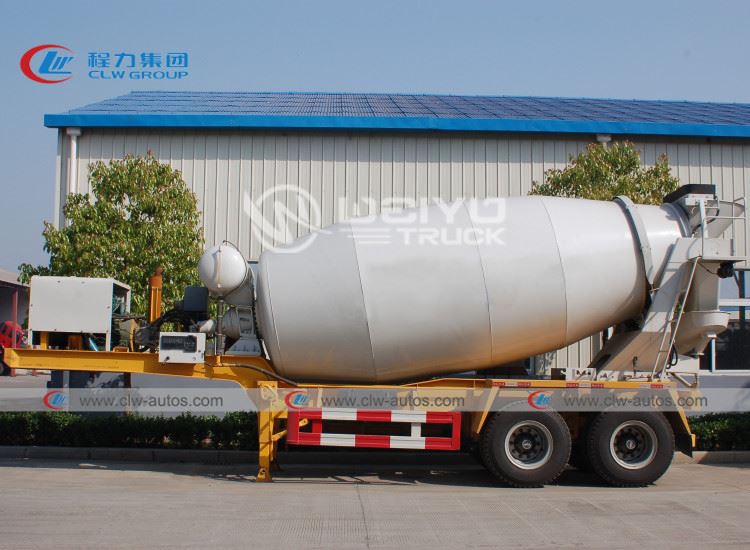

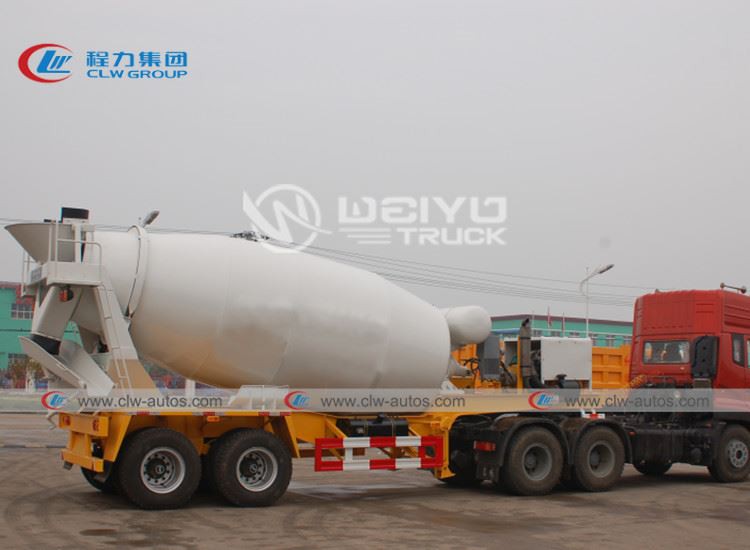

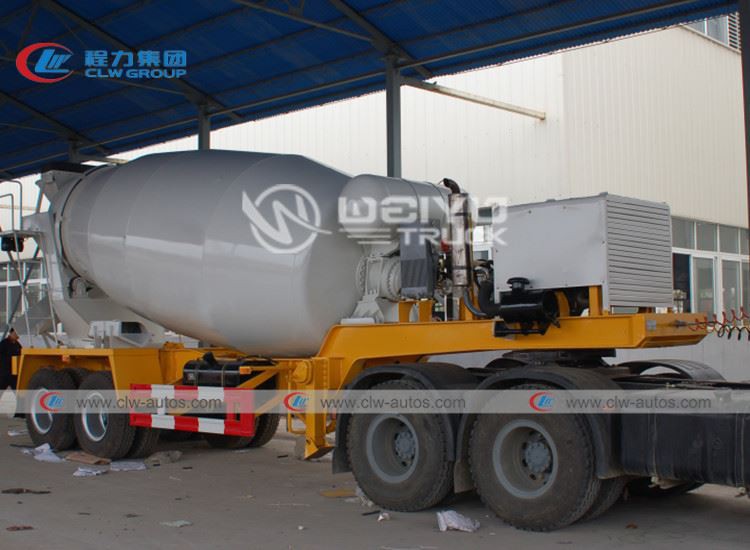

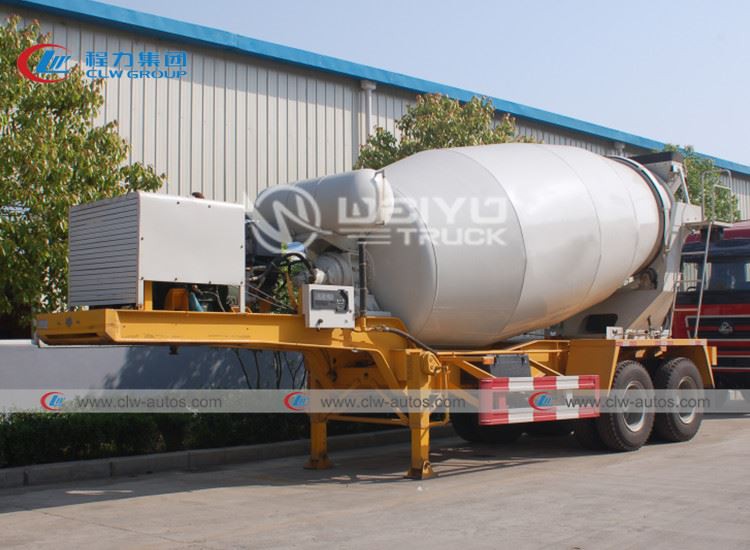

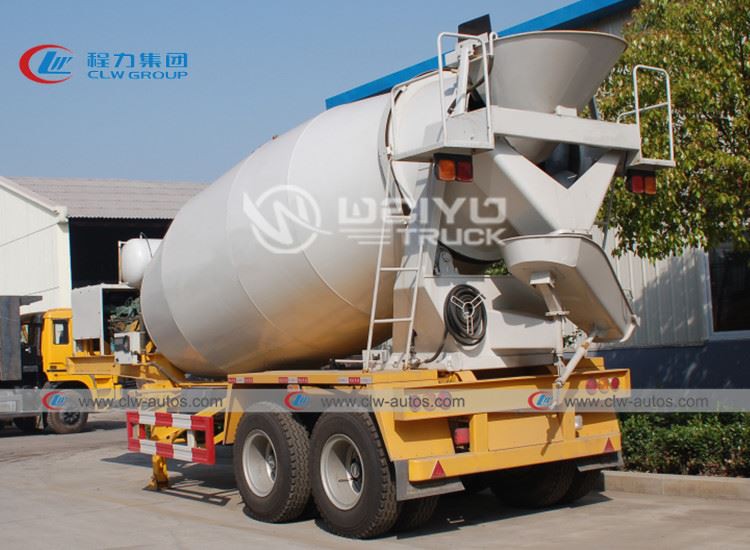

More Detailed pictures for 2 Axle 12CBM Concrete Mixer Drum Tank Semi Trailer:
