Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of double axle 17tons 40,000 liters lpg road tanker in China. If you're going to buy high quality double axle 17tons 40,000 liters lpg road tanker, welcome to get more information from our factory. For price consultation, contact us.
--LPG road tanker(also called lpg tanker trailer. lpg tanker truck,lpg transport truck,gas transport truck,lpg bridger truck,lpg tanker truck,lpg truck trailer,17tons lpg truck,17mt lpg truck,40m3 lpg truck,propane tanker trailer,lpg tanker,lpg semi trailer,liquified petroleum gas truck,double axle lpg truck) is mainly used to transport liquid petroleum gas/propane gas/cooking gas/lpg in large quantity and in long distance from gas depot or terminal station to smaller lpg stations in other cities.
Above 40000L/40000Liters/40cbm lpg road tanker is with quick-in liquid and vapour phase and designed for Mongolia gas transport company.
--LPG road tanker is optional for tank size from 40,000litera to 61,900liters usually,from 18tons to 30tons.
--Design standard: GB-150, ASME U STAMP, CCC, ISO9001 : 2008
--Optional accessories :ROCHESTER level gauge,flow meter,sun shelter,lpg pump
--Material: Q345R;
--Optional for axle brands:BPW,FUWA,L1 and so on.
Feature
--high quality steel specialized for pressure vessel production from chinese top steel company;
--Reliable design for rough road with reliable performance;
--X-ray testing for every welding line of tank body;
--Hydraulic testing for every lpg tanker;
--Heat treatment 600~640 ℃ to relief stress;
--Gas leakage test;
--customized painting and logo design;
Reference picture

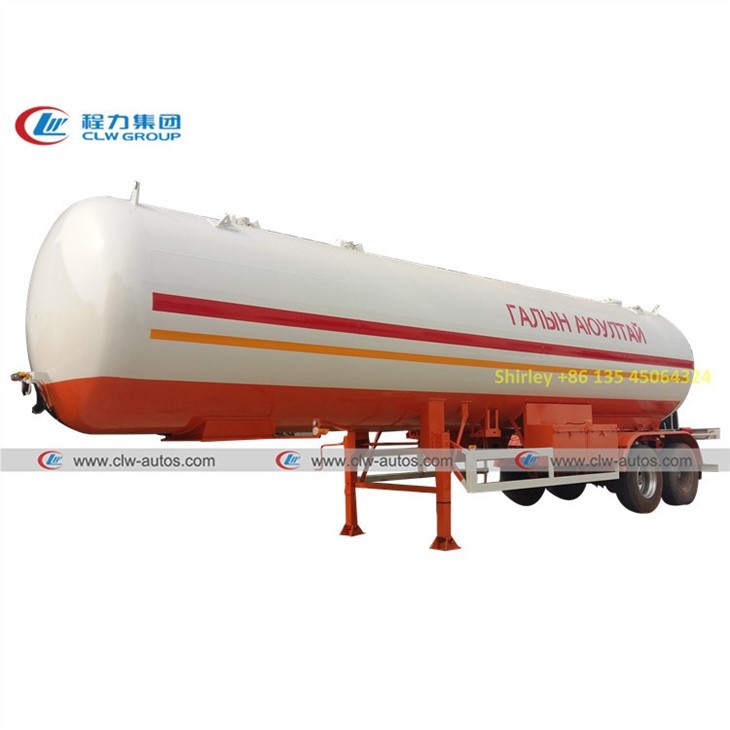

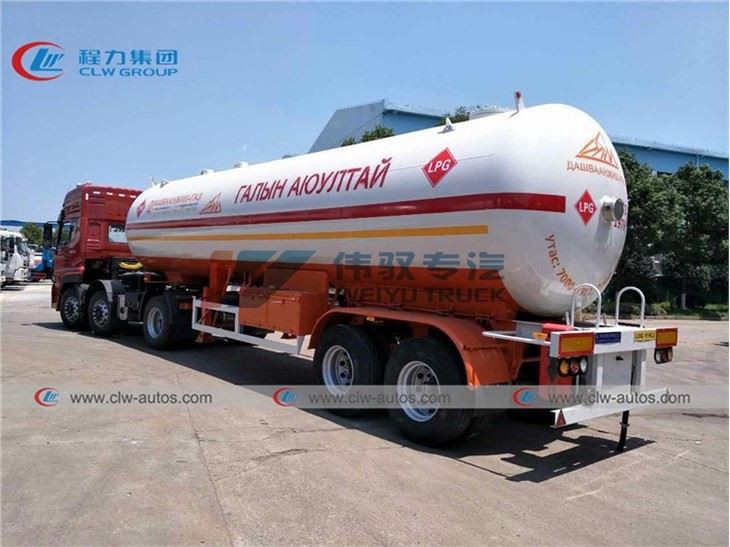

(rear side view of 17tons lpg road tanker for mongolia)

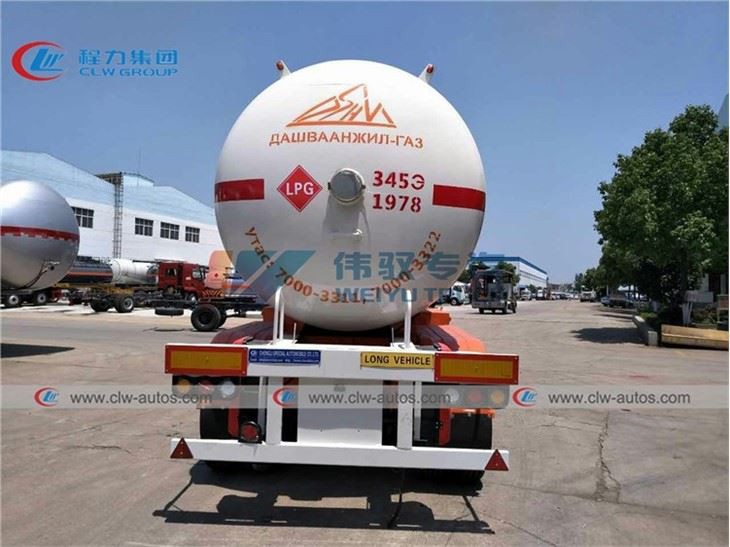

(rear view of 40000L lpg road tanker for mongolia)

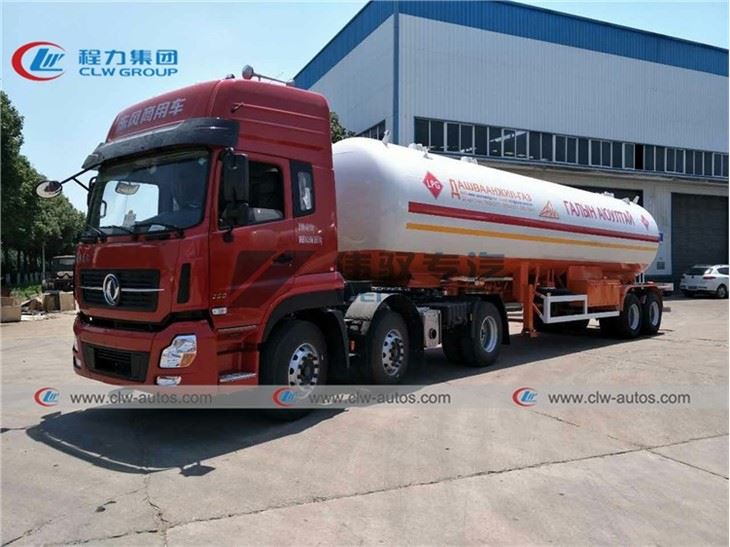

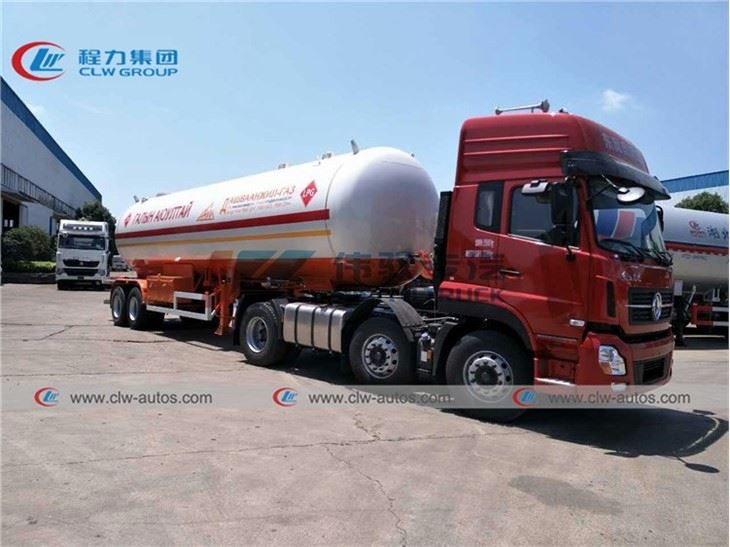

(front side view of 40000L lpg road tanker for mongolia)
(Quick-in type liquid and vapour phase of 40000L lpg road tanker for mongolia)

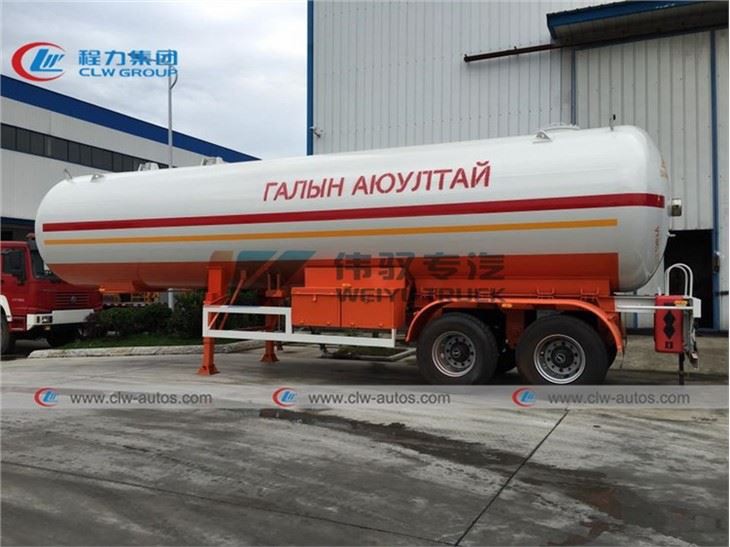

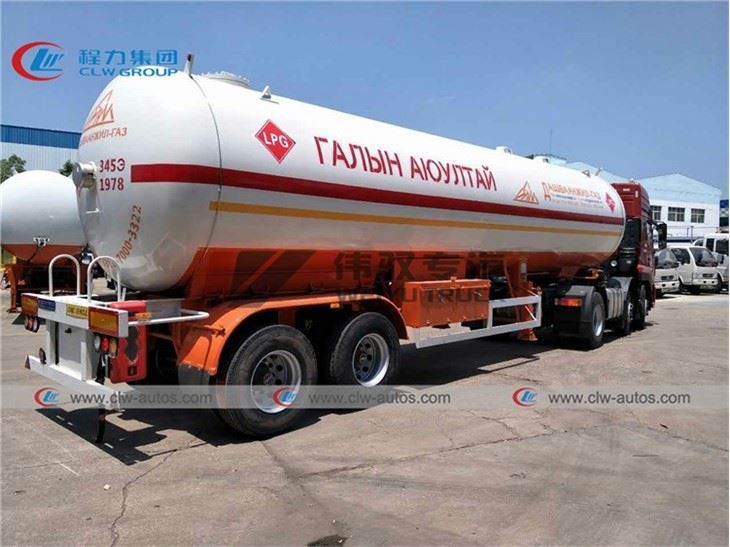

(Rear side view of 40000L lpg road tanker for mongolia)
Tanker Essential Information | |
Volume of Tank (cbm) | 40 |
Overall Dimensions(L*W*H)(mm) | 11324*2500*3730 |
Tank Dimensions(Inner Diameter*thickness*Length) | 2200*12*11044 |
Estimated Tare Weight (kg) | 13415 |
Payload(kg) | 17010 |
Total Weight(kg) | 30425 |
Wheelbase(mm) | 6720+1320 |
Shell of Tanker | |
Products | Liquefied Petroleum Gas (propane) |
Fluid Property | Flammable |
Design Temperature(ºC) | 50ºC |
Design Pressure(MPa) | 1.61 |
Corrosion Allowance(mm) | 1.00 |
Weld Joint Factor | 1 |
Major Materials of Bearing Pressure | Tanker body:Q345,12mm, |
| End plate:Q345R,12mm | |
| Main beam:16Mn | |
Detection | |
Heat Treatment | Overall treatment in a furnace,600ºC to 640 ºC |
Flaw Detection | 100% Flaw detection |
Test Pressure(MPa) | 1.61 |
Hydraulic Test(MPa) | 2.1 |
Magnaflux Inspection | Aim at welding place that flaw detection can not cover |
Manhole (As Customer's Requirement) | |
Quantity | 1;on top |
Size | DN450 |
Safety Valve(As Customer's Requirement) | |
Quantity | 2 |
Location | On the top of tanker |
Size | DN80 |
Level Gauge | |
Type | Manuel Switch type |
Location | At the rear of the end dish |
Running System | |
Axles | 2*13T BPW/FUWA |
Tire | 12R22.5 Tubeless tire ,8 with one spare tire |
Landing leg | JOST |
King Pin | #50 or #90 |
Control System | |
Emergency Cut-off Valves | 2 or 3 |
Ball Valve | 4 or 6 |
Liquid Gauge | 1 |
Pressure Indicating Thermometer | 1 |
Pressure Gage | 1 |
Steel plate cutting
Tank rolling
Longitudinal welding
Circle welding
Baffle welding
X-ray testing for every welding line and ensure 100% qualified;
Heat treatment at 620 ℃
Hydraulic testing at pressure 2.21Mpa
Sandblasting before painting
Two layers of Anti-corrosion painting before final painting
Assembly of lpg tank and running system
Successful case
FAQ:
Q1: What is your product name?
A: lpg tanker trailer. lpg tanker truck,lpg transport truck,gas transport truck,lpg bridger truck,lpg tanker truck,lpg truck trailer,17tons lpg truck,17mt lpg truck,40m3 lpg truck,propane tanker trailer,lpg tanker,lpg semi trailer,liquified petroleum gas truck,double axle lpg truck.
Q2: What size of lpg road tanker can you supply?
A: We can supply lpg road tankers from 40.5cbm to 61.9cbm,the most popular size is 49.6cbm, 56cbm, 59.52cbm which is 25tons,28tons and 30tons accordingly.
Q3: What’s the production standard of your lpg road tankers ?
A: GB-150.1~4-2011 or optional for ASME VIII Division I U STAMP
Q4: Where is your factory located? Can we visit your factory?
A: Our factory is located in Suizhou City,Hubei Province,central China,which is famous for special vehicles.You can take high speed train to Wuhan railway station,Hankou railway station or Wuhan Tianhe International Airport.
Q5: What’s your payment term?
A: 40% deposit by T/T and balance by T/T before shipment.
Q6: How many days can I get my the lpg semi trailer after paying deposit?
A: Only 10 working days is needed when material is ready. Usually our delivery time is 20~25 days.
Q7: What warranty do you supply for lpg road tankers?
A: The life time of lpg semi trailer body is 15 years and one year free warranty for axles.
Q8: What axle brand do you use for lpg road tankers?
A: BPW,FUWA,L1,YORK and other famous Chinese brands.
