Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 61.9cbm 30 tons lpg road tanker truck in China. If you're going to buy high quality 61.9cbm 30 tons lpg road tanker truck, welcome to get more information from our factory. For price consultation, contact us.
Function
--LPG road tanker(also called lpg tanker trailer,gas transport truck,lpg bridger truck,lpg tanker truck,lpg truck trailer,30tons lpg truck,30mt lpg truck,60m3 lpg truck,propane tanker trailer,lpg tanker,lpg semi trailer,liquified petroleum gas truck) is used to transport liquid petroleum gas/propane gas/cooking gas/lpg in large quantity and in long distance from gas depot or terminal station to smaller lpg stations in other cities.
--LPG road tanker truck from clw group is optional for tank size from 40,000litera to 61,900liters usually,from 18tons to 30tons.
--Design standard: GB-150, ASME U STAMP, CCC, ISO9001 : 2008
--Optional accessories :ROCHESTER level gauge,flow meter,sun shelter,lpg pump
--Material: Q345R;
--Optional for axle brands:BPW,FUWA,L1 and so on.
Feature
--high quality steel specialized for pressure vessel production from chinese top steel company;
--Reliable design for rough road with reliable performance;
--X-ray testing for every welding line of tank body;
--Hydraulic testing for every lpg tanker;
--Heat treatment 600~640 ℃ to relief stress;
--Gas leakage test;
--customized painting and logo design;

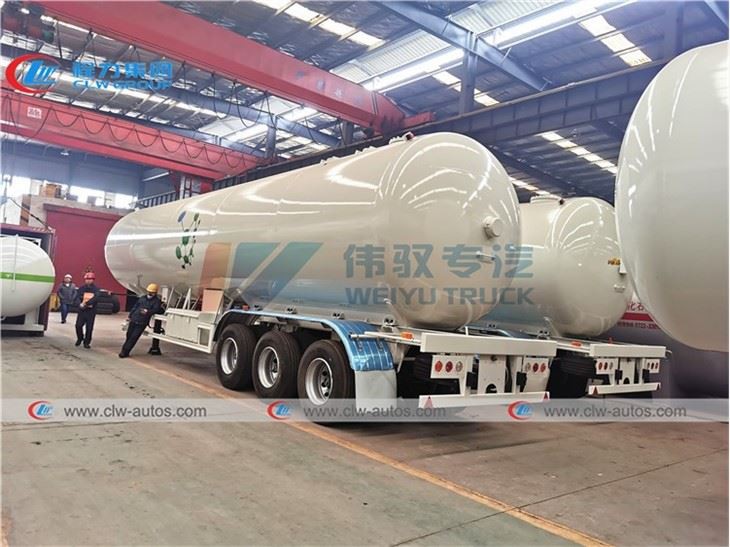

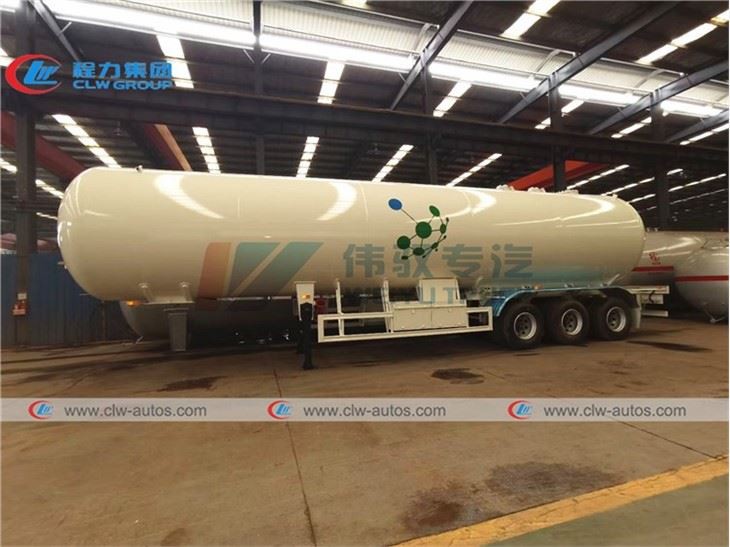

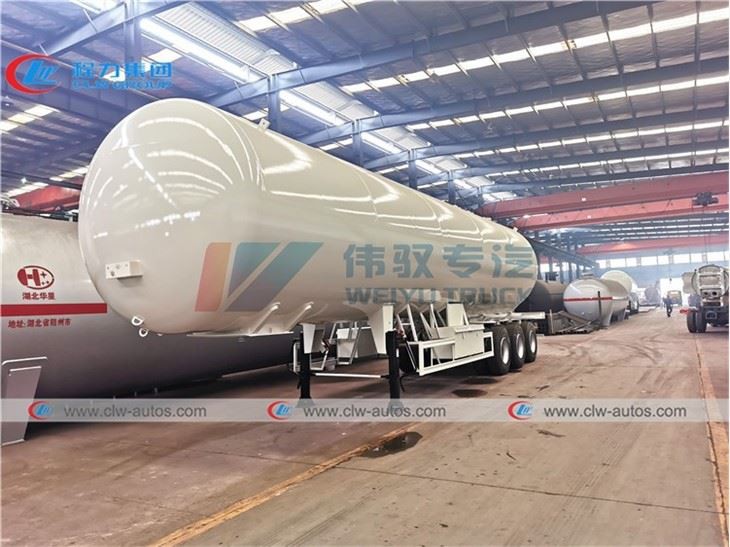

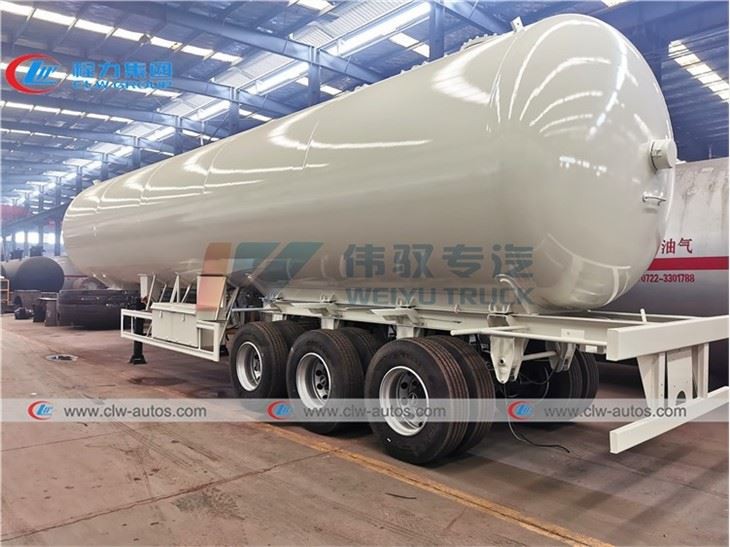

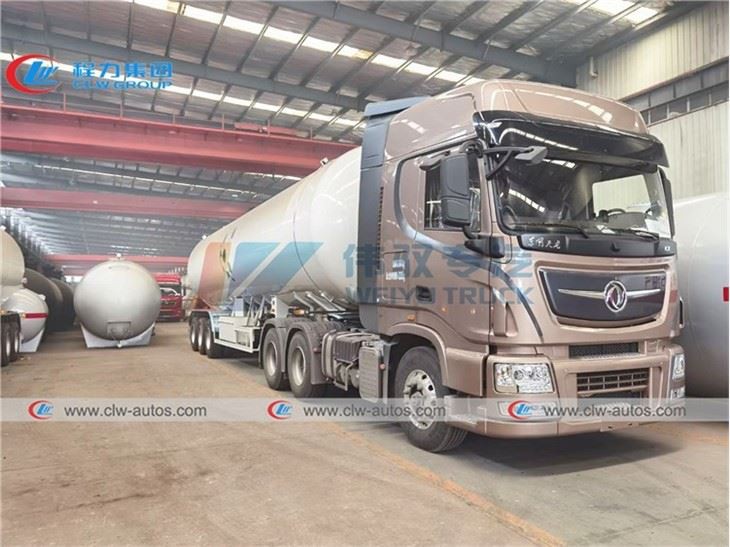

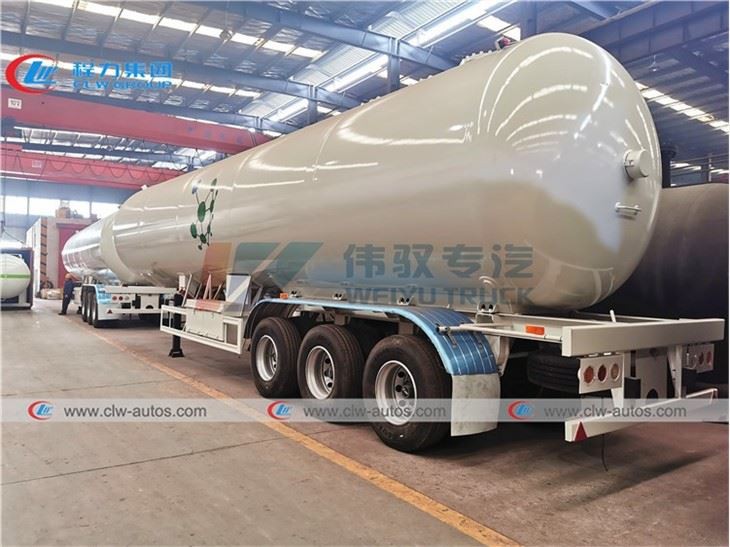

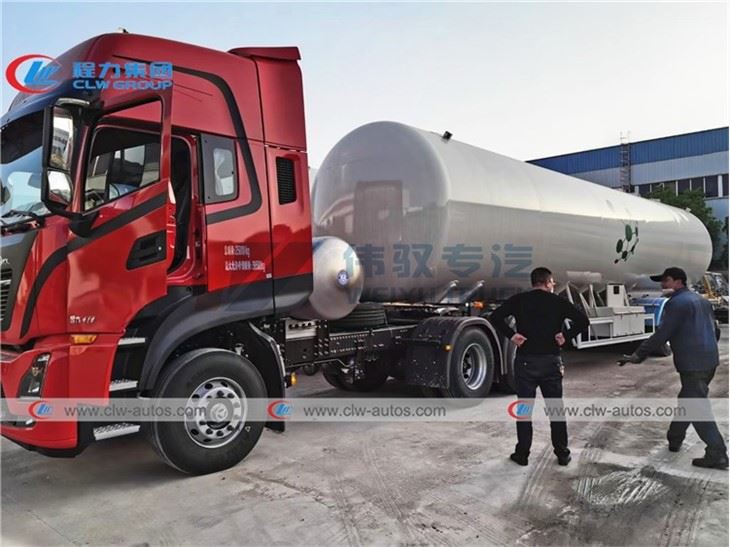

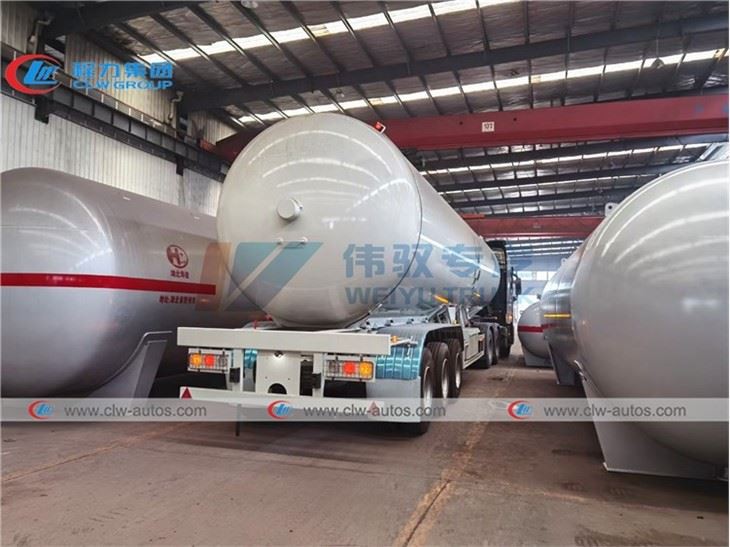

Reference picture

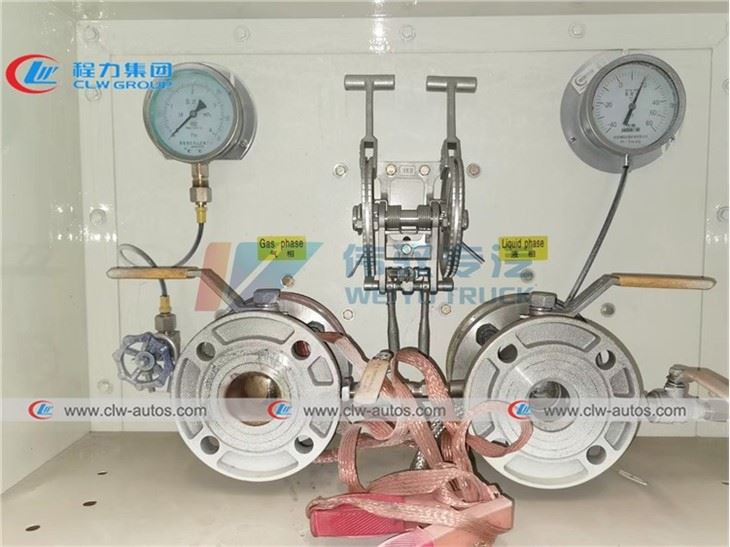

★Flange type DN50 2" vapour phase and DN80 3" liquid phase of lpg road tanker truck for Nigeria market
Drawing
Specification
Tanker Essential Information | |
Volume of Tank (cbm) | 61.9 |
Overall Dimensions(L*W*H)(mm) | 13350*2550*3995 |
Tank Dimensions(Inner Diameter*thickness*Length) | 2500*12*13070 |
Estimated Tare Weight (kg) | 16250 |
Payload(kg) | 26000 |
Total Weight(kg) | 42250 |
Wheelbase(mm) | 7230+1310+1310 |
Shell of Tanker | |
Products | Liquefied Petroleum Gas (propane) |
Fluid Property | Flammable |
Design Temperature(℃) | -19℃~50℃ |
Design Pressure(MPa) | 1.61 |
Corrosion Allowance(mm) | 1.00 |
Weld Joint Factor | 1 |
Major Materials of Bearing Pressure | Tanker body:Q345,12mm, |
End plate：Q345R,14mm,double ellipse | |
Main beam:16Mn | |
Detection | |
Heat Treatment | Overall treatment in a furnace,600℃ to 640 ℃ |
Flaw Detection | 100% Flaw detection |
Hydraulic Test(MPa) | 2.21 |
Manhole (As Customer’s Requirement) | |
Quantity | 1;on top,DN450 |
Safety Valve(As Customer’s Requirement) | |
Quantity | 2 |
Location | On the top of tanker |
Size | DN50 or As Customer’s Requirement |
Level Gauge 3*13T Fuwa | |
Type | Manuel rotation type |
Location | At the rear of the end plate |
Running System | |
Axles | 3*12T FUWA brand |
Tire | 12R22.5 Tubeless tire ,12 pcs with one spare tire |
Landing leg | JOST |
King Pin | #50 or #90 |
Control System | |
Emergency Cut-off Valves | 2 pcs,1 for liquid phase and 1 for vapour phase |
Ball Valve | 4pcs,can be discharged and loading at two sides. |
Thermometer | 1 |
Pressure Gauge | 1 |
Accessories | |
Tool Box | 2 |
Wheel Carrier | 1 |
Fire Extinguisher | 2 |
Fender | 2 |
Paint | As Customer’s Requirement |
Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels | |
