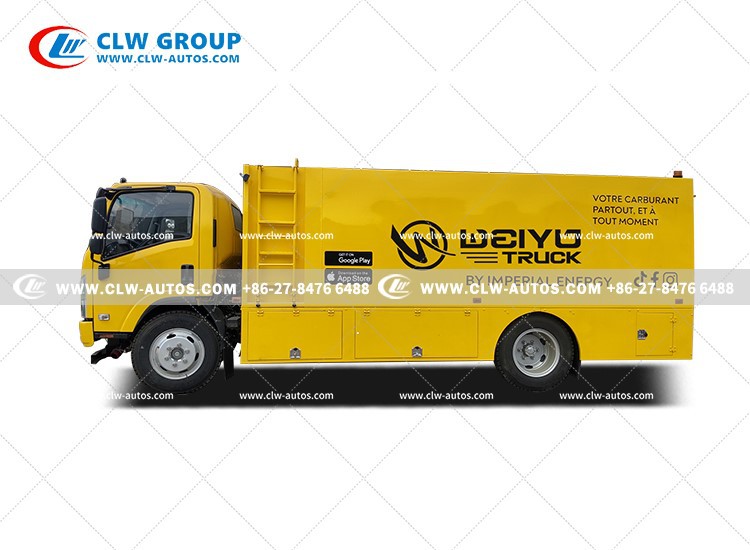

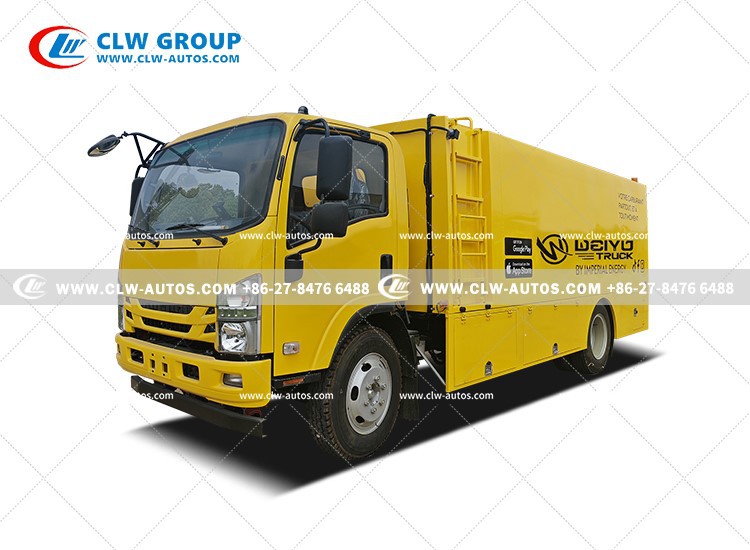

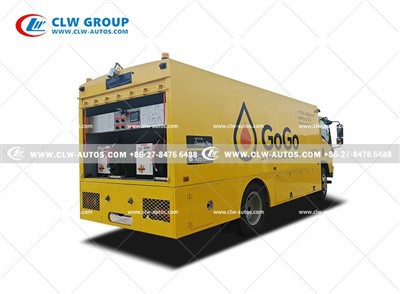

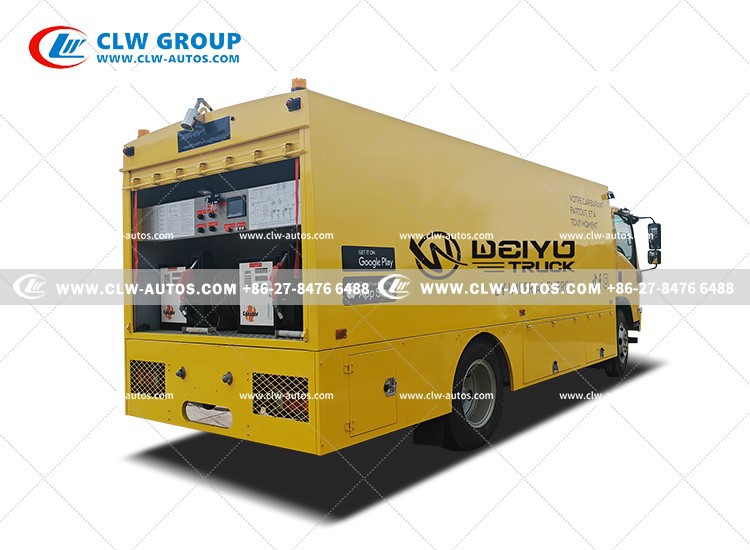

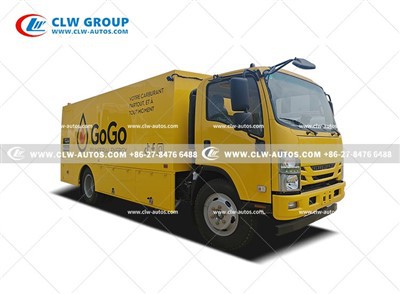

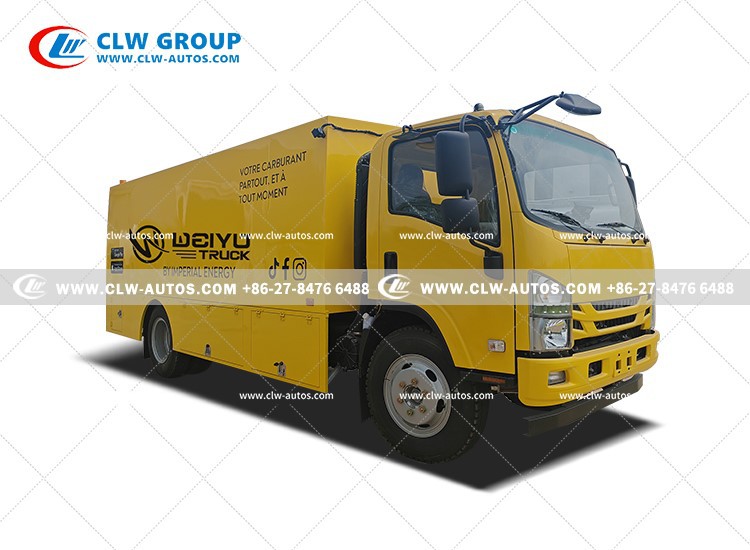

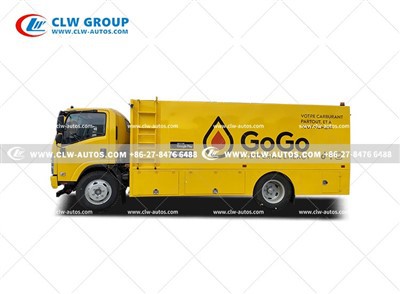

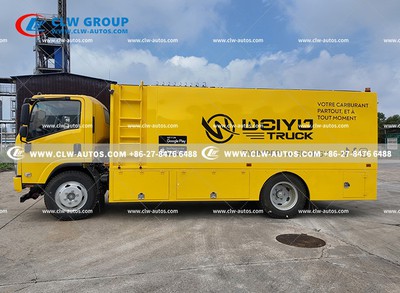

ISUZU 6000Liter CAFU Fuel Refueling Truck
Truck brand:ISUZU Truck
Wheelbase:3815mm
Two Separate Tank Capacity: 3000 Liter with 3000 Liter
Engine:4HK1-TCG61, 190HP
Two sets pump and two sets fuel dispensr
Control panel at rear side
ISUZU 6000Liter CAFU Fuel Refueling Truck- Diesel & Gasoline Delivery Service
Products Description
The CAFU (Car And Fuel Unit) fuel dispenser truck is an innovative mobile refueling solution designed to deliver fuel directly to customers' locations. Its engineering integrates safety, efficiency, and smart technology.
CAFU's dual-compartment design maximizes productivity, safety, and sustainability-critical for modern fuel logistics. Companies like CAFU (UAE) and Booster Fuels (USA) use such systems to cut costs by ~20% and boost service speed by 30%+ versus traditional trucks.
Mobile Fuel Storage & Dispensing System
- Specialized Fuel Tanks: Equipped with leak-proof, compartmentalized tanks (for gasoline, diesel, etc.), compliant with API/NFPA safety standards.
- Precision Metering: High-accuracy flow meters and IoT sensors ensure real-time fuel measurement, with data synced to a digital platform.
- Automated Pumping System: Uses electric/hydraulic pumps with adjustable pressure to fit different vehicle fuel tanks.
- Smart Logistics & Routing
- AI-powered dispatch system optimizes delivery routes based on real-time demand (via GPS tracking).
- Cloud-connected fleet management for dynamic scheduling.
- Safety & Environmental Protection
- Explosion-proof electrical systems (Class I, Division 1 hazardous area compliance).
- Emergency shutoff valves to stop fuel flow in case of accidents.
- Vapor recovery systems to minimize emissions during refueling.
- User Interaction & Payment
- Onboard digital POS/contactless payment (NFC, QR codes) linked to CAFU's mobile app.
- CAFU's dual-compartment design maximizes productivity, safety, and sustainability-critical for modern fuel logistics. Companies like CAFU (UAE) and Booster Fuels (USA) use such systems to cut costs by ~20% and boost service speed by 30%+ versus traditional trucks.
Core Functions and Advantages
Core Functions
1. On-Demand Fuel Delivery
Private Vehicles: Enables scheduled doorstep refueling for individual car owners, eliminating trips to gas stations.
Corporate Fleets: Services logistics companies, taxi fleets, and rental car operators with bulk fuel delivery to reduce downtime.
2. Emergency Fuel Supply
Supports critical operations (e.g., hospitals, emergency responders) during power outages or natural disasters.
Rescues stranded vehicles in remote areas or on highways.
3.Industrial & Off-Grid Solutions
Construction/Mining: Fuels heavy machinery and generators at remote job sites.
Agriculture: Delivers diesel/petrol directly to farms for tractors and equipment.
4.Event & Temporary Services
Powers generators at outdoor events (festivals, sports games, film sets).
Supplies fuel to temporary facilities like mobile clinics or military camps.
key Advantages
1. Enhanced Efficiency & Flexibility
1.1 Simultaneous Multi-Fuel Delivery
CAFU Truck: Two compartments allow carrying two fuel types (e.g., gasoline + diesel), enabling dual-nozzle refueling for different vehicles at once.
1.2 Faster Turnaround Time
CAFU Truck: Two dispensers can refuel two vehicles simultaneously, cutting wait times for
CAFU Truck: Features dual emergency shutoff valves (one per compartment) and vapor recovery systems to prevent spills/cross-contamination.
2. Smart & Automated Operations
2.1 Precision Metering & IoT Integration
CAFU Truck: Each dispenser has independent flow meters + IoT sensors, ensuring real-time tracking of fuel consumption per transaction.
2.2 Automated Safety Controls
CAFU Truck: Features dual emergency shutoff valves (one per compartment) and vapor recovery systems to prevent spills/cross-contamination.
Primary Applications
The CAFU truck serves multiple sectors by eliminating the need for traditional gas stations:
On-Demand Fuel Delivery
- Private Vehicles: Scheduled refueling at homes/offices, ideal for time-sensitive users.
- Fleet Operators: Cost-effective fueling for logistics, taxis, or rental car companies.
Emergency Fuel Supply
- Supports hospitals, disaster relief teams, and stranded vehicles during power outages
Remote & Industrial Use
- Construction/Mining: Fuels heavy machinery in off-grid sites.
- Agriculture: Direct delivery to farms for tractors/equipment.
Event & Temporary Services
- Powers generators at outdoor festivals, sports events, or film sets.
Data-Driven Optimization
- Analyzes consumption patterns to improve inventory and routing efficiency.
Products Specification
| Overall Dimension | 6800 x 2400 x 2550 mm |
| Gross Vehicle Weight | 11000 kg |
| Curb weight | 5500 kg |
| Loading Weight | 6510 kg |
| Wheel Base | 3815mm |
| Front overhang | 1110mm |
| Rear overhang | 2022mm |
| Front wheel track | 1680mm |
| Rear wheel track | 1650mm |
| Cabin | 2 or 3 Passenger Allowed, with A/C, centrl locking, electric windows and multi-function steering wheel. |
| Engine | Diesel Engine
4HK1-TCG61
Watering Cooling, Four Stroke, 4 Cylinder in Line, Direct Injection |
| Horse Power/Emission | 190HP/Euro 6 |
| Gearbox | Manual, MLD,6 Forward & 1 Reverse Gear |
| Axle | 4000kg Front Axle, 7000kg Rear Axle |
| Max Driving Speed | 90 km/h |
| Tire | 235/75R17.5, 6 pieces with 1 spare tire |
| Tank Capacity | 6,000 Liters with 2 compartments |
| Tank Material | Q235 carbon steel, 5mm thickness Tank color and design can be customized |
| External box structure | Rear operation room equipped with aluminum alloy rolling shutter door and 2 pull straps |
| Manhole cover | 2 sets API manhole cover |
| Truck mounted dispenser | Dispenser with receipt printer, 2 sets mounted in the rear operation room |
| Oil Filling System | Bottom gravity discharge Oil Flow Meter,1 Unit Oil filling pump, 1 Unit Standard tool box 1 Unit |
Factory Real Shot Video for You
More details

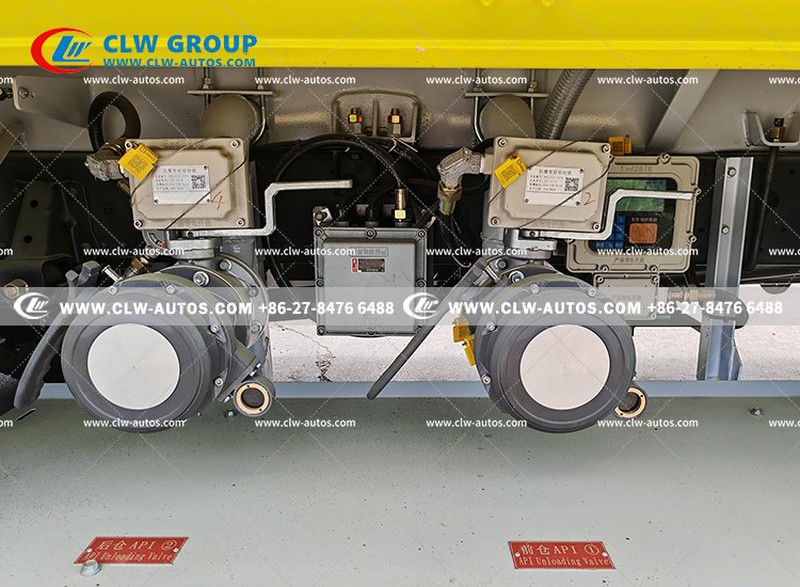

API discharging port
Tamper Prevention - Smart electronic seals detect and log unauthorized access attempts to fuel compartments.
Regulatory Compliance - Meets API standards for secure fuel transfer operations
Two unit oil pump in & out
1. Pump-Out Function (Offloading Fuel)
Tank-to-Ground Transfer: Safely unloads excess fuel from vehicle tanks to storage tanks using sealed, pressurized pumping.
Emergency Drainage: Quickly empties compartments during maintenance/leak scenarios.
2. Pump-In Function (Loading Fuel)
Ground-to-Tank Refill: Pulls fuel from depot storage into truck tanks with metered precision.
Cross-Compartment Balancing: Adjusts fuel distribution between compartments during operations.
Operation control panel
You can easily do the operations by the control panel.
We can also take operation video to teach new user step by step.
Two units Censtar Fuel dispenser
Simultaneously refuels 2 vehicles (e.g., fleet trucks + passenger cars)
Cuts wait times by 50%+ compared to single-nozzle systems
Hubei CHENGLI Automobile Group is a large automobile manufacturing enterprise designated by the Ministry of Industry and Information Technology of China for producing various special vehicles.
The company is located in SUIZHOU City, HUBEI Province, and has employs over 7,000 people, including more than 500 technical personnel and over 1,800 skilled workers.
The company has an annual production capacity of 7,000 special vehicles.
Through professional vocation technical training, it annually provides society with over 500 automotive talents, making it a well-deserved incubator in the domestic special vehicle field.
