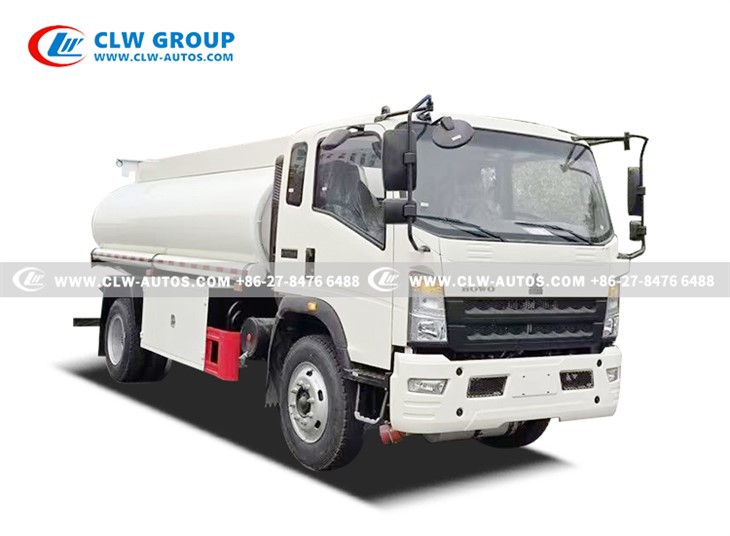

Sinotruk 10m3 Oil Tank Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk 10m3 oil tank truck in China. If you're going to buy high quality sinotruk 10m3 oil tank truck, welcome to get more information from our factory. For price consultation, contact us.

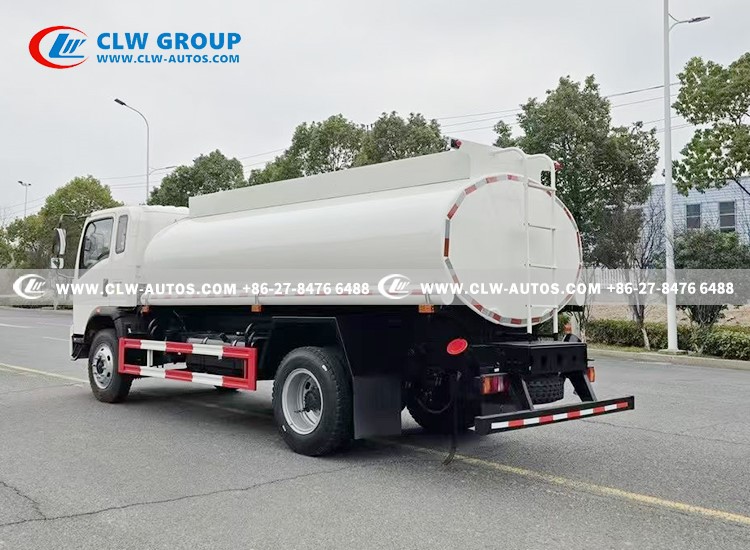

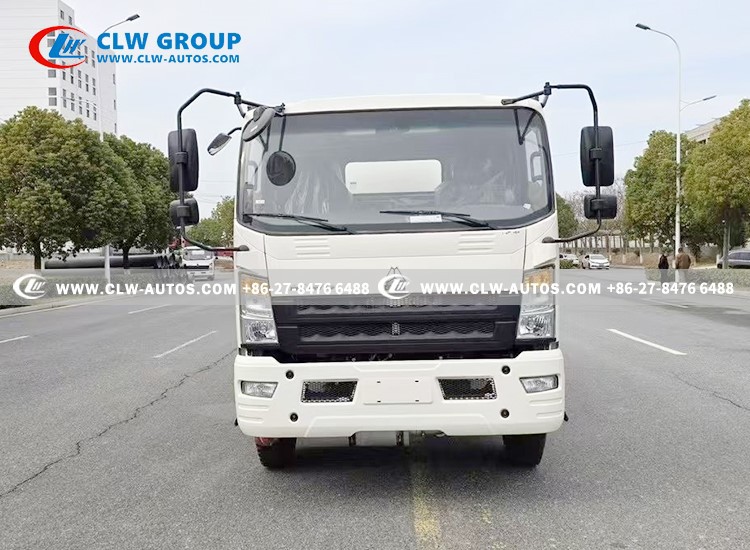

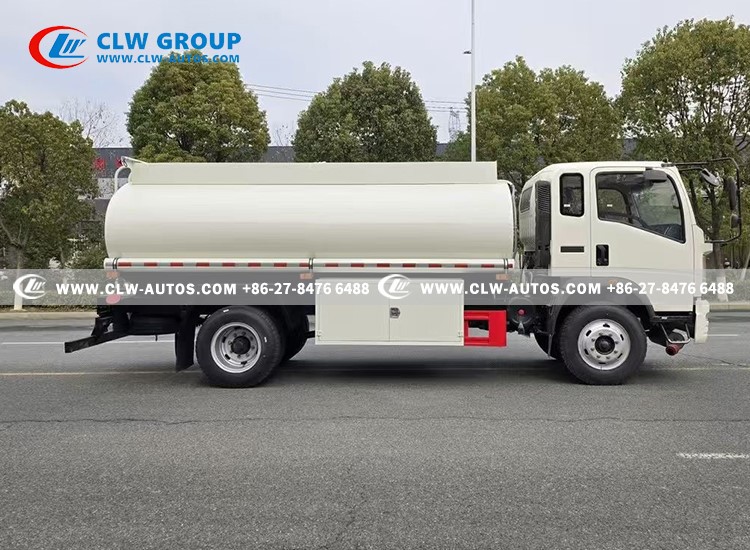

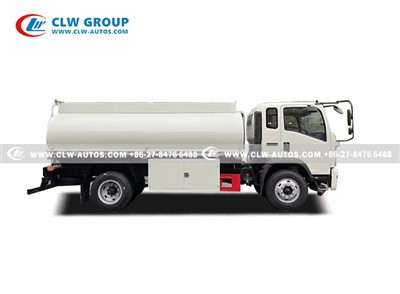

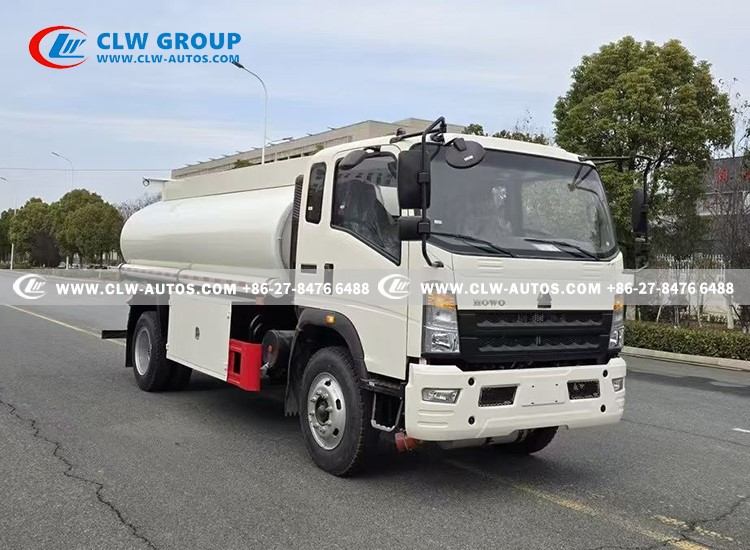

Sinotruk HOWO 4X2 6Wheels 10CBM / 10,000Liters Oil Tank Truck / Fuel Tank Truck





1. Oil Tank Truck: Also referred to as a mobile refueling vehicle, computerized tax-controlled fuel truck, fuel transport trailer, oil carrier, or petroleum transport vehicle, it is primarily designed for the transportation and storage of petroleum derivatives (e.g., gasoline, diesel, crude oil, lubricants, and coal tar).



2. Versatile Fuel Handling Capabilities: Depending on specific applications and operational environments, these trucks are equipped with multifunctional features such as fuel suction, pumping, multi-compartment loading/unloading, and segregated oil distribution. The specialized components of a fuel transport truck include:

• Tank body
• Power take-off (PTO)
• Drive shaft
• Gear oil pump
• Pipeline network system (comprising an oil pump, 3-way/4-position ball valve, bidirectional ball valve, filtration screen, and piping).

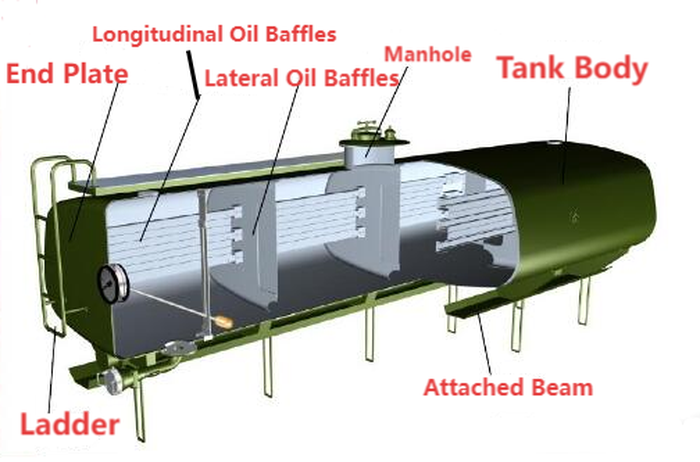

1. The cross-section of an oil tank can be elliptical, trapezoidal-rounded, rectangular-rounded, etc. It is generally constructed by welding carbon steel plates and serves as the oil storage container for oil tankers. Depending on the transported medium, materials such as stainless steel or aluminum alloy may also be used.



2. The interior of the oil tank is equipped with longitudinal partition plates, while the top of the tank is fitted with protective plates, platforms, and other components. It also includes access holes, inspection holes, and vent valves. The bottom of the oil tank is designed with a sedimentation trough.



1. Lateral oil baffles and longitudinal oil baffles (also called anti-surge plates) function to minimize oil sloshing during vehicle operation.

2. Manhole: Located on the top for oil filling and providing access for personnel to perform maintenance and inspections inside the tank.

3. Attachment beams: Welded to the tank body and securely mounted to the chassis longitudinal beams using U-bolts or connection lugs for reliable installation.

4. Ladder: Provides convenient access to the top of the oil tank.

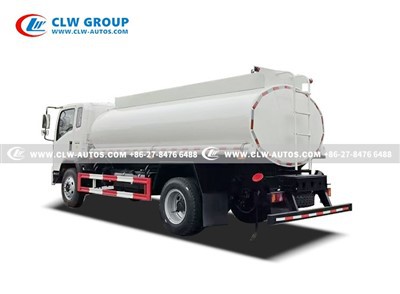

HOWO 10m³ Fuel Tank Truck
Chassis Model	ZZ112
Driving Model	4x2
Cab	Left Hand Driving With one sleeper With air conditioner Central lock Steer Assistance Electric Window
Wheel Base	4200 mm
Axle Loading (front/rear)	3200 / 8000 kg
External Dimensions (L x W x H)	8500×2500×3000 mm
Loading weight (Kg)	10,000 kg
Approach / Departure Angle	20/12°
Max. Driving Speed	105 km/h
Engine	Model: YC4E140-33
	YUCHAI diesel engine, 4 cylinders in a line, Water cooled,turbocharged,after cooled , cold start.
	Horse Power: 140hp
	Emission standard: Euro 2
	Displacement: 4257 ml
	Max. Torque: 500 N.m
Gearbox	Manual type 6 forward & 1 reverse
Clutch	Reinforced diaphragm clutch
Tire	8.25R20 16PR
	6 Pcs with 1 spare tire
Fuel Box	220L /steel material
Fuel Tank Specification (10m3)
Fuel Tank Capacity	10m3
Tank Thickness	5mm of tank and 5mm of end plate
Tank Material	Carbon steel / Stainless carbon / Aluminum alloy
Compartment No.	1
Fuel Dispenser	2 sets, flow rate at 70L/min English operation panel Showing unit price / Filling volume / Total price
Oil Pump	2 Nos of 2.5" oil pumps, driven by PTO Independent pump in and pump our for each compartment
Filling Hose	1 inch and 15 meters
Filling Hose Reel	2 Nos
Filling Nozzle	2 Nos
Manhole Cover	2 sets with breath valves
Bottom Valve	2 sets of APL aluminum pneumatic bottom valves
Level Gauge	Each tank top is equipped with an electronic level meter
Operation Compartment	Located at rear of truck with aluminum alloy door
Control System	Power on/off Lighting Fuel pump on/off Fuel dispenser on/off Main valve on/off Fuel level digital display
