Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of HOWO 4WD 10m³ Lube Refueler Truck in China. If you're going to buy high quality HOWO 4WD 10m³ Lube Refueler Truck, welcome to get more information from our factory. For price consultation, contact us.

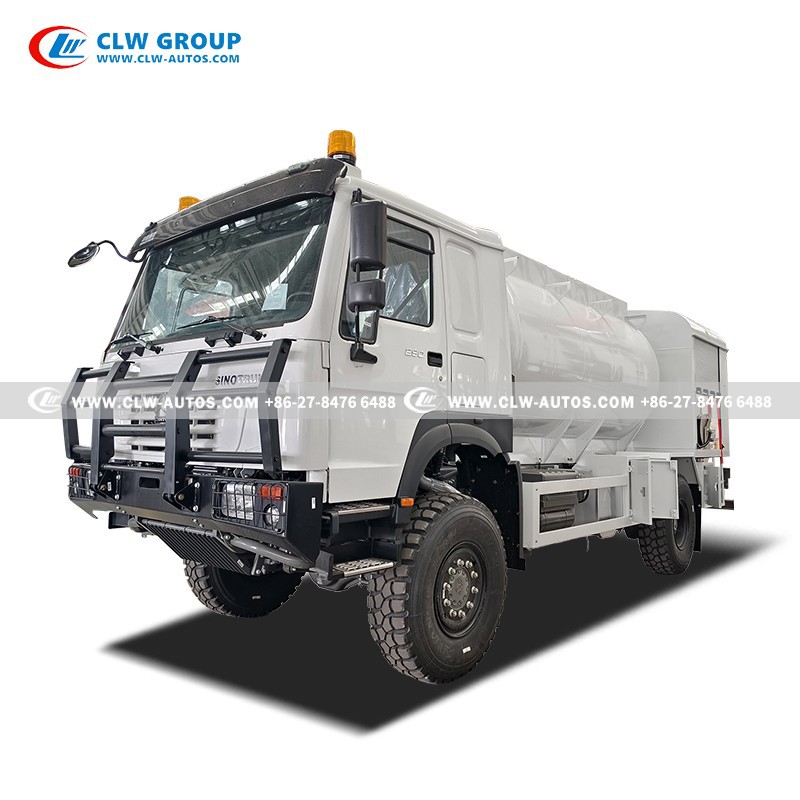

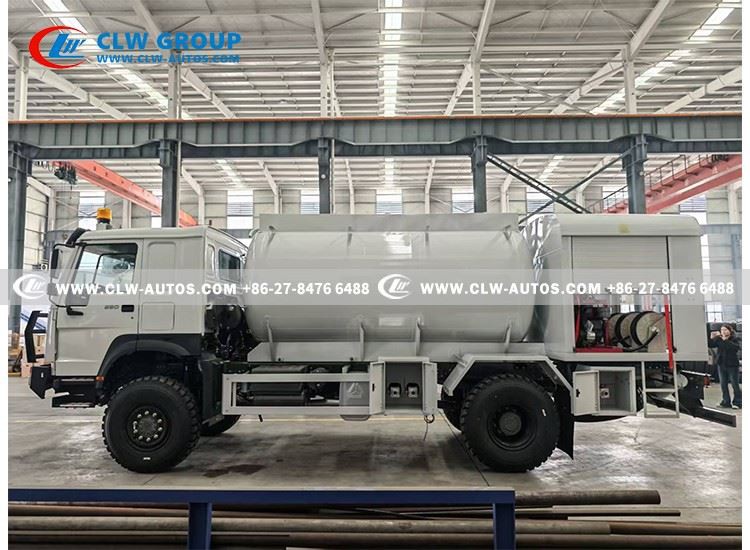

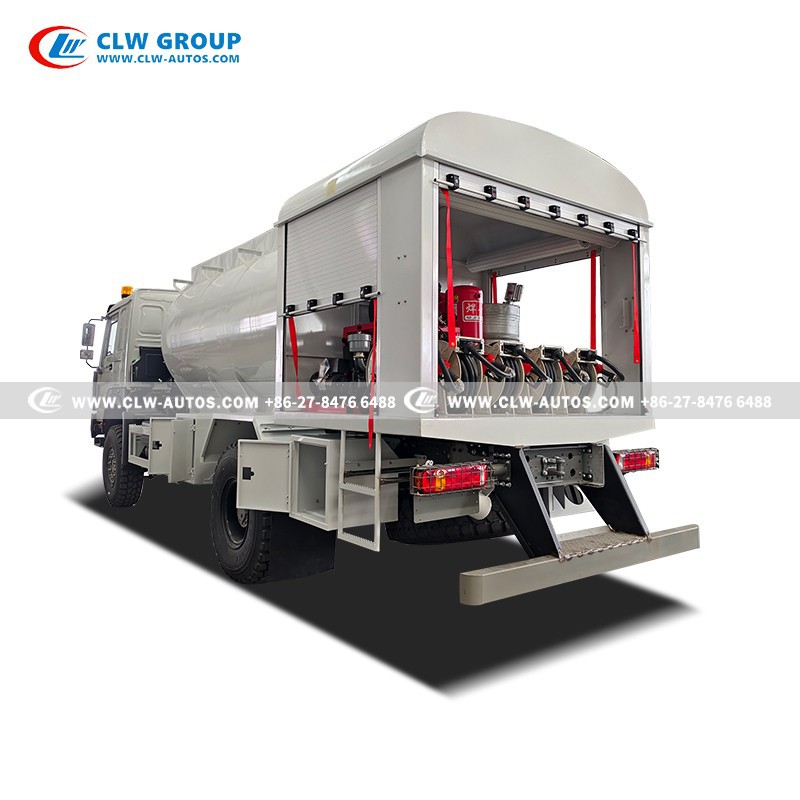

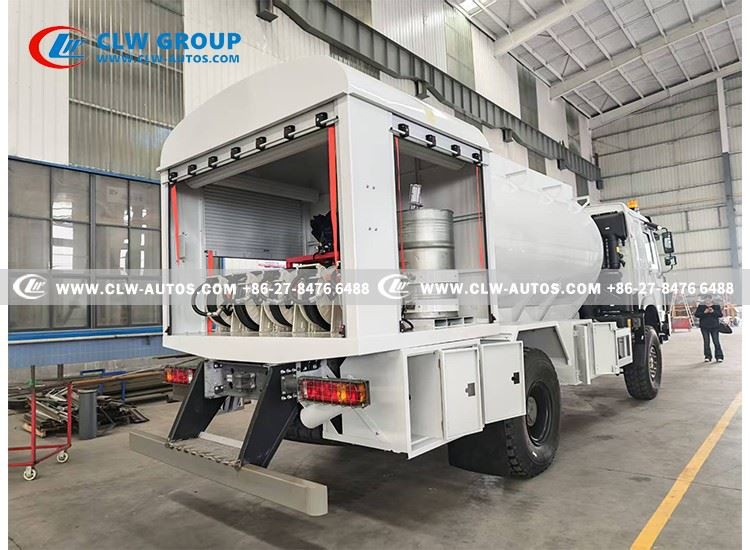

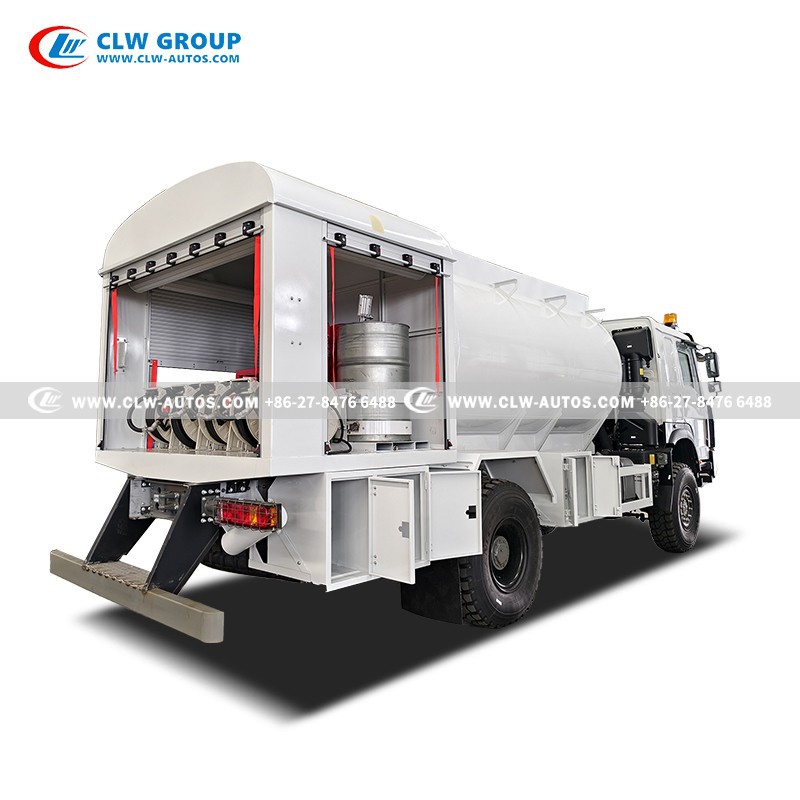

HOWO 290hp All-Wheel Drive Lubrication Dispensing Truck
4×4 Mobile Lubrication Truck – Your All-in-One Field Energy Supply Solution!
This 4×4 mobile lubrication truck is built on a robust HOWO off-road chassis, designed to act as a fully self-contained field maintenance and energy supply station. It integrates a large-capacity multi-compartment tank, a diesel-driven air compressor unit, and a complete set of metered dispensing systems, enabling reliable operation in remote construction sites, mining areas, and other off-grid environments without relying on external power sources.
The vehicle's core system consists of two dedicated fluid storage modules: a main tank for bulk storage of diesel, engine oil, gear oil, and hydraulic oil, and a separate small tank for high-viscosity grease, antifreeze, and cleaning fluid. Paired with automatic retractable hose reels and precision metering dispensing guns, it allows operators to efficiently and accurately deliver various fluids to mobile construction machinery, significantly reducing downtime and improving on-site maintenance efficiency.
Powered by a Changchai ZS1115 diesel engine, the on-board air compressor provides high-pressure air to drive pneumatic grease pumps and dispensing valves, while the ergonomic air suspension seat ensures driver comfort during long-distance field operations. This all-in-one solution combines mobility, versatility, and reliability, making it an essential asset for modern field logistics and equipment maintenance.
Keywords:
Mobile Lubrication Truck / Energy Supply Truck / 4×4 Off-road Chassis / Multi-compartment Tank / Diesel Air Compressor / Metering Dispensing Gun / Pneumatic Grease System / Automatic Hose Reel / Field Maintenance / Air Suspension Seat
Product Name: HOWO 4×4 mobile lubrication truck
Application: Dispense various oils and grease
Cab: One row and half cabin, LHD, A/C
Wheelbase: 4600 mm
Engine: WD615.87
Horsepower: 290HP
Emission standard: Euro II
Gearbox: 10 Forwards and 2 reverse
Gross Vehicle Weight: 16000 kg
Curb weight: 9700 kg
Loading weight: 6970 kg
Front/Rear Axle loading: 6000kg /10000kg
Tires: 14.00R20, 4 pcs with one spare
Fuel Tank: 400L steel material
|
Super Structure Specification |
|
|
Lubricating Tank |
|
|
Tank volume |
10-12m³ |
|
Independent compartments |
Divided into 5 compartments |
|
Tank material |
Q235 Carbon steel with anti-corrosion coating |
|
Tank thinkness |
6mm of tank and 6 mm of end plate |
|
Tank shape |
Cylinder Type |
|
Loading medium |
Diesel, engine oil, gear oil, hydraulic oil, antifreeze/washing fluid |
|
High-Pressure Grease System |
|
|
Grease storage barrel
|
|
|
Pipeline & Dispensing System |
|
|
Tank valves
|
|
|
Pipeline material |
High-pressure oil-resistant pipeline |
|
Reel |
Automatic retractable hose reels |
|
Filling method |
Pneumatic drive |
|
Dispensing Guns |
|
|
Red Dispensing Gun
|
|
|
Silver measuring gun
|
|
|
Air Compressor System |
|
|
|
|
|
Auxiliary Engine |
|
|
Engine type |
Diesel engine |
|
Engine model |
Changchai ZS1115 Single Cylinder Diesel Engine |
|
Rated power |
16.2 kW / 2200 r/min |
|
Emission |
Euro II |
|
Function |
Drives V-type twin-cylinder air compressor, supplies high-pressure air for pneumatic lubrication system |
|
Advantage |
Independent power for field & remote operation |
Designed with separate storage, it delivers high-pressure grease and standard oils to field machinery in one trip!
All-Wheel Drive Chassis
Type: 4x4 off-road heavy-duty chassis
One row and a half cab
Equipped with a truck radio
Front Bumper Guard,protects front-end components
Suitable for remote mines & construction sites

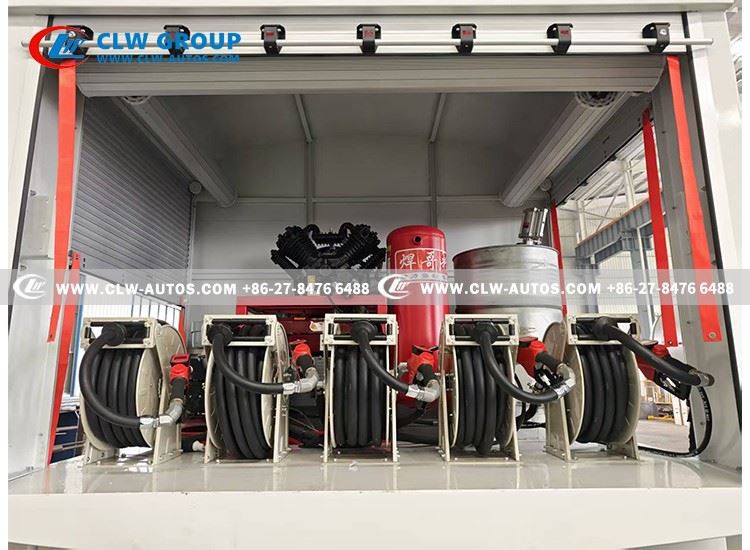

Electric Metering Dispensing Gun
5 sets guns for 5 tank compartments
Digital display, precise dosing
Compact design, easy to carry
For high-viscosity fluid, wide application
Clear reading, easy to record
Equipped with an automatic reel
High-Pressure Metering Dispensing Gun
High-Pressure Metering Dispensing Gun
Accurate metering, manual control
For grease & hydraulic oil
Auto-retractable hoses
Strong metal body
Easy lever operation
Simple structure, low failure
Independent Grease Barrel
Compact independent barrel for grease
Built-in air pump for high-viscosity grease
Prevents sedimentation
Works with metering gun for precise filling
Perfect for machinery lubrication
Auxiliary Engine
Drives air compressor for high-pressure air
Powers pneumatic lubrication system
No external power needed
Works reliably in remote areas
Stable Changchai diesel engine
Ensures long field operation
Diesel-Powered Mobile Air Compressor Unit
V-type twin-cylinder piston compressor
Provides stable high-pressure air
Drives pneumatic lubrication system
Diesel-powered, no external power
Suitable for remote field work
Integrated air tank for steady output
Heavy-Duty Tow Hook
Frame / Chassis Mount
High-Strength Carbon Steel
Towing, recovery and trailer coupling
Other Accessories
Roller shutter door,protect thel equipments
Rear Combination Lamp with cover
Dry Powder Fire Extinguisher
Rear Bumper Guard
Side access ladder
Spare Tire Carrier
There are various modes of transportation for you to choose from!
