Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 15,000liters 7.5mt cooking gas cylinder filling tank plant 15cbm lpg skid station in China. If you're going to buy high quality 15,000liters 7.5mt cooking gas cylinder filling tank plant 15cbm lpg skid station, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1--LPG Skid Station for cooking gas refilling in home use cylinder in different size;
2--One Station with 2 Function: Truck Discharging & Cylinder Refilling with 1 Pump;
3--Digital Filling Scale with Auto Filling Cut-off, Thousans of Record Keeping, net & Gross Filling;
4--Pump: Vane Pump & Coro-Flo Pump, Turbine Pump, Corken or Blackmer Brand;
5--Motor: ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW;
6--Pipeline: 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves;
7--Explosive Proof Central Control Panel for whole station system;
8--Other Equipment: Sunshade for filling area, Leakage Detector.
Product Specification
General Parameter | |||
ITEM | PARAMETER | ITEM | PARAMETER |
Volume | 15cbm | Thickness of Shell | 10mm |
Tank Material | Q345R | Thickness of End plate | 12mm |
Overall Size | 6224*1820*2410 mm | Tank Net Weight | 3920 kg |
Tank Diameter | 1800mm | Loading Capacity | 7125 kg |
Design Pressure | 1.77Mpa | Gas Density | 420-550kg/M3 |
Hydraulic Test Pressure | 2.22Mpa | Corrosion Allowance | 1mm |
Design Temperature | -20ºC~60ºC | Heat Treatment | Bulk |
Vapor Outlet | DN50 | Gas Outlet | DN50 |
Life time | 20 years | ||
Accessories | |||
Model | Item | Qty | Junction surface |
J41N-2.5-50 | Stop Valve DN50 | 6 | RF |
J41N-2.5-25 | Stop Valve DN25 | 2 | RF |
J41N-2.5-80 | Stop Valve DN80 | 1 | RF |
J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | |
HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF |
A42F-25-80 | Safety Valve DN80 | 1 | RF |
Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | |
WTQ-280 | Thermometer M33*2 2.5 degree | 1 | -40ºC~60ºC |

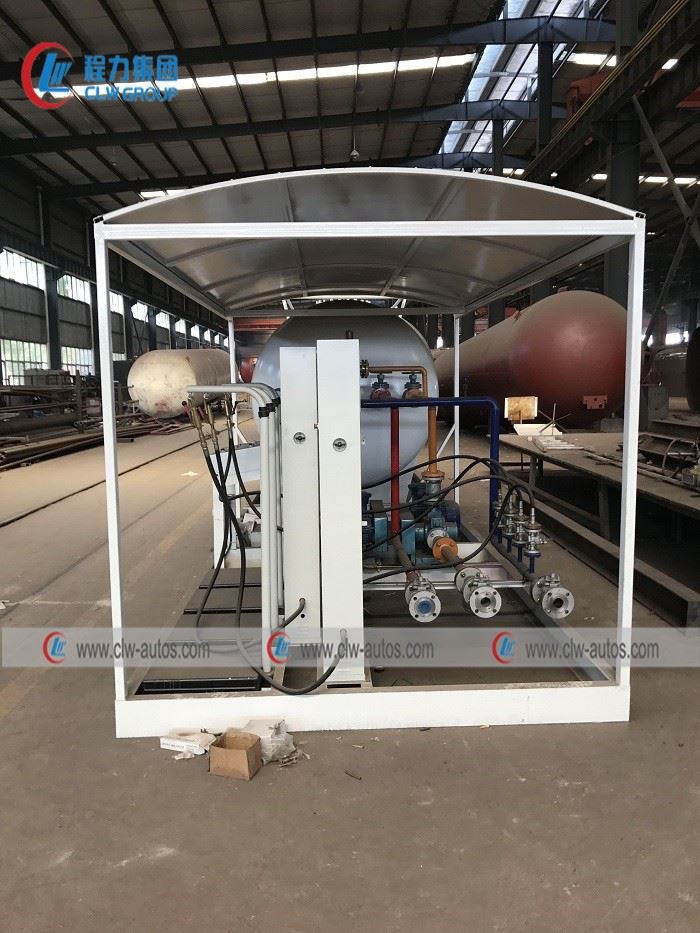

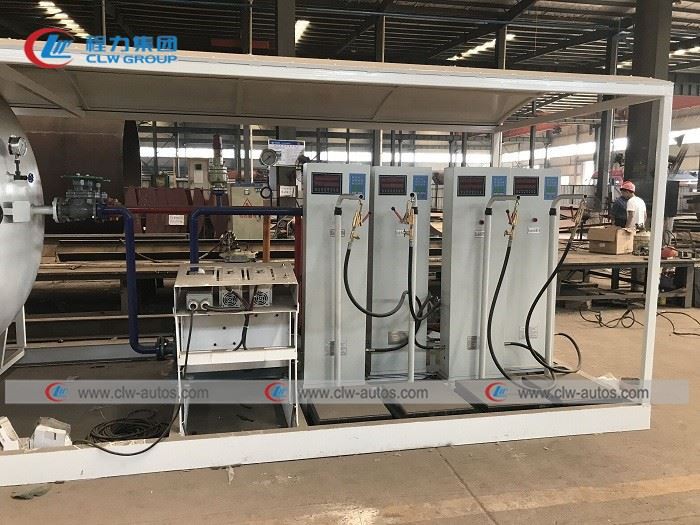

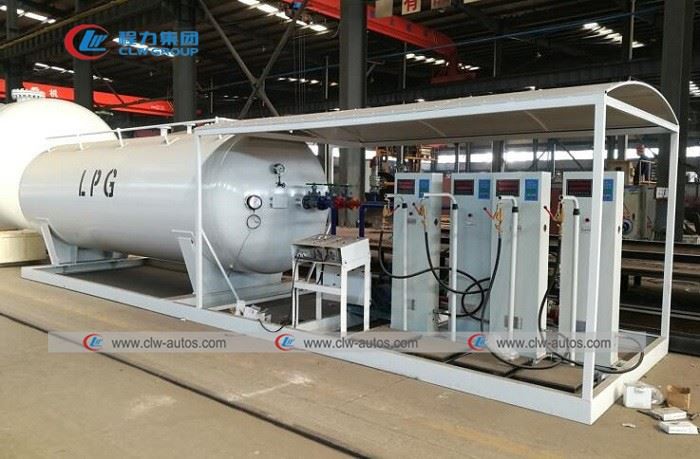

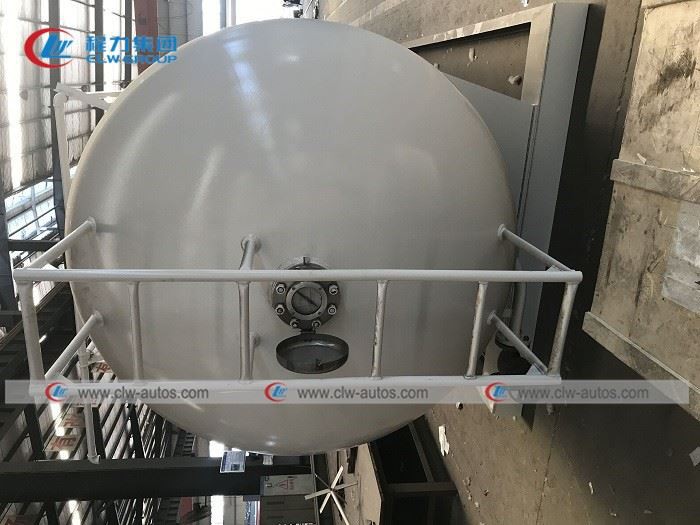

Reference Photos
Factory Introduction:
Hubei ChengLi Special Automobile Co., Ltd., which is appointed by the Development and Reform Commission of China, is a professional manufacturer of special automobiles for landscaping, petrochemical, and environment cleanness, etc. Our company has independent export authority, with good technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation, we have attracted a lot of customer from all over the world.
l More than 10 years' experience as a manufacturer
l CCC, ISO, BV, ASME certification
l Perfect after-sale service
l Trucks covering more than 50 countries and regions
l 300 kinds of trucks and trailers
l 100 Senior welder and 15 senior engineers
l Good cooperation with 30% regular customers
l Annual production value topped 240,000,000 US dollars per year
