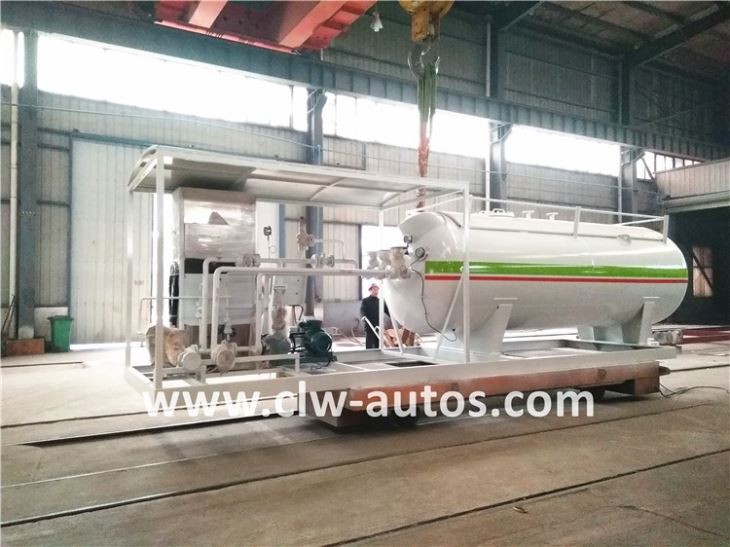

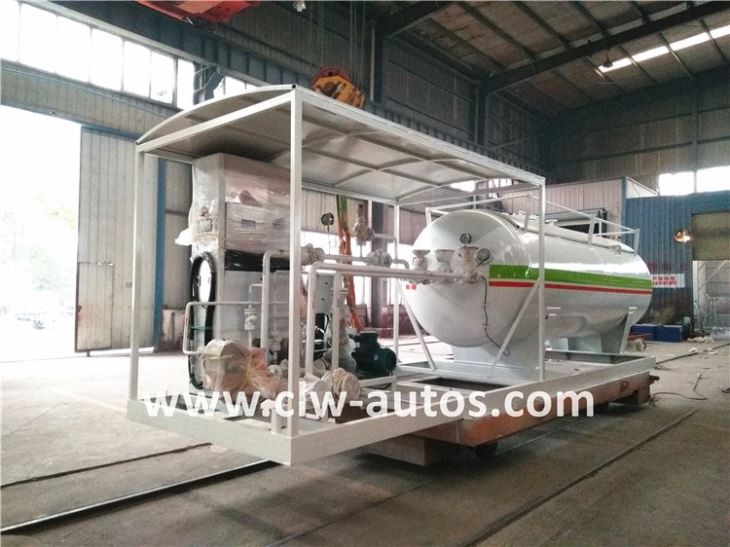

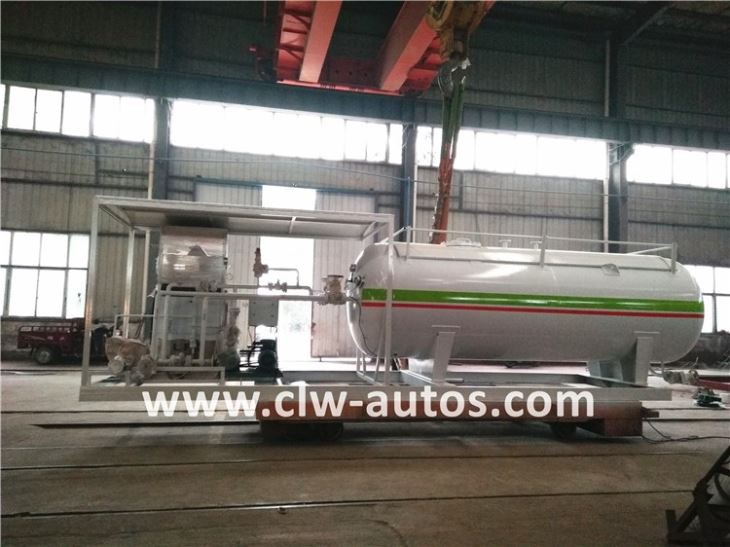

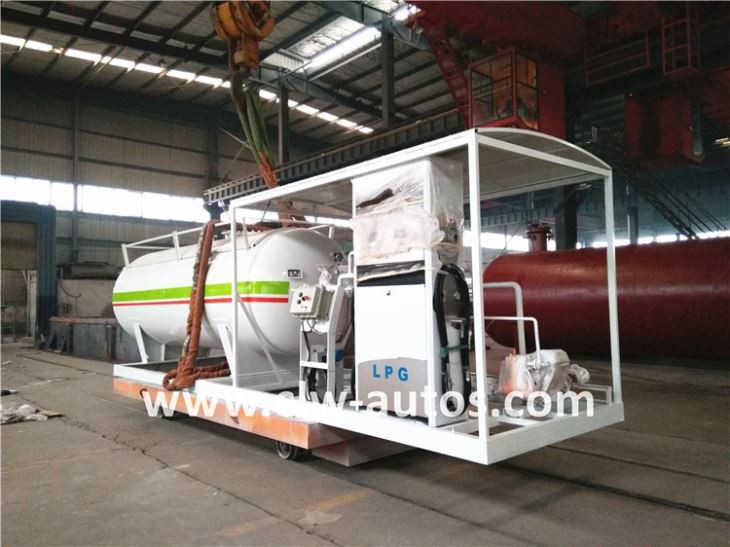

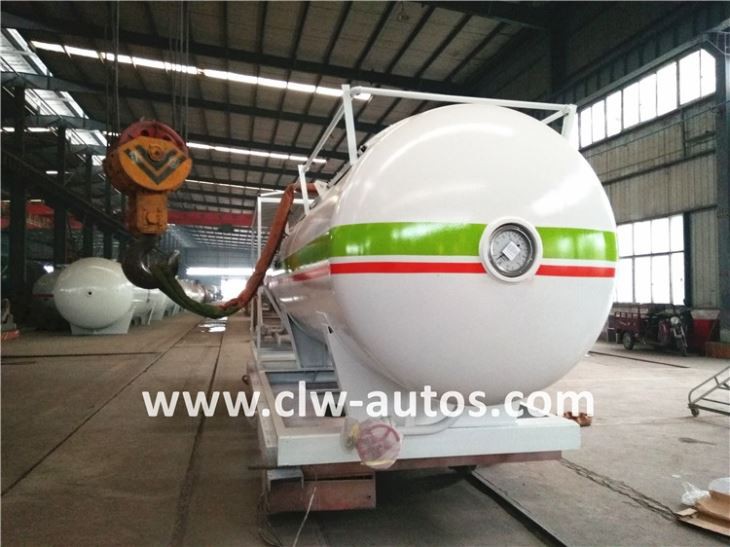

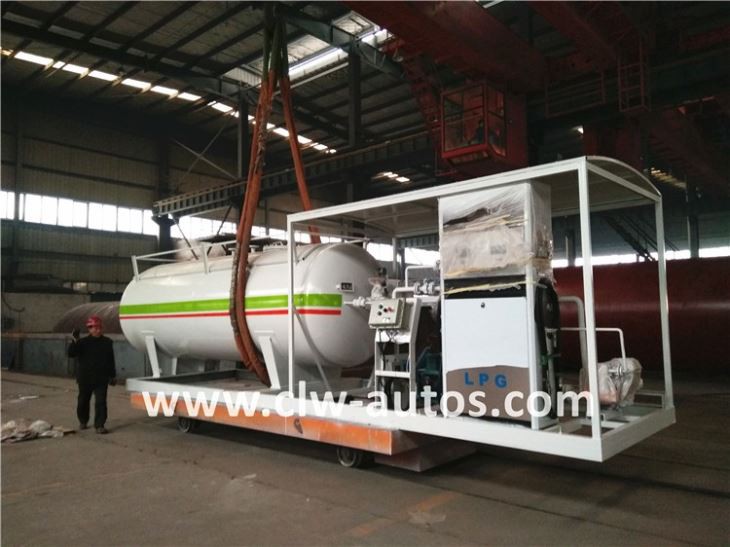

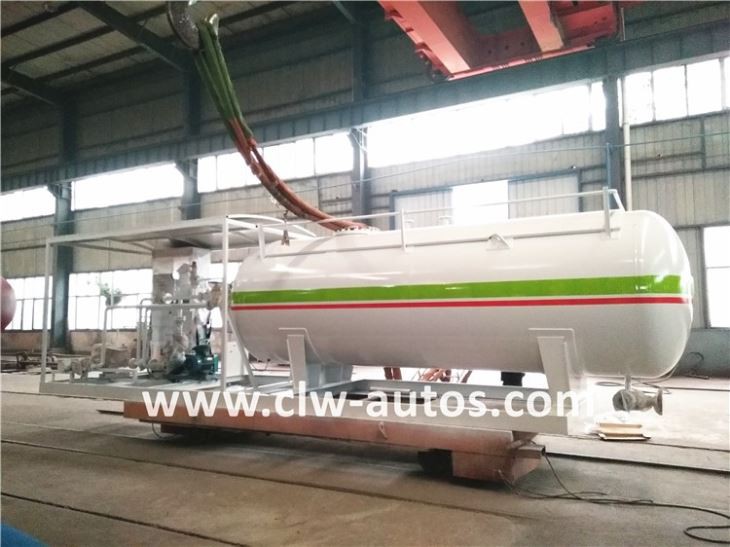

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 5tons lpg skid station in China. If you're going to buy high quality 5tons lpg skid station, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. It is used for refilling lpg cylinders in different size such as 3kg,5kg,6kg,12.5kg and 50kg.
2. It is designed with two major functions: Truck Discharging & Cylinder Refilling with 1 Pump
3. It is optional for digital Filling Scale or automated filling dispenser(single nozzle or double nozzle) with Auto Filling Cut-off, Thousands of Record store, net and Gross Filling data
4. Pump of mobile filling station is optional : Vane Pump & Coro-Flo Pump, Turbine Pump, standard is Chinese brand but you can choose Corken or Blackmer Brand.
5. Motor: standard is Chinese brand but also optional for ABB or SIEMENS Brand, Static-free, 380V 3 Phase, 5.5KW to 10KW
6. Pipeline : 2" Steel pipe with safety return valve, strainer, one-way valve, cut-off valves.
7. Explosive Proof Central Control Panel for whole 5mt lpg skid station system
8. Other Equipment : Sunshade for filling area, gas Leakage Detector,ex-proof lamp, water sprinkler system with sprinkler nozzles
Technical Specifications
Specification of 5tons 10000L Mobile Gas Station | |
Volume of Tank | 10CBM(10,000liters) 5tons |
Filling weight(Kg) | 5000 |
Thickness of Shell (mm) | 10 mm |
Thickness of Endplate (mm) | 10 mm |
Tank Diameter (mm) | 1600 mm |
Tank Dimensions (mm) (length x width x height) | 5260X1620X2210mm |
Material of Tank and Main Pressure Parts | Carbon Steel Q345R |
Filling Medium | Liquefied Petroleum Gas ( Propane) |
Design Pressure | 1.71 MPa |
Corrosion Allowance | 1 mm |
Medium Density | 500-590 kg/ cbm |
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |
How to deliver 5mt lpg skid station?
Production Process
X-ray testing for every welding line and ensure 100% qualified;
Hydraulic testing at pressure 2.21Mpa
Sandblasting before painting
Two layers of Anti-corrosion painting before final painting
Adding steel base with the tank;
Installation of pipeline,valves and other equipments
Painting of pipeline
Filling testing before delivery
FAQ:
Q1: What is your product name?
A: 10tons lpg skid station
Q2: What size of lpg skid station can you supply?
A: We can supply lpg skid station from 5cbm to 50cbm,the most popular size is 10m3 and 20m3 lpg skid station, 5tons and 10tons lpg skid station.
Q3: What’s the production standard of your lpg skid station?
A: GB-150.1~4-2011 or optional for ASME VIII Division I U STAMP
Q4: Where is your factory located? Can we visit your factory?
A: Our factory is located in Suizhou City,Hubei Province,central China,which is famous for special vehicles.You can take high speed train to Wuhan railway station,Hankou railway station or Wuhan Tianhe International Airport.
Q5: What’s your payment term?
A: 40% deposit by T/T and balance by T/T before shipment.
Q6: How many days can I get my the lpg skid station after paying deposit?
A: Usually our delivery time is 30 days.
Q7: Can you offer local installation service and local after sales service?
A: The lpg skid station can be operated after arrival and we will offer guidance video of operation.
