Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 6.8m dongfeng intelligent day old chick transport van truck in China. If you're going to buy high quality 6.8m dongfeng intelligent day old chick transport van truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
Purpose: Chick transport truck, also called poultry transport truck and chick transport truck, is made of high-quality and high-strength materials based on the chassis of van type vehicle and the internationally popular block assembly process.
Main parts: Intelligent van compartment, refrigerator unit and control system.
Features: Various kinds of chassis and refrigerated unit for your choice; This special truck has many advantages, such as rain proof, sun proof, dust-proof, anti-theft, environmental protection, high transport efficiency, more ventilation, heat preservation, large loading capacity and so on. This truck also improve the efficiency of chicken transportation and minimize the loss of chickens caused by long distance transportation.

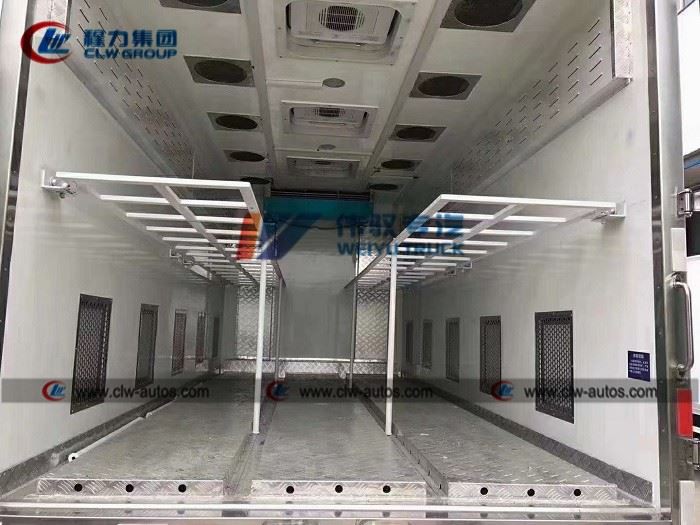

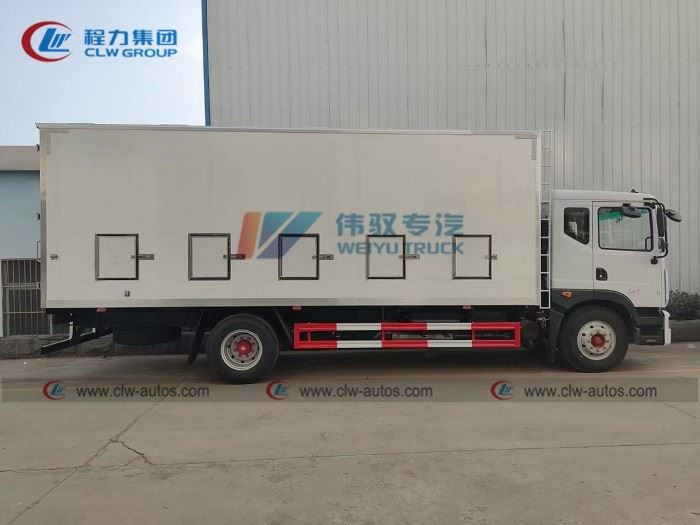

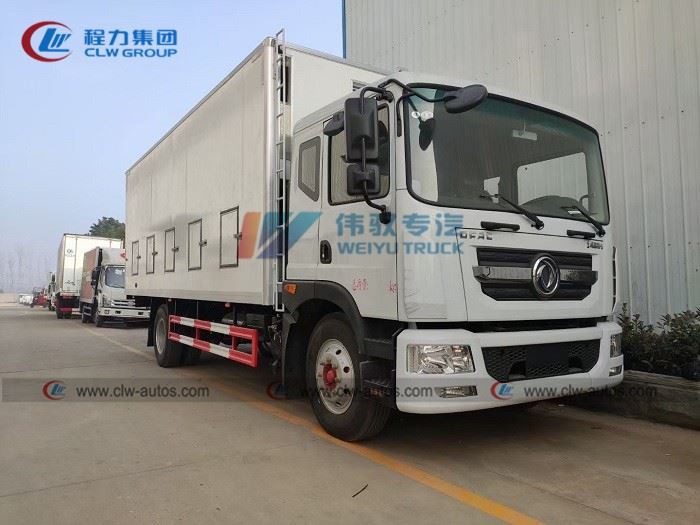

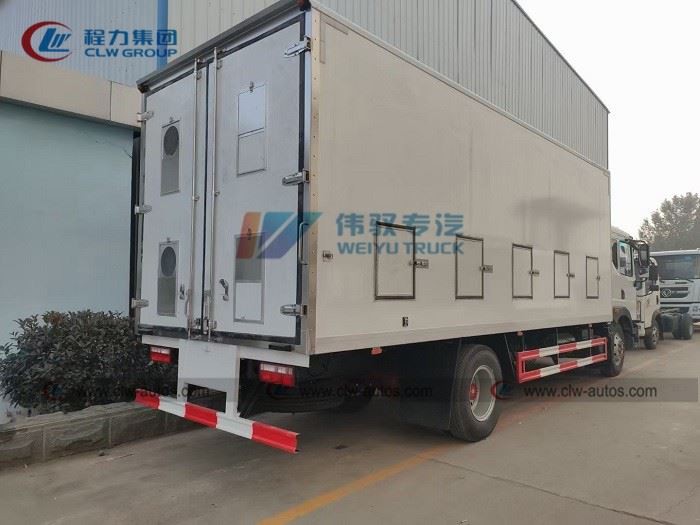

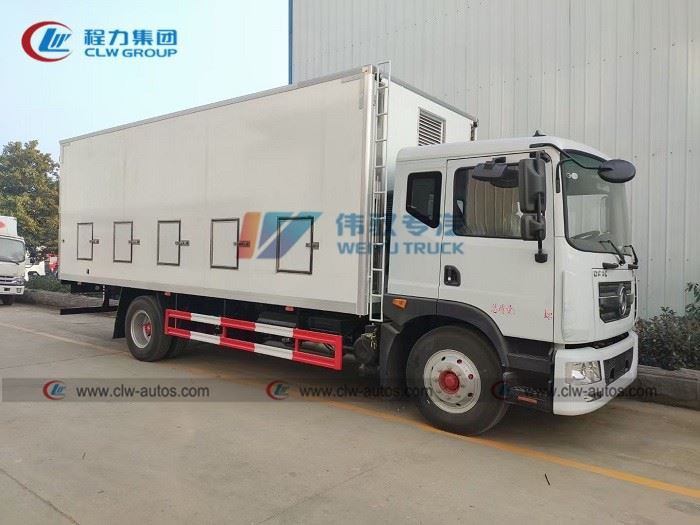

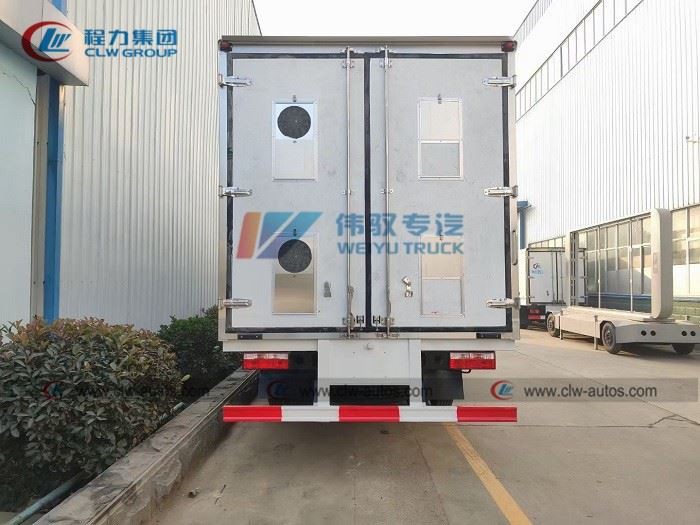

Reference picture
Product Specification
Chassis | Dongfeng | ||
Cabin | 3 Passengers | ||
Drive | 4*2 Left hand drive or right hand drive | ||
Wheelbase | 4700 mm | ||
Gross vehicle weight | 15300 kg | ||
Tyre | Size | 10.00-20 | |
Quantity | 6+1 Spare | ||
Brake | Air brake | ||
Transmission | Gear | 8-Speed (manual) | |
Steering | Power-assisted | ||
Auxiliary | Clutch booster | ||
Engine | Fuel | Diesel | |
Intake | Turbocharged | ||
Form | Water cooling | ||
Cylinder | 6 (In-line) | ||
Displacement | 5900 ml (EURO III) | ||
Max. Power | 180hp (132kw) | ||
Upper Body | |||
Refrigerated Van | Dimension (internal) | 6800*2480*2500 mm (L*W*H) | |
Thickness | 80 mm | ||
Material | Inner | Glass fiber reinforced plastics (GFRP) | |
Outer | |||
Insulation | Material | Polyurethane foam (PUF) | |
Thickness | 80 mm | ||
Assembly | Floor | Non-slip checkered plate | |
Door/lock | Stainless steel | ||
Seal | Industrial-purpose rubber | ||
Refrigerator unit | Brand | KAILI | |
Model | KL700 | ||
Temprature | -15~0ºC | ||
Refrigerator Unit | Model | R404-A | |
Charge | 4.5 kg | ||
Refrigerator Capacity | |||
Driven by Truck engine | 0ºC | -15ºC | |
4950 w | 2870 w | ||
Compressor | |||
Air volume | 2850 m³/h | ||
Weight | |||
Evaporator | 16.5 kg | ||
Condenser | 26.9 kg | ||
Dimension | |||
Evaporator | 985*585*180 mm (L*W*H) | ||
Condenser | 925*430*300 mm (L*W*H) | ||
Accessories | |||
Defrosting | Hot gas defrost (Automatically) | ||
Adjustment device | Electronic digital display | ||
Safety protect | High and low pressure switch | ||
