Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4 tons refrigerated van in China. If you're going to buy high quality 4 tons refrigerated van, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.
2. Main parts of the truck: Refrigerating unit and control system.
3. Features of the truck: International chassis brands and refrigerating unit brands for optional.
Specification
|
Condition |
New condition/Left hand drive/4x2 |
||
|
Chassis |
Brand |
Dongfeng |
|
|
Curb weight(kg) |
3200 kg |
||
|
Payload(kg) |
1100 kg |
||
|
Wheelbase(mm) |
3308 mm |
||
|
Dimensions(mm) |
5995*2240*3150 mm |
||
|
Front/Rear axle loading(kg) |
1620/2875 kg |
||
|
Front/Rear overhang(mm) |
1110/1379 mm |
||
|
Wheel track (front/rear) (mm) |
1685/1525mm |
||
|
Approach/Departure angle(°) |
21/11.6 |
||
|
Max. driving speed(km/h) |
90 km/h |
||
|
Clutch |
Reinforced diaphragm clutch |
||
|
Brakes |
Hydraulic oil brake |
||
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
||
|
Tire |
Quantity |
6pcs with one spare tire |
|
|
Specifications |
7.50R16 |
||
|
Transmission |
Manual type, 5 Forwards and 1 reverse |
||
|
Cab |
Single row seat, Tiltable. It can accommodate three people. With air conditioner. With Air deflector |
||
|
Engine |
Brand |
Cummins |
|
|
Fuel type |
Diesel |
||
|
Horsepower(HP) |
140 HP |
||
|
Emission standard |
Euro 3 |
||
|
Upper |
|||
|
Box |
1. Box Size: 3850×1850×2000 mm |
||
|
Refrigerating System |
1. Working temperature setting range: to -18℃ |
||
|
Remarks |
Color is optional |
||

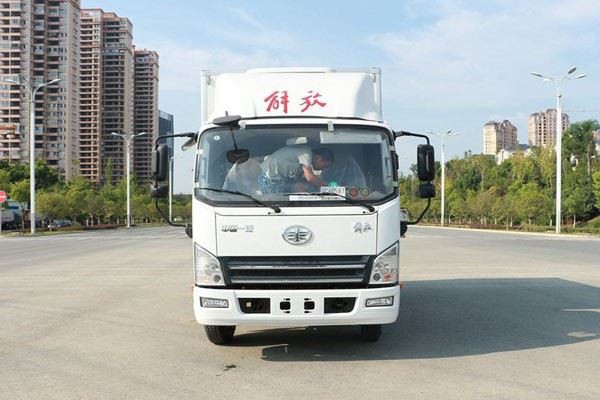

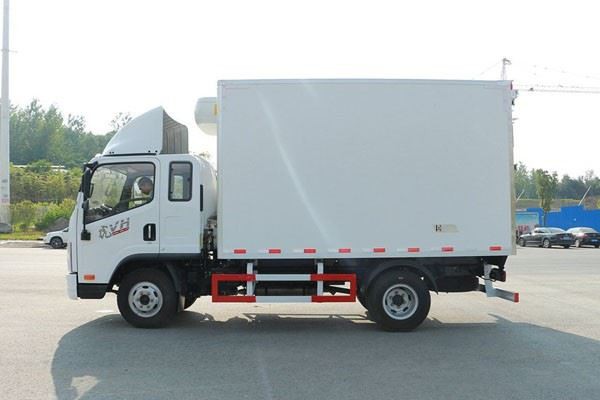

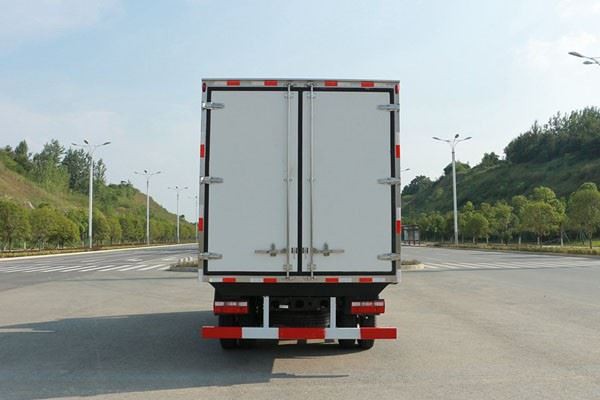

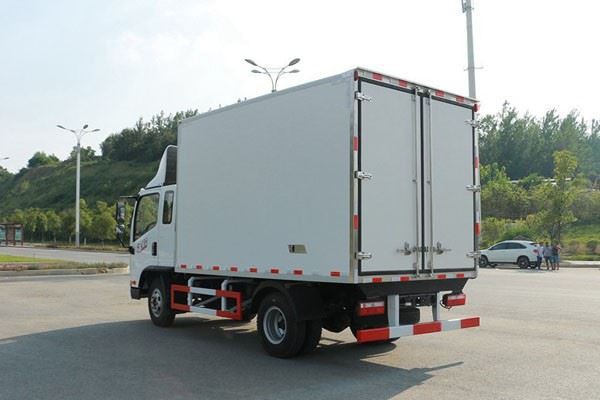

Reference Picture
Our Advantage
1) Van box material:Chinese high quality glass steel,optional for color plate,stainless steel,aluminum alloy steel
2) Refrigerator unit system:Chinese renown brand like HANXUE,HUATAI,US brands such as CARRIER,THMOKING
3) Temperature setting ranges from -5 ℃ to -18 ℃ and available for outer electricity source
4) Stainless steel knock
5) Hooks for hanging meat
6) Stainless steel or glass steel bottom plate with ventilating slot
7) Temperature controller in cabin and easy for operation
Successful Case
Customer Inspection
Overseas Exhibition
Sales Service
1.Quick feedback to solve your questions
2.Professional engineering and production team
3.Related Accessories and spare parts offered,no future worries
4.Regular customer after-sale visiting
5.Quick delivery and shipmen
FAQ
Q1: What is your production standard of fridge freezer truck?
A: Our refrigerated truck is produced as per China GB local standard
Q2: Can we adopts International brand refrigerating unit for refrigerated truck and semi trailer?
A: Sure, we can supply USA brand Thermo King, Carrier and South Korea brand DONG IN THERMO.
Q3: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
