Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 40mt flatbed semi trailer in China. If you're going to buy high quality 40mt flatbed semi trailer, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. More than 20 years professional design and production experience.
2. Choose Regular manufacturers purchase materials, like T700 baoshan
3. Use Domestic first-class production equipment. Main beam is using submerged arc welding process.
4. Famouse brand trailer parts used, like BPW/FUWA Axle, Triangle/Double Star/Double Coin and so on tires
5. Strict quality control system to ensure that each semi trailer is qualified.
Specification
Tare weight | 7000kg |
Size | 12500mm*2500mm*1500mm |
Payload | 40T |
Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm |
Side beam | 16#/18# channel steel(Q235) |
Cross member | 10#/w shape channel steel(Q235) |
Floor | 3mm checkered plate |
Side wall | No |
Front board | Optional |
Axle | 3 axle FUWA brand 13T |
Suspension | American type suspension |
Leaf spring | 10pcs*13mm*90mm |
Tire | 12R22.5 double star brand 12pcs |
Wheel rim | 9.0-22.5 jingu brand 12pcs |
Kingpin | 2" bolt-in king pin |
Landing gear | two-speed, manual operating ,heavy duty landing gear 28T |
Twist lock | 12pcs |
Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
ABS | No |
Light | LED 8 side lights and 2 rear lights 2 width lamp |
Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
Accessories | One standard tool box, one spare tire carrier, one crank,one shaft head wrench, four side light, two rear light |
Date of delivery | 20 workdays after we received 30% of contract value T/T down payment. |

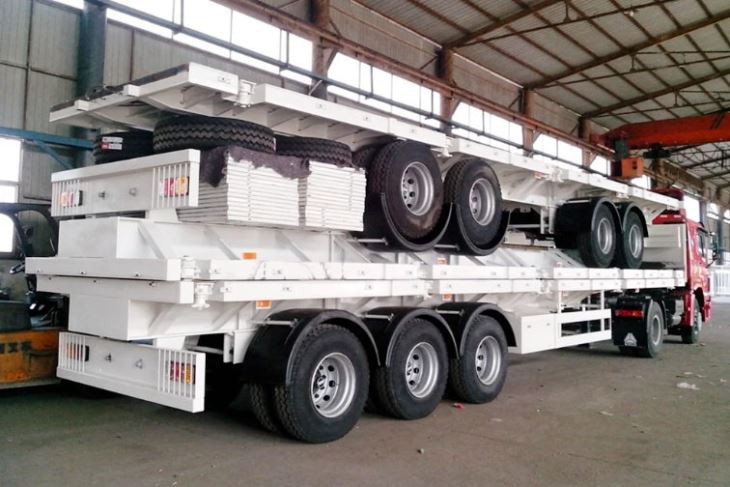

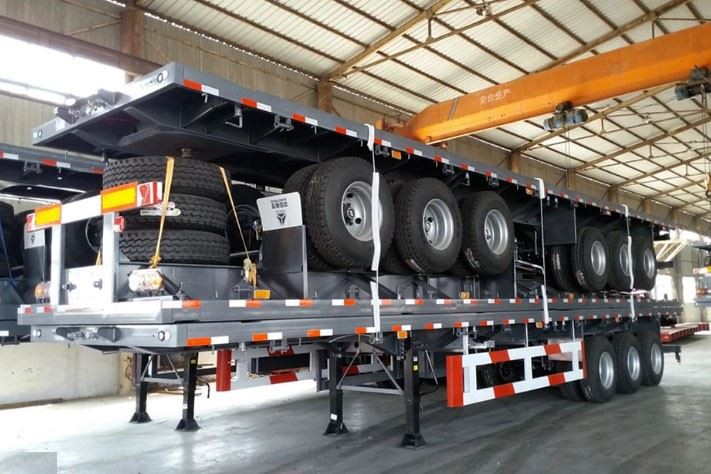

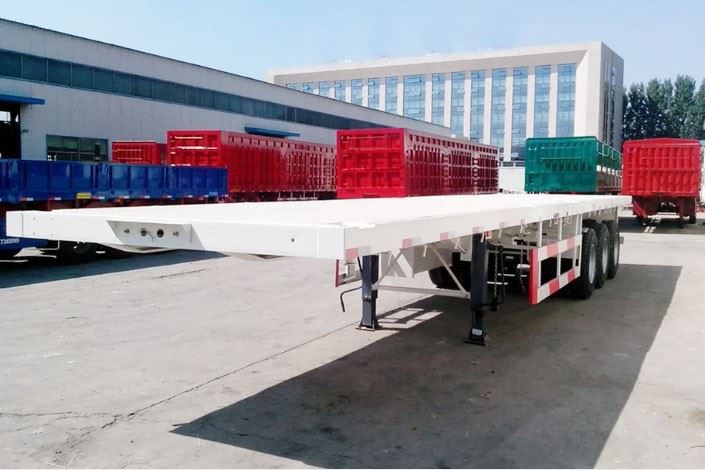

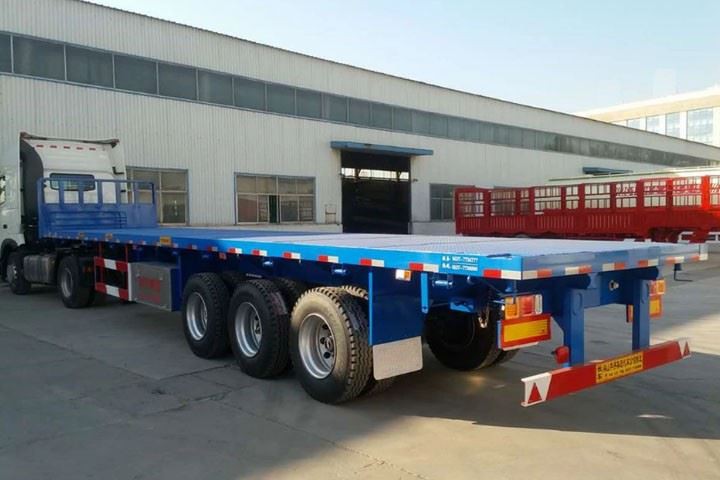

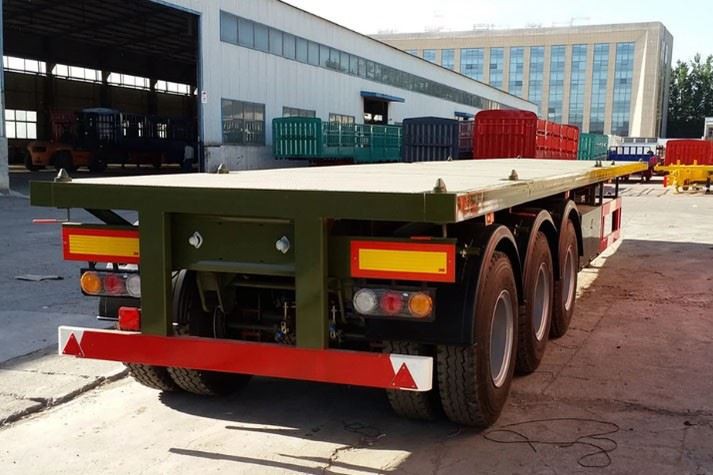

Reference Picture





Introduction of production process
A. Steel auto cutting
B. Main beam auto submerged arc welding
C. chassis reversal
D. shot blasting for rust cleaning
E. F.Welding by experienced worker
G. Final cleaning welding slag
H. Dust-free painting


Our Advantage
1. Supplying Most Appropriate Model as per Customer’s requirement
2. Good Offer with flexible payment term.
3. On Site After sales service
4. Service Available for Delivery
Successful Case


Customer Inspection

Overseas Exhibition and After-sales Service

Sales Service
1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: Why do you choose to buy 50ton dump semi trailer from our factory?
A: As our more than 11 years overseas produce and exporting business experience focus on the trailer and truck filed.
Q2: How is the quality of your dump semi trailer?
A: All adopt the best producting technic with good quality material for axle, steel, tire, cylinder,etc.
Q3: Have you supplied to dump semi trailer to any renowned companies?
A: We have supply tractor head to some many different customers in Africa.
Q4: What about warranty?
A: Our warranty for the tractor head is 12 months from the date of delivery for the major parts, including Axles, Beams and major parts. Easy Wore parts are not included.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
