Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of full color led advertising truck in China. If you're going to buy high quality full color led advertising truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Purpose: For mobile advertising, products promotion, branding, concerts and so on. It can on-site display, exchange, interaction, wide publicity and gain great effective of advertising.
2. Main parts: LED screen, Generator set, Computer, Control system etc.
3. Optional items: Mobile stage, Scrolling light box.
4. LED screen: SMD P4 P5 P6 P8 for optional.
5. Generator brand: China famous brand and International brand for optional
Specification
| New condition/Left hand drive/4x2 | ||
| Brand | Foton | |
Model | BJ | ||
Curb weight(kg) | 2120 kg | ||
Front/Rear Axle loading(kg) | 800/1700 kg | ||
Wheelbase(mm) | 3070 mm | ||
Dimensions(mm) | 5200*1710*2450 mm | ||
Front/Rear overhang(mm) | 605/1325 mm | ||
Wheel track (front/rear) (mm) | 1338/1375 mm | ||
Approach/Departure angle(°) | 39/17 | ||
Max. driving speed(km/h) | 115 km/h | ||
Clutch | Reinforced diaphragm clutch | ||
Brakes | Air brake | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | Quantity | 4pcs with one spare tire | |
Specifications | 175R14LT 8PR | ||
| Manual type, 5 Forwards and 1 reverse | ||
| It can accommodate two people. With Air conditioner and AM/FM radio | ||
| Model | Liuqi Power | |
Fuel type | Gasoline | ||
Displacement(ml) | 1249 ml | ||
Power(kw) | 64 kw | ||
Horsepower(HP) | 87 HP | ||
Cylinder number(pcs) | 4 pcs | ||
Emission standard | Euro 5 | ||
| 1. Left and right side P6 LED outdoor full color display screen, size 2400*1440 mm and it can lifting. Lifting height is 1.0-1.5m 2. Rear side full color display screen,size 960*1120mm 3. Front side LED monochrome screen 960*384 mm 4. Gasoline generator set | ||

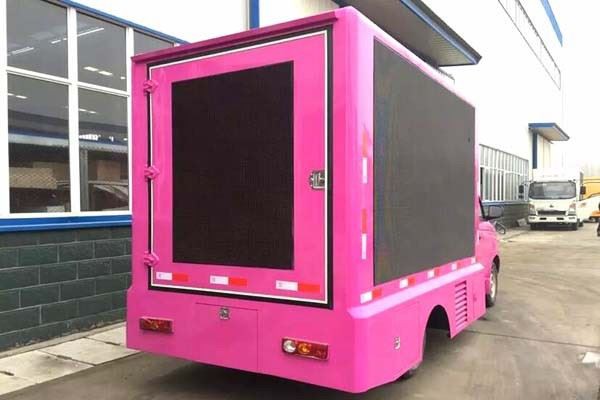

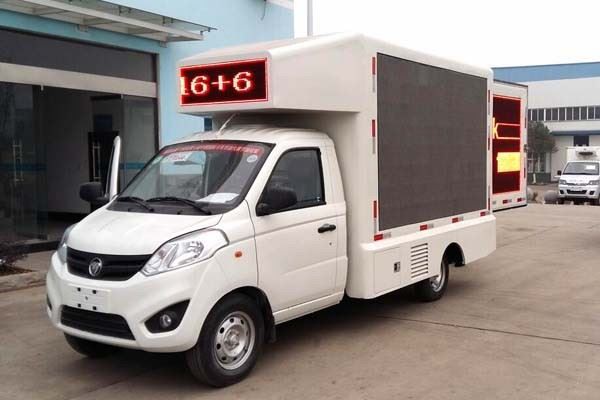

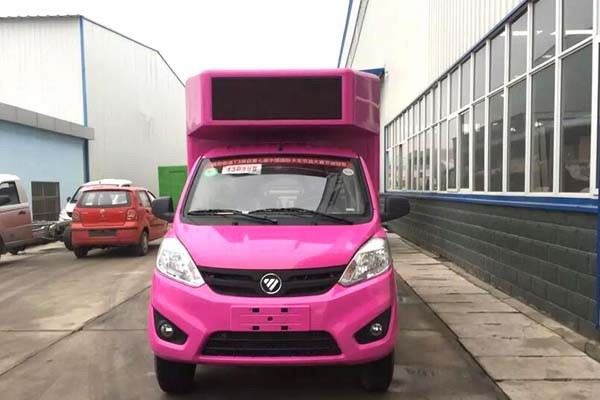

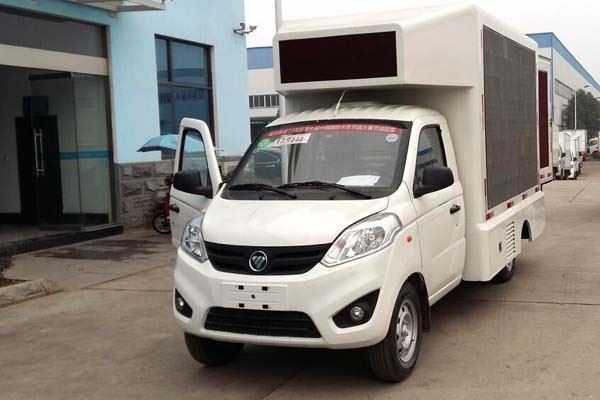

Reference Picture
Production Process
①Super Structure frame welding and installation.
②PCB plate, IC card and Light beads installation of LED screen
③One side main LED screen consist of small size LED screen module.
④LED screen, LED light box and signal receiving card installation.
⑤Computer, electricity device and generator installation.
⑥Painting and Customized LOGO design
⑦Hydraulic control system is optional
Our Advantage
①It can be used as movable billboard and do on-road advertising.
②Inside silent generator as power supply can support LED display screen and sound system working at anytime and anywhere.
③Easy operation and we will provide all English Operation Manual, Guiding Video and Maintenance Notice to client.
Successful Case
Customer Inspection
Overseas Exhibition and After-sales Service
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
FAQ
Q1: If it’s possible to shipping this mini LED advertising truck by 40’HQ container?
A: It’s not possible because of height limit.
Q2: What fuel type of the generator in this LED advertising truck?
A: This truck chassis is gasoline, so, we also adopts gasoline generator for power supply system of LED screen.
Q3: If your gasoline generator is silent type?
A: We have silent type gasoline generator and normal gasoline generator for optional.
Q4: Which brand of your gasoline generator?
A: We have China famous brand and Japanese brand gasoline generator for optional.
