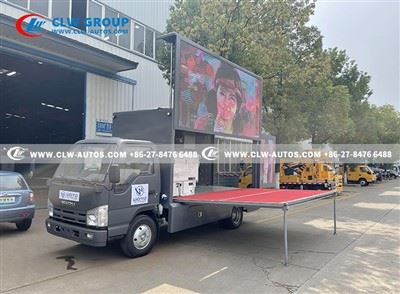

ISUZU Outdoor LED Advertisment Truck

Japanese ISUZU 4x2 chassis
3 sides full color P4 LED screen
Hydraulic lifting screen with stage
China famous brand OUMA diesel generator
Powered by household power supply when parking

Send InquiryChat Now

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu outdoor led advertisment truck in China. If you're going to buy high quality isuzu outdoor led advertisment truck, welcome to get more information from our factory. For price consultation, contact us.

ISUZU Outdoor Fullcolor LED Advertising Truck For Sale

We are professional LED manufacturer in China since 2004

Product Descriptions

The mobile full color LED advertising truck, also referred to as the colorful LED billboard van truck or mobile outdoor full color LED screen billboard truck or mobile display truck, is a vehicle that circulates through urban areas showcasing your message to drivers, pedestrians, and individuals in adjacent structures.

You have the option to station the truck at a strategic point to maximize visibility. Numerous businesses make use of these trucks for events such as parades, product debuts, holiday promotions, furniture exhibitions, and swiftly establishing brand recognition.

Product Features:

Excellent container material, crafted with a composite steel frame. Aluminum-designed non-slip floor.
Operated by a diesel/gasoline generator or battery during movement. Can be connected to household power supply while stationary.
A large LED display integrated on three sides of the vehicle. Choice to have screens on one or two sides only.
Utilizes top-tier LED brand from China, with options for P3/P4/P5/P6 varying high resolutions. Offers greater stability, smoothness, and color vibrancy compared to regular brands.
Outdoor waterproof display screen and sound column, impervious to weather conditions, enabling advertising at any time.
Additional features include stage options, Midea/Gree air conditioning, screen protection panel, advertising lightbox, etc.

*We can supply these truck chassis: FAW,HOWO,ISUZU,FOTON,DONGFENG,SHACMAN,JAC,JMC,KAMA,etc.

*We can also supply the LED box only if you have your own truck chassis.

Reference Pictures

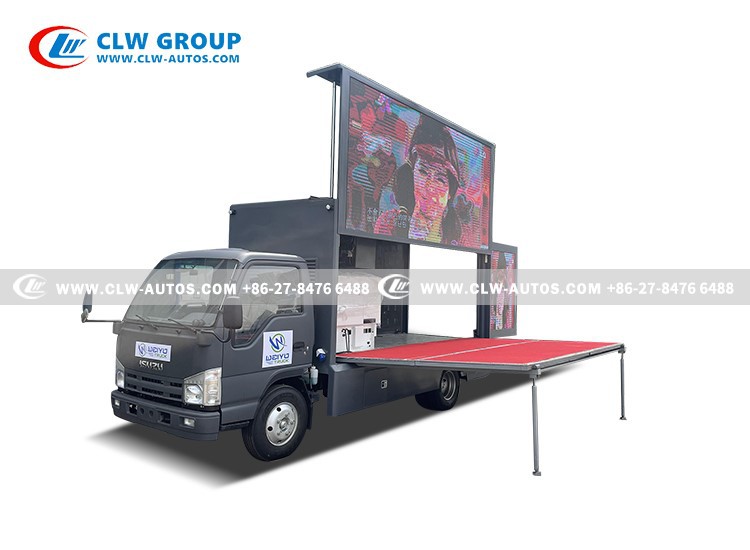

ISUZU Outdoor Full Color LED Advertisment Truck 1

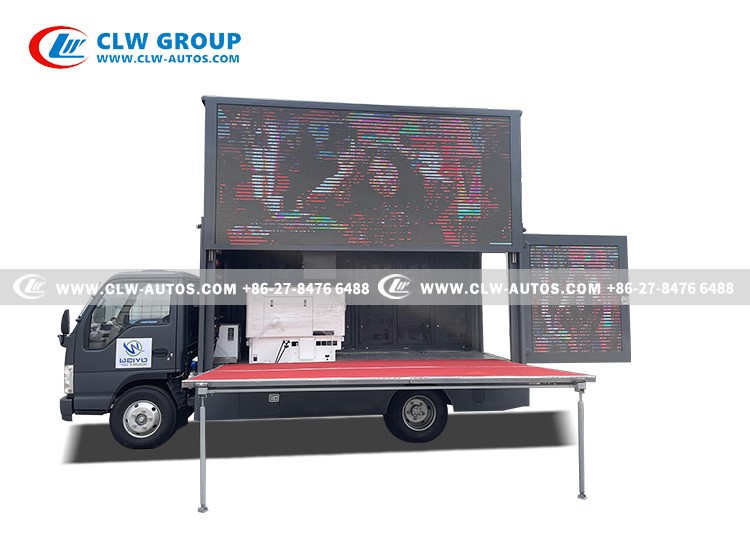

ISUZU Outdoor Full Color LED Advertisment Truck 2

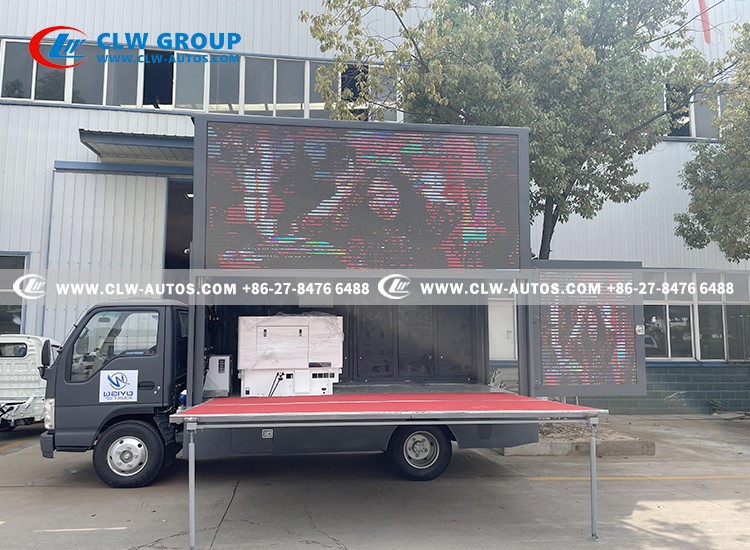

ISUZU Outdoor Full Color LED Advertisment Truck 4

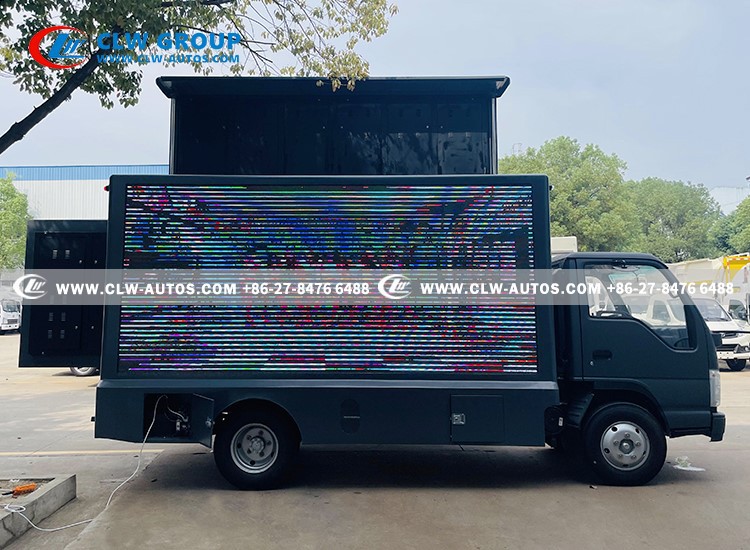

ISUZU Outdoor Full Color LED Advertisment Truck 6

ISUZU Outdoor Full Color LED Advertisment Truck 3

ISUZU Outdoor Full Color LED Advertisment Truck 5

*** Wanna know more about this ISUZU LED advertisment van truck? ***

Click Below Link:

Working Show For ISUZU Mobile LED Advertisment Van Truck

Operation Show For Chnegli Mobile LED Advertising Truck

Products Parameters

General Technical Parameters
Overall Dimension	5995x2075x2990(mm)
Gross Vehicle Weight	4500(Kgs)
Curb Weight	4350(Kgs)
Chassis Specification
Chassis Parameters	Chassis Brand		ISUZU
	Cabin		Single row, Left Hand Driving, with A/C
	Engine	Model	4KH1CN6LB, 4 cylinders
		Power	88KW/120HP
		Emission Standard	EURO V/VI
		Displacement	2.99L
		Fuel type	Diesel
	Gearbox	Manual type, ISUZU gearbox, 5 forward gear, 1 reverse gear
	Front and Rear Axle load	2.5T/4.8T
	Wheel base	3365(mm)
	Brake System	Air brake or Oil brake
	Steering Gear	Power Assistant
	Tire	7.00R16, 6 Pieces with 1 Spare Tire
	Fuel tanker capacity	120L
	Maximum speed	98(km/h)
Superstructure
LED screen	Pixel	Outdoor full colour display screen
		Optional for P3/P4/P5/P6 full color screen or monochrome screen
	LED Screen Dimension(LxW)	Left/Right side: 3840*1792mm
		Rear:1280*1440mm
	Description	Waterproof, High temperature resistance
General Configuration	1. China famous OUMA brand 15kw silent diesel generator
	2. Industrial computer system
	3. 40W speaker x 4 units, public amplifier x 1 unit
	4. Internal and external electrical control switch
	5. Ventilation fan x 3 units and emergency exit x 1 unit
	6. 5CM composite steel frame body
	7. Aluminum checked floor
