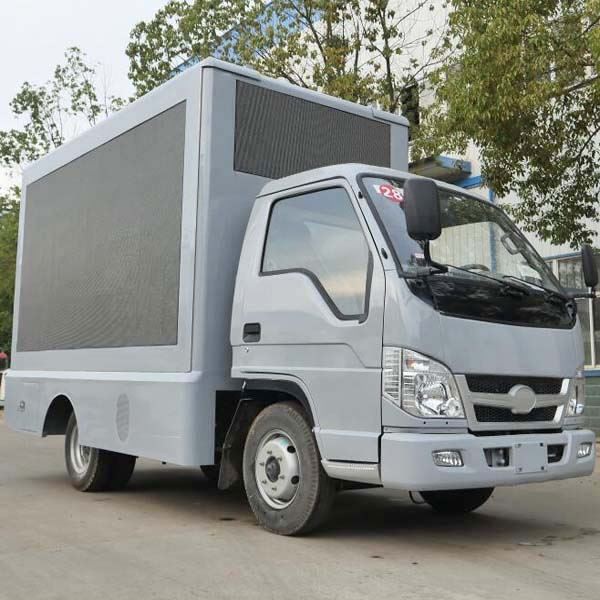

P6 LED Advertising Truck
Purpose: For mobile advertising, products promotion, branding, concerts and so on. It can on-site display, exchange, interaction, wide publicity and gain great effective of advertising.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of p6 led advertising truck in China. If you're going to buy high quality p6 led advertising truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Purpose: For mobile advertising, products promotion, branding, concerts and so on. It can on-site display, exchange, interaction, wide publicity and gain great effective of advertising.

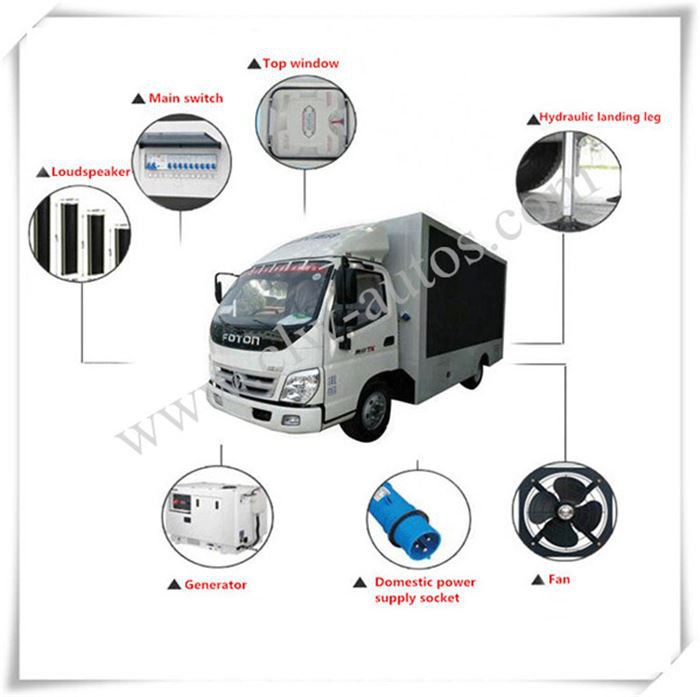

2. Main parts: LED screen, Generator set, Computer, Control system etc.
3. Optional items: Mobile stage, Scrolling light box.
4. LED screen: SMD P4 P5 P6 P8 for optional.
5. Generator brand: China famous brand and International brand for optional
Specification
| New condition/Left hand drive/4x2 | ||
| Brand | FOTON AUTO | |
Model | FORLAND | ||
Curb weight(kg) | 3150 kg | ||
Front/Rear Axle loading(kg) | 2000/3000 kg | ||
Wheelbase(mm) | 2600 mm | ||
Dimensions(mm) | 5800*1910*3000 mm | ||
Front/Rear overhang(mm) | 1130/1510 mm | ||
Wheel track (front/rear) (mm) | 1495/1435 mm | ||
Approach/Departure angle(°) | 20/16° | ||
Max. driving speed(km/h) | 90 km/h | ||
Clutch | Reinforced diaphragm clutch | ||
Brakes | Hydraulic oil brakes | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Tire | Quantity | 6pcs with one spare tire | |
Specifications | 6.50-15 nylon tire | ||
| Manual type, 5 Forwards and 1 reverse | ||
| It can accommodate two people. With Air conditioner and AM/FM radio. | ||
| Model | N485 | |
Fuel type | Diesel | ||
Displacement(ml) | 2156 ml | ||
Horsepower(HP) | 48 HP | ||
Cylinder number(pcs) | 4 pcs | ||
Emission standard | Euro 1 | ||
| |||
|
| ||

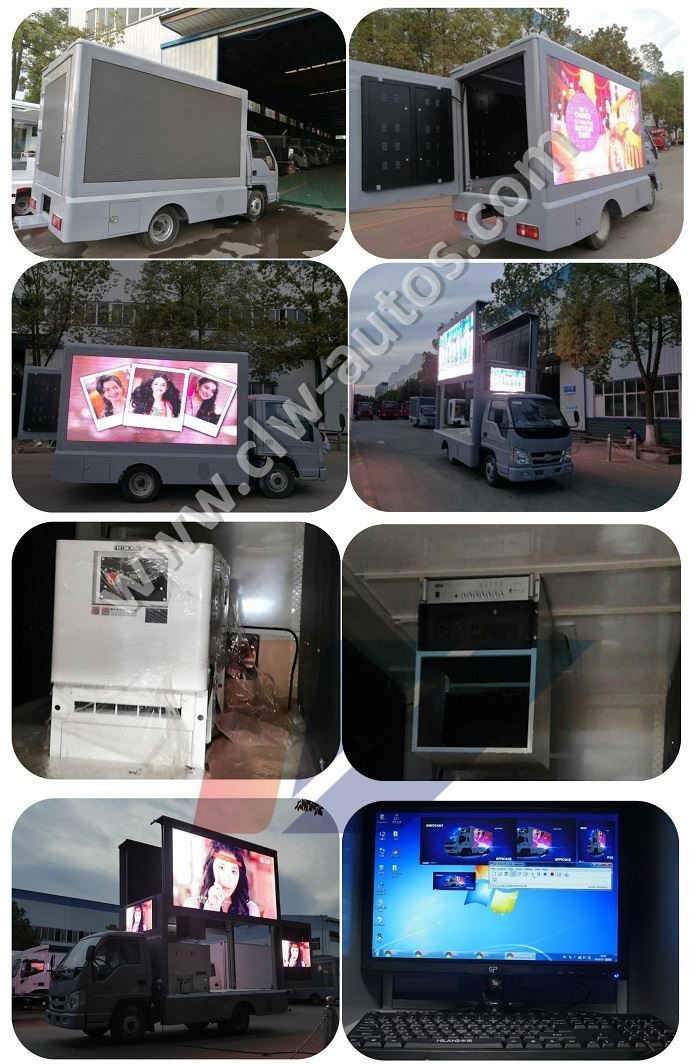

Reference Picture
Production Process
①Super Structure frame welding and installation.
②PCB plate, IC card and Light beads installation of LED screen
③One side main LED screen consist of small size LED screen module.
④LED screen, LED light box and signal receiving card installation.
⑤Computer, electricity device and generator installation.
⑥Painting and Customized LOGO design
⑦Hydraulic control system is optional
Our Advantage
①It can be used as movable billboard and do on-road advertising.
②Inside silent generator as power supply can support LED display screen and sound system working at anytime and anywhere.
③Easy operation and we will provide all English Operation Manual, Guiding Video and Maintenance Notice to client.

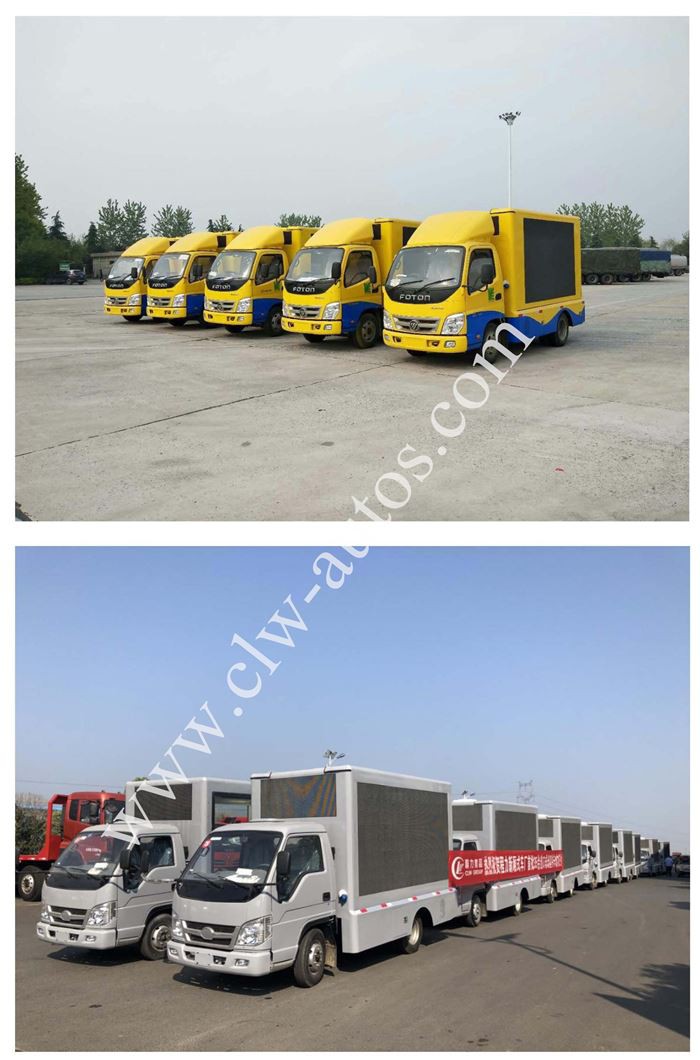

Successful Case
Customer Inspection
Overseas Exhibition and After-sales Service
Sales Service
①Pre-sales Service: Communicate with customers, analyze their needs.
②Sales Service: Provide professional technical solutions, recommend the right models accordingly.
FAQ
Q1: How the LED screen can working without power supply?
A: This truck equip with generator as power supply and can be used for on-road advertising.
Q2: What is your production standard of Mobile Advertisement Truck products? Whether your Mobile Advertisement Truck can export to USA, Canada and Europen countries?
A: Our CBU Mobile Advertisement Truck is produced as per China GB local standard, but the LED screen and other mian products have CE certificate; We can't export CBU Mobile Advertisement Truck to those countries, but we can export super structure to those market, we exported 30 units LED truck super structure to USA market at the beginning of 2018.
Q3: Have you supplied to Mobile Advertisement Truck any renowned companies?
A: Our group company is a regular strategic partner of some big advertising company and mobile cellphone company. We have supplied many different type Mobile Advertisement Truck for them with different chassis brand. Eg: China biggest cellphone company VIVO and OPPO group is our customer and they already purchased more 300 units LED truck from us in the past 3 years.
Q4: How many units signal receiving card in your mobile advertising truck?
A: It’s depends on the LED screen size
