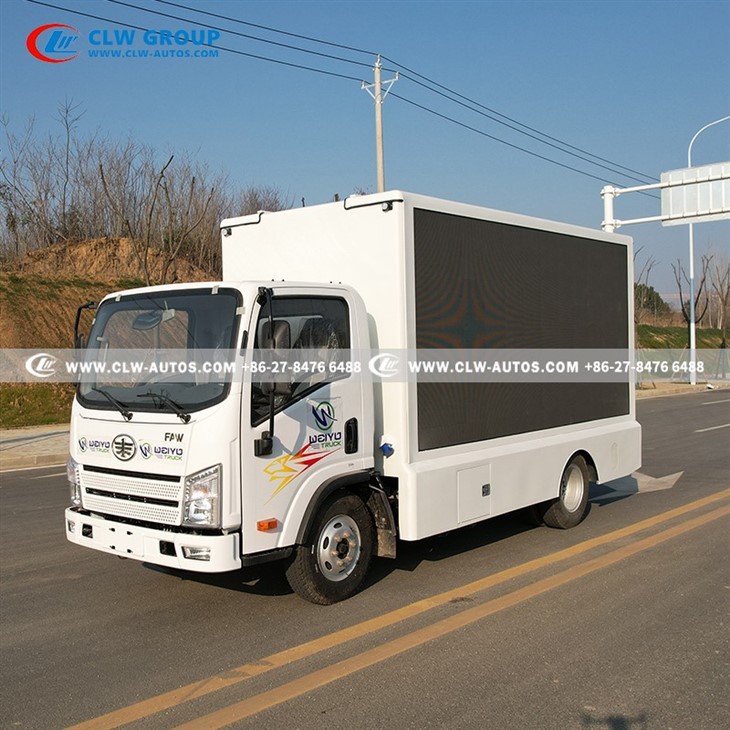

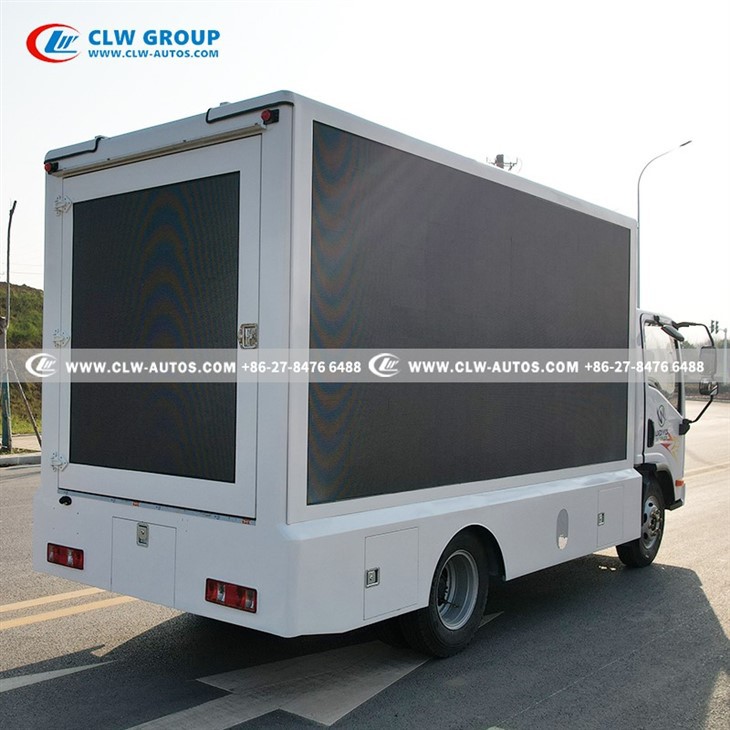

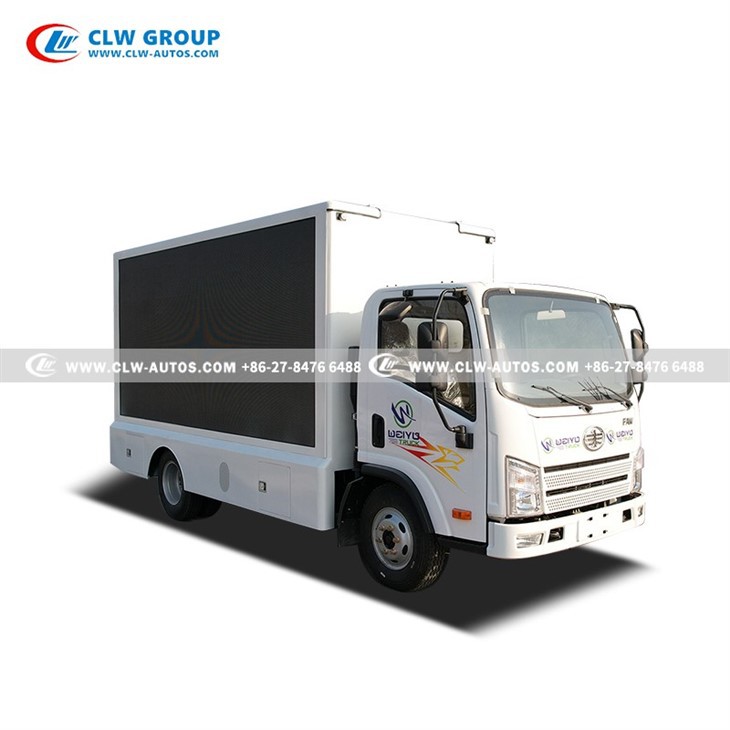

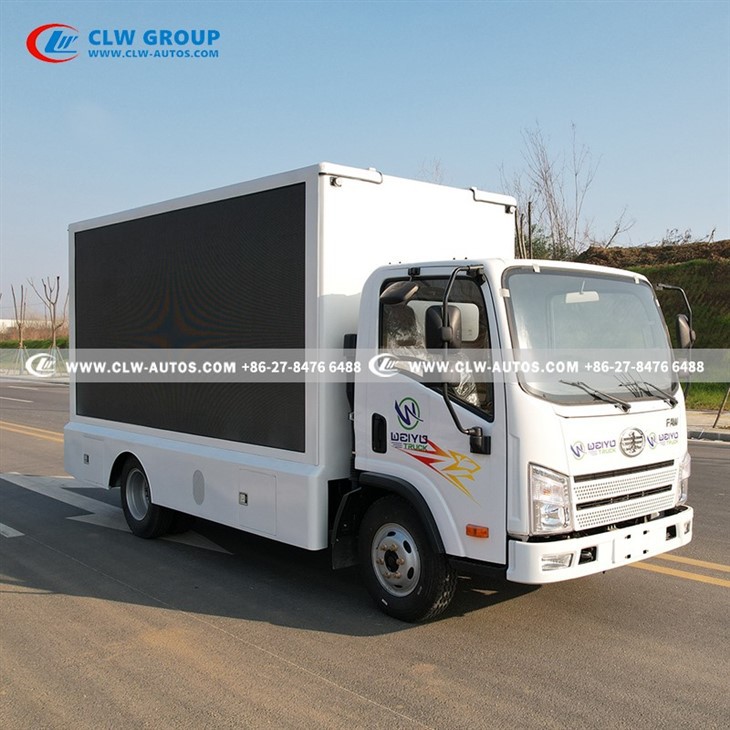

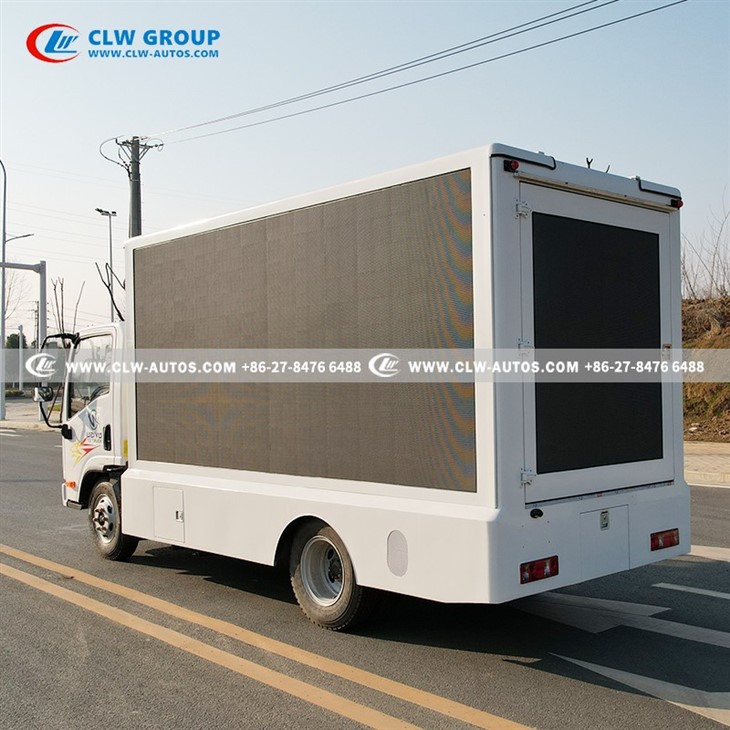

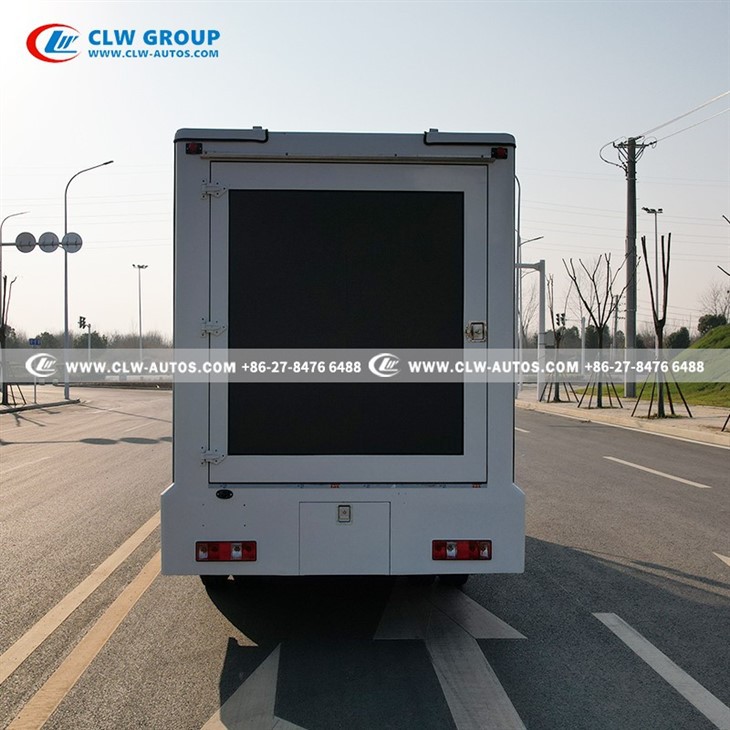

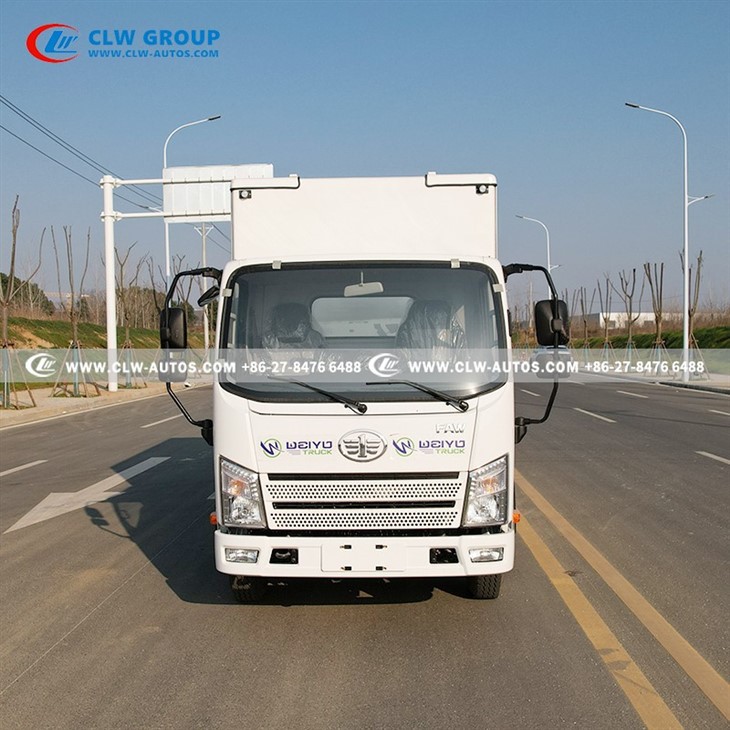

FAW 3-Sides P4 LED Billboard Truck

Chassis model:FAW Tiger VR
Engine:Diesel, Weichai 110HP, Euro 3
3 sides P4 LED screen
Hydraulic lifting screen with stage
China famous brand diesel generator

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of faw 3-sides p4 led billboard truck in China. If you're going to buy high quality faw 3-sides p4 led billboard truck, welcome to get more information from our factory. For price consultation, contact us.





FAW 3 Sides P4 Mobile LED Billboard Truck For Sale



We are China professional special vehicle manufacturer since 2004





Product Descriptions



Mobile LED billboard trucl, also known as mobile advertising truck, outdoor advertisement truck is a specialized vehicle equipped with large digital LED screens, audio systems, and often integrated stages, designed to function as a moving billboard and immersive promotional platform. Unlike static billboards, it brings high-impact visual and audio advertising directly to target audiences in multiple locations-maximizing reach, engagement, and flexibility for modern marketing campaigns.



This versatile advertising solution is ideal for:



 Brand promotions and product launches in urban centers

 Public awareness campaigns for governments and NGOs

 Election campaigning and political outreach

 Cultural festivals, concerts, and live events

 Roadshows and mall activations

 Commercial advertising in high-traffic areas



Built to meet the dynamic demands of modern mobile advertising, the FAW 3-sides P4 Mobile LED Billboard Truck combines robust engineering, brilliant visual display, and full operational autonomy. Powered by a reliable Weichai 110HP diesel engine and designed for adaptability across African markets, it is your turnkey solution for impactful campaigns on the move.





For quick quiry, please contact Ms.Juniper Gong:



Whatsapp/Wechat: +86 139 2570 3918

Email: juniper@clw-autos.com





Reference Pictures




FAW Mobile P4 LED Billboard Truck 5

Driving Flexibility

Configured in Left-Hand Drive (LHD) for immediate export to Benin, with optional Right-Hand Drive (RHD) conversion for markets like Tanzania, Kenya, Uganda, and beyond.

Vivid Visual Impact

Features three sides of high-resolution P4 full-color LED screens for crisp, daylight-visible content. The two side screens are hydraulically liftable, enabling adjustable viewing angles and crowd capture.

FAW Mobile P4 LED Billboard Truck 6
FAW Mobile P4 LED Billboard Truck 7

Complete Onboard Systems

Equipped with weatherproof audio, amplifier, control computer, diesel generator, voltage stabilizer, ventilation fans, and roof hatch-ensuring self-sufficient operation in any environment.

Integrated Stage & Safety

Includes a foldable side stage with stainless steel guardrails, providing a secure platform for live hosts, performers, or product demonstrations.

FAW Mobile P4 LED Billboard Truck 9
20251215151931315965

20251215151934316065




20251215151937316165

20251215151953316465




20251215151950316365

20251215152003316565




Products Parameters






General Technical Parameters
Overall Dimension 6000x2100x3100(mm)
Gross Vehicle Weight 4000(Kgs)
Curb Weight 3000(Kgs)
Chassis Specification
Chassis Parameters Chassis model FAW Tiger VR
Cabin Single row, Left Hand Driving, with A/C
Engine Fuel type Diesel
Model Weichai WP2.3NQ110E20
Power 81KW/110HP
Emission Standard Euro 3
Displacement 2.3L
Type 4 cylinders, water cooled,turbocharged,after cooled ,direct injection.
Gearbox

Manual type

WLY 5F and 1R gear

Axle loading

Front axle: 2,000kgs

Rear axle: 5,000kgs
Wheel base 3300(mm)
Brake System Air brake or Oil brake
Steering Gear Power Assistant
Tire 7.00R16, 6 +1 pcs
Clutch Reinforced diaphragm clutch
Superstructure Parameters
LED screen Screen size

Left: 3840*1760mm

Right: 3840*1760mm

Rear: 1280*1440mm
Pixel pitch 4mm (P4)
Description Waterproof, High temperature resistance
General Configuration 1. China famous OUMA brand 15kw silent diesel generator
2. Industrial computer system
3. 40W speaker x 4 units, public amplifier x 1 unit
4. Internal and external electrical control switch
5. Ventilation fan x 3 units and emergency exit x 1 unit
6. 5cm composite steel frame body
7. Aluminum checked floor





Product Details



Outdoor Mobile Full Color LED Advertising Billboard Truck 4

Public Amplifer

Volume adjustment, with Microphone interface

Outdoor Mobile Full Color LED Advertising Billboard Truck 12

Industrial Computer

LED Control Software: LEDVISION

The operation interface of LEDVISION support different languages: Chinese, English, French, Japanese, Korean, Portuguese, Russian, Spanish, Swedish.

Outdoor Mobile Full Color LED Advertising Billboard Truck 5

electric Generator And transformer

China famous brand OUMA 15KW diesel electric generator with single-phase isolating transformer, supply power to the LED screen when driving.

Outdoor Mobile Full Color LED Advertising Billboard Truck 7

Household Power Supply

LED screens can be powered by household electricity when parking.


Outdoor Mobile Full Color LED Advertising Billboard Truck 15

Generator and Domestic power switch

Outdoor Mobile Full Color LED Advertising Billboard Truck 18

Electric Control Box

Outdoor Mobile Full Color LED Advertising Billboard Truck 8

Ventilation Fan And Emergency Exit

Outdoor Mobile Full Color LED Advertising Billboard Truck 10

Waterproof Speaker

4 units 40W speaker intergrated in the van body.
