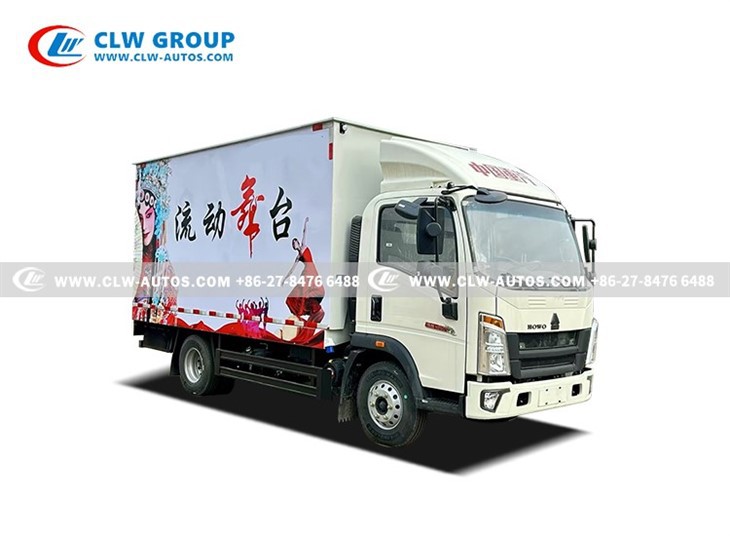

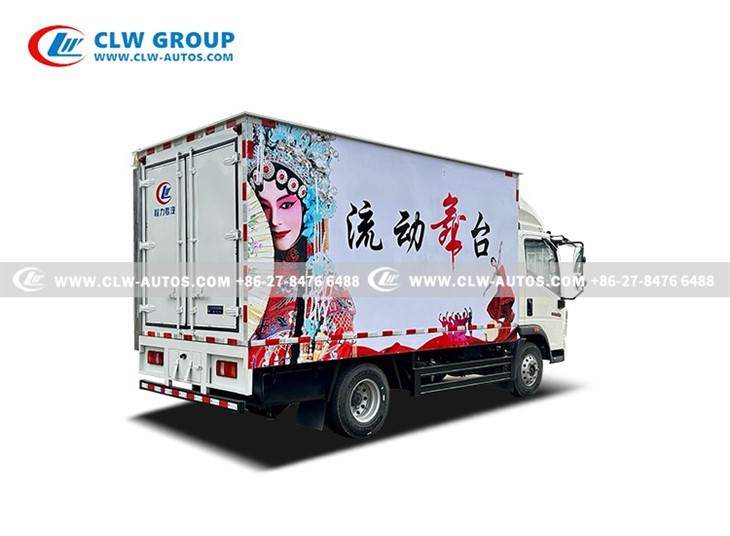

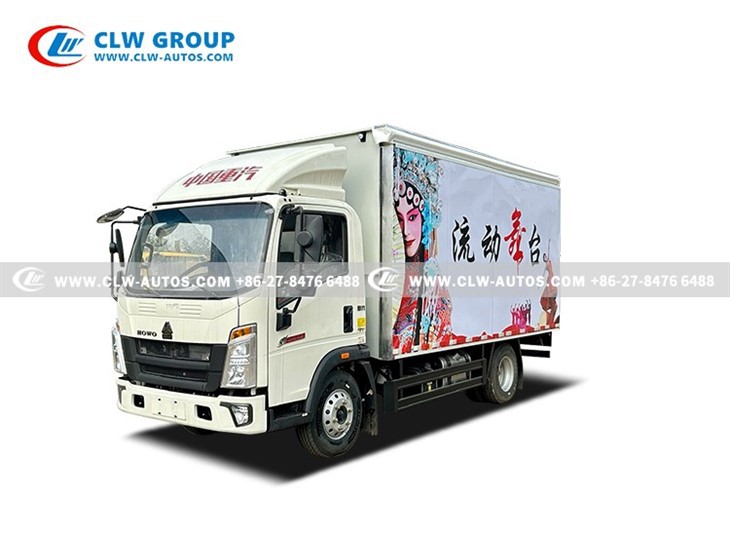

This 4.2m hydraulic mobile stage truck features an integrated design that combines a professional stage, LED display system, audio equipment, and lighting controls into one cohesive unit. Constructed with a rectangular tube frame structure and clad with 1.2mm cold-rolled steel panels, it includes dual-side hydraulic expansion and four independent hydraulic outriggers, enabling rapid transformation from transport to performance mode. Standard configuration includes an 11.79㎡ LED display, 1300W professional audio system, and programmable lighting equipment, making it suitable for various outdoor events and commercial applications.
Core Advantages
Integrated System Design: Stage structure, audio, lighting, and display systems are designed as a unified whole, minimizing compatibility issues
Rapid Deployment Capability: Hydraulic system enables stage setup within 10 minutes, improving operational efficiency
Professional Performance Standards: Industrial-grade equipment meets professional performance specifications
All-Weather Adaptability: Anti-rust treatment and professional vehicle paint provide excellent environmental resistance
Technical Highlights
Main stage dimensions: 4×3 meters, expandable to 7.4 meters width
LED display resolution: 4mm pixel pitch, 11.79㎡ display area
Audio system: American FONY brand, 1300W rated power
Lighting system: 4×260W beam lights + 24×LED par lights
Control system: 256-channel lighting console + 12-channel mixer
Application Areas
Government cultural promotion and community performances
Corporate product launches and brand roadshows
Commercial promotions and shopping mall events
Tourist attraction regular performances
Festival celebrations and community cultural activities
| Item | Specifications |
| Manufacturer's Standard Superstructure | |
| Body Dimensions | 4200 × 2200 × 2300 mm |

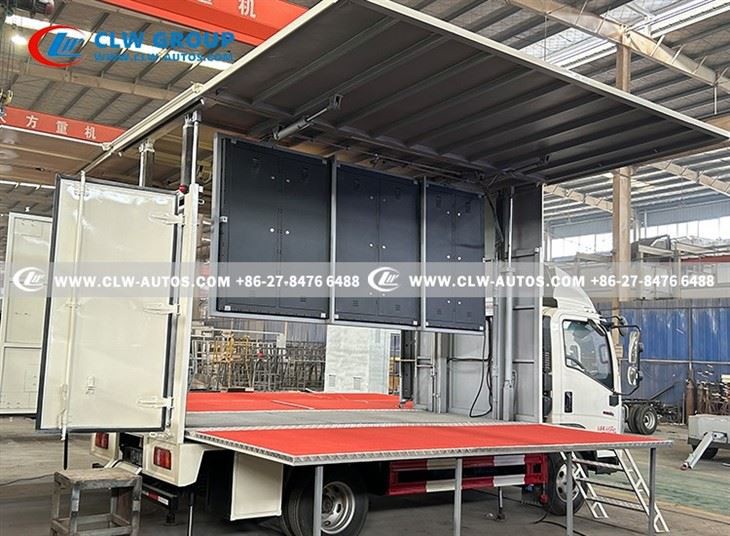

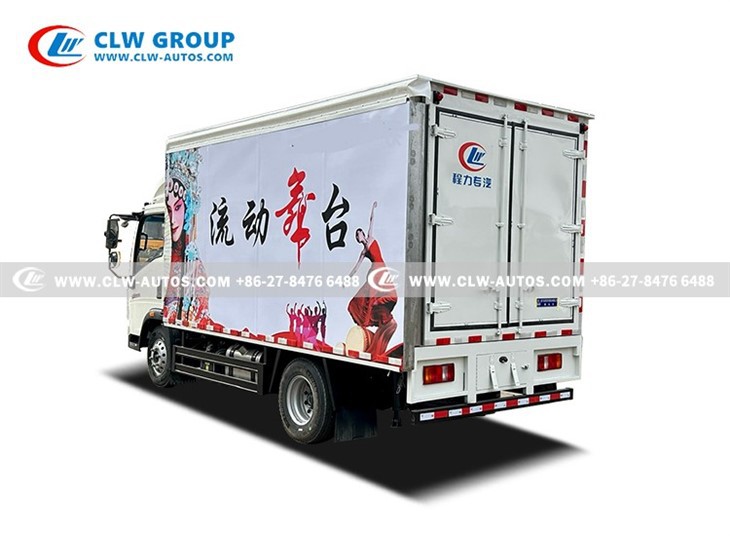

| Deployment Method | Hydraulic unfolding on both sides; hydraulic lifting roof; rear double doors |
| Body Material | Rectangular tube frame; outer cladding with 1.2mm cold-rolled steel sheet; floor with 1.5mm anti-slip patterned plate; base anti-rust paint; exterior white special vehicle paint; body gray paint |
| Stage Material | Rectangular tube grid structure; 1.2mm bamboo plywood base; covered with red carpet |

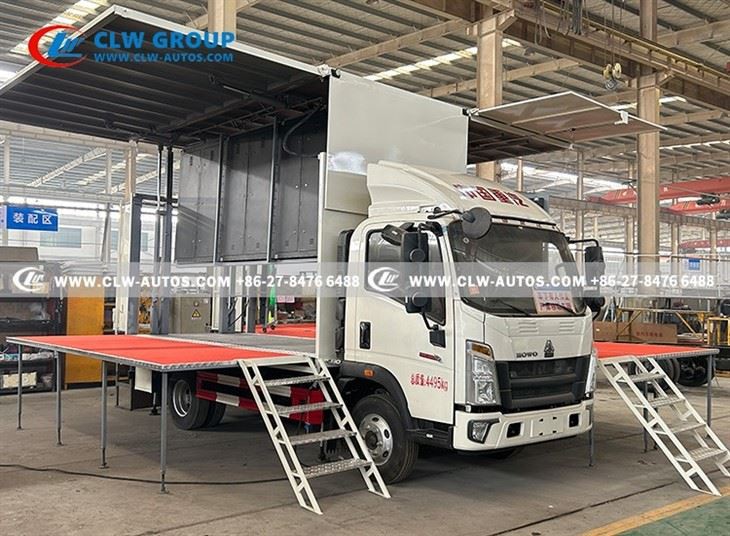

| Stage Dimensions | Main stage: 4000 × 3000 mm; front/rear manually foldable extensions: 1700mm; total stage width: 7400mm |
| Backstage: 4000 × 1700 mm (for dressing, makeup, equipment operation) | |
| Ladders | Iron ladders, quantity: 2 |
| Toolbox | Iron toolbox, quantity: 1 |
| Hydraulic Outriggers | Hydraulic outriggers at four corners, independently controlled |
| Hydraulic Operation | Power take-off (PTO) driven; manual hydraulic lever control |
| LED Display Screen | Brand: Haijia Cailiang Pixel pitch: 4mm Type: Indoor full-color Module size: 256 × 256mm |
| Configuration: One main screen + two side screens; top 768mm section manually foldable | |
| Main screen: 3072 × 2304 mm; Side screens: 1024 × 2304 mm (2 pcs); Total screen area: 11.79 m² | |

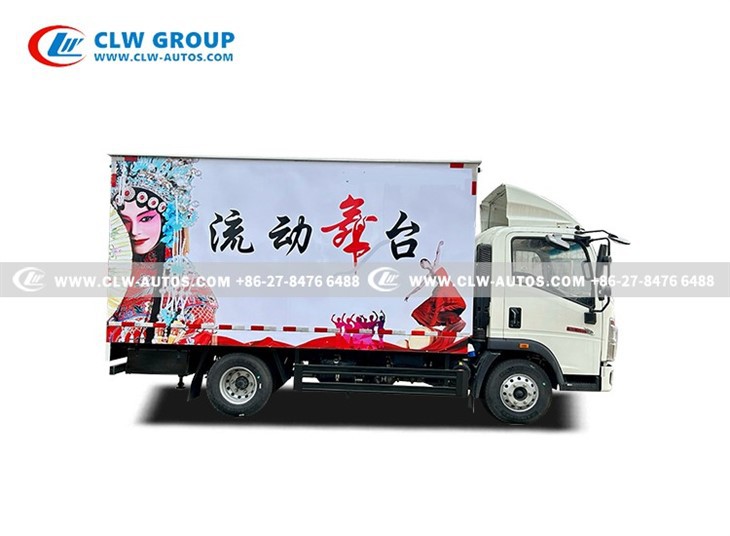

| Vehicle Decals | Outdoor adhesive decals on both sides (design provided by customer) |
| External Electrical Equipment (Optional) | |
| Control Equipment | Laptop, Lenovo I5 |
| Audio System | Main speakers: 2 pcs; Brand: FONY (USA); Dual 15″; Front-ported; AES rated power: 1300W; peak power: 5200W |
| Main amplifier: 1 pc; Brand: FONY; Rated bridged power (8Ω): 2700W; | |
| Monitor speakers: 2 pcs; Brand: FONY; Single 12″; Rated bridged power (8Ω): 2700W | |
| Monitor amplifier: 1 pc; Brand: FONY; Rated bridged power (8Ω): 1300W | |
| Mixer: 1 pc; Brand: FONY; 12 channels; USB/Bluetooth; 32 effect modes; ≤40W power | |
| Feedback suppressor: 1 pc; Brand: FONY; Auto feedback suppression; Input: 220V±10%, 50Hz | |
| Wireless microphones: 2 pcs; Brand: FONY; Battery: 2×AA alkaline | |
| Power Sequencer | 1 pc Brand: FONY; 8 outputs; standard 3-pin sockets; Input: AC220V/50Hz; Total output: 6600W; Single output: 2200W |
| Lighting Equipment | Beam lights: 4 pcs; Voltage: AC90V-240V; Power: 260W; Source: 260W; Dimming: 0-100%; Zoom: electronic; Strobe: dual-blade; Optics: high-precision lens; Pattern: 1 fixed pattern wheel (13 patterns + white); Color: 1 fixed color wheel (13 colors + white); Prism: two prism effects combinable; Pan: 540°; Tilt: 270°; Control: DMX512/auto/sound; Par lights: 24 pcs; 54×3W LED; Voltage: AC110-240V; Power: 200W; Beam angle: 45°/60°; LED work lights: 4 pcs; 100W; White light Lighting console: 1 pc; 256 channels |
| Flight Cases | Control console case: 1 pc (custom); Main speaker cases: 2 pcs (custom); Monitor speaker cases: 2 pcs (custom) |
Q: How many operators needed?
A: 2-3 people for standard operation.
Q: Site requirements?
A: Level paved surface, minimum 12×8 meter area.
Q: Power solution?
A: Can connect to grid or use generator (optional).
Q: Training provided?
A: Complete operation training and technical guidance included.
