Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4 axle 50t u-shape tipper dump semi-trailer in China. If you're going to buy high quality 4 axle 50t u-shape tipper dump semi-trailer, welcome to get more information from our factory. For price consultation, contact us.

Goods Description:

1. Tipper trailer suitable for transport of coal, ore, building materials and other bulk goods scattered.

2. Dump trailer use can be divided into two categories: one is a non-highway transportation of heavy and super-heavy-duty dump trailer is mainly responsible for large-scale mining, engineering and other transport tasks, usually supporting the use of excavators.

3. Another part of the road transport of light and medium dump trailer is mainly responsible for ordinary sand, clay, coal and other bulk cargo transport, usually supporting the use of loaders.

4. The use of rollover and rear compartment turn dump mode, which can effectively improve transport efficiency loaders transporting bulk goods scattered.

5. stringer frame and carriage are welded by high quality manganese plate containers have two kinds. All have High strength, lifting power, stiffness, toughness, strong bearing capacity, no permanent deformation.

6. Sophisticated technology: use Netherlands Hayward cards (HYVA) hydraulic lifting cylinders, stable lifting performance, stringer with automatic submerged arc welding is made using precision assembly axle assembly machine, steel spring.

7, Tipper trailer can be designed according to different needs of customers, or tell us your different media cargoes, we come to you to design the corresponding models, to meet customer's individual requirements.

8. Heavy duty loading capacity: could be up to 50Tons, 60Tons, 70Tons, 80tons, or more.

DIMENSIONS
Tare Weight			13500kgs
Payload			60000KGS
Overall Length			11200mm
Overall Width			2465mm
Dump body size			10100mmx2300mmx1500mm, 35 cubic meters.

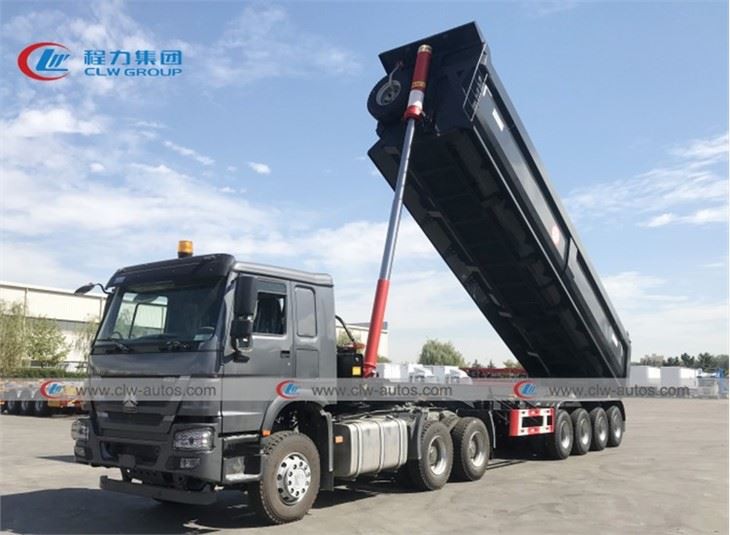

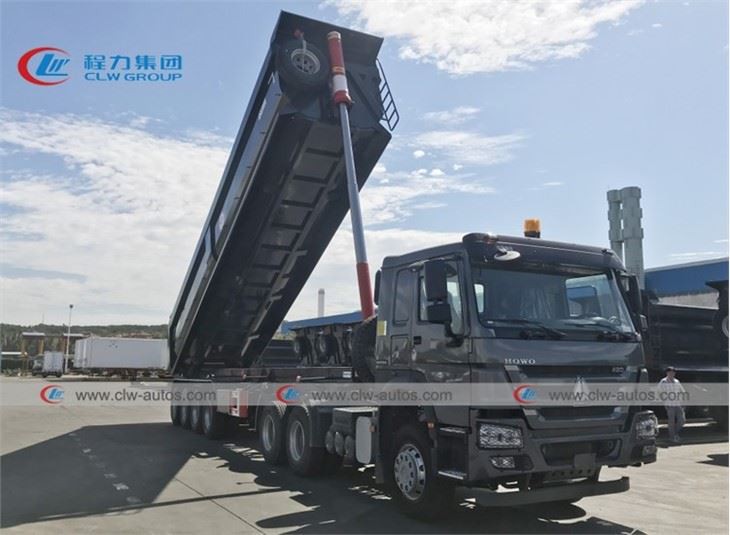

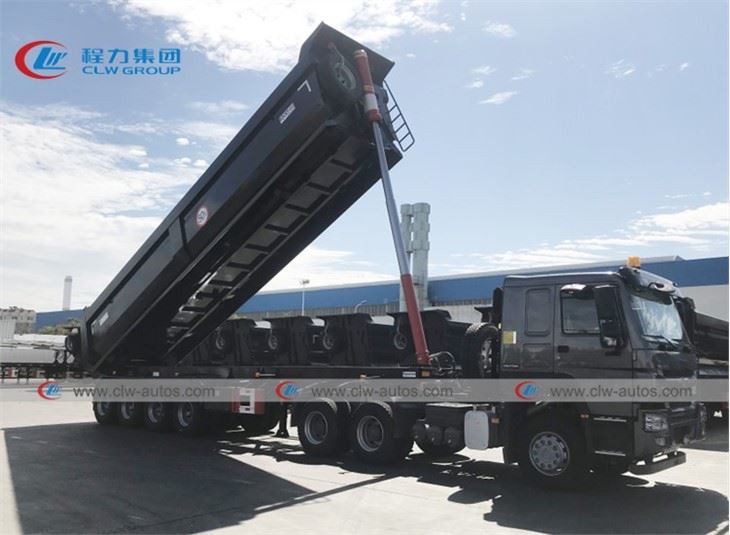

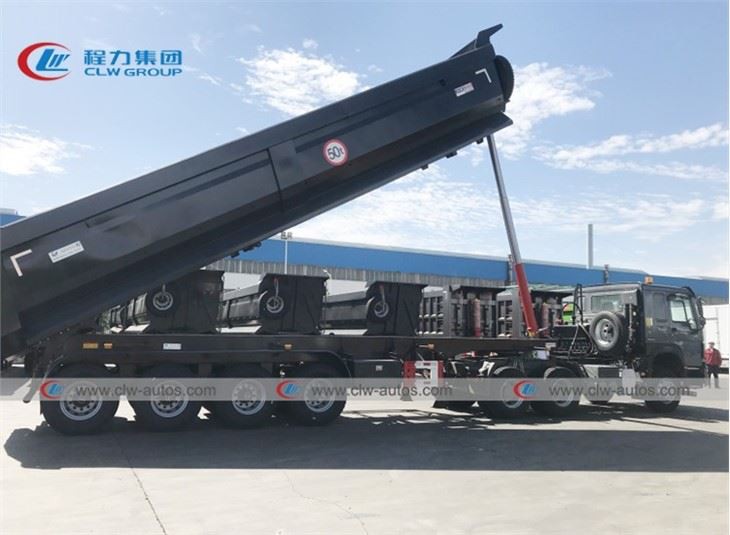

Photo for reference, final produce can be made according to exact requirements
DUMPER BODY
Volume		35cbm
Side and Front Wall		6mm thickness, Made by Q345B high tensile strength steel
Floor		8mm thickness, Made by Q345B High tensile strength steel
SPECIFICATION
Chassis	Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345, welded by automatic Submerged-Arc processes. Top Flange 16mm,width 140mm; Double Middle Flange 6mm and 6mm ; Bottom Flange 18mm,width 140mm.
Axle	4 axles, The first axle is liftable.
	FUWA Brand 13 ton
Hydraulic System	One set of HYVA Brand cylinder, 191
Suspension	The first suspension is air bag, others are German design mechanical suspension,
Leaf Spring	13-piece leaf spring. 10x160
King Pin	JOST brand 2” Bolt-in King Pin
Landing Gear	JOST brand Two-speed, manual operating, heavy duty landing gear
Wheel Rim	9.00-22.5 wheel rim, 17 pieces including one spare tire.
Tyre	315/80R22.5 tubeless tire with one spare tire, 17 pieces including one spare tire
Spare Tire	One set of spare tire including a carrier
Braking System	WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint
Accessories	One standard tool box
Other equipment	With ABS
