Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 50ton dump semi trailer in China. If you're going to buy high quality 50ton dump semi trailer, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. More than 20 years professional design and production experience.
2. Select the best Steel Material from Chinese Steel Factory like Bao Steel
3. Adopt Domestic first-class production equipment.
4. Submerged arc welding Main Beam
5. Best Quality Axles like Germany BPW, Famous Fuwa, etc
6. Reliable Hydraulic System like HYVA Cylinder
7. Strict Quality Control to Ensure Best Quality Trailer.
Specification
|
|
|
|
Dimension |
11280*2495*3970mm ( outside) |
|
10500*2300*1700mm (work space ) |
|
|
Tare weight |
About 15600KGS |
|
Loading Capacity |
<= 80T |
|
Side wall thickness(mm) |
6mm |
|
Bottom plate thickness(mm) |
8mm |
|
Lifting system |
Full set of Hyva hydraulic system |
|
|
|
|
Main Beams |
Height:500mm, upper plate is 20mm,middle is 8mm(double+three plate),down plate is 20mm,material is Q345B steel |
|
Axle |
3 axles, FUWA or BPW brands, 16T/Axle |
|
Landing Gear |
JOST brand |
|
King Pin |
JOST 2.00 or 3.5 inch bolt-in king pin |
|
Suspension |
Mechanical suspension |
|
Leaf Spring |
10 pieces |
|
Pneumatic Braking System |
WABCO RE 6 relay valve; Spring brake chamber; 2 pieces of 45L air tanks |
|
Rim |
9.00-22.5/8.00-20/8.5-20 |
|
Tire |
12.00R22.5/315 80R22.5/11.00R20 /12.00R20, you can choose freely |
|
ABS |
With |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
|
Accessories |
One standard tool box |
|
Shipping Terms |
By Bulk Cargo or RORO |

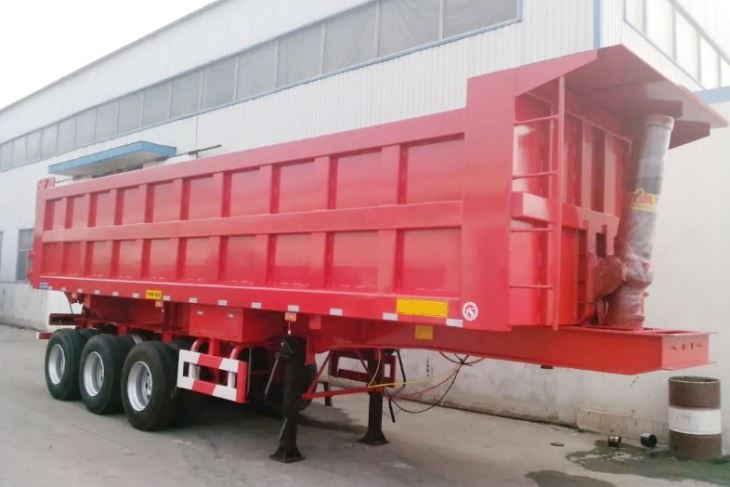

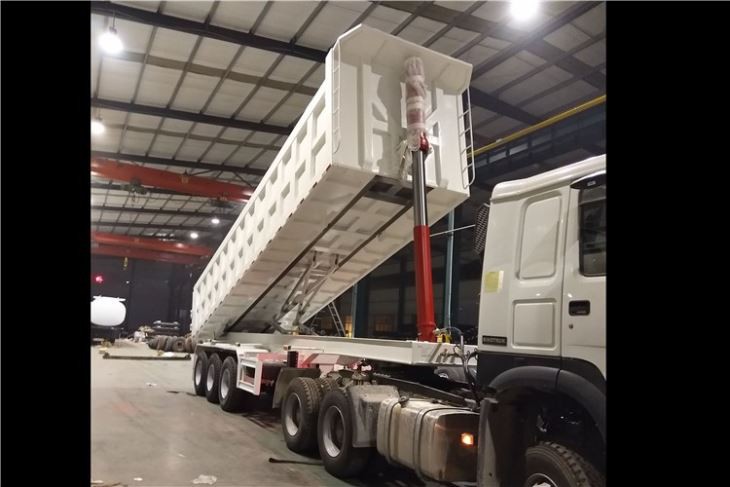

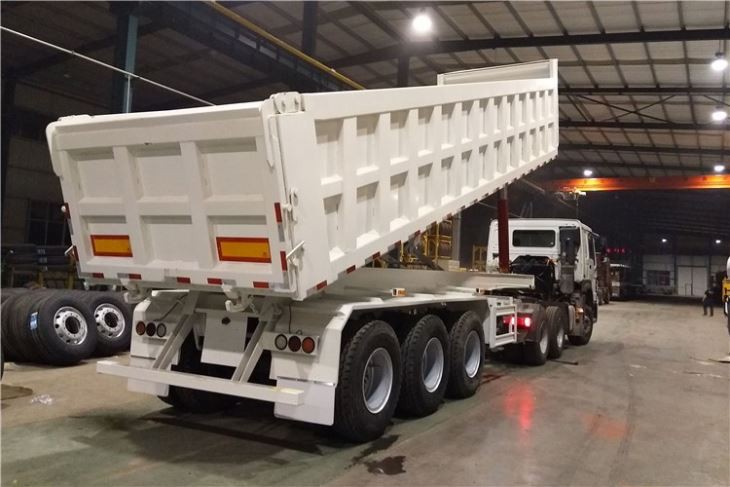

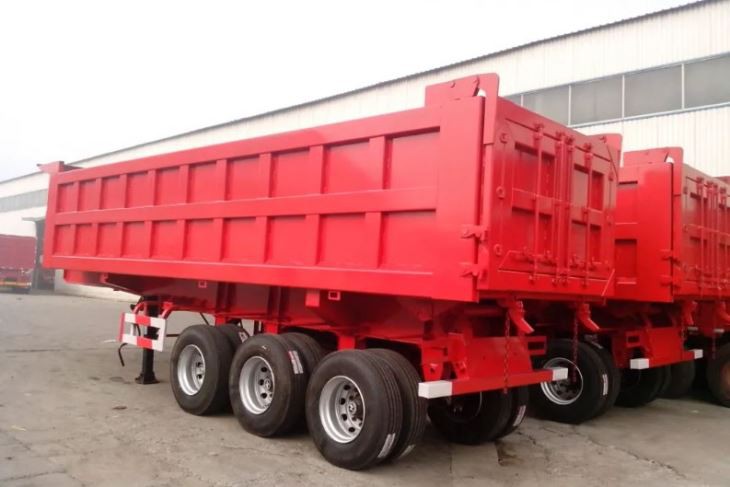

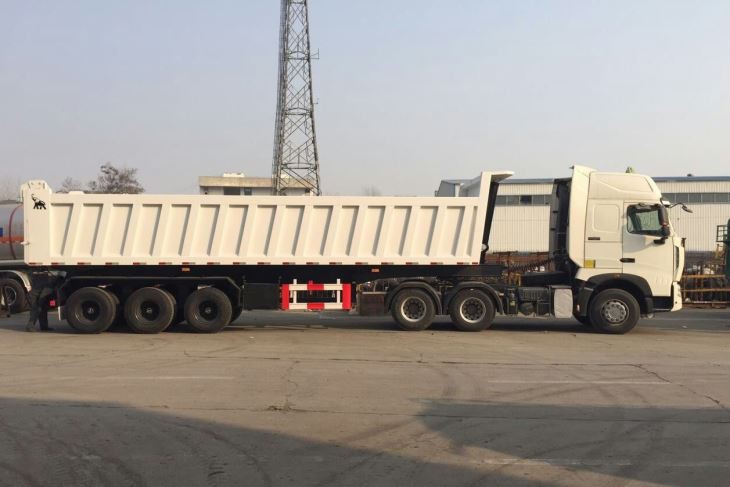

Reference Picture
Ordering Process
1. Thorough communication about the specification.
2. Confirm the ordering quantity payment terms, delivery time.
3. Sign Contract with Mutual Signature & Stamp
4. Arrange Prepayment & Start Production
5. Finished Production & Arrange Balance payment
6. Delivery to Customer’s country
7. Supply all the related shipping documents & Certificate.
8. Do after sales survey through time to time.
Our Advantage
1. Supplying Most Appropriate Model as per Customer’s requirement
2. Good Offer with flexible payment term.
3. On Site After sales service
4. Service Available for Delivery
Successful Case
Customer Inspection
Overseas Exhibition and After-sales Service
Sales Service
1. Pre-sales Service: Communicate with customers, analyze their needs.
2. Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3. After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
FAQ
Q1: Why do you choose to buy 50ton dump semi trailer from our factory?
A: As our more than 11 years overseas produce and exporting business experience focus on the trailer and truck filed.
Q2: How is the quality of your dump semi trailer?
A: All adopt the best producting technic with good quality material for axle, steel, tire, cylinder,etc.
Q3: Have you supplied to dump semi trailer to any renowned companies?
A: We have supply tractor head to some many different customers in Africa.
Q4: What about warranty?
A: Our warranty for the tractor head is 12 months from the date of delivery for the major parts, including Axles, Beams and major parts. Easy Wore parts are not included.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office is in Wuhan. From Shanghai to Wuhan is only 2 hours by airplane. Warmly welcome you to visit us in near future!
Hot Tags: 50ton dump semi trailer, China, manufacturers, suppliers, factory, price
