Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of Isuzu Fuel Tank Truck 20cbm in China. If you're going to buy high quality Isuzu Fuel Tank Truck 20cbm, welcome to get more information from our factory. For price consultation, contact us.

Isuzu Fuel Tank Truck 20cbm For Dominican Republic

Product Descritions

Isuzu GIGA 6×4 Fuel Tank Truck chassis

High-performance and reliable fuel transportation solution designed for long-distance delivery and demanding operating conditions.

300 HP engine, the vehicle delivers strong driving performance, excellent load capacity, and stable operation.Built on the durable Isuzu GIGA 6×4 chassis, this truck offers outstanding stability and road adaptability, making it suitable for both urban fuel distribution and highway transportation. The fuel tank is manufactured from high-quality steel with advanced welding technology, ensuring safety, durability, and long service life.

High-precision fuel dispensing system

fuel pump, flow meter, hoses, and safety valves, enabling accurate measurement and efficient refueling operations. All components are designed in accordance with international safety standards for the transport of flammable liquids.

Recommended Configuration for the Dominican Republic Market

For the Dominican Republic and Caribbean market, the most popular and practical configuration is the 5100 + 1370 mm wheelbase.
Fuel tank capacity can be customized from 20,000 to 26,000 liters, equivalent to approximately 17-21 tons of fuel

Fuel Tank & Dispensing System

Professional fuel dispensing system

High-precision fuel pump and flow meter

Refueling hose with safety nozzle

Emergency shut-off and safety valves

Optional multi-compartment tank design

All components comply with international standards for the transportation of flammable liquids.

Key Features

Chassis: Isuzu GIGA 6×4

Engine Power: 300 HP

Wheelbase Options: 4350+1370 / 4650+1370 / 5100+1370 / 5700+1370 mm

Fuel Tank Capacity: 20,000–26,000 L (customizable)

Tank Material: High-strength carbon steel

Tank Structure: Multi-compartment design (optional)

Fuel System: Fuel pump, flow meter, refueling hose, safety valves

Advantages: High efficiency, stable performance, safe operation, easy maintenance

Basic Info

Chassis Model	ISUZU Left/ Right Hand Driving Type Optional
Transmission Type	Manual
Emission Standard	Euro VI
Load Capacity	20-25t
Power	Diesel
Drive Wheel	6×4
Horsepower	300HP
Condition	NEW

Contact now

Get more informations or photos quickly

Laura LIU +86 15037170872

Reference Pictures

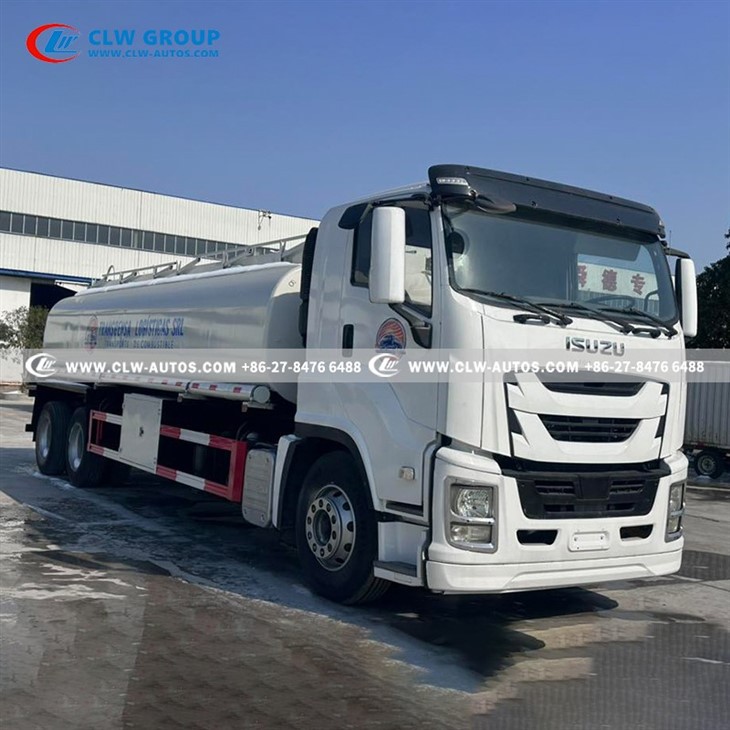

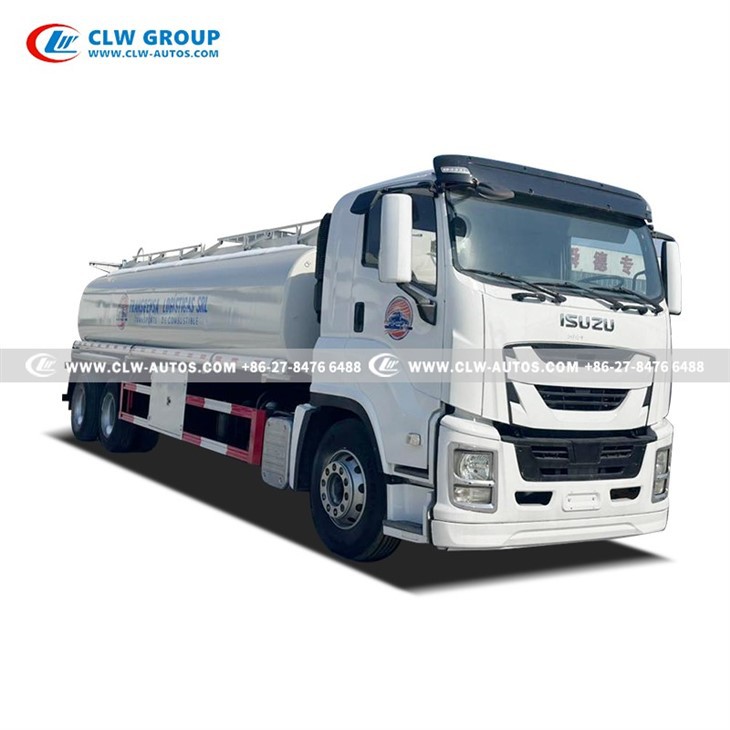

isuzu 6x4 Chassis Robust chassis and large-capacity fuel tank, designed for stable and efficient fuel transportation.

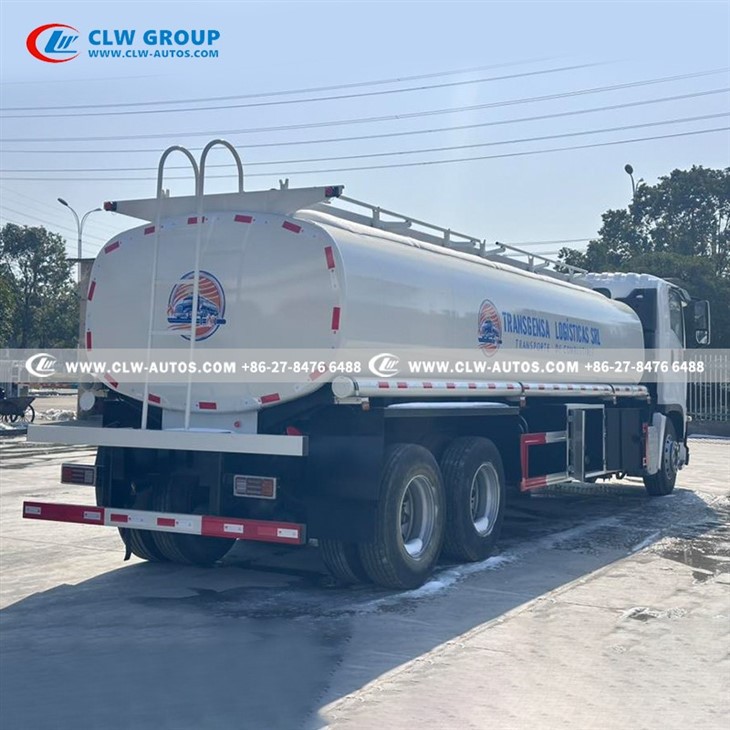

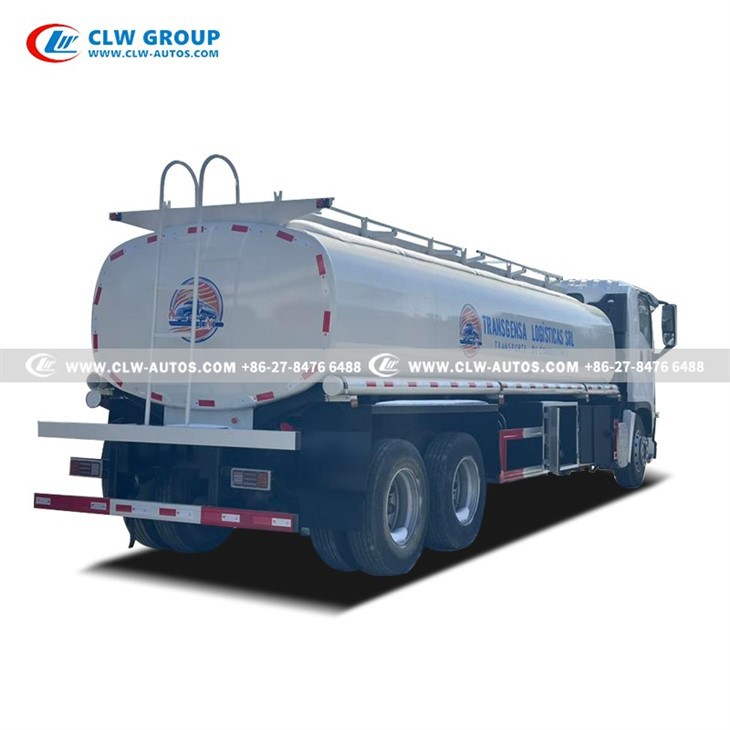

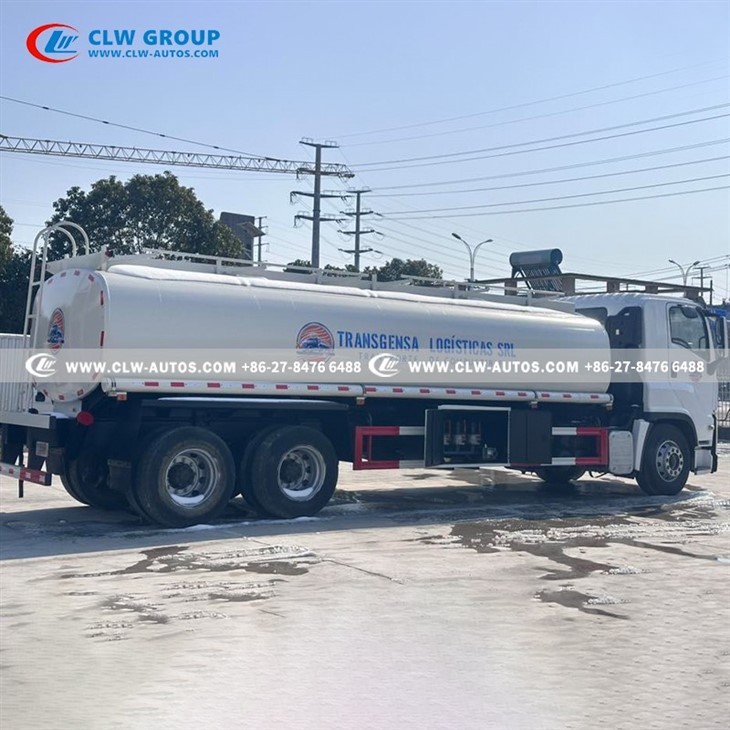

25-30cbm fuel tanker, made of carbon steel

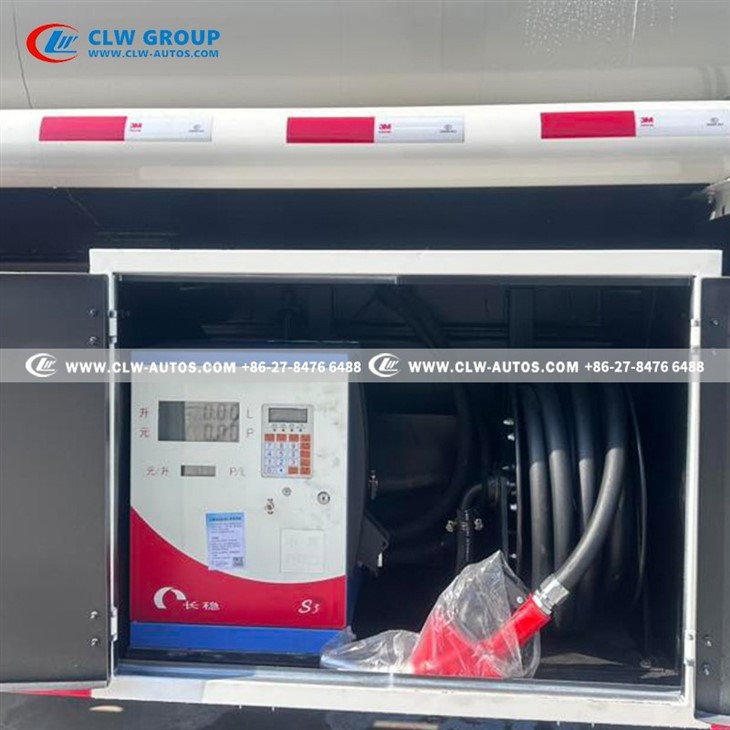

Integrated fuel pump and flow meter for accurate measurement and efficient refueling.

Durable refueling hose designed for smooth and safe fuel delivery.

Products Parameter

Condition	New condition/Left hand drive/6X4
Main details	Brand		ISUZU FVR
	Wheelbase(mm)		5100+1370 mm
	Dimensions(mm)		1010025503890mm
	Gross Weight(kg)		25,000
	Curb weight(kg)		11,000
	load capacity(kg)		13,370
	Front/Rear Axle loading(kg)		7000/18000 kg
	Front/Rear Suspension		1370/2360mm
	Max. driving speed(km/h)		105 km/h
	Clutch		Reinforced diaphragm clutch
	Brakes		Air brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	10 pcs with one spare tire
		Specifications	295/80R22.5
Transmission	Manual type , MLD 9 forward gears & 1 reverse
Cabin	Left Hand Driving FVR spacious cabinone row and a half cabadjustable driver seat new Isuzu 5X class VC61 cab features air conditioning, power steering, central locking, power windows and doors, a multi-function steering wheel, a multi-function LCD instrument panel, ABS, and air brakes.
Engine	Brand		ISUZU engine
	Model		6HK1-TCG60
	Fuel type		Diesel
	Displacement(ml)		7790ml
	Power(kw)		221w at 4600 rpm
	Horsepower(HP)		300 HP
	Cylinder number		6
	Emission standard		Euro VI

Upper & Equipment

Fuel tank	Capacity(cbm)	25 cbm
	Tank Material	High-strength carbon steel Q235 (optional: aluminum alloy / stainless steel)
	Thickness	4mm tank shell
	manhole	API manhole
	Tank Structure	1 ou Multi-compartment design with internal anti-wave baffles
	Safety Valve	Bottom emergency shut-off valve (under-tank safety valve)
	Valve Control	Manual bottom valve control system
	oil filling system	oil dispenser/ oil filling nozzle&rubber hose 1 unit
	oil pump	oil filling pump, 1 unit
	Leakage Protection	Reliable sealing system to prevent fuel leakage
	Anti-static System	Static electricity grounding device
	Testing	Leakage test and pressure test before delivery
	painting	color and design as customer's requirement
