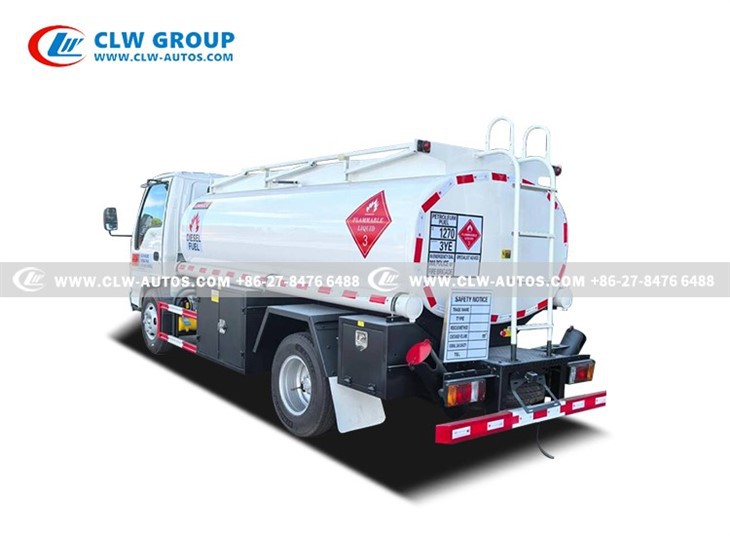

**5,000 litres RHD 4*2 ISUZU 100P Fuel Tanker Truck**

Products Description

The Isuzu 100P Series 5-cubic meter diesel refueling truck is a specialized vehicle designed for safe, efficient, and versatile fuel transportation and on-site refueling operations. Built on Isuzu's proven commercial chassis and configured with right-hand drive for global markets, this model integrates power, safety, and functionality to meet the demands of modern fuel logistics.

Our Key Features and technical highlights

Robust Powertrain

Powered by Isuzu's 4KH1CN6LB engine (120 HP), delivering reliable performance, low fuel consumption, and compliance with CN6 emission standards.

Enhanced Safety Systems

ABS ensures stable braking during sudden stops or slippery conditions.

Front axle (2-2.5T) and rear axle (4-4.8T) provide excellent load capacity and stability.

7.00R16 tires offer durability and adaptability to rough roads.

Right-Hand Drive Configuration

Designed for left-hand traffic markets (e.g., UK, Australia, Southeast Asia), enhancing driver visibility and operational safety.

Driver-Friendly Cabin

Ergonomic single-row cabin (700mm width) with air conditioning, power steering, central locking, power windows, and a multi-function LCD dashboard for comfort and control.

Specialized Refueling Tank

5m³ tank capacity with internal anti-surge baffles to minimize liquid sloshing and improve stability.

Constructed with anti-corrosion materials and equipped with standard safety features (e.g., grounding strap, fire extinguisher).

Functional Flexibility

Can be equipped with optional accessories: fuel meter, hose reel, electric pump, or automatic shut-off system for precise dispensing.

Key Applications

Mobile Refueling Services: Ideal for directly refueling construction machinery, agricultural equipment, generator sets, and fleet vehicles on-site.
Fuel Distribution: Efficiently transports diesel from depots to remote locations, gas stations, mining sites, and industrial plants.
Emergency and Backup Supply: Deployed for urgent fuel delivery in disaster relief, remote area support, or infrastructure projects.
Aviation and Marine Support: Suitable for ground support refueling at small airports or docks (with optional customization).
Construction and Mining Sites: Provides continuous fuel supply to heavy equipment in challenging terrains.
Agriculture and Forestry: Supports farming operations and remote forestry projects requiring frequent refueling.
Transportation Fleets: Used by logistics companies to refuel trucks and buses at depots or along routes.
Isolated Communities and Islands: Ensures reliable fuel delivery to off-grid communities or island territories.

Products Specification

Chassis Technical parameter
Driving mode		ISUZU 100P 4X2
Dimension		680024003000mm
Gross weight		8000kg
Curb weight		3500kg
Payload		4500kg
Wheelbase		3360/3815mm
Cabin	Steering wheel	Left hand drive or right hand drive
	Configuration	With air conditioning Steering power Central locking Electric door and window
Engine	Engine brand	ISUZU 4KH1CN6LB
	Horsepower	120HP
	Displacement	2300ml
	Emission standard	Diesel, EuroⅥ
	Type	4 stroke, 4-cylinders in line, water cooling
Transmission		ISUZU 5 forward gears and 1 reverse , Manual
Tire		7.00R16
Front axle loading		2000-2500kg
Rear axle loading		4000-4800kg
Upper structure parameter
Fuel tank capacity		5m3/5,000liters
Tank material		Carbon steel/ Stainless carbon/ Aluminum alloy
Compartment No.		ONE
Fuel dispenser		2 sets, flow rate at 70L/min English operation panel Showing unit price/ filling volume/ total price
Oil pump		2 Nos of 2.5'' Oil pumps, driven by TPO Independent pump in and pump out for each compartment
Filling hose		1 inch and 15 meters 2 sets for diesel and petrol separately
Filling hose reel		2 Nos
Filling nozzle		2 Nos
Manhole cover		2 sets with breath valves
Bottom valve		2 sets of APL aluminum pneumatic bottom valves
Level gauge		Each tank top is equipped with an electronic level meter
Operation compartment		Located at rear of truck with aluminum alloy door
Control system		Power on/off Lighting Fuel pump on/off Fuel dispenser on/off Main valve on/off Fuel level digital display
Others		2 sets of 4kg extinguishers 1 set of static belt
Painting		Color and design as customer's requirement
Special design		Tank body is covered by carbon steel van
