Highway Maintenance Revolution: Chengli CLW5251TFCZ6 Slurry Truck For Rut Repair & Crack Sealing

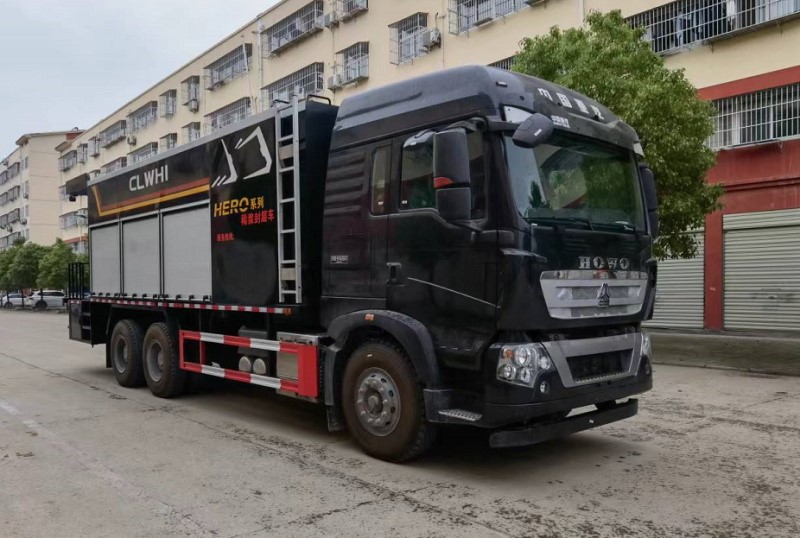

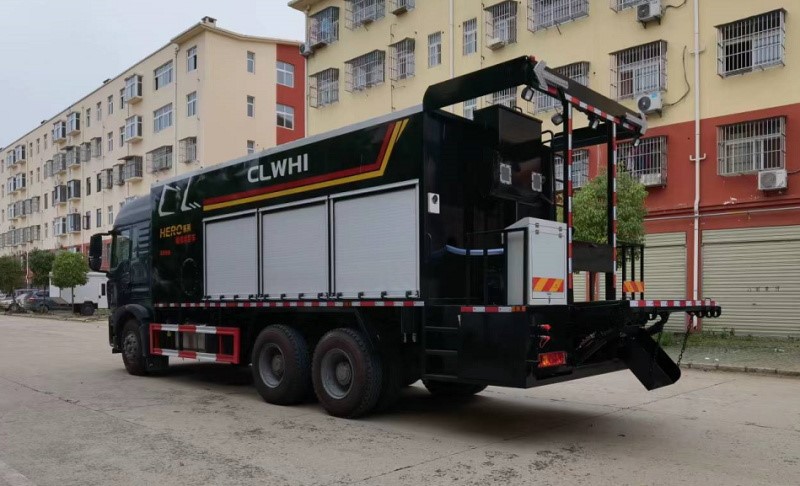

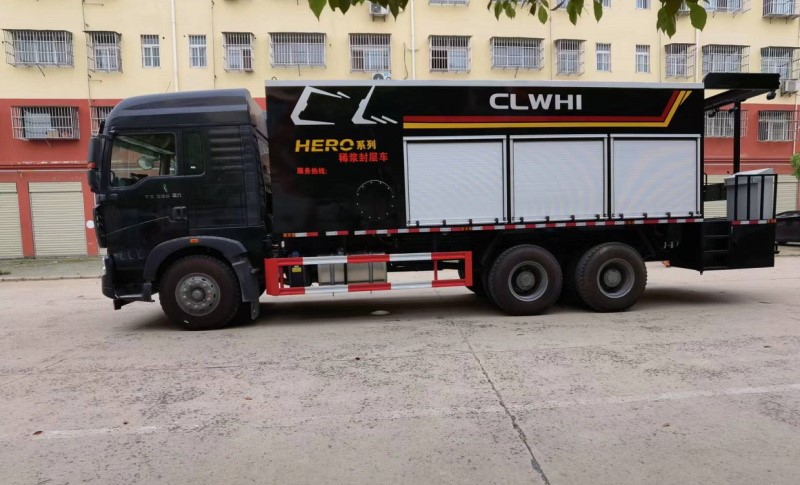

The Chengliwei CLW5251TFCZ6 Slurry Seal Machine, also known as the asphalt slurry sealing or micro-surfacing machine, is an efficient and economical road maintenance device widely used in highway maintenance. During actual construction, the process type should be selected based on engineering requirements, with strict control over material ratios and operational specifications. This product is primarily designed for micro-surfacing and lower seal coat applications on high-grade highways, as well as lower seal coat construction on regular second and third-tier highways and municipal roads, positioning it as a mid-to-high-end slurry seal machine.









Main Components of a Slurry Seal Machine:

1. Aggregate Bin: Stores crushed stone, sand, and other aggregates of different sizes, which are quantitatively supplied via a conveyor belt or screw conveyor.
2. Emulsified Asphalt Tank: Holds emulsified asphalt (cationic or anionic type), with flow controlled by a pumping system.
3. Water and Additive Tanks: Provide water and additives (such as cement, polymer modifiers, etc.) to adjust the properties of the slurry mixture.
4. Mixing System: Combines aggregates, emulsified asphalt, water, and additives in specified proportions to form the slurry.

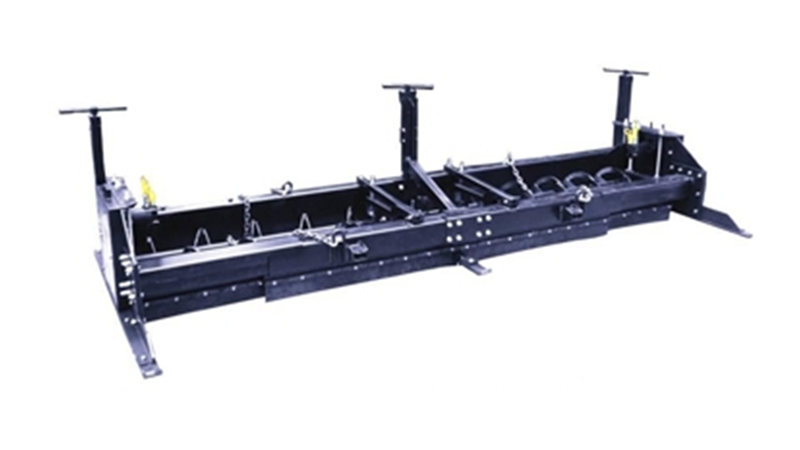

5. Spreader Device: Evenly distributes the slurry onto the road surface through an adjustable-width spreader box, controlling the thickness (typically 3-10mm).
6. Control System: Automatically regulates the mixture ratios, spreading speed, and thickness to ensure construction quality.

Key Features of CLW5251TFCZ6 Slurry Seal Machine:

1. Rear Remote Speed Control Device: Enables convenient and efficient construction by allowing the rear operator to adjust vehicle speed according to construction conditions without communicating with the driver, thus avoiding quality issues caused by poor communication in noisy environments.
2. Corrosion-Resistant Composite Material for Tanks: Both the emulsified asphalt tank and water tank are made of corrosion-resistant composite materials, enhancing durability and extending the vehicle's service life.
3. Full Hydraulic Drive with Independent System Controls: Ensures smooth operation of each system without power interference.
4. Dual-Shaft Mixer with No Dead Zones: Guarantees uniform material mixing and easy cleaning.
5. Centralized Control System: Features a user-friendly centralized control system, allowing operators to perform all operations from the rear platform. Equipped with a dedicated controller for construction machinery, it offers manual/automatic switching, intelligent flow display, and convenient, adjustable operation.
6. Accurate Metering System: Uses flow meters for real-time display, enabling precise measurement of asphalt, water, and additive usage.
7. Renowned Heavy-Duty HOWO Chassis: Provides powerful performance, with electric windows, air conditioning (both heating and cooling), a berth, and ABS for convenient operation and comfortable driving.
8. Foldable Aluminum Alloy Ladder: Durable, aesthetically pleasing, and easy to use.
9. Large Aluminum Alloy Roller Shutter Doors on Tanks: Open during construction, ensuring unobstructed driver vision and unimpeded traffic flow on both sides.
10. Double-Layer Baffle Design for Material Bins: Effectively prevents material leakage and ensures construction quality.
