Chengli CL5031ZXXBEV Changan EV Hook-Arm Garbage Truck Redefines Urban Waste Collection

Aug 19, 2024

Products Description

The garbage truck (also known as a refuse truck, waste collection vehicle, or sanitation truck) is an essential piece of municipal solid waste (MSW) management equipment designed for efficient waste collection, transportation, and disposal. Modern variants include front-loader, rear-loader, and side-loader configurations, each optimized for specific urban or industrial applications.

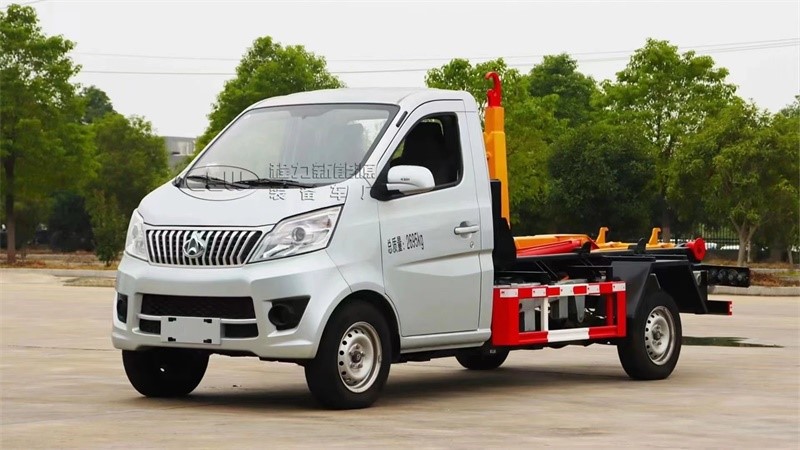

20250519092511

Key Features & Benefits

1. Eco-Friendly Electric Drive System

Powered by lithium iron phosphate (LiFePO4) batteries with permanent magnet motor technology, this refuse truck delivers:
✔ High energy conversion efficiency (90%+ motor efficiency)
✔ Zero emissions (Fully compliant with China's environmental governance policies)
✔ Low operating costs (60% lower energy costs vs. diesel models)
✔ Minimal maintenance (No engine oil changes or exhaust system repairs)

"One-time investment with long-term savings" – ideal for municipal sanitation fleets.

2. Enhanced Operational Performance

Developed by CLW New Energy's R&D team, the hook-arm system (also called telescopic arm system) provides:
✔ 30% faster loading cycles vs. traditional models
✔ Wider application scenarios: Urban streets, industrial parks, residential communities
✔ Extended service life (8-10 years with proper maintenance)
✔ Interchangeable containers (8-12m³ capacity options)

3. Ultra-Quiet Operation

The electric drive system reduces noise pollution significantly:
✔ <65dB during collection (vs. 85dB for diesel trucks)
✔ Vibration-free power transmission
✔ Night-operation friendly for noise-sensitive areas

Vehicle Basic Parameter

Product Trademark	Chengli	Announcement Batch	356
Product Name	Chengli Brand CL5031ZXXBEV Pure Electric Refuse Compactor with Detachable Compartment	Total Mass (kg)	2695
Rated Mass (kg)	820	Kerb Mass (kg)	1745
Rated Passenger Capacity (persons)	2	Approach/Departure Angle (°)	38/32, 38/31
Axle Load (kg)	1150/1545	Overall Dimensions (mm)	4860, 4660 × 1665, 1620 × 2050, 2020
Compartment Dimensions (mm)	1958X1450X1010	Maximum Speed (km/h)	100
Wheelbase	3200 MM	Tires	175R14LT
Number of Axles	2	Maximum Power of Chassis Motor	60 KW
Battery Capacity	46 KWH	Full-load Range of Chassis	220 KM
Loading Capacity	2.5m³	Rated Power of Loading Motor	5.5 KW
Hourly Power Consumption When Loading	3KWH	Recommended Charging Pile Power	120KW
Charging Time (at Recommended Power)	Approximately 1.15 hours	Battery Type	Lithium Iron Phosphate Battery
Battery Brand	CATL (Contemporary Amperex Technology Co. Limited)	Fuel Type	Pure Electric

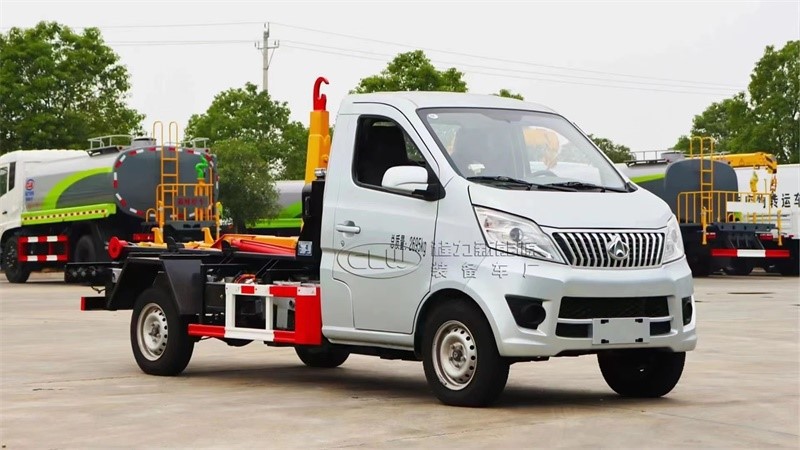

20250519092516

Product Highlights

1. Chassis

Chang'an pure electric Class II chassis: High reliability, meets national new energy regulations.
Side-mounted power battery: Adaptable to various modifications.
Comfortable cab: Features cup holders, storage compartments.
Lightweight design: Maximum total mass of 2695kg.
46kWh large-capacity battery: Suitable for diverse garbage collection needs.
Power take-off interface: Enables electrification of specialized vehicles.

2. Vehicle Performance

Renowned brand components: Reliable hydraulic cylinders and controllers.
Intelligent cab controls: Automatic, easy operation.
Standard-sized garbage bin compatibility: Ready to use.
Eco-friendly: Zero pollution, low noise, fuel-saving, cost-effective.

Chassis Technical Parameters

Chassis Model	SC1032DBADBEV Class II	Chassis Name	Pure Electric Cargo Truck Chassis
Chassis Manufacturer	Hebei Chang'an Automobile Co., Ltd.	Trademark Name	Chang'an Brand
Axle Number	2	Tire Number	4
Axle Spacing (mm)	3200	Tire Specification	175R14LT
Number of Leaf Springs in Steel Plate Spring	-/6	Front Track (mm)	1370
Rear Track (mm)	1360	Fuel Type	Pure Electric
Emission Standards	N/A	Engine Model	TZ180XSIN102
Engine Manufacturer	Suzhou Huichuan United Power System Co., Ltd.	Engine Displacement	0
Engine Power	60 kW	Battery Brand	CATL (Contemporary Amperex Technology Co. Limited)
