3 Axle 60 Tons Low Bed Loader Lowboy Semi Trailer

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 3 axle 60 tons low bed loader lowboy semi trailer in China. If you're going to buy high quality 3 axle 60 tons low bed loader lowboy semi trailer, welcome to get more information from our factory. For price consultation, contact us.





CLW Group, Hubei Chengli Special Automobile Co., Ltd. supply Hot Selling 2 /3 /4 Axle Lowbed Semi Trailer Near You,

Lowbed or Low bed, Low Loader, Low Boy, Lowboy Trailer which is commonly used to carry heavy duty construction machines and special vehicles, such as excavators, bulldozers, loaders, pavers, cranes, mining machinery, forestry machinery, ect. We are professional and excellent manufacturer and supplier of all kinds of trailers and trucks in China.

With its low height loading surface and heavy capacity, CLW Group lowbed semi trailer can help you on various of difficult transport solutions. Especially, we adopt high strength steels and optimal designs plans based on years of accumulated experience and force analysis to satisfy the high concentrated force, anti-bump and distortion resistance during its different loading situations.

CLW Chengli Lowbed Semi Trailer for sale is getting more and more popular in the market because of its durable quality and good reputations.

And we have exported more than 1000 units various styles of lowboy semi-trailers all over the world.





Parameters:



Main size	Overall length	13000mm
	Overall width	2500+250*2mm
	Overall height	1750mm
	Loading capacity	60T.
Chassis	Main beam	Material of high strength steel Q345B. Height 500mm. Top/middle/bottom flange:14/8/16mm. Welded by automatic submerged-processes.
	Main cross beam	Material is high strength steel Q345B. Welded by automatic submerged-arc processes
Loading deck	Material: Carbon steel Q345. Length of 8500mm. Height of 1000mm. Floor thickness 3 mm.
Landing gear	20T model landing gear with static capacity of 60T. Single speed linked type, operated at one side.
King pin	2 inches size, installed on the kingpin plate. 3.5 inches available if want.
Axle	3 sets of 16T model axles, with double tires formation.
Tire	Tire sized 11R22.5, radial tubeless tires. 12 sets of tires assembled with wheel rim per trailer.
Wheel rim	Sized 8.25X22.5, steel wheel rim. 12 pcs of wheel rim per trailer.
Suspension	Mechanical steel suspension system, two axles type. 6 sets of leaf springs installed.
Brake system	Dual line air drum brake system with T30/30 type double brake chambers on each axle.
Light system	12v/24v light system. LED lights, including side, rear, turning.
ABS system	ABS system installed, HN or Kemi brand.
Others	Color optional. One set of standard tools in tool box.

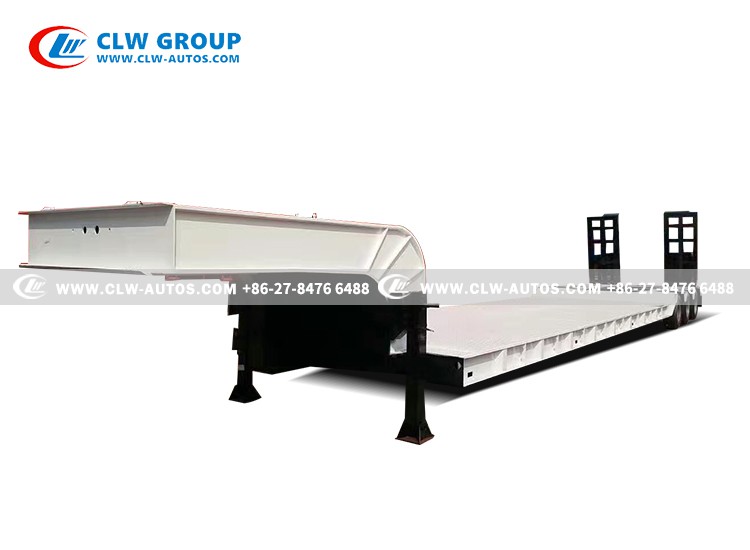

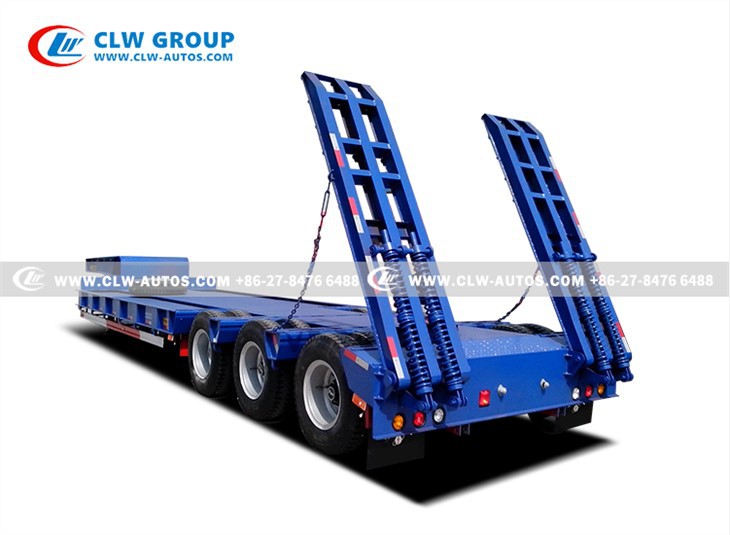

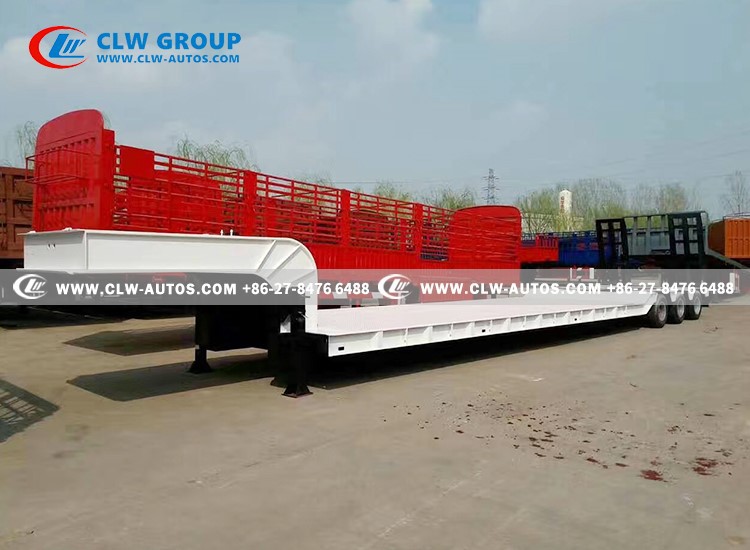

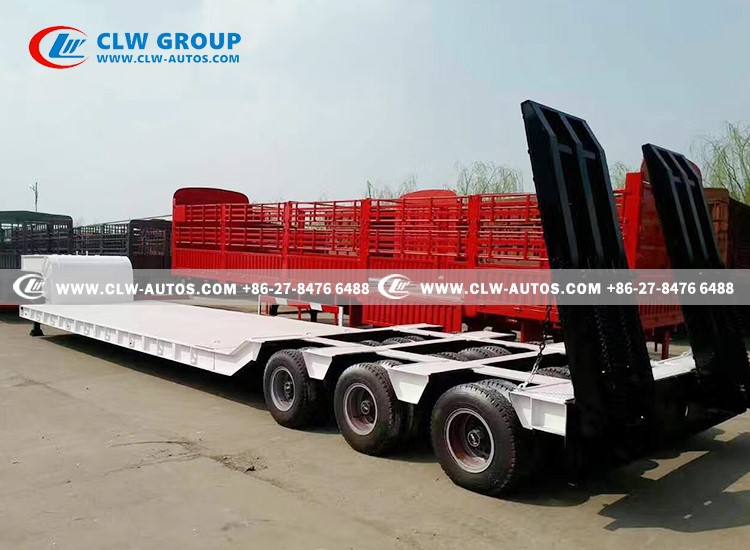

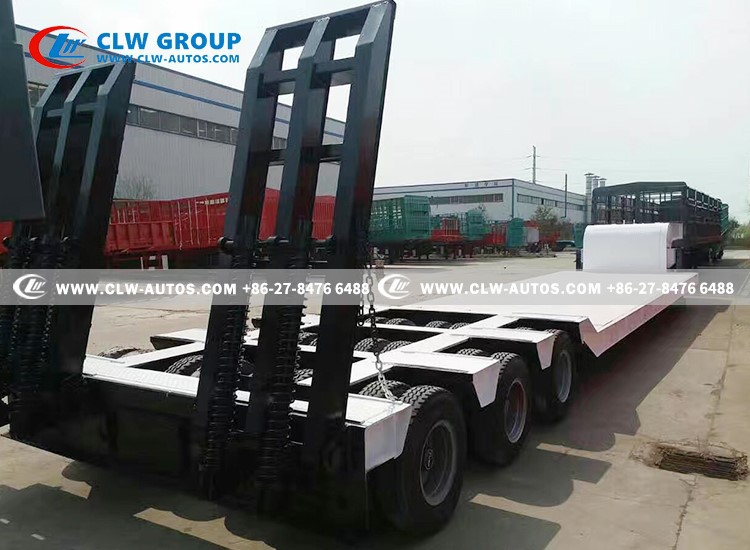

More Pictures:
