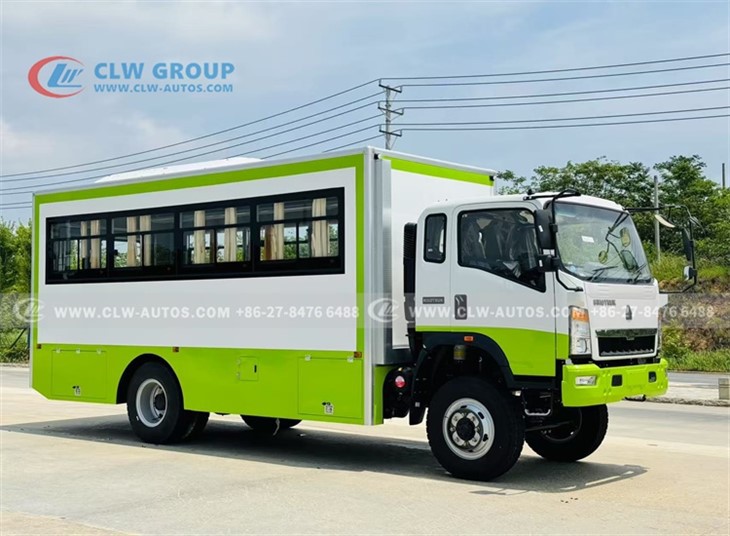

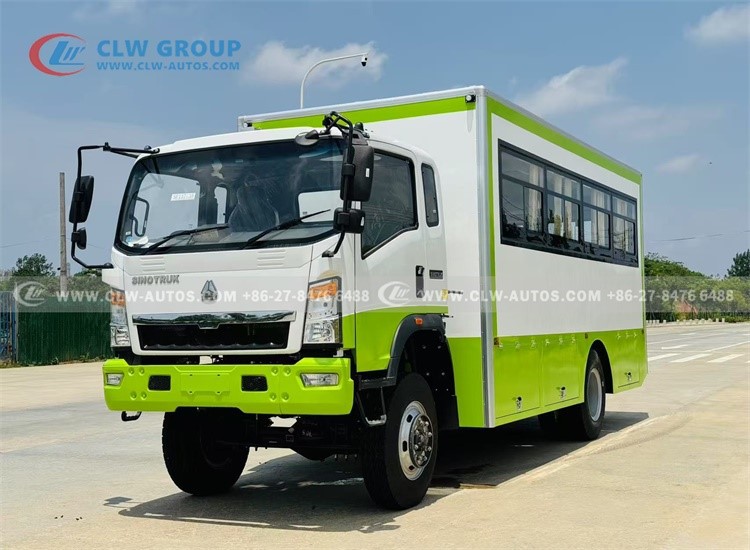

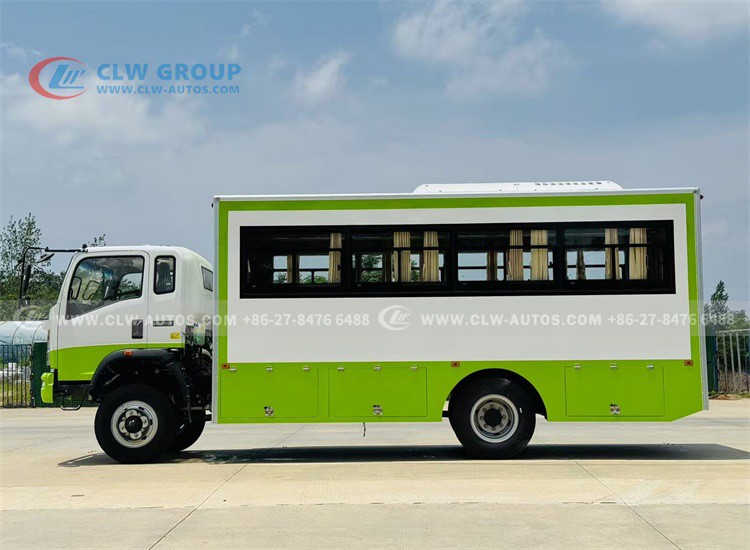

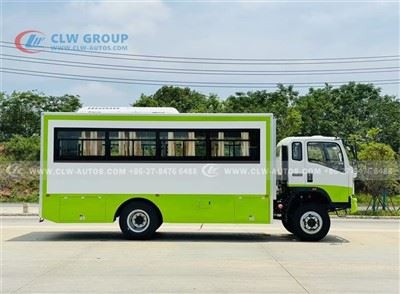

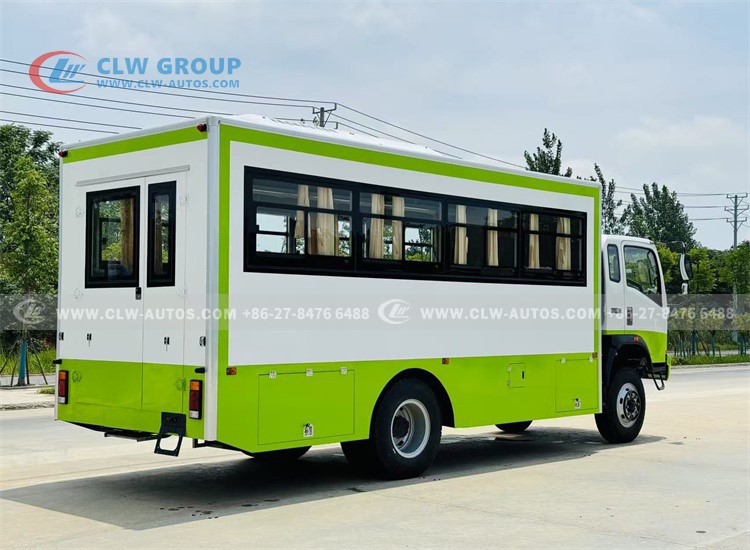

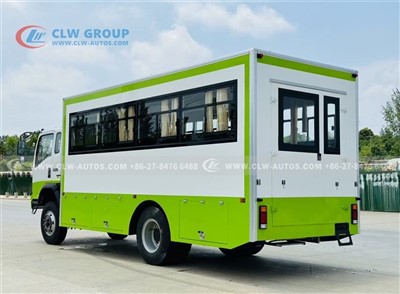

SINOTRUK HOWO 4X4 BUS
22-Seater Insulated Passenger Bus
Built-in Air Conditioner, Soft Interior
Cold-Rolled Steel Box Body
High-Strength Frame with Thermal Insulation
Rear Double Doors and Escape Window
Electric Step, LED Lighting System
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk howo 4x4 bus in China. If you're going to buy high quality sinotruk howo 4x4 bus, welcome to get more information from our factory. For price consultation, contact us.
SINOTRUK HOWO 4X4 BUS iIntroduction
This 22-seater passenger bus is manufactured by a trusted China factory and offers a reliable solution for personnel transportation. The vehicle features a durable insulated body with soft interior finish, aluminum-trimmed structure, and optional seat materials to meet different comfort needs. Equipped with sliding tempered glass windows, rear double-opening doors, a ventilated escape window, and built-in air conditioning, this bus is suitable for regional commuting, staff transport, or customized public service use. As experienced manufacturers and suppliers, we offer competitive factory prices and support OEM customization.
🔧 Key Upper Body Specifications
| Parameter | Value / Description |
|---|---|
| Overall Dimensions (L×W×H) | 8300 × 2450 × 3550 mm |
| Inner Box Dimensions (L×W×H) | 5920 × 2370 × 2050 mm |
| Box Body Thickness | 40 mm |
| Box Body Material | 1mm DC01 cold-rolled steel |
| Seats | 22 seats; plastic, leather, or fabric options; blue standard |
| Vehicle Windows | Aluminum alloy steel-framed sliding tempered glass |
| Interior Color | Leather-style soft pack, off-white |
| Interior Handrails | Stainless steel; spray-coated optional |
| Flip-up Doors | Battery, fuel tank, side luggage doors |
| Air Conditioning | Built-in outlets; integrated compressor bracket; optional air ducts |
| Additional Features | Electric steps (200kg load), 3 LED lights, onboard loudspeaker |
Chassis Configuration (Optional Same Wheelbase Chassis)
| Parameter | Specification |
|---|---|
| Chassis Brand | Sinotruck (CNHTC) |
| Chassis Model | ZZ1168G4525C1R |
| Wheelbase | 4500 mm |
| Engine Model | YC4E160-33 |
| Front/Rear Axle | 2.08T / 1.094T |
| Gearbox | 8JS85TE-C |
| Tire Model | 900R20 |
| Number of Tires | 6 |
| Spare Tires | 4 |
| Chassis Type | Class II |
| Color | White |
| Axle Load (kg) | Not specified |
| Number of Axles | 2 |
Video Introduction
SINOTRUK HOWO 4X4 BUS Key Features
High-Quality Insulated Box
40mm thick walls with cold-rolled steel and extruded insulation ensure excellent heat retention, moisture resistance, and fire safety.
Comfortable Passenger Seating
Flexible options including plastic, leather, and fabric seats for a total of 22 passengers, with customizable colors.
Enhanced Safety and Accessibility
Equipped with escape windows, rear double doors, and sturdy stainless steel handrails for passenger safety and convenience.
Advanced Air Conditioning & Lighting
Dedicated HVAC system with integrated air outlets and multiple LED lights for comfortable and well-lit interiors.

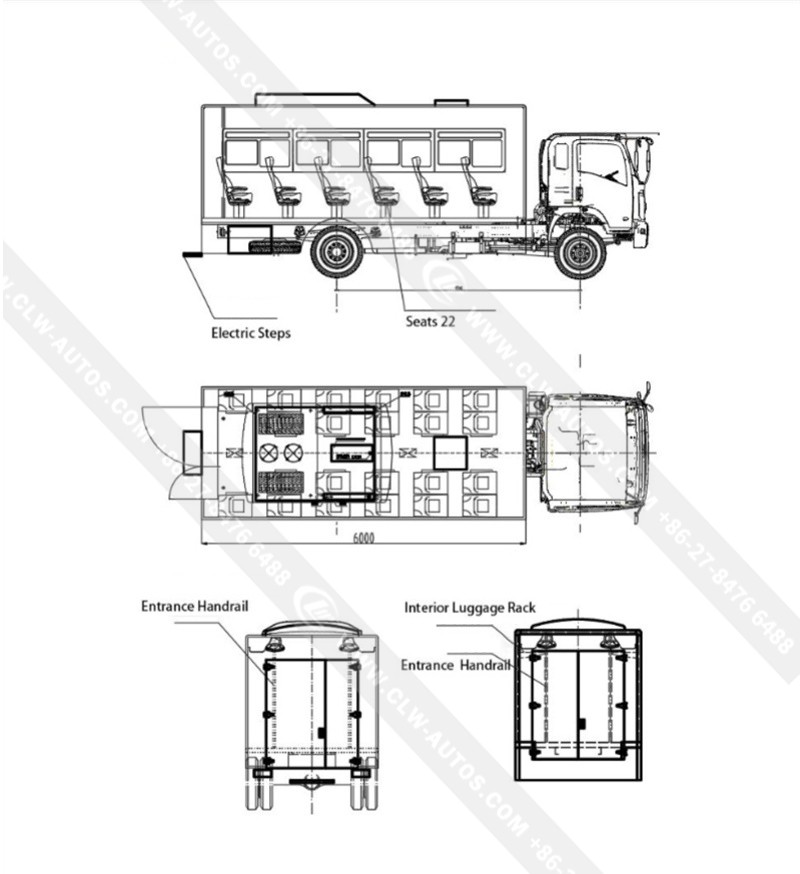

SINOTRUK HOWO 4X4 BUS Structure Diagram

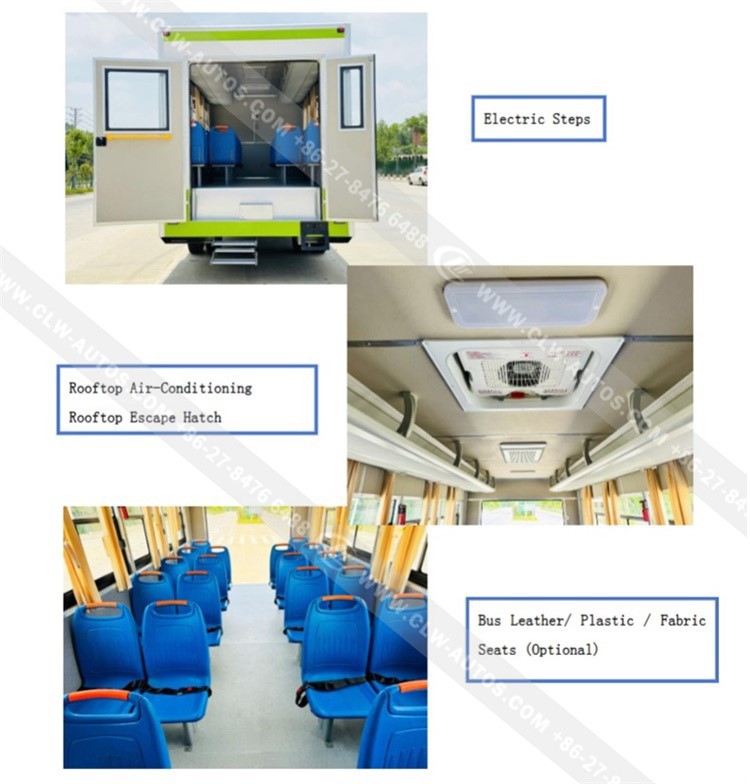

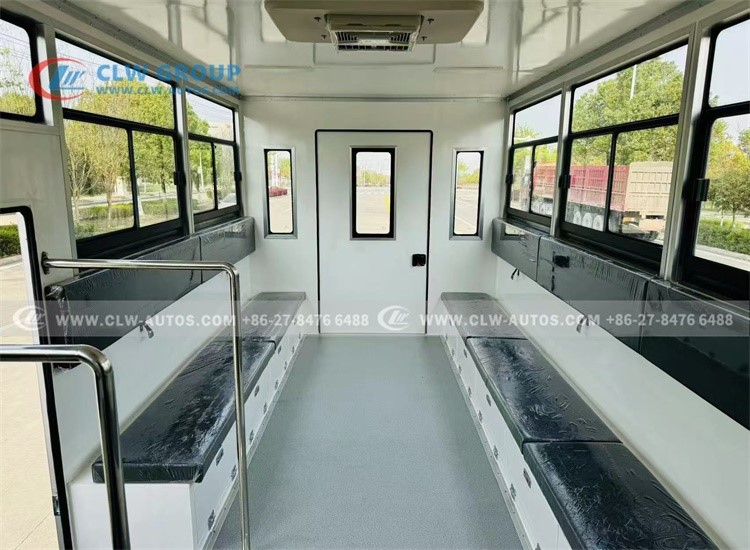

Products Interior Details
