20 Seats 22 Seats 28 Seats GOLDEN DRAGON Mini Bus
Seat capacity:20+1+1;
Driving model:LHD or RHD
Brand:GOLDEN DRAGON
Gear box:5-speed forward and 1 reverse
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 20 seats 22 seats 28 seats golden dragon mini bus in China. If you're going to buy high quality 20 seats 22 seats 28 seats golden dragon mini bus, welcome to get more information from our factory. For price consultation, contact us.
Function
--Bus(also called Autobus.) is used for Long-haul and Short-haul passenger transporting.
--Bus can be divided into various types as follows,
1) according to truck brands, there are dongfeng, asiastart, JMC, Foton and GOLDEN DRAGON for optional.
2) according to seat capacity: 8 seats 10 seats 12seats 14seats 16seats 20 seats, 28 seats, 30 seats, 40 seats, 48 seats, 50 seats, 55 seats, 58 seats and 60 seats etc.
3) according to purpose: Long-haul and Short-haul passenger transporting bus.
Feature
--Powerful engine: Four-cylinder, water cooled, turbocharged, after cooled, diesel engine.
--Heavy duty mechanical suspension system

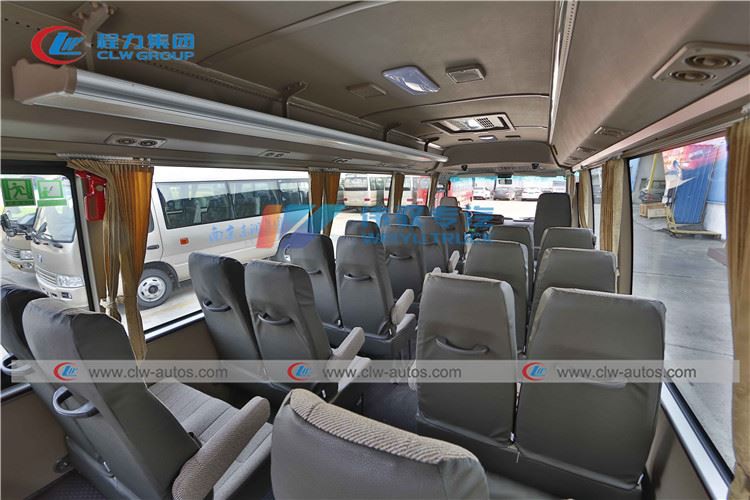

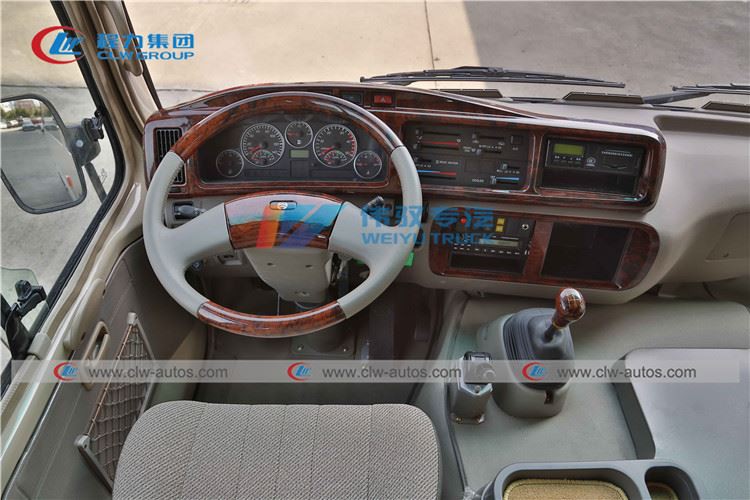

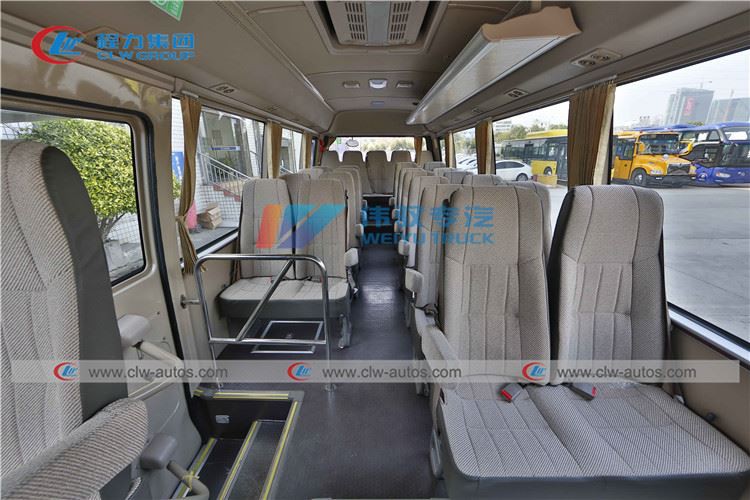

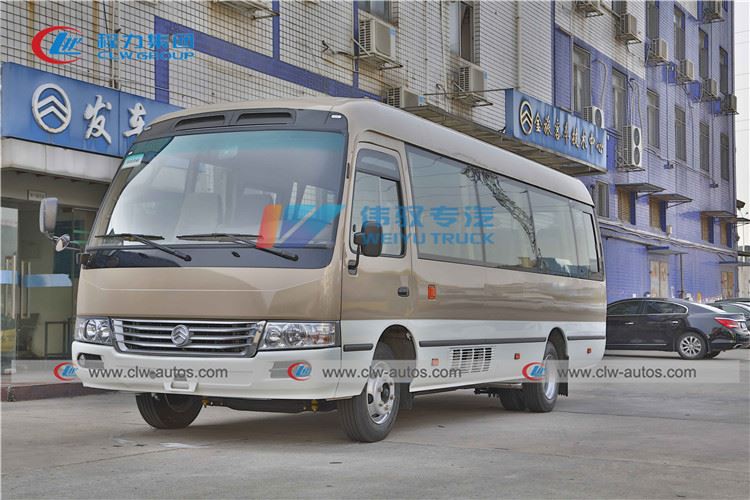

Reference picture
Specification
SYSTEM | PART NAME | DESCRIPTION |
CHASSIS | Engine | CUMMINS ISF 3.8 s3141 (EURO III),3.8L Max power:105Kw/2600rpm, Max torque:450Nm/1200-2200rpm |
Clutch | Single disk,hydraulic operation | |
Transmission | FAST C6J50T transmission, Manual, six gears | |
axle | Chinese axle, front 3T / rear 5T, ratio 4.875 | |
Suspension | Leaf spring | |
Tyre | 215/75R17.5,tubeless | |
Wheel cover | Equipped | |
Steering system | Power steering,hydraulically assisted | |
Brake system | Full air brake,drum type | |
BODY | Driver position | LHD |
Floor mat | Ordinary floor mat | |
Style | STYLE | |
Dashboard | Luxury Dashboard | |
Side window glass | Fully sliding window | |
Inner luggage rack | Not equipped | |
Anti-scuff strip | Equipped | |
Top hatch | Equipped | |
Inner trim | New interior trim | |
Passenger door, middle | Equipped | |
Passenger seat | 21 seats, 2+1 layout | |
Driver seat | Fabric covered seat,three point mounted seat belt | |
Inside rear mirror | Equipped | |
Rear view mirror | Manual | |
Sun visor | Left & right sun visor | |
Curtain | Equipped | |
Safety belt | All seats with belt | |
Painting | Standard paint | |
Vehicle ID | English vehicle ID | |
ELECTRICAL EQUIPMENT | manual power switch | Equipped |
Wiper | Front &rear wiper | |
Digital clock | Equipped | |
High position brake lamp | Equipped | |
Audio-vision system | Radio/ MP3 player | |
Reversing monitor | Equipped | |
Heater | Not equipped | |
Front defroster | Equipped | |
A/C | Equipped | |
Rear ground mirror | Equipped |
