One-Tow-Two Flatbed Wrecker Components And Working Principle

    The one-tow-two wrecker is driven by the engine through the power take-off installed on the gearbox to transmit the power to the hydraulic oil pump. The high-pressure hydraulic oil generated by the hydraulic oil pump is sent to the hydraulic cylinders through multi-way valves to realize the wrecker's operation.

　The special device for flat wrecker is composed of flat lift cylinder, telescopic cylinder, hydraulic winch, rear support and multi-way valve operating system. In the application process of the flatbed wrecker, in addition to being lifted and towed, it can also be loaded separately.

　Introduction to the various components and functions of a one-tow-two wrecker

1). The reliability of the hydraulic system, our company's national wrecker truck industry is the only one to use the oil inlet and return double filter hydraulic system to ensure the cleanliness of the hydraulic system, thereby ensuring the reliability of the entire hydraulic system, and realizing the safety of the wrecker truck. Efficient work.

2). One wrecker vehicle configuration toolbox, which is used to store various work accessories and accompanying tools for the wrecker, located on the left side of the cab.

3). The warning light is located on the top of the cab, which serves as a warning for vehicles and pedestrians.

4). The bracket is a support frame for clearing obstacles such as plate sliding and arm lifting. The plate slides back and forth on the carriage track by the hydraulic cylinder.

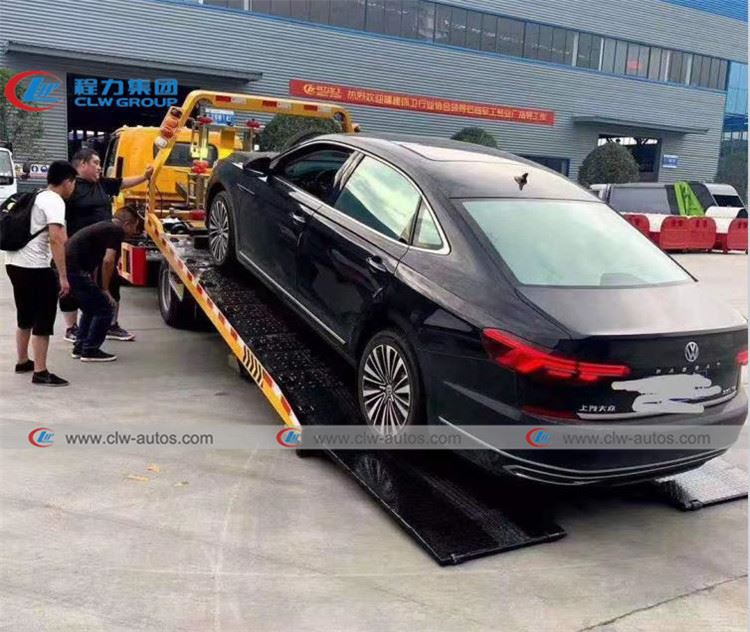

5). Flatbed is the main component of wrecker truck participating in rescue work. Slide the plate backwards and tilt it at a suitable angle, with the tail resting on the ground. At this time, the winch can smoothly tow the faulty vehicle to the plate, and with the help of the telescopic action of the hydraulic cylinder, the plate returns to position to complete the work.

 6). The support arm is a key component of the wrecker to participate in the rescue work, and the lifting and traction work of the faulty vehicle is mainly realized through the support arm. With the help of the telescopic action of the hydraulic oil cylinder, the support arm can realize folding, lifting, tilting and telescopic actions to complete the task of clearing and rescue.
