Brief Introduction To Aircraft Refueling Truck

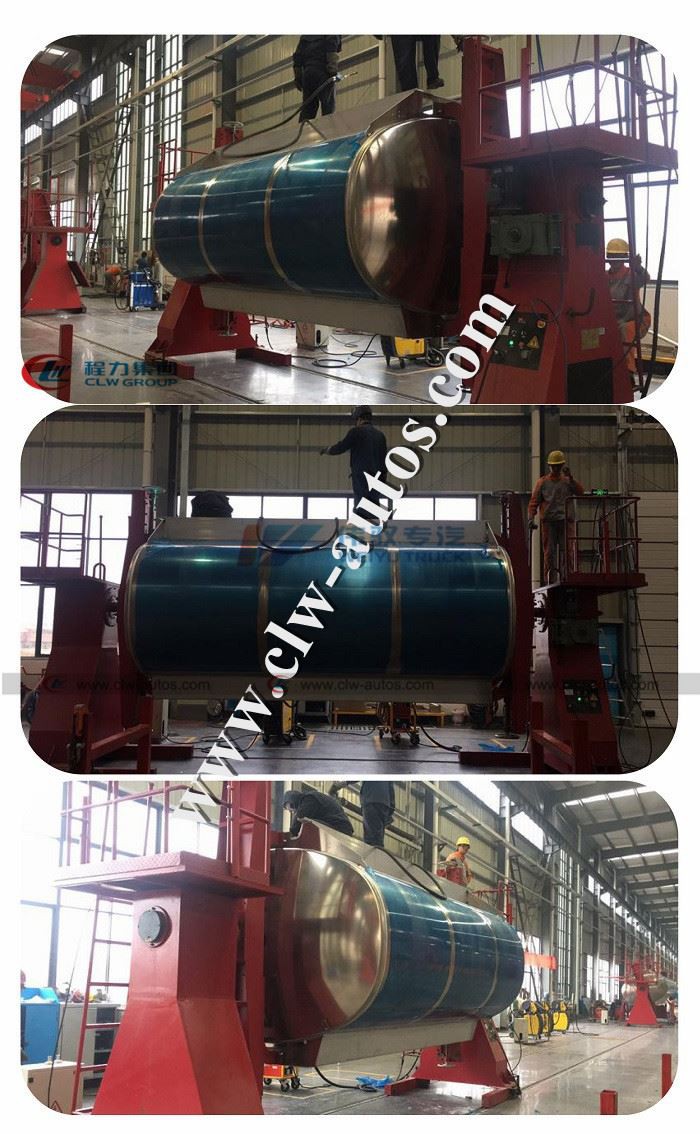

Aircraft refueling trucks only refuel the aircraft, and the loaded medium is aviation kerosene. Because aircraft refueling trucks are mostly loaded with aviation kerosene, kerosene will have a corrosive effect on conventional metals. The tank body is made of magnesium aluminum alloy, also known as anti-rust aluminum. Alloy, can play the role of anti-corrosion and rust prevention. Pipes, valves and pumps are made of magnesium-aluminum alloy, or 316L stainless steel, and polished and waxed to ensure the safety of kerosene.

Aircraft refueling trucks are mainly used for aviation fuel transportation and fuel refueling operations such as airplanes and helicopters.

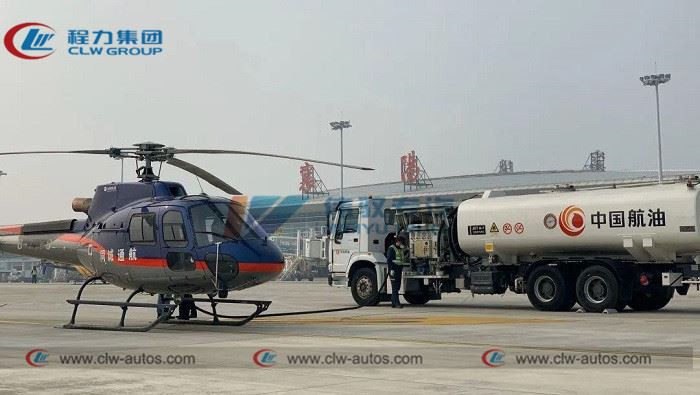

1. Helicopter refueling truck:

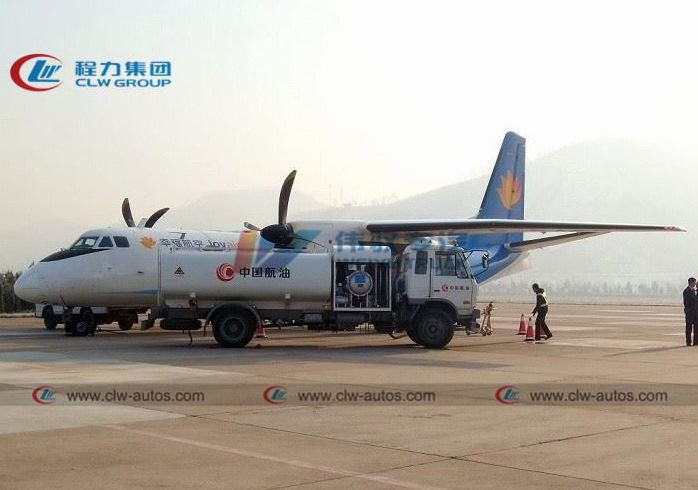

2. Jet airplane refueling truck:

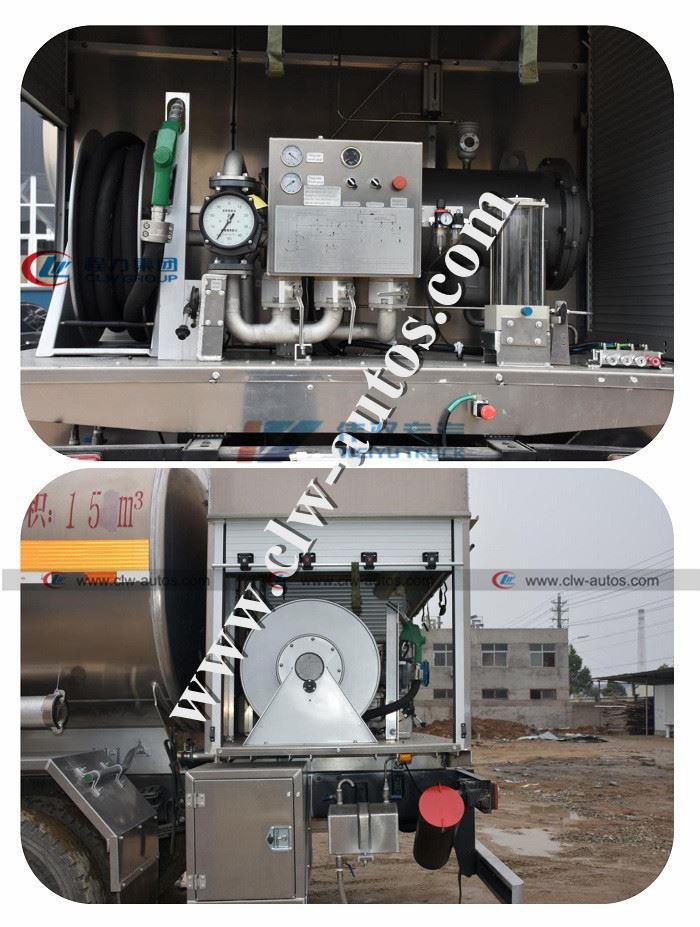

Introduction to the core equipment of the aircraft refueling vehicle:

--1. Airplane fueling vehicles should be equipped with a pressure regulator, adjust the pressure, regulator and refueling pressure gauge, observe the pressure of refueling and pumping in and out of the pump at any time, and make corresponding safety adjustments. It is often installed at the top of the box. The location is obvious and easy to see;

--2. Aviation oil has very high requirements for oil purity. High-performance filters will be installed on the pipelines. The aviation kerosene will be highly filtered before entering the aircraft fuel tank. Samples will be taken before and after filtration to check its purity. Ensure that every drop of oil entering the aircraft is safe and secure;

--3. The FQJ float level gauge is installed on the tank body of the aircraft refueling truck, which can know the oil volume in the tank at any time, and prepare for the completion of refueling in advance according to the remaining fuel volume;

--4. Super large flow meter, equipped with a super large flow meter at the stainless steel pump, accurate statistics of the amount of fuel added to the aircraft, accurate and safe measurement, according to the installation position can choose pump out metering, pump in and pump out both metering methods;

--5. The engine tachometer, when the power take-off is in operation, the engine speed should not exceed 1000r/min. The engine tachometer can observe the speed at any time. If the speed exceeds the specified speed, the engine can be turned off urgently. The oil pump system is marked on the side of the tachometer. The flow chart and the valve switch instruction table can help the operator to more accurately understand the refueling progress and the valve opening situation.

Features of aircraft refueling truck:

Aircraft refueling vehicles are basically the same as ordinary refueling vehicles on the whole, but there are some special requirements in terms of performance and structure.

--1. High refueling pressure stability requirements. For this reason, a pressure regulator, a voltage stabilizer and a pressure refueling meter are installed on the refueling pipeline.

--2. The cleanliness of the oil is high. A high-performance filter separator should be used on the oil line. The tank and pipeline must be made of aluminum alloy.

--3. Absolutely guarantee the safety of refueling. Anti-static devices, interlocking control systems, electrical explosion-proof extinguishers, fire extinguishers, etc. should be installed.

--4. Equipped with a high-precision, large-flow meter.

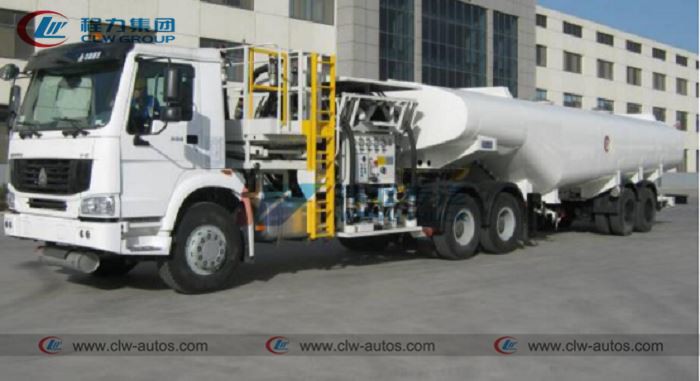

--5. The total capacity of the oil tank is large, and the refueling of the aircraft needs to be completed at one time. For example, the WG series tanker tanker has 6 types of capacity: 10000, 15000, 18000, 20000, 22000, 45000L, and the capacity is dozens or even hundreds of times the capacity of an ordinary truck's fuel tank.
