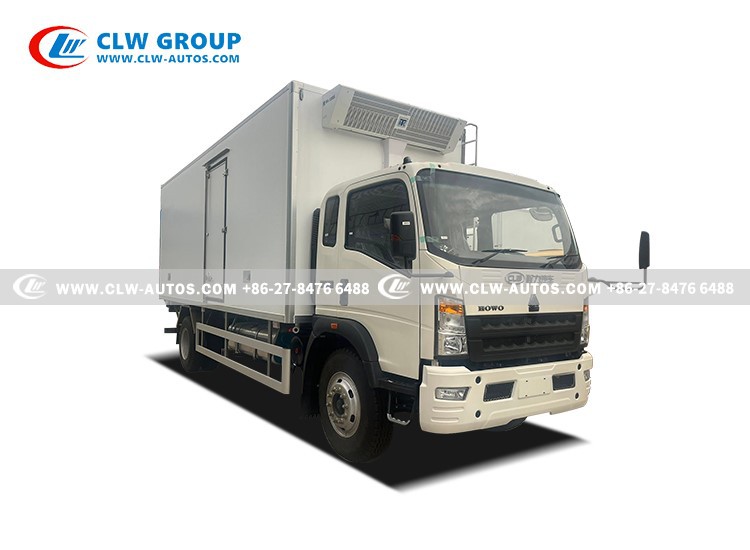

10Tons HOWO Reefer Truck
Chassis brand:SINOTRUK HOWO
Refrigerator brand: Thermo King
Van body length: 4.6m
Steering:RHD
Wheelbase: 5200mm
Independent refrigeration unit
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 10tons howo reefer truck in China. If you're going to buy high quality 10tons howo reefer truck, welcome to get more information from our factory. For price consultation, contact us.
RHD SINOTRUK HOWO Chilled Lorry Refrigerated Truck
We are Straight Manufacturer from China.
Quality First, Service Best, Welcome for Inquiry!
Products Description
This 10-ton refrigerated truck features a 5,200mm wheelbase, Yuchai 160HP Euro II-compliant diesel engine, and a right-hand drive configuration, making it ideal for urban and regional logistics in markets like Southeast Asia and Africa. Equipped with a 6.5-meter insulated cargo box and the Thermo King RV-1200S non-independent refrigeration unit, it ensures precise temperature control from -20°C to +30°C, suitable for transporting perishable goods with strict thermal requirements.
Some Key Words:
- Engine: YUCHAI 4-cylinder turbocharged diesel (Model YC4D120-21, 4.214L displacement, 160HP).
- Payload: 10 tons (max capacity: 12 tons).
- Robust Chassis: Reinforced 4X2 design with dual-circuit pneumatic brakes.

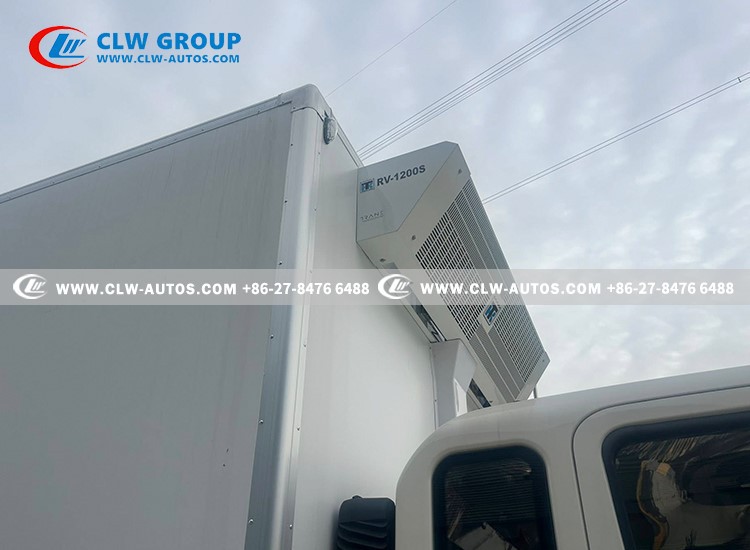

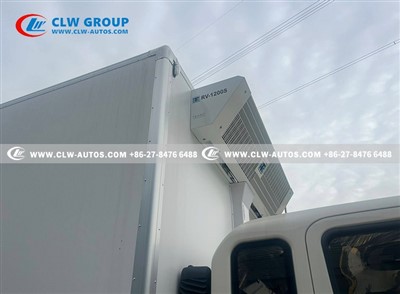

- Refrigeration Unit: THERMO King RV-1200S (non-independent), optimized for energy efficiency and rapid cooling.
- Insulation: Polyurethane foam panels with K-value ≤0.3 W/m²·K, 40% lighter than traditional metal structures
The Main Operational Scenarios
Competitive Advantages:
Cost Efficiency: Non-independent refrigeration reduces fuel consumption by 15% compared to standalone units, with maintenance intervals extended to 2,000 hours using synthetic oil.
Durability: ASME-certified carbon steel chassis and anti-corrosion epoxy lining for harsh environments.
Right-Hand Drive: Optimized for left-side traffic markets (e.g., Thailand, South Africa).
Rapid Cooling: Achieves target temperatures in 30 minutes with Thermo King's dual-speed compressor.
Products Parameters
|
Chassis parameters |
||
|
Driving type |
4X2 |
|
|
Overall dimension |
8000*2400*2750mm |
|
|
Wheelbase |
5200mm |
|
|
Gross weight |
12,000kg |
|
|
Loading weight |
10,000kg |
|
|
Cabin |
2080mm one row and half cabin; Right hand driving; With air conditioning; Power assisted steering |
|
|
Engine |
Engine model |
YUCHAI,YC4E160-33 |
|
Horsepower |
160hp |
|
|
Displacement |
4.3L |
|
|
Emission standard |
Euro Ⅲ |
|
|
Transmission |
HW90510C2 ; Manual; 10 forward gears and 2 reverse |
|
|
Front /rear axle loading |
3,600kg/ 10,500kg |
|
|
Speed ratio |
4.875 |
|
|
Tyre |
9.00R20 16PR |
|
|
Oil tank volume |
220L, iron material |
|
|
Suspension |
9/12+9H |
|
|
Max driving speed |
95km/h |
|
|
Upper Structure Parameters |
||
|
Length of the van body |
6.4m |
|
|
Van dimension |
6500*2400*2450mm |
|
|
Refrigerator |
THERMO KING RV-1200S; independent refrigeration unit |
|
|
Temperature |
0-18℃ |
|
|
Optional device |
1 ton hydraulic tail plate; The slots on both sides , single row or double row as request; Ventilation slots; Meat hooks installed inside; |
|

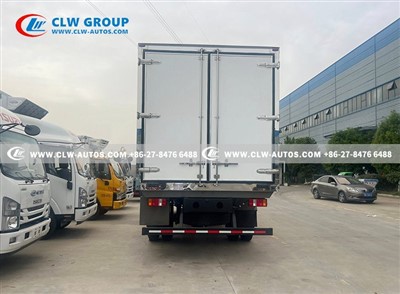

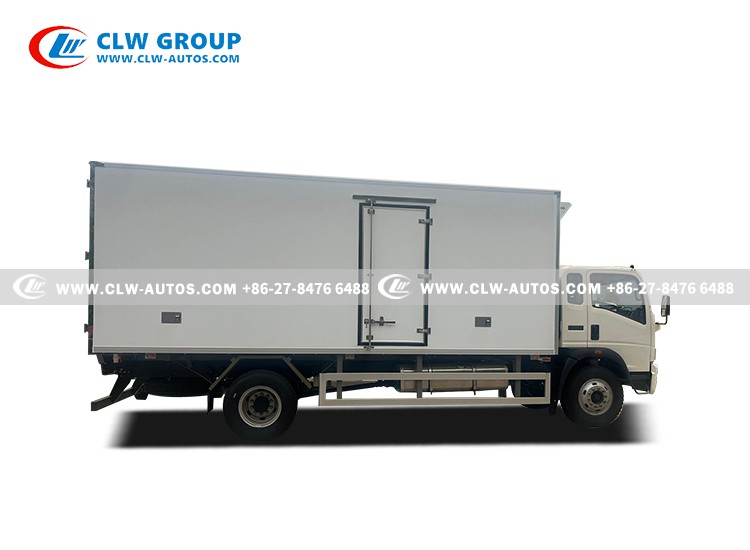

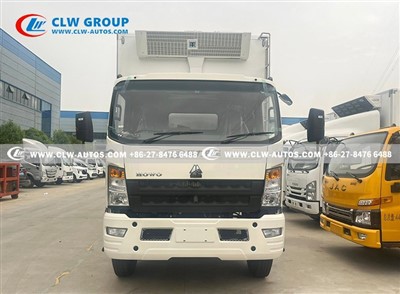

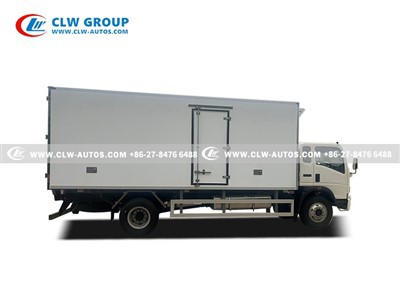

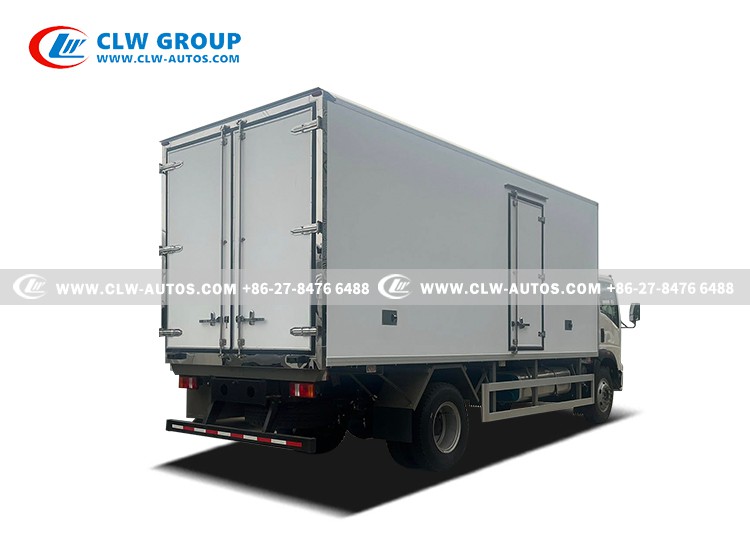

Reference Picture
Smart Temperature Monitoring: Integrated IoT sensors provide real-time alerts for temperature deviations and system leaks.
Multi-Zone Airflow Design: Adjustable vents prevent cold-air blockage, ensuring uniform cooling even with full loads.
Low-Noise Operation: <68 dB during nighttime deliveries, compliant with urban noise regulations.
Quick-Connect Pallet System: Aluminum rail flooring with dual-sided pallets maximizes airflow and loading efficiency.
Cost Efficiency: Non-independent refrigeration reduces fuel consumption by 15% compared to standalone units, with maintenance intervals extended to 2,000 hours using synthetic oil.
Durability: ASME-certified carbon steel chassis and anti-corrosion epoxy lining for harsh environments.
Right-Hand Drive: Optimized for left-side traffic markets (e.g., Thailand, South Africa).
Rapid Cooling: Achieves target temperatures in 30 minutes with Thermo King's dual-speed compressor.
Urban Food Distribution: Ideal for supermarkets, restaurants, and cold chain logistics, maintaining freshness for dairy, meat, and frozen goods.
Pharmaceutical Transport: GDP-compliant temperature stability (±2°C) for vaccines and biopharmaceuticals.
Agricultural Support: Hauling fruits, vegetables, and seafood from farms to processing centers.
Emergency Services: Mobile cold storage during disaster relief operations.
"10-ton refrigerated truck with Thermo King RV-1200S" – Targets buyers seeking reliable, mid-capacity cold chain solutions.
"Right-hand drive refrigerated van for ASEAN markets" – Appeals to regional logistics companies.
"Low-maintenance Yuchai engine refrigerated transport" – Highlights operational cost savings.
"GDP-compliant pharmaceutical delivery vehicle" – Attracts healthcare and biotech industries.
