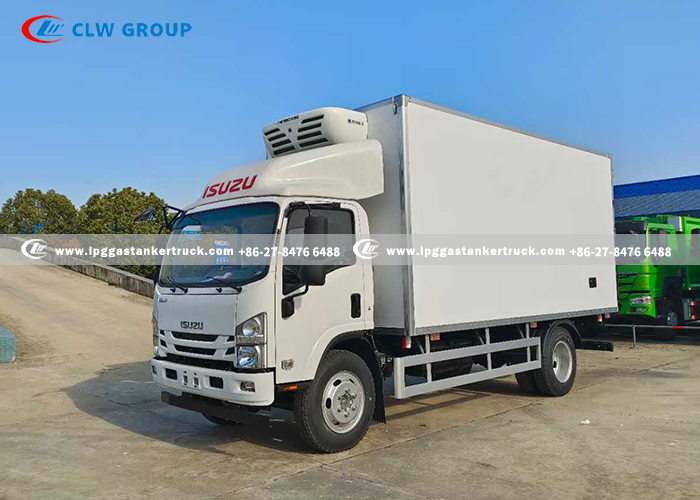

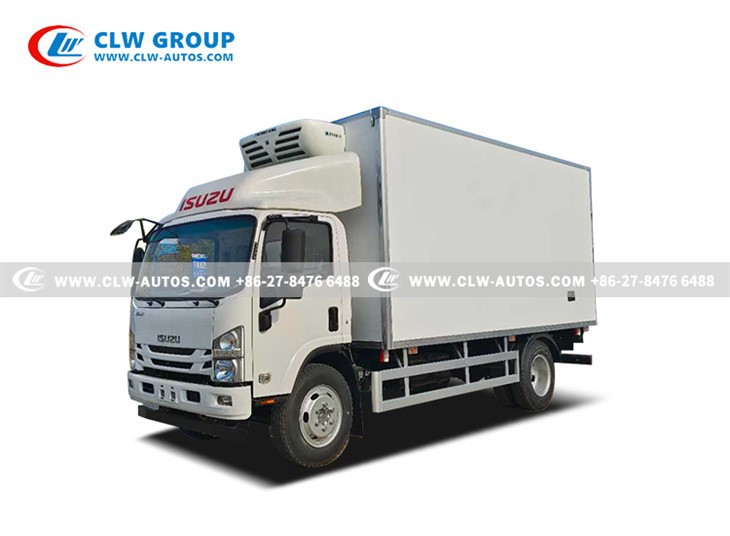

ISUZU Meat Hook Refrigerated Truck
Drive Type: 4x2
Engine Power:132hp
Refrigerator Brand: Thermo King
Van Body Size: 5150x2300x2300 mm

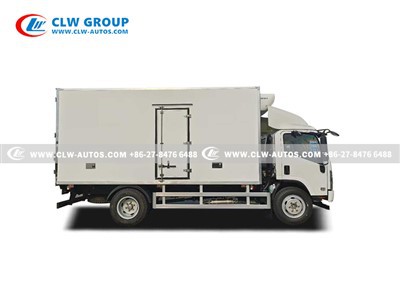

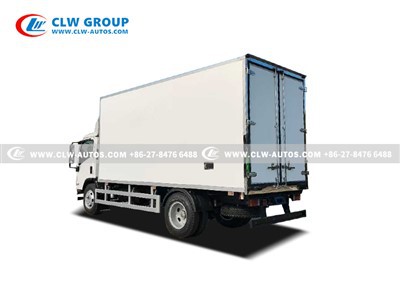

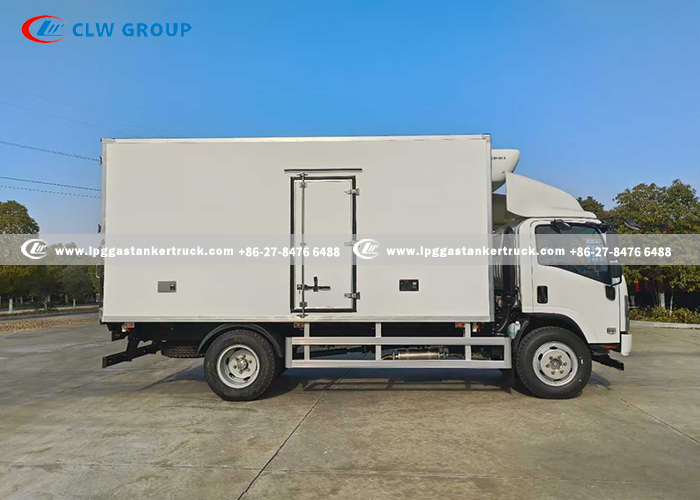

ISUZU KV600 Refrigerated Truck
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of isuzu meat hook refrigerated truck in China. If you're going to buy high quality isuzu meat hook refrigerated truck, welcome to get more information from our factory. For price consultation, contact us.

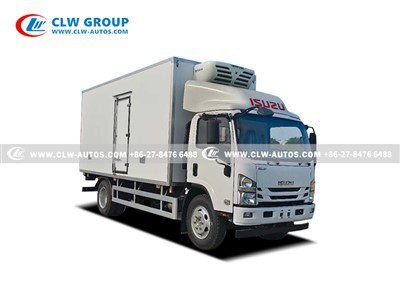

ISUZU KV600 4X2 6 Wheels 8Tons Refrigerated Truck For Fresh & Frozen Meat Delivery
Products Description
Refrigerated trucks are closed box-type transport vehicles used for transporting frozen or fresh-keeping goods. A refrigerated truck is composed of the walking part of a dedicated truck chassis, an insulated and heat-preserving body, a refrigeration unit, a temperature recorder inside the body and other components. It also called "Chiller Truck", "Cold Storage Truck", "Freezer Truck", "Meat Transport Truck", "Food Delivery Van" and so on.
ISUZU Meat Hook Refrigerated Truck
It is a specialized vehicle designed for transporting fresh or frozen meat, combining refrigeration with overhead hook systems.
Meat Transport
- Ensures freshness from slaughterhouses to markets/export.
- Overhead hooks prevent stacking, improving airflow and cooling.
Hygiene & Compliance
- Meets food safety standards, preventing contamination.
- Temp ranges: Frozen (-18°C or below) / Chilled (0-4°C).
Efficient Loading
Integrates with slaughterhouse rail systems, saving labor.
Reference Products Video
Products Parameters
|
ISUZU Meat Hook Refrigerator Truck |
|
|
Chassis Specification |
|
|
Chassis Model |
QL1080 |
|
Driving Model |
4x2 |
|
Dimension |
7120 x 2510 x 3460 mm |
|
Cab |
|
|
Wheelbase |
3815 mm |
|
Gross vehicle Weight |
8000 kg |
|
Curb Weight |
5020 kg |
|
Front Axle Loading Capacity |
3000 kg |
|
Rear Axle Loading Capacity |
5500 kg |
|
Axle Number |
2 |
|
Engine |
ISUZU diesel engine 4 cylinders in a line, Water cooled, turbocharged, after cooled, cold start. |
|
Model: 4KH1CN6HB |
|
|
Horse power: 132 HP |
|
|
Displacement: 2999 ml |
|
|
Emission standard: Euro 6 |
|
|
Transmission |
Model: ISUZU |
|
6 Forward & 1 Reverse |
|
|
Tire |
7.00R16 |
|
6pcs with 1 spare tire |
|
|
Fuel Tank Capacity |
100 L |
|
Refrigerated Compartment Body |
|
|
Van Body Size (L*W*H) |
5150 x 2300 x 2300 mm |
|
Van Body Material |
Extruded Polystyrene Sheet - XPS |
|
Polyurethane - PU |
|
|
Fiber Glass - FPR |
|
|
Van Body Thickness |
80mm / 100 mm |
|
Refrigerator |
Thermo King |
|
Temperature |
-20 ~ 12 ℃ |
|
Optional Configuration |
|
|
|
|
|
|
|

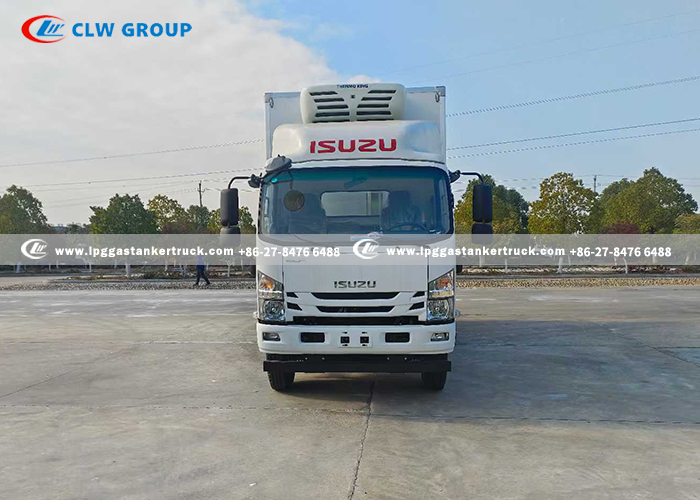

Products Photos

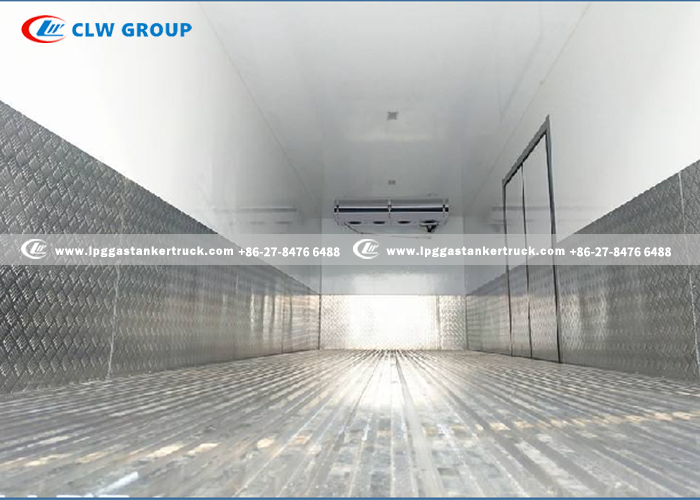

The refrigerated and insulated compartment body is mainly made of composite materials and thermal insulation materials.
Because the composite material (that is, FRP) has the advantages of light weight and high strength, low thermal conductivity, good anti-corrosion performance, no painting, easy maintenance and repair, etc., it has become the main material for the refrigerated and insulated compartment envelope
The insulation material is polyurethane rigid foam (because it is not recyclable, it has basically stopped being used) or extruded polystyrene board XPS, which has a very low thermal conductivity, excellent thermal insulation performance, easy to form and construct, and can ensure the excellent thermal insulation performance of the refrigerated and insulated compartment.
FRP is made of unsaturated polyester as the matrix and glass fiber as the reinforcing material to make the molded glass fiber reinforced plastic (FRP). This kind of composite material is formed at room temperature, which is convenient for on-site construction, and has good process performance, which can make the whole envelope body form a whole and form a fully enclosed structure. Protect the extruded polystyrene board XPS from long-term air erosion and reduce the thermal insulation performance, which can prolong the thermal insulation life of the envelope and enhance the strength of the envelope.

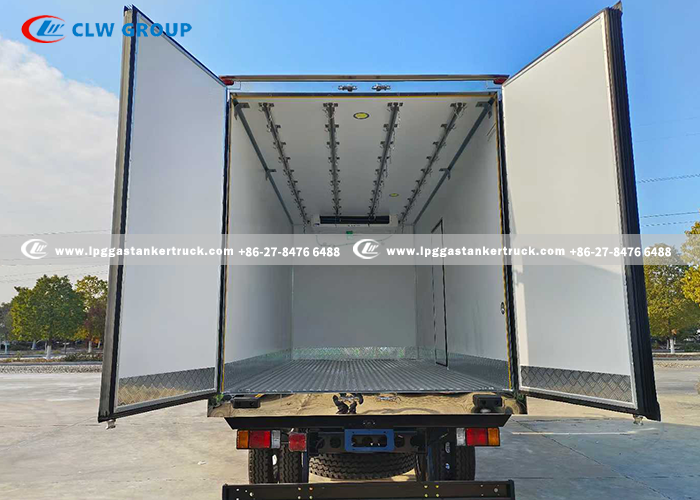

Meat Hook Design
Hook System: Stainless steel overhead rails with movable hooks
Capacity: 20-30 carcasses (beef/pork), load-distributed
Ventilation: Forced-air circulation for uniform cooling
Flooring: Aluminum alloy anti-slip with drainage

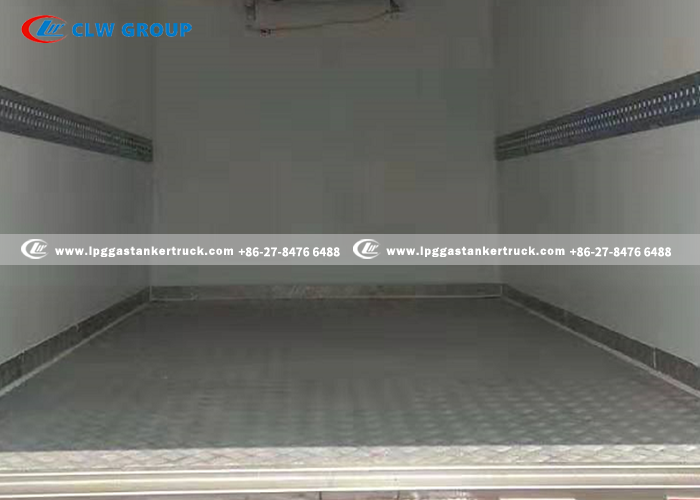

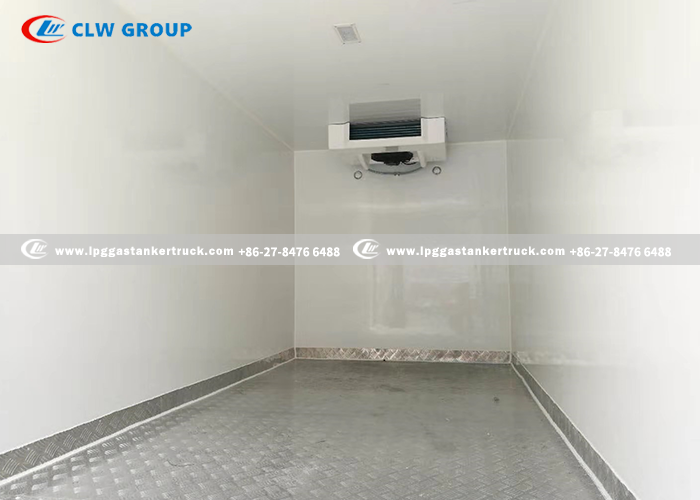

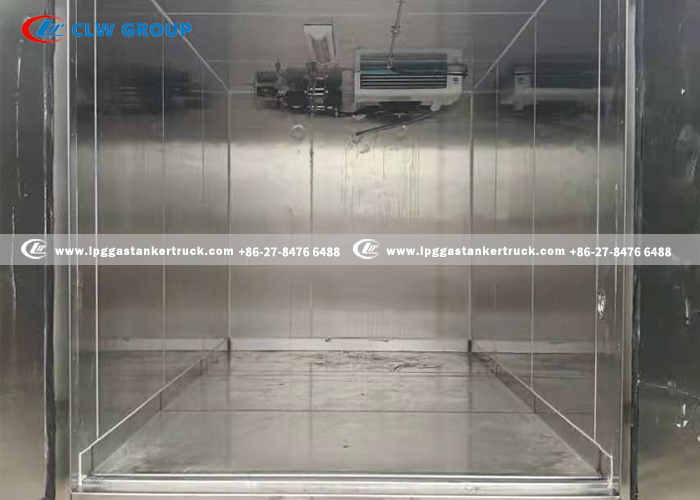

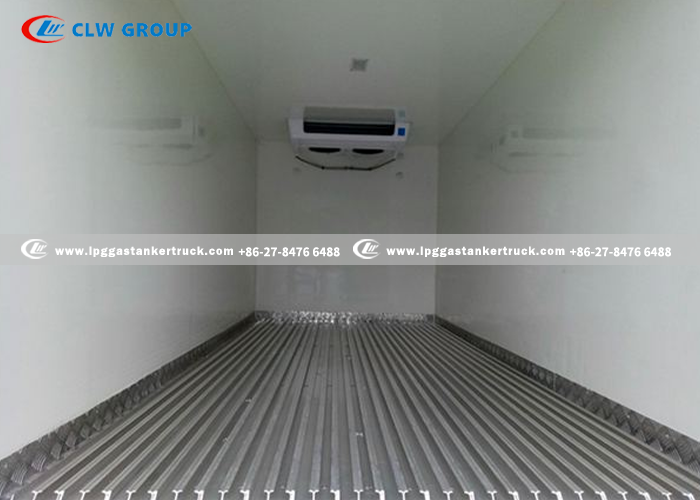

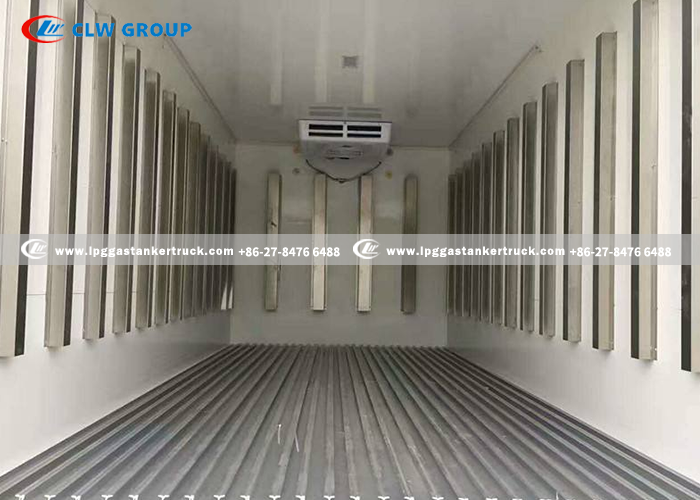

Optional Van Body Configuration

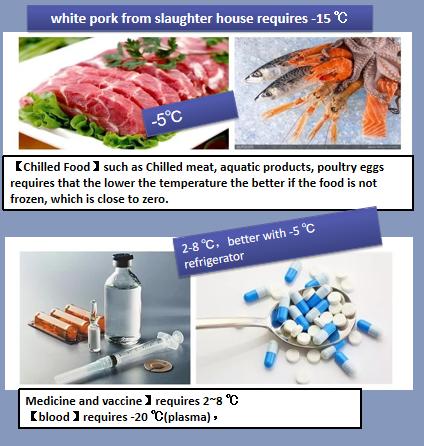

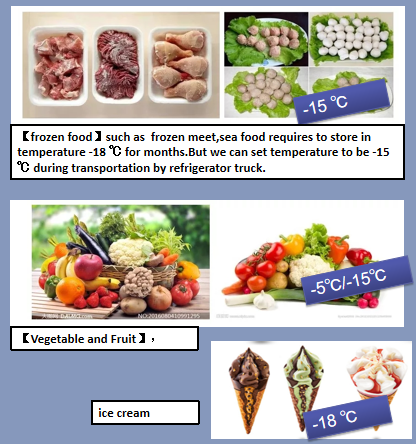

The Suitable Temperatures For Various Types of Food
