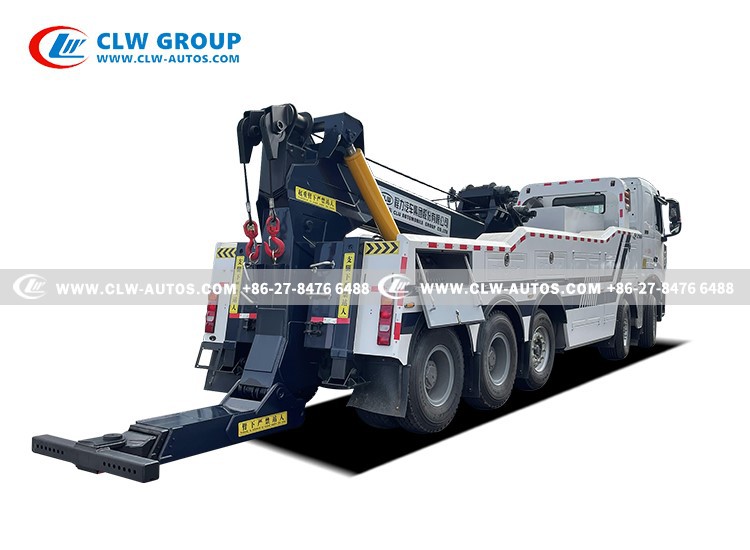

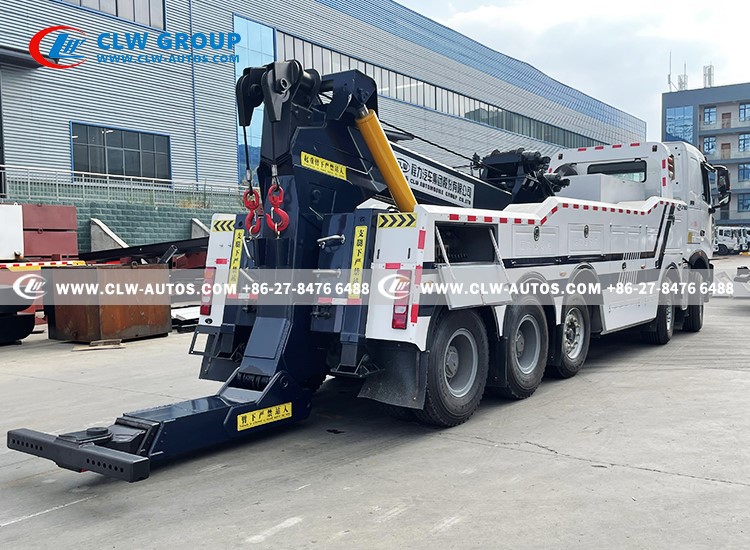

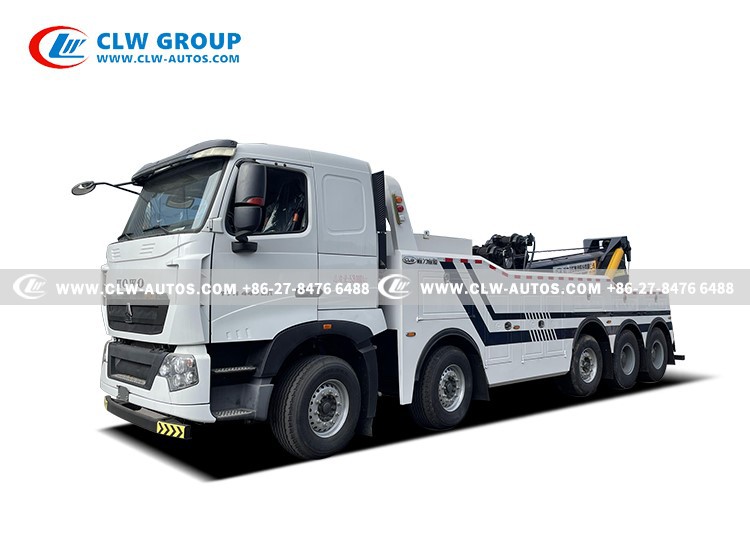

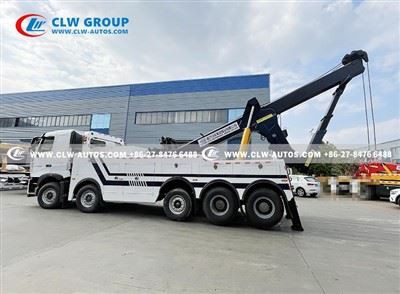

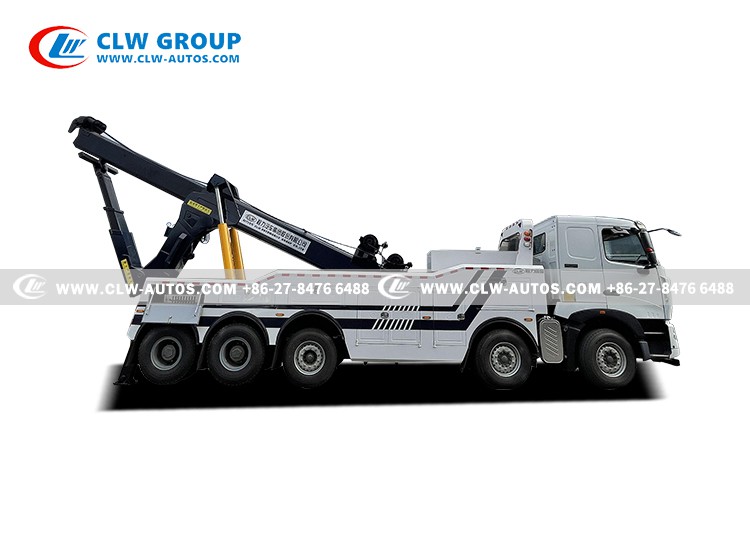

Sinotruk HOWO 10*4 5 Axles 40 Tons Recovery Integrated Wrecker Tow Truck

                                                                                                                   Truck chassis Specification

Truck Model

Sinotruk HOWO， Latest New Year Model

Driving Type

Left Hand Driving

Dimension(Lx W xH)（mm）

12500×2496×3450(mm)

Cabin

HOWO H-cab, With two sleeper bed, with air-conditioner

Fuel tanker capacity(L)

400L with locking fuel cap

Clutch

Single-plate dry clutch Φ430mm

Engine Model

Model

WP13.480E62，4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and inter-cooling

Horse Power,

480hp

Engine Brand

WEICHAI Diesel

Emission

EURO VI

Maximum torque

1900Nm @ 1200-1300rpm

Displacement:

12.54L

Fuel Type

diesel

Transmission

Model

HW25712XSTCL, 12 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Steering system

Model

ZF

Front axle

2* VGD75, 2*7500kgs.

Rear axle

1* Liftable axle with air bag, 1*16000Kgs

2*MCJ11BG, 2*16000kgs Loading capacity

Chassis

Frame: Double decker frame (8+5/300)

Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension: semi –elliptic leaf spring and bogie springs

Color

Optional

Tire

12R22.5 tubeless tire, 16+1 spare tire

Electrical system

Operating voltage

24V,negative grounded

Starter

24V,7.35KW

Alternator

28V,1500W

Batteries

2*12V.165Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.

Upper Wrecker Equipment

Underlifting System

Max. Towing Weight(kg)

150,000

Max. Lifting Weight(In-situ support/Whole Truck)(kg)

28000/9950

Max. Lifting Weight under all extension(In-situ support/Whole Truck) (kg)

12000/8100

Effective Length of Corbeling Arm(mm)

3585

Extend-retract of Corbeling Arm(mm)

1780

Folding angle under no load(°)

-10~10

Folding angle under load(°)

-10~90

Max. Ground Distance under all extension (mm)

<900

Hydraulic Hose

Tianhe,Guangdong Province

Hydraulic control Valve

Imported from Italy, Hydro Control brand

Hydraulic Seals for all hydraulic cylinder

Imported from Italy, Hydro Control brand

Balance Valves

Imported from Italy, Hydro Control brand

All key steel structure

One-step Modeling by Germany 3P2A 1000T punching machine made by H70 high tensile steel from Shanghai Bao Steel

Make of Lifting System

Design and made by CLW Group

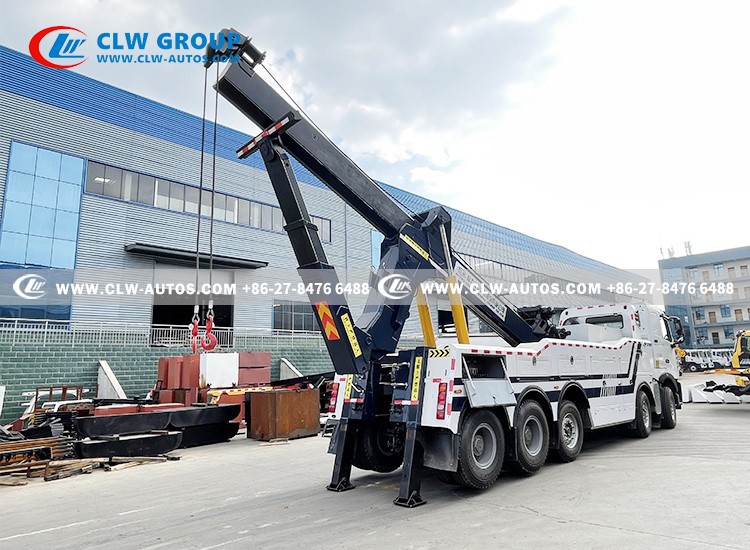

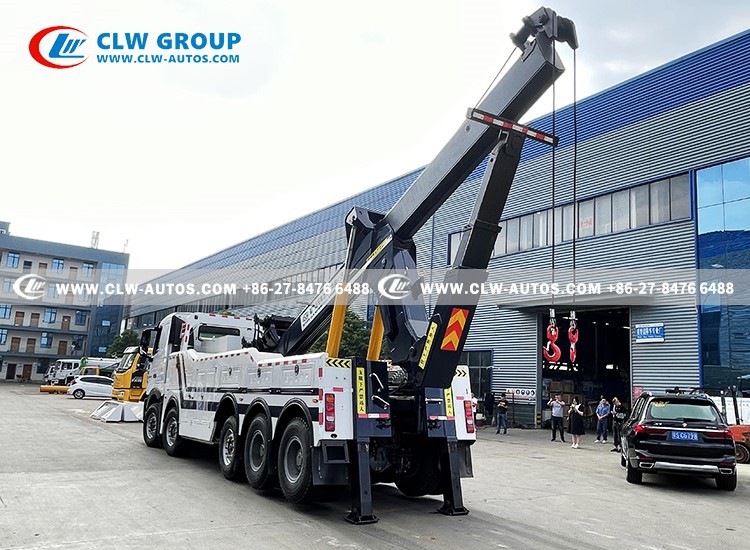

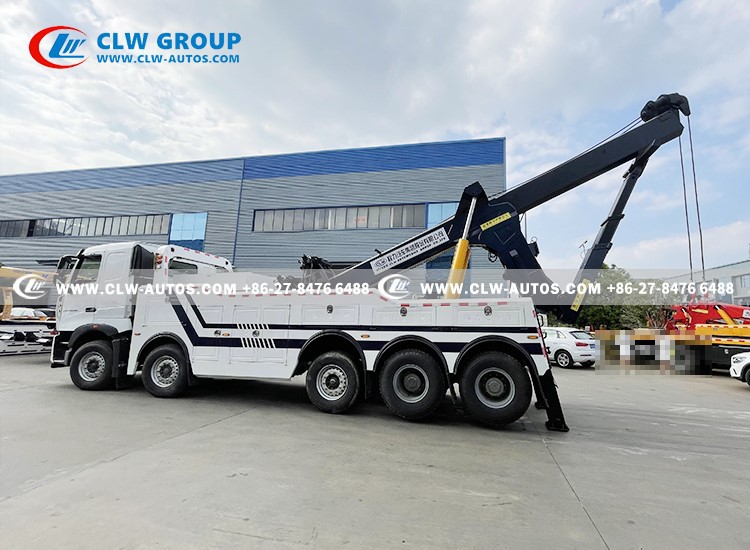

Boom Hoisting System

Max. Hoisting Weight(kg)

40,000

Max. Hoisting Weight under all extension (kg)

18500

Max. Hoisting Weight under all retraction(kg)

40000

Extension Distance of Oil Cylinder(mm)

3300

Section No. Of Crane Arm

2

Max. Hoisting Height(mm)

6700

Boom luffing angle(°)

6-35

Make of Hoisting System(crane)

Design and made by CLW Group

Winch

No.

2

Capacity(Kgs)

2*20,000

Curb Traction/Per(KN)

200

DN of Steel Rope(mm)

Φ26

Length of Steel Rope(m)

50*2;

Min. Line Speed(m/min)

5

Make of Winch

Shandong Taian Yiqun Machinery Co,,ltd

Rear Outrigger Type

“L” type 4080mm

Jump-start cables

12~24 Volts

Electric system

Rear working lamp(stop,tail,turning)

3

Revolving beacon

1

Lamps for license plate

1 set

Pneumatic hoses

1 set

Key Parts

Control Valve

Italy Hydro control

Balance Valve

Italy Hydro control

Pump

Wuxi Oil Hydraulic Pneumatic Equipment Co., Ltd

Hydraulic cylinder

CLW Group

Hydraulic Winch

Shandong Taian Yiqun Machinery Co,,ltd

Hydraulic Hose

Tianhe,Guangdong Province

Hydaulic

Cylinder Seals

Italy Hydro control

Hydraulic Lock

Jiangyin Mingcheng Hydraulic and Mechanical Co.,Ltd.

Swivel Joint

Yangzhou Zhongmei Pressure Parts Co.,Ltd.

Compartment plate

One-step Modeling by Germany 3P2A 1000T punching machine

Remarks

Color is optional
