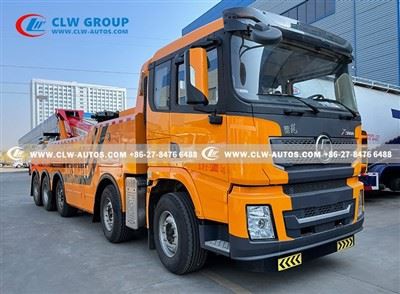

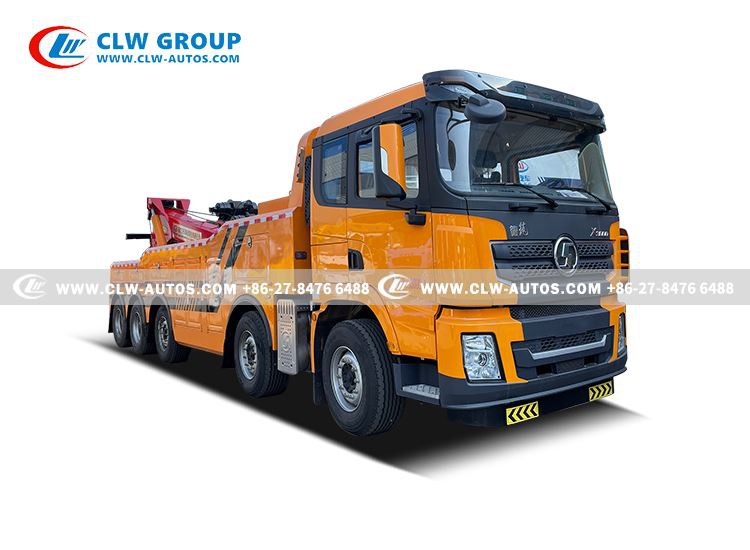

SHACMAN 10x4 5 Axles 40Tons Integrated Towing Truck

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of shacman 10x4 5 axles 40tons integrated towing truck in China. If you're going to buy high quality shacman 10x4 5 axles 40tons integrated towing truck, welcome to get more information from our factory. For price consultation, contact us.



Truck Chassis:



• SHACMAN X3000 10*4 5 Axles Truck chassis.
• WP12.460E62, WEICHAI Diesel engine. 460HP. EURO-VI.
• Transmission/Gearbox: FAST12JSDX220TA-B,12 forwards and 2 reverse
• MAN Axle 5 pieces axles
• 315/80R22.5 tire

Heavy duty rescue and obstacle removal Truck Upper body equipment:

• Lifting system: maximum lifting mass (kg) (in place support/vehicle) 28000/9950
• Fully extended maximum lifting mass (kg) (in place support/vehicle): 12000/8100
• Maximum effective length of bracket (mm): 3585
• Telescopic stroke of supporting arm (mm): 1780
• Folding angle of lifting load (°) -10-10
• Folding angle (°): -10~90
• Maximum distance from the fully extended fork mouth to the ground (mm): ≥ 900
• Maximum lifting mass (kg): 40000
• Lifting capacity when fully retracting the maximum lifting angle (kg): 40000
• Lifting capacity at fully extended maximum lifting angle (kg): 18500
• Basic length of lifting arm (mm): 5035
• Cylinder telescopic stroke (mm): 3300
• Maximum lifting height (mm): 6700
• Number of boom sections: 2
• Boom angle variation (0): 6-35
• Winch: quantity (pieces): 2, rated traction force (kN) of each piece: 200,
• Wire rope diameter (mm): φ 26. Steel wire rope length (m) 45X2,
• Minimum linear speed of steel wire rope (m/min): 5



For more information, please contact us:

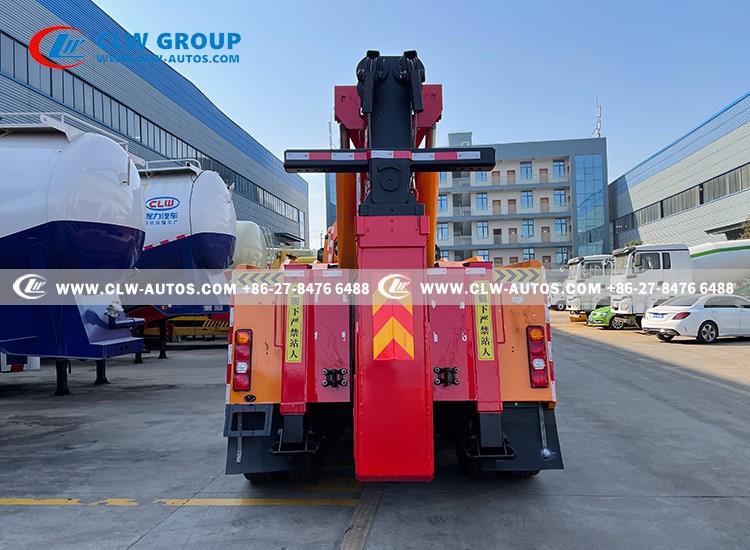

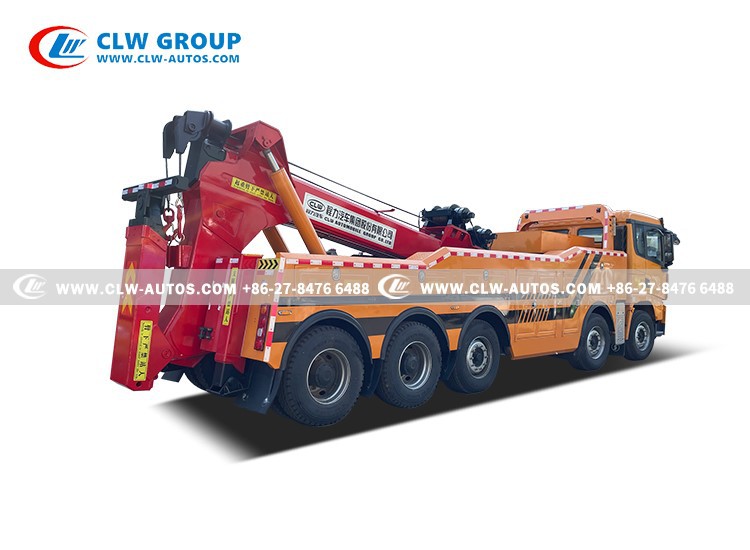

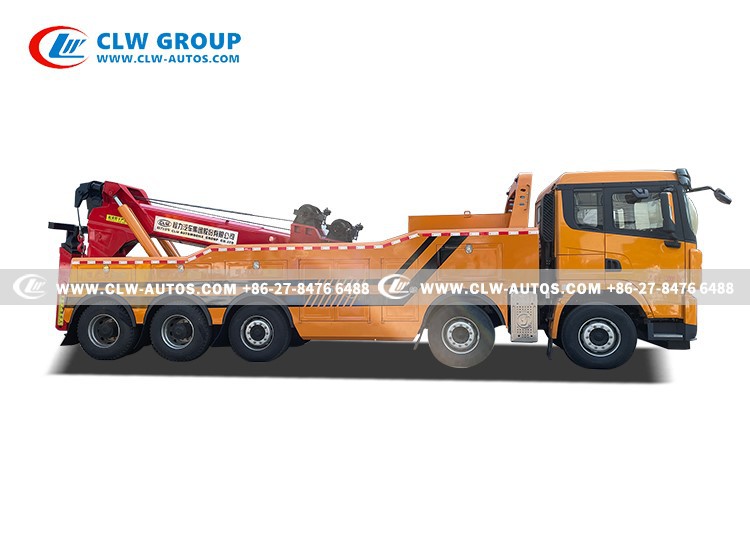

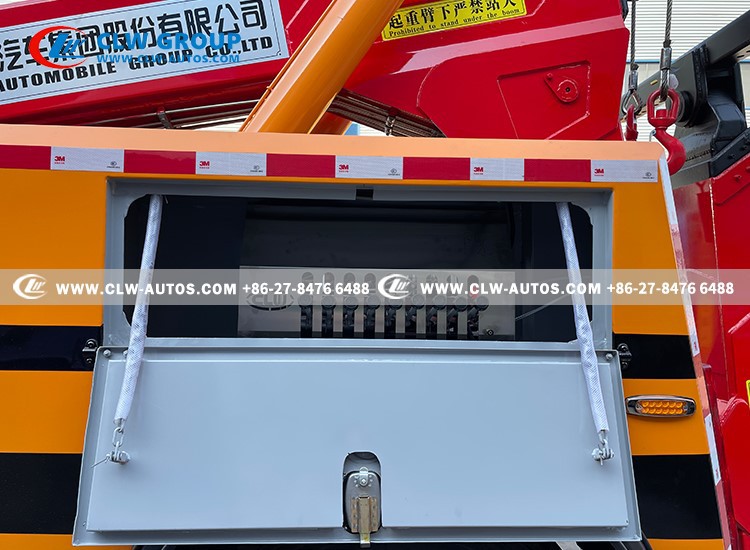

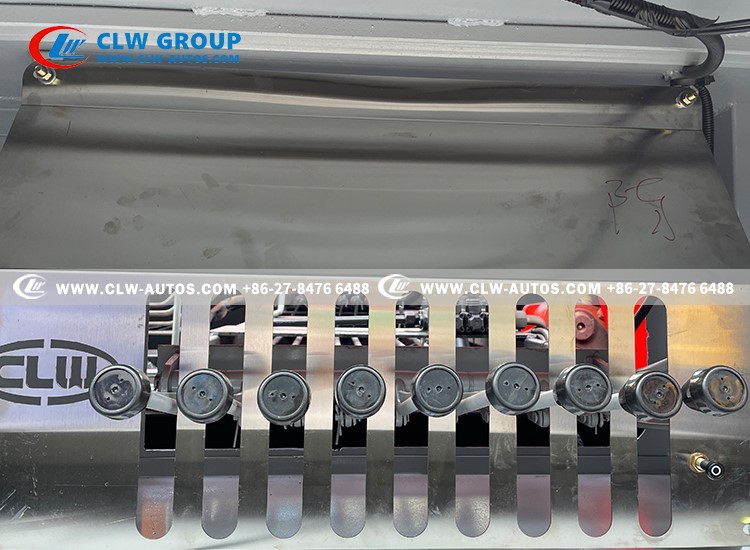

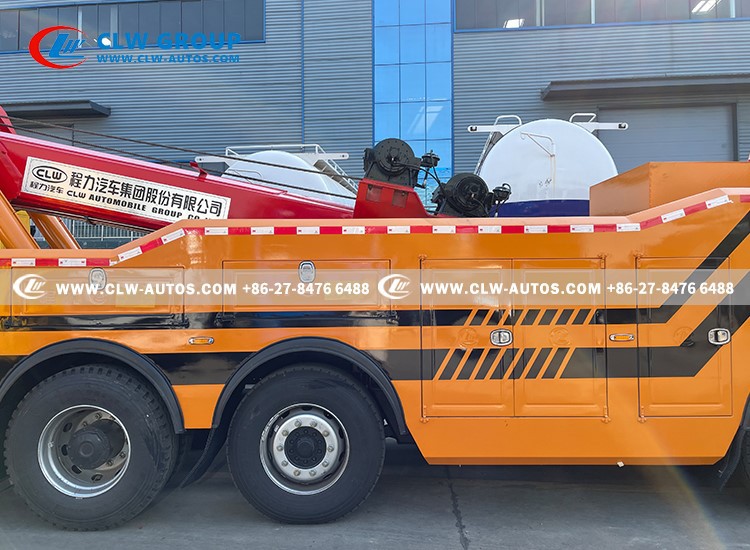

More detailed pictures:
