Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of donfeng kingrun 10ton vacuum sweeper truck in China. If you're going to buy high quality donfeng kingrun 10ton vacuum sweeper truck, welcome to get more information from our factory. For price consultation, contact us.
Dongfeng Kingrun Multifunctional Vacuum Dry Sweeper truck
Cleaning speed 3-15km/h
Sweeping width 4 meters
sweeping capacity is 70,000㎡/h
Brush Quanity: No Brush
Passenger Allowed: 3 Person
Actual volume 10 cubic meters,
wheelbase 4700mm
Maximum speed is 89km/h.
1. Advantange of Sweeper Truck:
No secondary dust, pure dry vacuum operation, rate filtration system, the garbage collected into the box can realize the separation of particles and dust through multiple stages such as gravity dust reduction and inertial dust removal. It can be retained.
The automatic pulse vibration system is adopted to avoid the clogging of the filter system. The dust removal effect is good. No manual intervention is required.
The cleaning rate is 99%. A dust can be cleaned by a sweeper 3 times. Clean air is discharged. Secondary pollution.
2. Low Operation Cost: pure operation, no frequent replacement of brushes, only a few rubber
wearing parts, low maintenance costs.
3. Strong adaptability, no matter day and night, windy or rainy or cold winter, all-weather
operation.
4. Simple structure and convenient operation: there is no adjustment mechanism such as sweeping brush, rolling brush, etc., just through the control panel of the cab, you can conveniently control the start and stop of the main and auxiliary engine systems, the fan speed rise and fall, the dust outlet rise and fall, and the rear door. Switch, cabinet lifting, sprinkler switch, etc.
Vacuum Sweeper Operation Premises:
squares, highways, communities, parking plants, steel plants, cement plants, smelters, thermal power plants, port yards, highways, roads in mining areas, airport runways, urban roads.
Suitable for rapid cleaning and cleaning of urban elevated, express roads, bridges and tunnels;
Suitable for cleaning and cleaning of urban main roads, high-grade highways and expressways;
Specifications:
GVW(kg) | 18000 | Loading Weight(kg) | 6070,6005 | ||
Tare Weight(kg) | 11800 | Overall Size(mm) | 8380x2500x3000 | ||
Passenger Allow | 2-3Persons | ||||
Approaching Angle(°) | 17 | Front Overhang(mm) | 1400 | ||
Depature Angle(°) | 18 | Rear Overhang (mm) | 2280, | ||
Axle(kg) | 6500/11500 | Speed(km/h) | 89 | ||
Chassis Speicification | |||||
Model No. | DFH1180EX8 | Type | Cargo Truck | ||
Brand | Dongfeng Kingru | Manufacturer | DFAC | ||
Axle | 2 | Tire Quantity | 6 | ||
Wheel(mm) | 3800,3950,4200,4500,4700,5000,5300,5800 | ||||
Tire Size | 10.00R20 18PR,275/80R22.5 18PR | ||||
Leaf Spring Quantity | 7/9+6,8/10+8,8/9+6 | Front Wheel Track(mm) | 1876,1896,1920 | ||
Fuel Type | Diesel | Rear Wheel Track(mm) | 1820,1860 | ||
Emission Standard | GB3847-2005,GB17691-2018 Euro 5 | ||||
Engine Model No. | Manufacture | Displacement() | Power(HP) | ||
DDi50E190-60 D4.5NS6B190 D6.7NS6B230 B6.2NS6B210 B6.2NS6B230 | DFAC Dongfeng Cummins Dongfeng Cummins Dongfeng Cummins Dongfeng Cummins | 5000 4500 6700 6200 6200 | 147 140 169 154 169 | ||

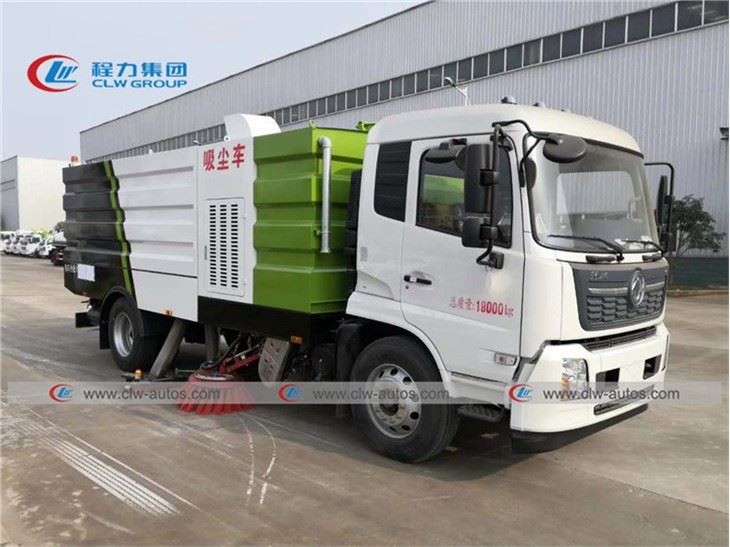

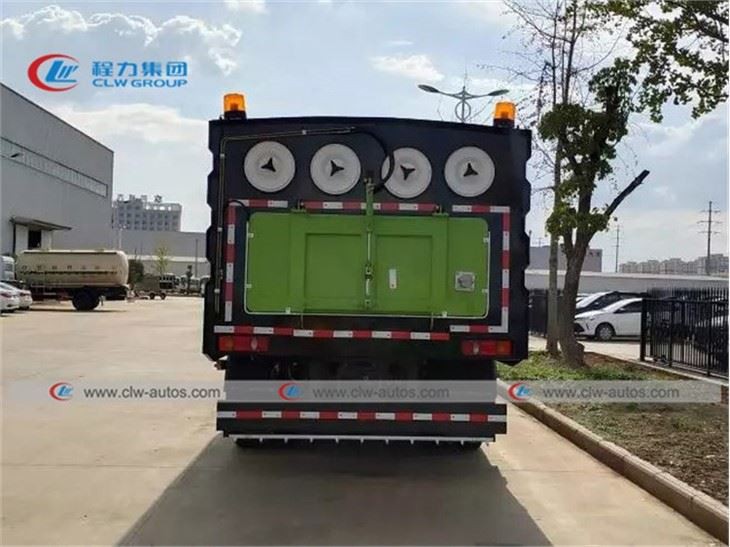

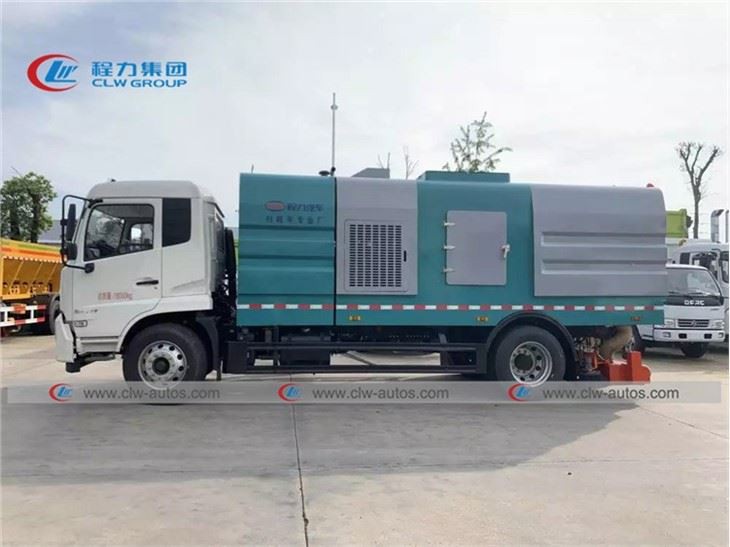

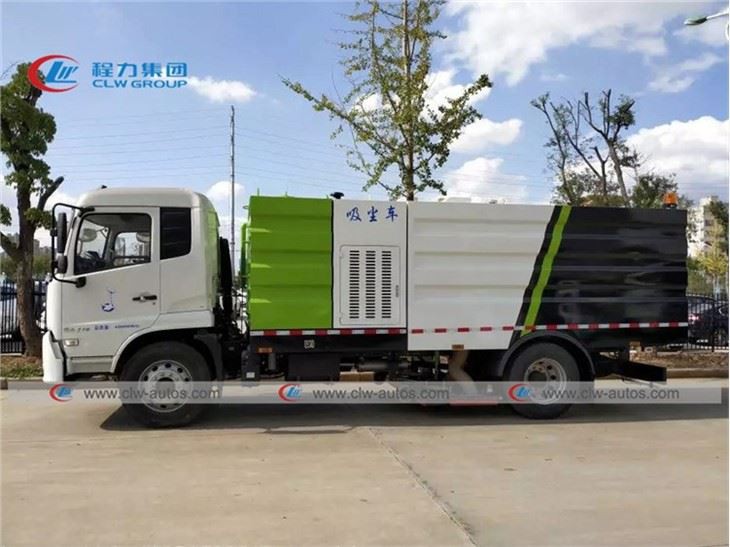

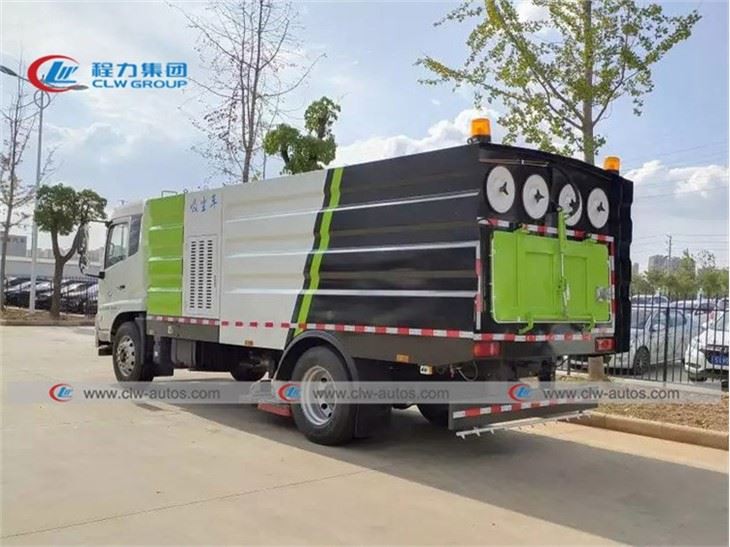

Truck Photos:
The vacuum vehicle is a multifunctional vacuum vehicle with all-weather operation (no need to manually clean the filter element).
It can be used not only for routine operations on dry and slightly wet roads, but also for cleaning up sewage roads in snowy weather and after rain.
We have other different type of sweeper truck for choice.
