Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng 6x4 16,000liters city disinfection truck in China. If you're going to buy high quality dongfeng 6x4 16,000liters city disinfection truck, welcome to get more information from our factory. For price consultation, contact us.
Function
--City disinfection Truck(also called disinfectant sprayer truck,mist sprayer truck,dust suppression truck,pesticide spraying truck,mist cannon truck,public sterilizing truck) is used for environmental cleaning and dust-reducing, garden or tree greening and maintenance, garden spraying and city sterilizing.
--Designed and developed CLW group with independent intellectual property rights and international leading technical level.
--With characteristics of good spray effect, safe and reliable operation, long spray range, small water consumption, low noise and so on.
--Multi-function City disinfection Truck is mainly with big volume water tank, high efficient remote unit mist cannon system, generator system, low pressure sprinkler irrigation sprinkler systems, landscaping anti-aircraft gun (options electronic remote control water cannon in vehicle front), hydraulic system, electric control system, dedicated work device, such as hot rod, its performance in the domestic leading level.
-- City disinfection Truck can be divided into various types as follows,
1) according to truck brands,there are dongfeng,faw,howo,isuzu,shacman,iveco,camc city disinfection truck;
2) according to driving model:4X2,4X4,6X4,6X6,8X4,10X4 city disinfection truck;
Feature
--Square or round shape tank shape;
--High quality carbon steel with anti-corrosion treatment for tank and baffles inside tank or stainless steel 304.
--Optional for 30~120 meters mist cannon ;
--Mist canon:Long range, small fog particles, large coverage area, manual or remote control at 100 meters with 360° rotation;
--Large generator installed between cabin and tank with enlarged operation platform for high pressure mist cannon installation,7KW gasoline or 30~150KW diesel;
--high power water pump,high pressure auxiliary engine;
--Multi-function as water bowser truck or emergency fire fighting purpose.

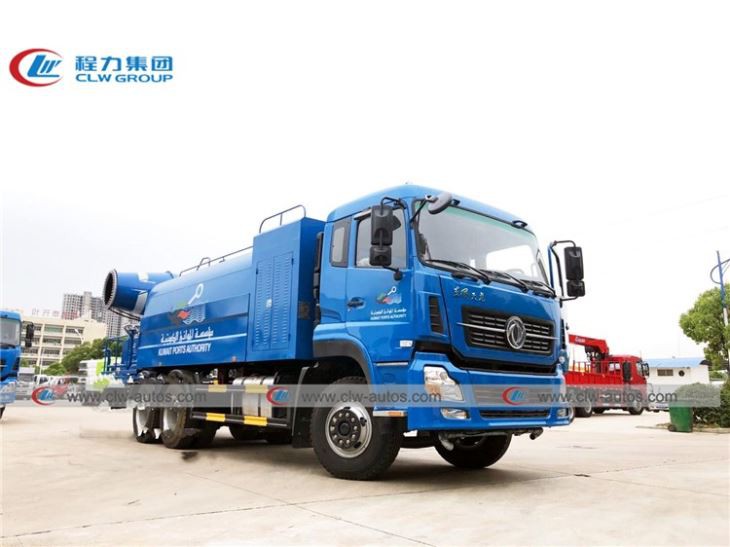

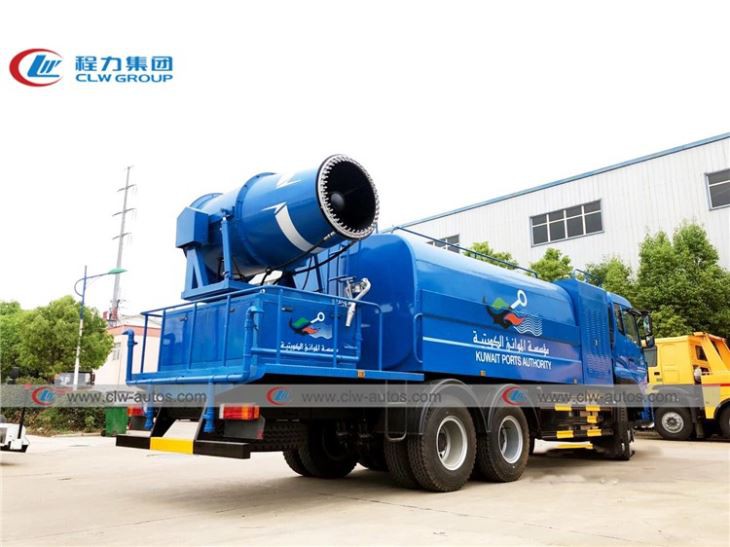

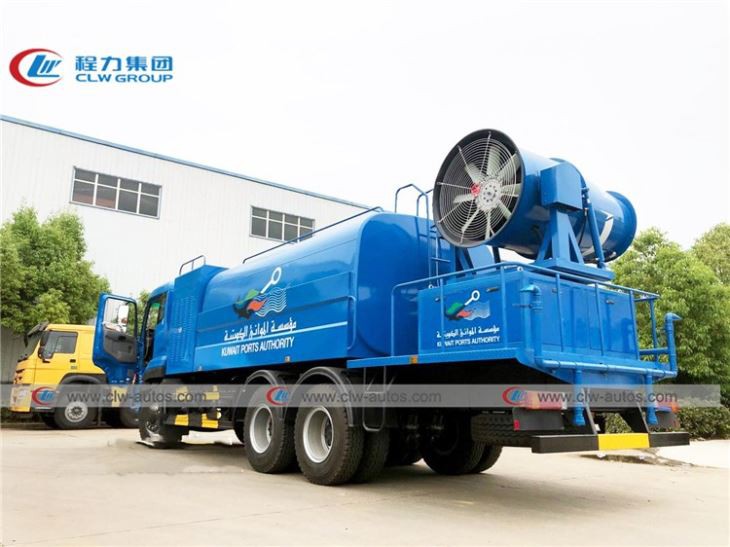

Reference picture
Truck Structure
Specification
Condition | New condition/Left hand drive or right hand drive/6X4 | ||
Main details | Brand | Dongfengspacious cabin | |
curb weight(kg) | 15060 kg | ||
Wheelbase(mm) | 4350+1350,4600+1350mm | ||
Dimensions(mm) | 11400*2500*3750 mm | ||
Front/Rear Axle loading(kg) | 7000/18000kg | ||
Wheel track (front/rear) (mm) | 1923/1865 mm | ||
Front/Rear overhang(mm) | 1500/3350 mm | ||
Approach/Departure angle(°) | 18/8 ° | ||
Max. driving speed(km/h) | 90 | ||
Clutch | Dry single plate with diaphragm spring, Φ250, vacuum assistance | ||
Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake | ||
Steering Gear | Power steering, hydraulic steering with power assistance | ||
Suspension | Front/rear leaf spring | ||
Tire | Quantity | 10 pcs with one spare tire | |
Specifications | 11.00R20 tire | ||
Transmission | Manual type, Forwards and 2 reverses | ||
Cabin | It can accommodate three people. With Air Conditioner | ||
Engine | Brand | Dongfeng Cummins | |
Model | B245 33;B270 33 | ||
Type | Turbocharged | ||
Max power/Horsepower)KW/HP) | 180/245;198/270 | ||
Max torque(N·m/rpm) | 700N.m/1200-1700rpm | ||
Displacement (cc) | 6700 cc | ||
Fuel type | |||
Emission standard | Euro III | ||
More related
 |  |
