HOWO 5 Tons Water Sprinkler Truck

Chassis:China Sinotruk HOWO
Driving Type:4X2,6 wheels
Capacity: 5tons 5cbm 5m3 5,000liters
Engine:Diesel engine,95HP
China Top Brand Self-Suction Water Pump
Material:Q235B Quality Carbon Steel

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo 5 tons water sprinkler truck in China. If you're going to buy high quality howo 5 tons water sprinkler truck, welcome to get more information from our factory. For price consultation, contact us.





China Sinotruk 5,000Liters Water Sprinkler Truck For Sale



We are 100% Straight Factory Manufacturer



Product Descriptions



Water Sprinkler Truck: also called water tank truck, mobile water truck, watering truck, water bowser, water truck tanker, water carrying truck, water tank for truck, water distribution truck.



Water Sprinkler is suitable for all kinds of road washing, trees, green belt, lawn greening, roads, factories and mining enterprises construction, high-altitude building washing.



Water Sprinkler has the functions of sprinkling water, dust pressing, high and low spraying, pesticide spraying, guardrail washing, etc. It also has the functions of water transport, drainage, emergency fire fighting and so on.



Product Features:

  • Standard Equipment: Front Flush,Rear Spray,Side Spray,Water Cannon
  • China Top Brand Self-Suction Water Pump
  • Side Sprinkling Width ≥ 14-16m
  • Water Cannon Range ≥ 20-25m
    • Flow Rate: 90m3/h
  • Q235B Quality Carbon Steel Tank Material with 5mm Thickness
  • Each compartment equipped with a manhole and 2-3 anti-wave baffles
  • Painted rust paint and customized decorative appearance



Main Structure of Water Sprinkler Truck



Our vehicle is optional for:

  • Chassis Brand: FAW, SINOTRUK, SHACMAN, ISUZU, DONGFENG, JMC, JAC, FORLAND, etc.
  • Driving Type: 4X2, 4X4, 6X4, 6X6, 8X4
  • Emission Standard : Euro I, Euro II, Euro III, Euro IV, Euro V, Euro VI
  • Cabin: LHD or RHD
  • Tank Capacity: 5,000L(5m3, 5tons), 10,000L(10m3, 10tons), 15,000L(15m3, 15tons), 20,000L(20m3, 20tons), 25,000L(25m3, 25tons), 30,000L(30m3, 30tons), 35,000L(35m3, 35tons), etc.



After-Sales Service Provided:

  • One Year Warrenty
  • English Operation Video
  • Spare Parts at Factory Price
  • Overseas Call Center in Togo, Africa
  • 24 Hours Online Support



*Min. order: 1 pc



For more informations, please contact:

WhatsApp: +86 139 2570 3918

Wechat: +86 139 2570 3918

Email: juniper@clw-autos.com

Products Parameters



HOWO 5Tons 5,000Liters Water Sprinkler
Tank volume 5 cubic meters (tons) Sprinkling Width 15 meters
Range of Water Cannon 30 meters Vertical Suction ≥7 meters
Pump Flow 20 cubic meters / hour Dimensions 5.9 × 2.1 × 2.4m
Total Weight 8280 ( kg ) Loading Capacity 4085 ( kg )
Curb Weight 4000 ( kg ) Tank Material Q235B Carbon Steel, 5mm thickness
Tank size 3.4 × 1.8 × 1.2m Passengers Allowded 2~3 passengers
Chassis technical parameters
Chassis brand HOWO Driving Type 4X2
Wheelbase (mm) 3360 Tires 7.00R16, 6 tires with 1 spare
Axles 2Axles, Front 2 tons, Rear 3.5 tons Enginee Diesel enginee, YN4100QBZL, 95HP
Gearbox WLY6TS40, 6 Forward & 1 Reverse Gear Displacement 3.3L
Emission Standards Eruo II Brake Air brake
Special function description:

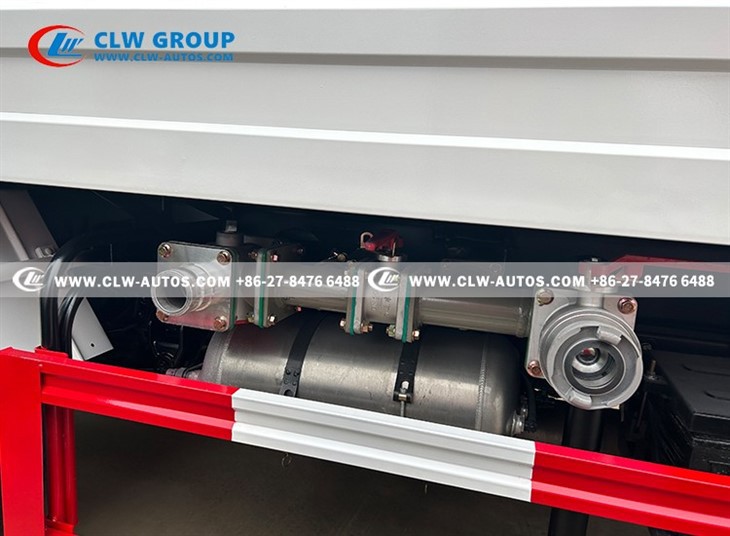

1. Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.
2. Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.
3. The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30m.
4. Equipped with fire coupling, flow valves, filter screen and water level gauge.
5. According to customers' request, the crane, high working platform and spraying machine also can be equipped.
6. Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.



Optional Equipments


Optional for Front Electric Water Cannon





Cab control, multi-directional adjustment, adjustable water column

Sprinkler front electric water cannon
3

Optional for fog gun at the Rear platform

Fog gun range: Optional for 20-160 meters


The spray of the fog gun is small and wide, which can effectively reduce the environment and reduce the dust in the air

Optional For Front Buck Bill



Universal duck bill forward, flushing width ≥14m

front bill for water sprinkler
360 Monitoring Camera for Special Vehicle

Optional for 360° Monitoring Camera



Reference Pictures

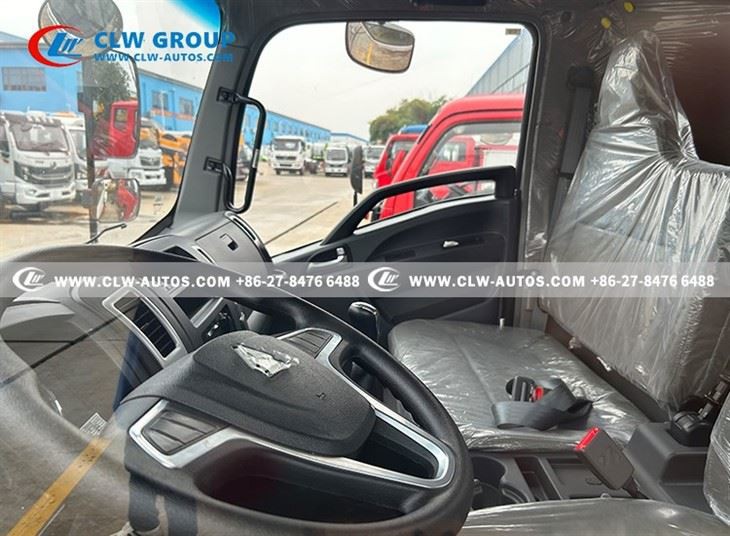

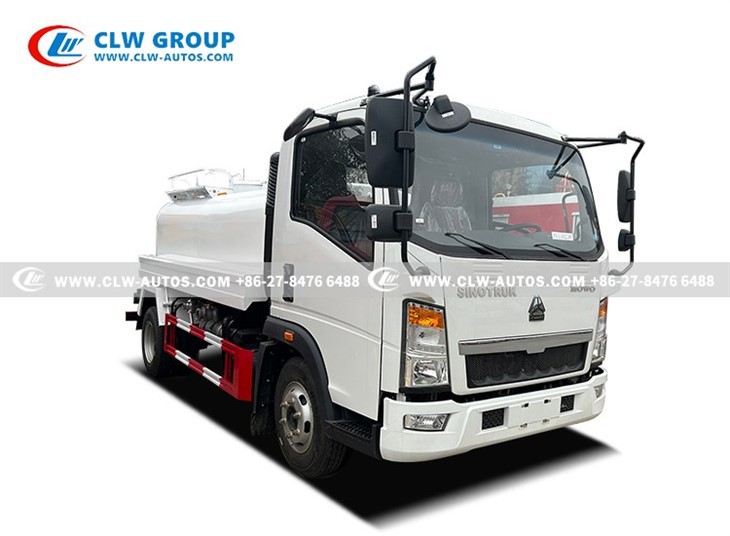

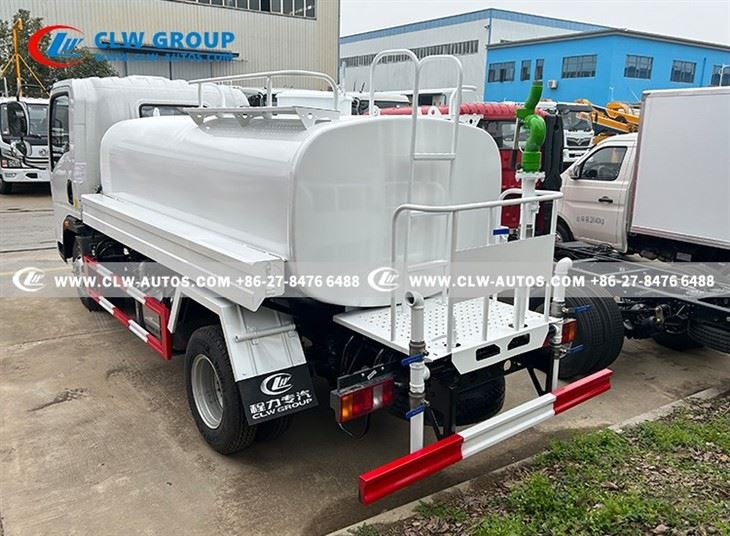

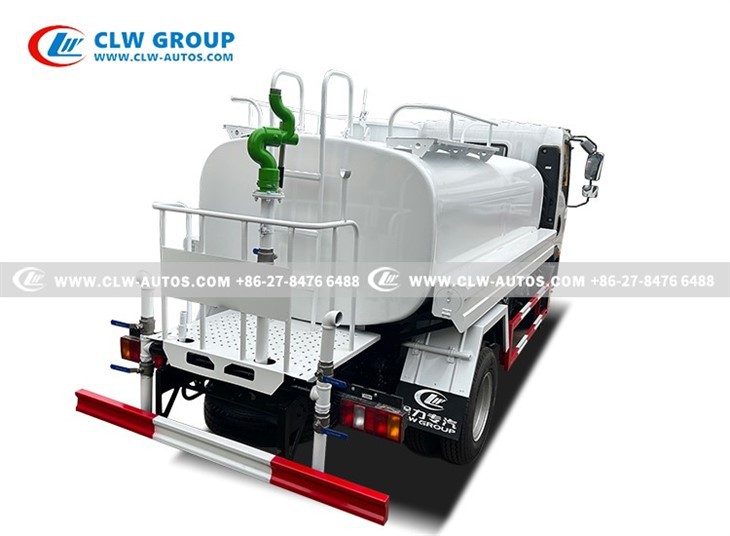

China HOWO 5cbm 5m3 5000liters Water Sprinkler Truck For Road Cleaning 7
China HOWO 5cbm 5m3 5000liters Water Sprinkler Truck For Road Cleaning 4
China HOWO 5cbm 5m3 5000liters Water Sprinkler Truck For Road Cleaning 8
China HOWO 5cbm 5m3 5000liters Water Sprinkler Truck For Road Cleaning 9



China HOWO 5cbm 5m3 5000liters Water Sprinkler Truck For Road Cleaning 6
China HOWO 5cbm 5m3 5000liters Water Sprinkler Truck For Road Cleaning 5
China HOWO 5cbm 5m3 5000liters Water Sprinkler Truck For Road Cleaning 10
China HOWO 5cbm 5m3 5000liters Water Sprinkler Truck For Road Cleaning 11

*Color and Design can be Customized*



Company Profile



HUBEI WEIYU TRUCK



Trucks from Hubei Chengli Special Automobile Co., Ltd have been sold to more than 29 provinces in China and more than 80 overseas countries and regions in Asia, Africa, South America, middle east and so on, such as Russia, Mogolia, Philippine, Vietnam, Cambodia, Myanmar, Laos, Kazakhstan, uzbickstan, Kyrghyzstan, Tanzania, Zambia, Nigeria, Austrilia, Chile, Bolivia, Ethiopia, Sudan, Malaysia, Congo, El Salvador, Iraq, New Zealand, Chile, Bolivia, Argentina and so on.


20 Years+

Experiences


100,000+

Annual Production


5,000+

Technical Workers


80+

Overseas Market
