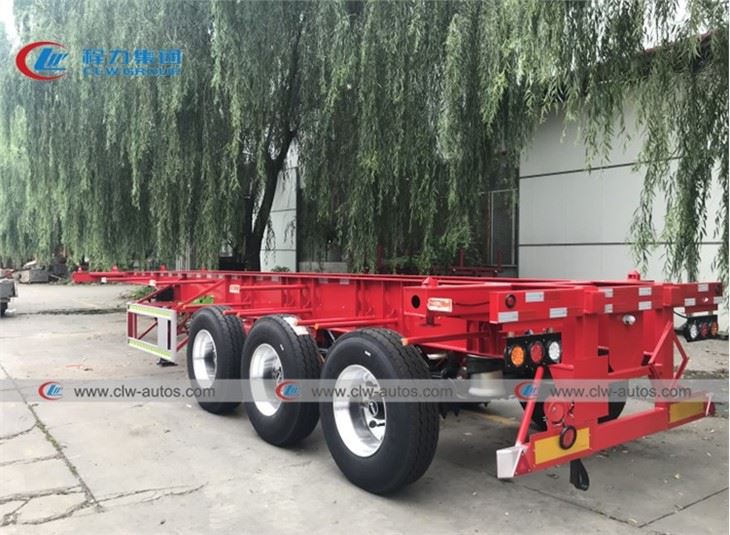

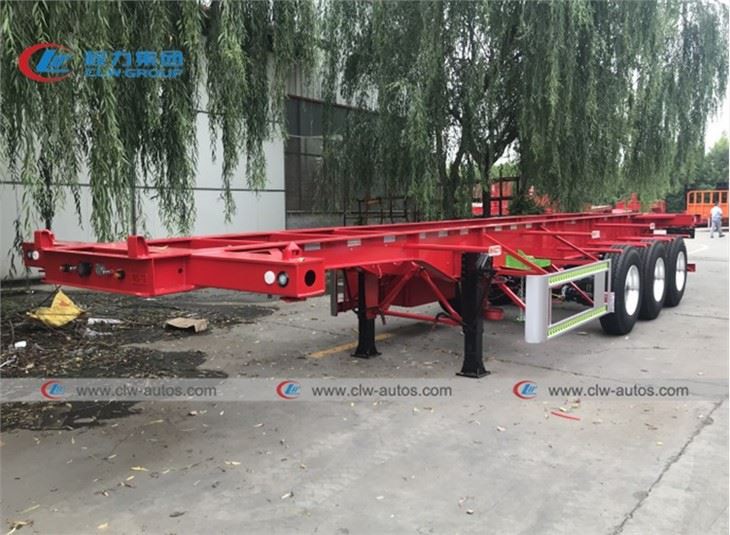

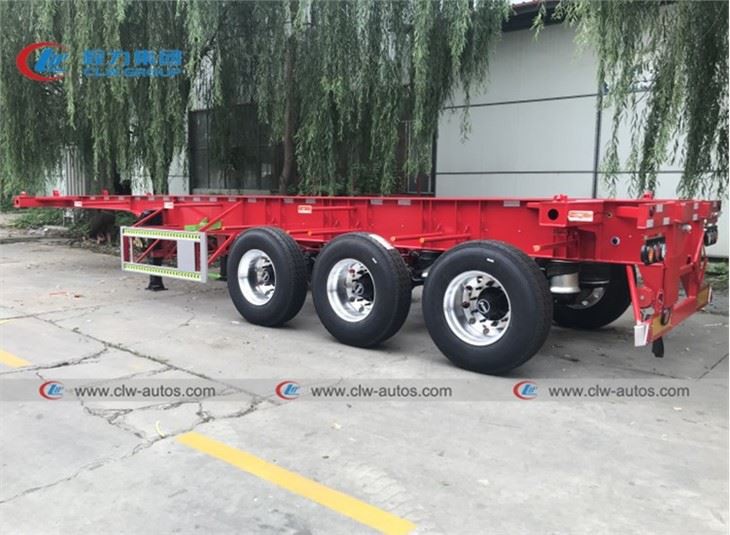

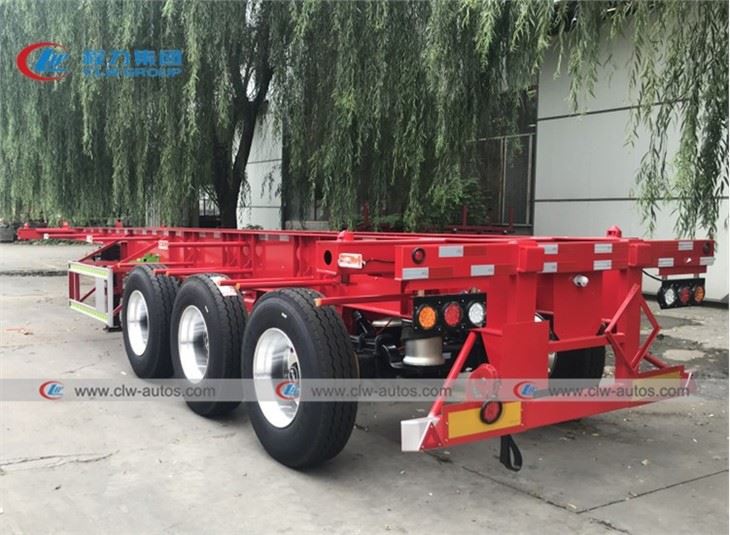

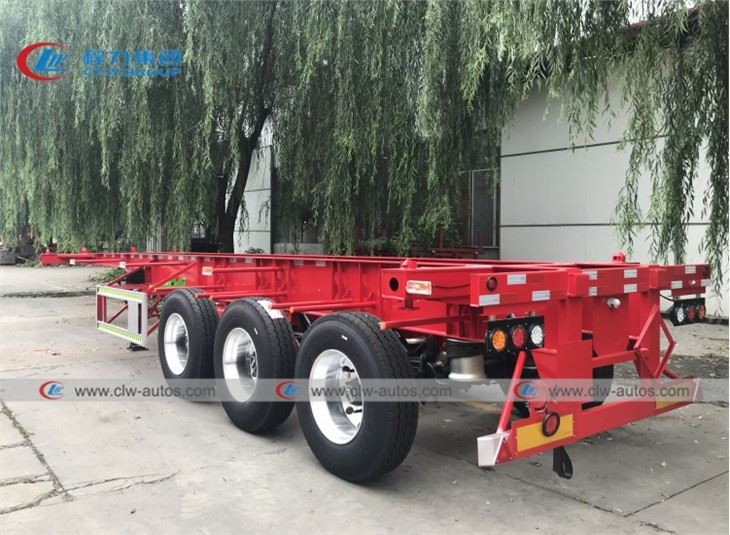

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 50t 40ft container loading skeleton trailer in China. If you're going to buy high quality 50t 40ft container loading skeleton trailer, welcome to get more information from our factory. For price consultation, contact us.
OEM Parts Configuration:
King Pin: 2" or 3.5" bolted type kingpin, JOST brand.
Landing Gear: JOST A400 or Halland or fuwa brand or cimc made welded landing gear.
Suspension: Heavy duty tandem mechanical suspension with12 leaf spring. (90mm width by 13mm thickness/leaf) Fasteners for radius rods and equalizers will be installed with nuts to the outside. Springs will be fastened to the axle using U-bolts with nuts facing downward.
Axles: 3*16 tons axle, bpw, fuwa or L1.etc is optional
Tires: 11.00 - 20,10.00-20 Solid rubber tire or 12R22.5 tubeless tires, 12 pieces.brand is optional according to customer's preference
Brake System: Dual or single pneumatic brake system; WABCO relay emergency valve, none ABS brake system.
Brake Chamber: 30/30 type on the rear axle, 30 types on the front axle
Electrical System: 24V or 12V system with CE mark
Parameters for 50T 40FT Container Loading Skeleton Trailer:
| Dimension | 12.38m×2.48m×1.55m (Outside) |
| Payload | 50T |
| Tare weight | About 6.5T |
| Twist lock | 12 units |
| Chassis | |
| Main beam | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. |
| Frame Beam | Top Flange 14mm,width 140mm; Middle Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height 500mm |
| Axle | 3 axles, 13Ton Fuwa brand 16ton brake pads |
| Landing Gear | 28T lifting capacity with two speed |
| King Pin | 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension reinforced type |
| Leaf Spring | 90mm(W)*13mm(T)*10 Layer |
| Pneumatic Braking System | Dual line pneumatic brake system,T30 air chamber ,40L air tanks, Emergency relay valve |
| Rim | 9.0-20*12 pcs |
| Tire | 12R22.5*12 pcs |
| Accessories | One stan dard tool box |
| Spare tire rack | One |
| Electrical system | 24 volt electrical system.7 pin electrical connector. Parking stop, reverse, number plate and indicator lights. rear lights conform to European standard, rear front and side reflectors |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Shipping Terms | By Bulk Cargo/RORO/40HQ container |
