Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of sinotruk homan 10cbm comrpessed garbage truck in China. If you're going to buy high quality sinotruk homan 10cbm comrpessed garbage truck, welcome to get more information from our factory. For price consultation, contact us.
Description:
Garbage compactor truck,also called compactor garbage truck , garbage truck for sale , trash compactor , compression garbage truck , refuse truck , garbage collection vehicle, waste truck container garbage truck, compact garbage trucks, waste compactor trucks, compactor garbage truck for sale etc
Garbage compactor truck capacity from 3 cbm to 18cbm all available .
Chengli brand Garbage compactor truck advantage :
1 Dual operation both at the rear of compactor garbage truck and inside cabin , easy control
2 Famous brand hydraulic pump to drive hydraulic valve to keep garbage compactor truck safety
3 Cheap price , one year warranty
4 Garbage bin lifting system could design as customer's requirement .
5 Lock system is operated by machinery hydraulic system can reduce second pollution mostly.
The detailed specification for HOMAN 10m3 compressed/compression garbage truck, Garbage compactor truck:
Specification
Brand Name
SINOTRUK HOMAN
Overall Dimension
8500×2500×3000 mm(option)
Gross Vehicle Weight
16000 kg
Curb Weight
6095 kg
Loading Weight
6700 kg
Wheel Base
3815 mm(option)
Front / Rear Axle
2500/4800 kg
Cabin
Left Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio,
Engine horsepower
120HP, EUR II(option)
Max Driving Speed
90 km/h
Gear Box
5 Forward Gear, 1 Reverse Gear,
Tire
7.00R16, steel wire tire, 6pc with 1 spare tire
Garbage Bin
Capacity
8cbm or 10CBM(option))
Material
4mm Carbon Steel for Garbage Bin Body
Design
Whole unit with Leakage Proof Design
Ways of Loading
Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio
1/3 - 1/4
Control System
One control Panel on the back, One Control system in back of Cabin
Dispensing System
1. Equipped with air-tight dustbin, hydraulic system and operating system.
2. Automatic loading, compressing and discharging, all handled by 1 person
3. Sewage water collection tank to avoid any pollution during handling.
4. Large Pressure, Good Leakage Proof, Convenient Operation
Dependable Security
5. Electrical Control Panel for compacting system.
6. Cycling time<14~18s
Remarks
1. Color is optional
2. Customized LOGO painting as per customer request

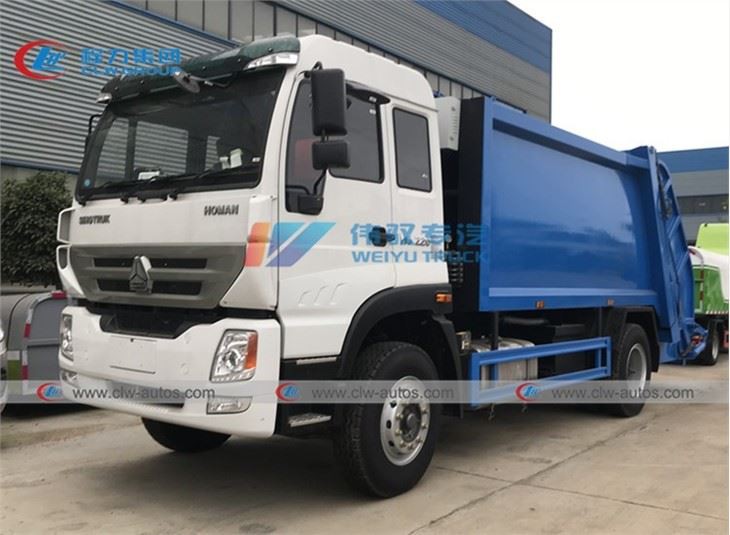

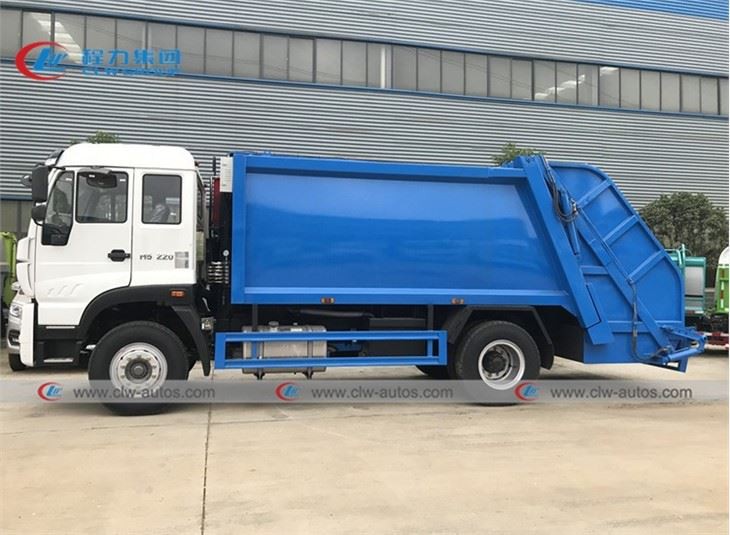

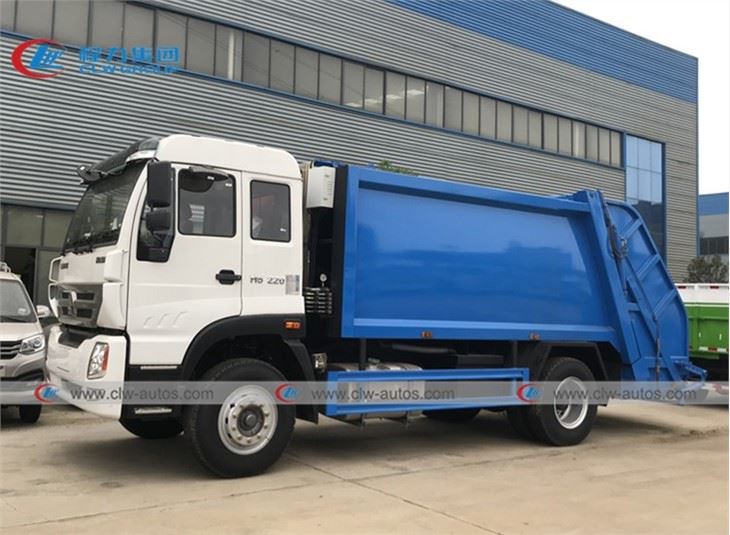

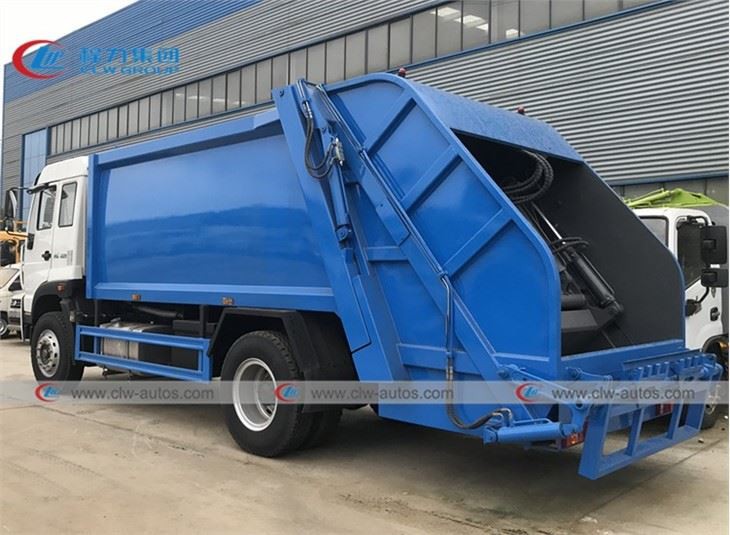

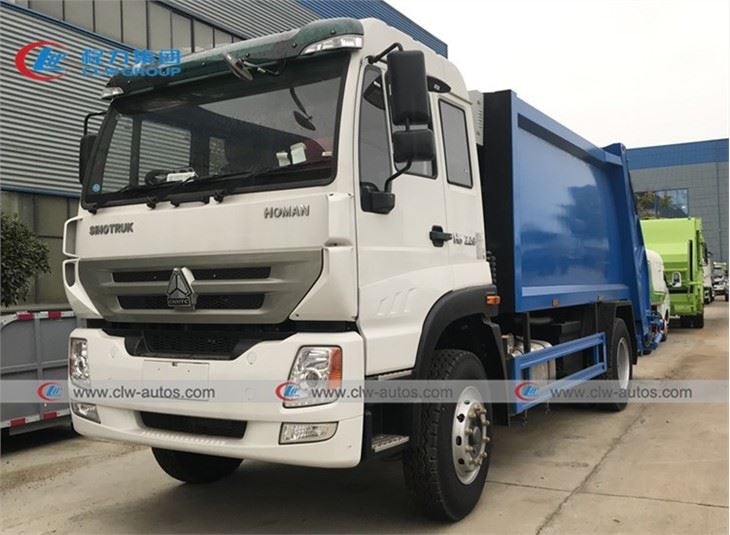

More pictures for Sinotruk HOMAN garbage compactor truck:
Advantages
1.Fully sealed type, self-compression, self-dumping. 2.Truck use high-strength steel plates to improve the vehicle，reduces the weight . 3. Manual and automatic coexisting operating system makes it easier to operate and maintain. 4.The use of a diversion type sewage collection device can divert the sewage in the filler and the garbage bin to the sewage tank, 5.Effectively preventing secondary pollution (with a side hanging sewage tank).
6.The stuffing device has a large opening angle, and the unloading is complete and barrier-free. Various filling mechanisms can beselected according to the actual needs of users.
More information for garbage compactor truck:
1. Main Parts for Compressed Garbage Truck:
2. Drawing and workshop show for Compressed Garbage Truck:
