Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 10,000liters vacuum road washing sweeper truck in China. If you're going to buy high quality 10,000liters vacuum road washing sweeper truck, welcome to get more information from our factory. For price consultation, contact us.
Description:
Multi-functional dust control& cleaning truck
Dongfeng tianjin 4*2 high pressure washer truck/high pressure washing truck
The multi-functional dust control truck what is only got the Ministry of Railways certification in domestic
automobile manufacturers , and is the fixed-point production of the Multi-function dust control truck
manufacturer,received a number of national patents, this vehicle is widely used in dust
pollution prevention for major railway lines, the market coverage is more than 95%;
independent research and development of Multi-function fire and rescue truck,
which is big power, high degree of automation, widely used in
highway and airport, and exported to Africa, Central Asia, Mongolia and other countries, the
market potential is huge.
Specification of high pressure washer truck :
| Main specification | |||
| Product name | CLW High pressure cleaning and sewage disposal truck | ||
| Gross weight(Kg) | 16495 | Drive type | 4X2,LHD,RHD |
| Curb weight(Kg) | 7200 | Overall dimension(mm) | 8400X2500X3450 |
| Approach/departure angle(°) | 24/12 | Cab seats | 3 |
| Axle No. | 2 | Front/rear hang(mm) | 1210/1890 |
| Axle load(Kg) | 5390/12105 | Wheelbase(mm) | 5200 |
| Max speed(Km/h) | 99 | ||
| Chassis specification | |||
| Chassis model | EQ1670TJ9AD3 | Manufacturer | Dongfeng Motor Co., Ltd |
| Brand name | Dongfeng | Dimension(mm) | 6815×2080×2440 |
| Tyre specification | 10.00-20 | Tire No. | 6+1(One spare tire) |
| Steel spring number | 8/10+7,11/9+7 | Front track base(mm) | 17,701,831 |
| Fuel type | Diesel | Rear track base(mm) | 15,861,640 |
| Emission standard | Euro 3 | Transmission | 6 forward gear |
| Cab | One row,3 person allowed with power steering, Choose to fix A/C | ||
| Engine model | Engine manufacturer | Displacement(ml) | Power(Kw) |
| B190-33 | Cummnins | 9856 | 139(190HP) |
| Tank body | |||
| Tank capacity(m³) | Sewage tanker: 8cbm, cleanign tanker 3.5cbm | Tank material | QB235 Carbon steel |
| Equipped with Italy high pressure water pump, operating pressure:16Mpa,flow rate:125L/min,with 60m winding roll | |||
| Main feature | |||
| 1,The truck is a very multi-function truck, combined with the function of high pressure cleaning truck and sewage suction truck. Firstly sewage tanker can dispose sewage, then cleaning tanker can clean pipeline. | |||
| 2,According to customers’ request, the sprinkler devices can be installed, such as water cannon, front, rear and side sprinklers etc. for the purpose of greening watering, mist spraying,dust reducing and high pressure road flushing and so on. It can be used for fire fighting in emergency. | |||

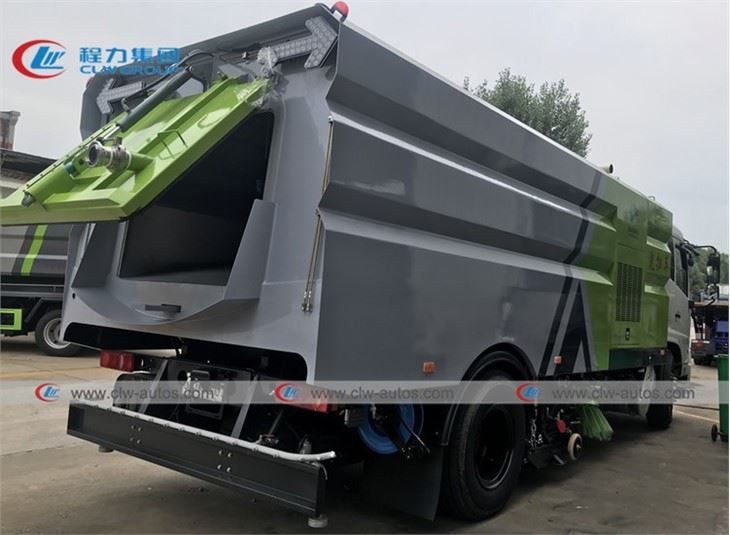

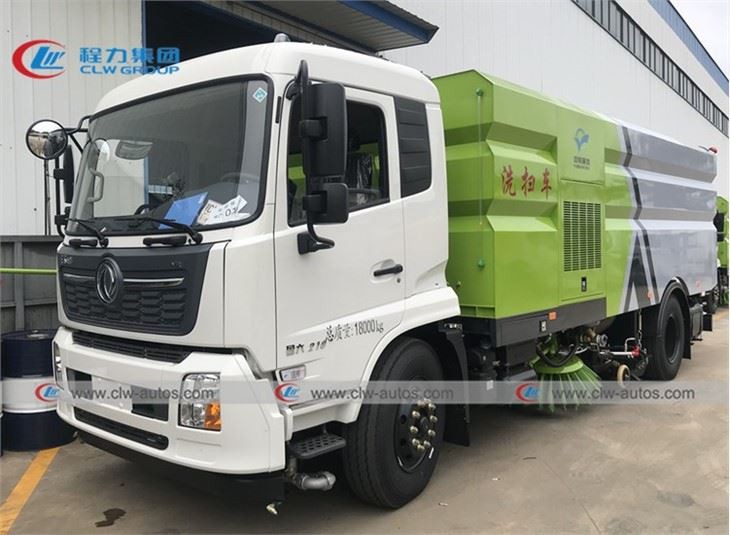

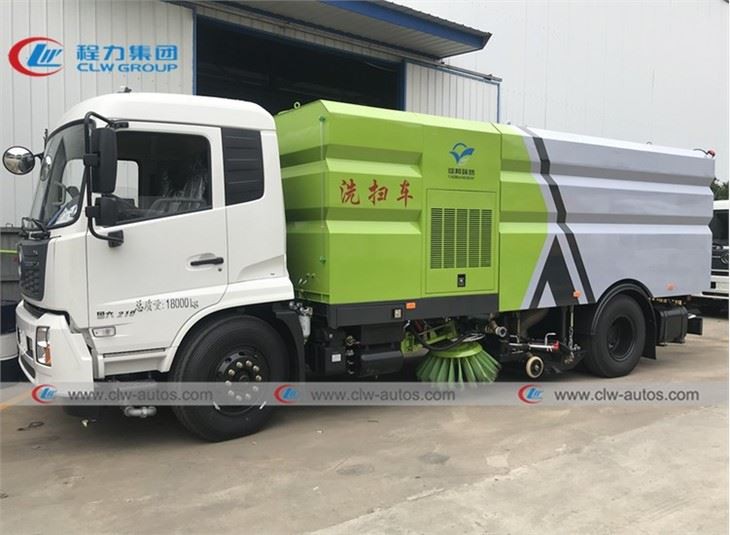

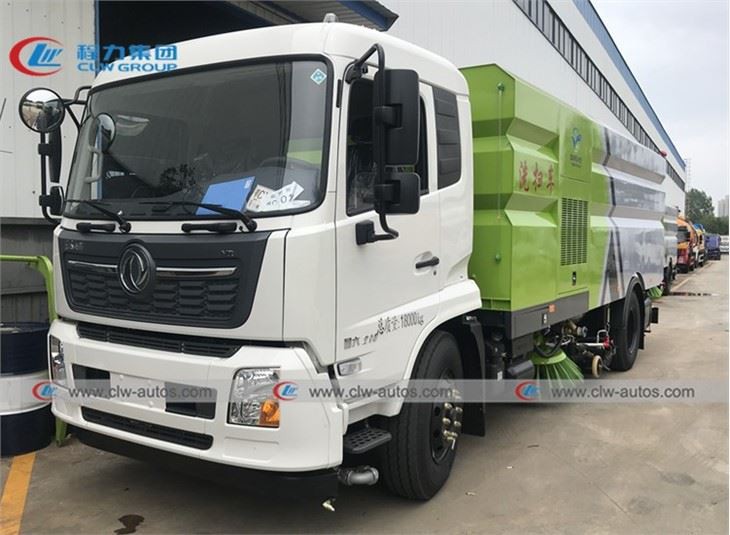

The working pictures of Vacuum Road Washing Sweeper Truck:
