Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 16m3 dongfeng road cleaning sweeper truck in China. If you're going to buy high quality 16m3 dongfeng road cleaning sweeper truck, welcome to get more information from our factory. For price consultation, contact us.

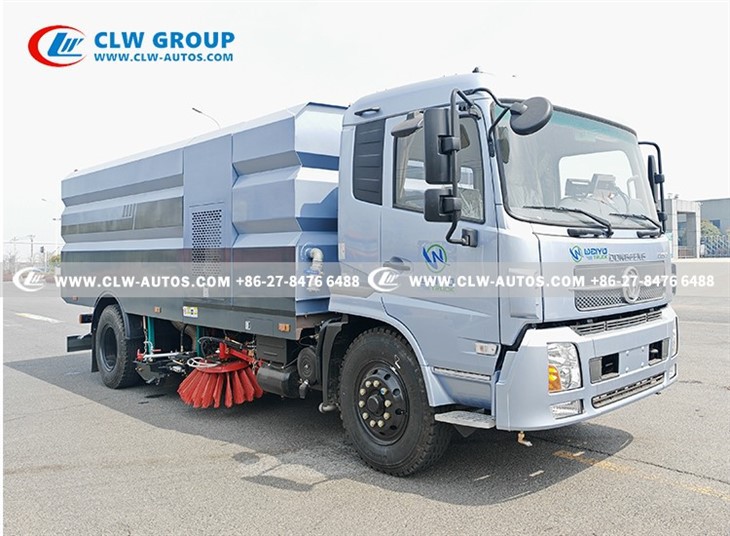

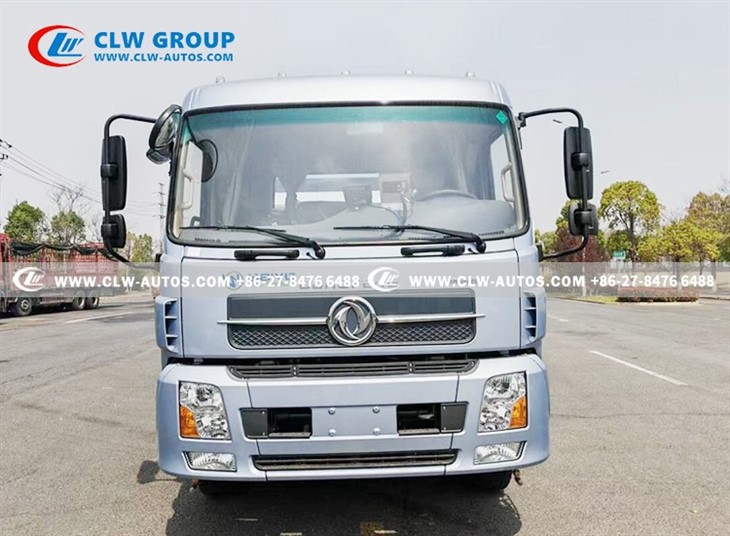

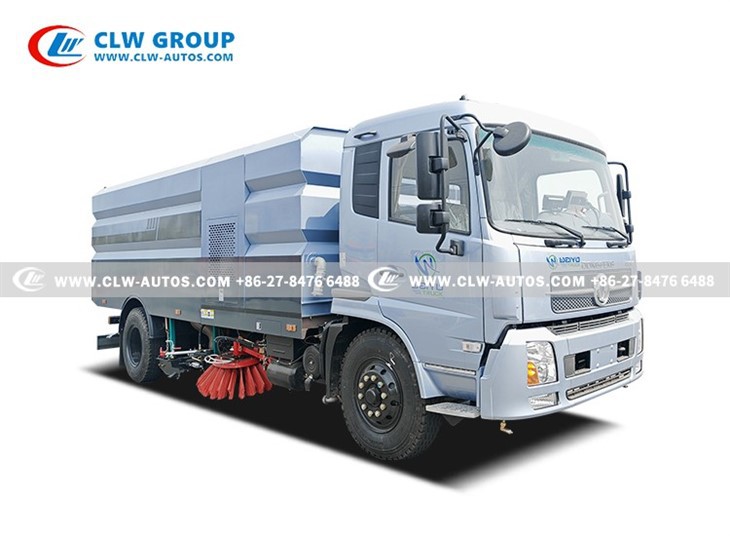

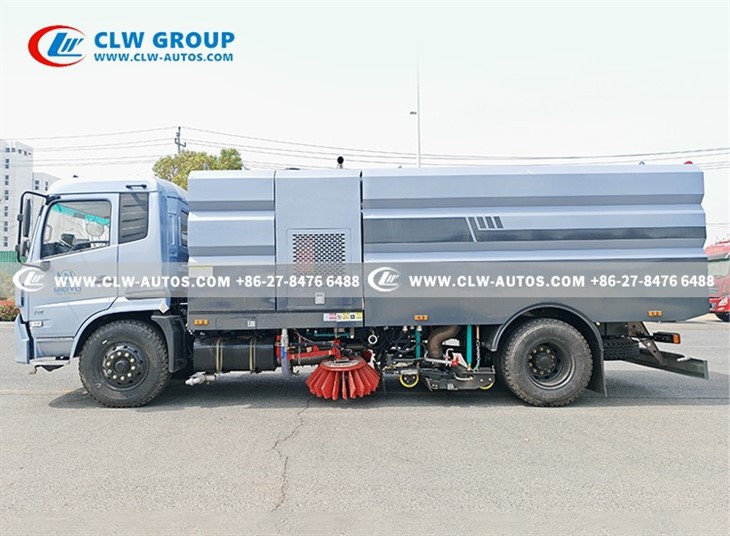

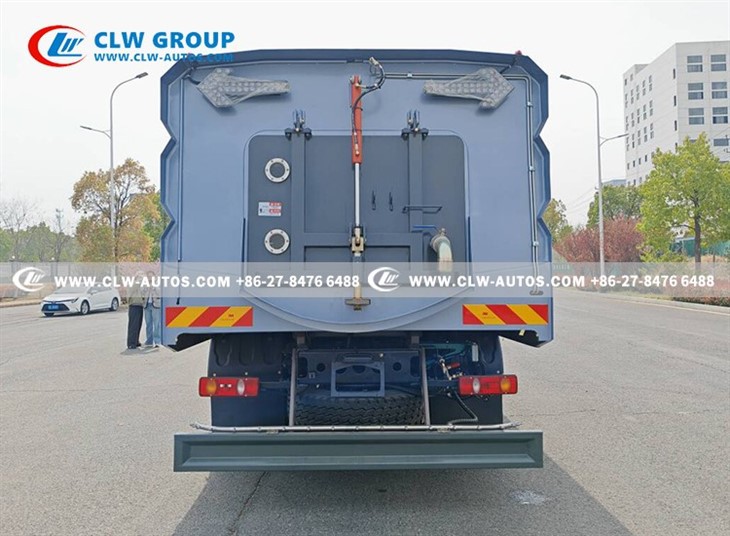

16m3 Road cleaning sweeper truck

We Are 100% Straight Factory Manufacturer For Road cleaning sweeper Truck Since 2004

Products Description

The Dongfeng kingrun Road Cleaning and Sweeper truck also called Street sweeper, road sweeper, sweeper truck, city cleaner, the Broom, Gutter Vac, Debris sucker, Dirt devil, power sweeper, SWT, and scrubber-sweeper, and etc.

Function:

It uses Dongfeng original chassis, adopts Cummins 210hp and 170hp auxiliary engine, equipped with fan, suction pipe, suction nozzle and high speed air flow which can bring garbage inside.The auxiliary engine drives the hydraulic oil pump and fan to work, the hydraulic oil pump drives the left and right sweep discs to expand, lift and rotate.

Features:

High-Capacity Road Sweeper,

Eco-Friendly Street Cleaner

Intelligent Sweeping System

Urban Sanitation Solutions

Low-Noise Sweeper Truck

Cost-Effective Maintenance

Advanced sweeping system

Combines high-pressure water spray and vacuum suction to remove dust, debris, and stubborn stains efficiently, ensuring "one-sweep cleanliness."

Intelligent control panel

Features a digital interface for one-touch start/stop and mode switching, simplifying operation and improving precision.

Robust chassis construction

Built on Dongfeng kingrun's proven durable chassis, it withstands rough terrains, like potholes, gravel roads, for extended service life.

Modular Component Design

Critical parts (fans, filters) are easily replaceable, reducing downtime and repair costs.

360°Safety protection

Includes rearview cameras, emergency braking, and rollover-proof cabin structures to protect operators and pedestrians.

Reference pictures

The broom

Gully emptier

city cleaner

Products Specification

Technical specification
Driving mode	4X2
Engine brand	Cummins
Horsepower	210hp
Power	154kw
Displacement	620000ml
Fuel type	Diesel
Wheelbase	5000mm
Tires	10.00R20*7 (with one spare)
Emission standard	Euro 2
Transmission	Fast, 8 forward gear
Front axle loading	6000kg
Rear axle loading	10,000kg
Gross vehicle weight	25,000kg
Deputy engine	Cummins, 170hp
Deputy engine displacement	5900ml
Passenger allowed	3 people
Front/rear overhang	1430/2220
Approaching angle	17°
Departure angle	25°
Upper specification
Water tank	9,000L, stainless steel
Dust tank	7,000L, carbon steel
Sweeping width	2800-3200mm
Sweeping speed	3-15km/h
Suction capacity density	2.0g/cm3
Garbage box dumping angle	≥45°
Sweeping efficiency	≥96%
Spraying type	Low pressure fog type
Operation control panel	Auxiliary engine tachometer, auxiliary engine water temperature gauge, oil temperature alarm device, various operation control switches
Fan type	High-pressure centrifugal fan
Rated working speed	2700r/min

Why do you choose us?

We also provide different brands of Road cleaning sweeper Truck, such as Dongfeng, Ford, ISUZU, JAC,JMC, SINOTRUK, Foton, Shacman,etc for you.

Rear spraying: This function is the same as the sprinkler function, mainly used to reduce dust on the road. There is a spray bar under the trash bin at the rear of the scrubber, and there are multiple spray nozzles on the spray bar. Start the auxiliary engine and high-pressure water pump, turn on the rear spray switch, and start the chassis car to move forward, and then spray dust can be carried out.
Front flushing: This function is the same as the sprinkler flushing function, which is mainly used to flush the road surface. Use the high pressure and large flow of the centrifugal water pump to wash the road surface as a sprinkler.
The left and right sweeping pan sweeps the rubbish on both sides to the bottom of the suction nozzle, which produces a high speed airflow, and under the action of the airflow, the garbage is sucked into the suction nozzle and into the dustbin.
The high-pressure water pump pressurizes water from the clean water tank and then sends it to the spray rod in the nozzle and the left and right spray rods through the high-pressure pipeline control valve.
Each spray rod is equipped with a number of special stainless steel fan nozzles. The fan-shaped water curtain sprayed by the nozzle forms a U-shaped water jet with a total width of not less than 3.0m, which directly washes the road surface, and the water after washing the road surface is sucked back into the trash can to realize the road cleaning.
