4X4 4000Liters Drinking Water Tank Truck Forland

Forland 4X4 Off road truck
Stainless steel water tanker
4000liters or 5000liters
Diesel Cummins Engine

Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4x4 4000liters drinking water tank truck forland in China. If you're going to buy high quality 4x4 4000liters drinking water tank truck forland, welcome to get more information from our factory. For price consultation, contact us.



4X4 4000Liters Drinking Water Tank Truck Forland
Product Details

Drinking water tank truck(also called drinking water truck,drinking water delivery truck,drinking water transport truck,drinking water cart) from clw group adapts food degree stainless steel 304-2B as tanker material to ensure health.


What's the difference between food degree stainless steel,ordinary stainless steel and carbon steel water truck?

  • Food grade 304 stainless steel refers to a stainless steel material that complies with the "National Standards of the People's Republic of China/Sanitary Standards for Stainless Steel Tableware Containers" GB 9684-2011;

  • lead content is much lower than that of ordinary stainless steel.

  • Ordinary stainless steel does not meet food-grade standards.

  • Food grade 304 stainless steel and ordinary 304 stainless steel use different standards:

    --304 food grade stainless steel water pipe standard is GB/t29038-2012 (drinking water pipe) standard. The migration of heavy metals such as nickel, sulfur, phosphorus, lead, and hexavalent chromium are all within the standard range. Long-term use will not cause scaling and will not be easily contaminated by bacteria. There is no need to worry about the impact of water quality and secondary pollution of water can be prevented.

    --Ordinary stainless steel decorative pipe adopts the GB/t18705-2002 (decorative water pipe) standard, which cannot be directly contacted with food and is used as a drinking water pipe.

  • Carbon steel water truck is usually used for city sanitation purpose as water bowser,it's not suitable for delivering drinking water.



 Shirley's whatsapp +86 13545064324
youtube https://www.youtube.com/watch?v=danbl8UwJG8


Features
  • Original forland 4X4 off road truck chassis;

  • Cummins engine 141HP;

  • 8.25R20 tire with one spare;

  • Food degree stainless steel 304-2B as tanker material,pipeline,valves and water pump;

  • Argon arc welding,no flash;

  • Safe and healthy drinking water delivery service;

  • Durable and high ground clearance for mountain road;

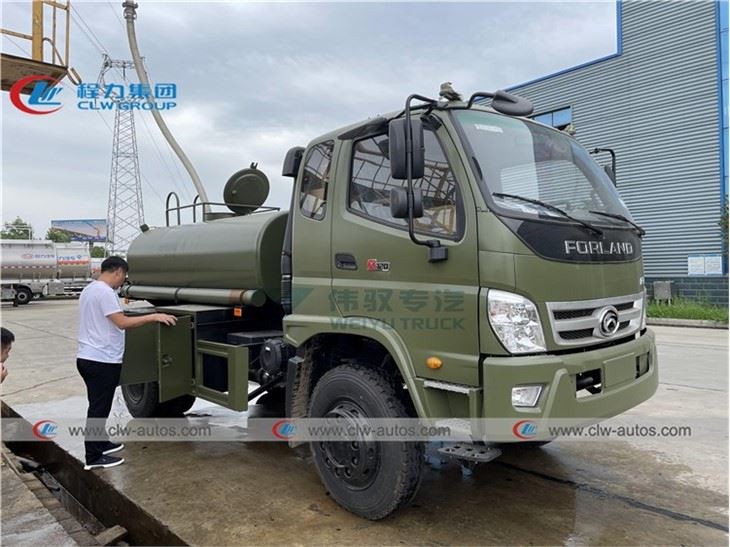

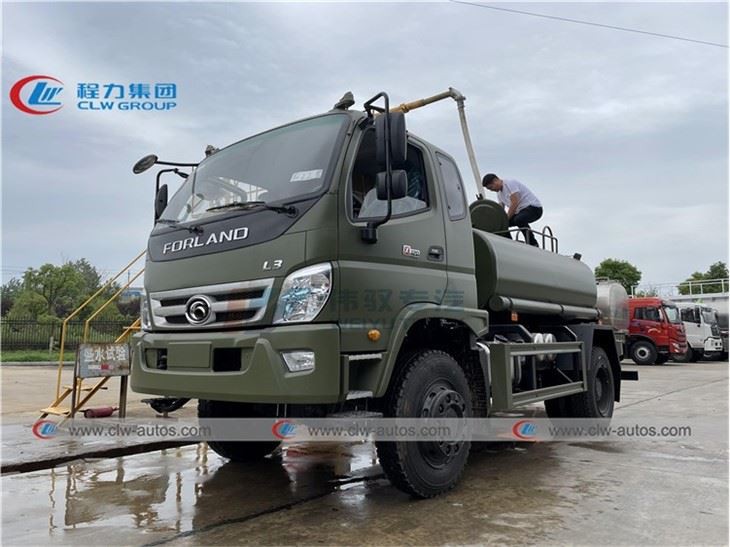

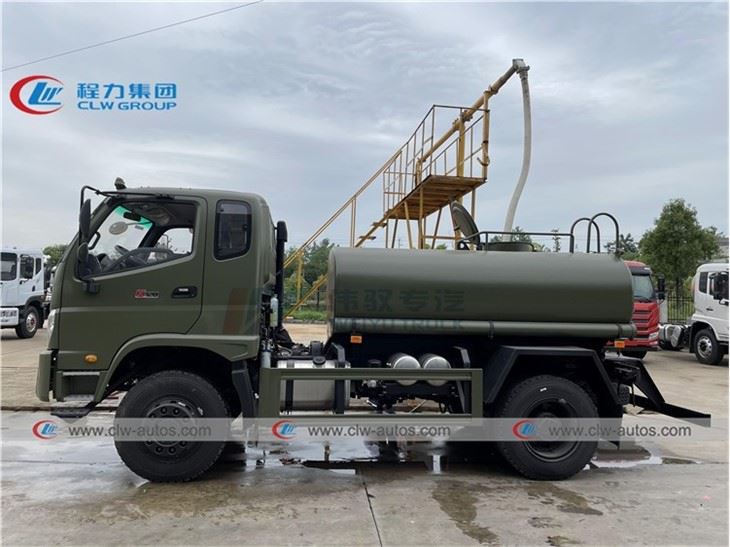

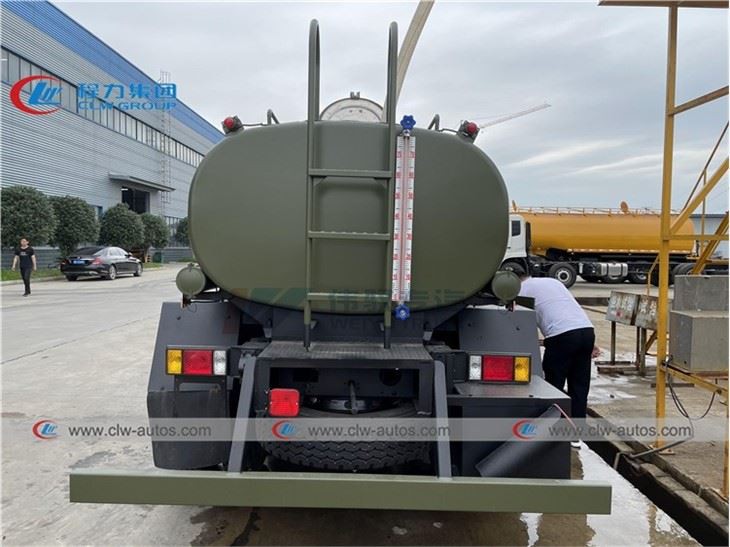

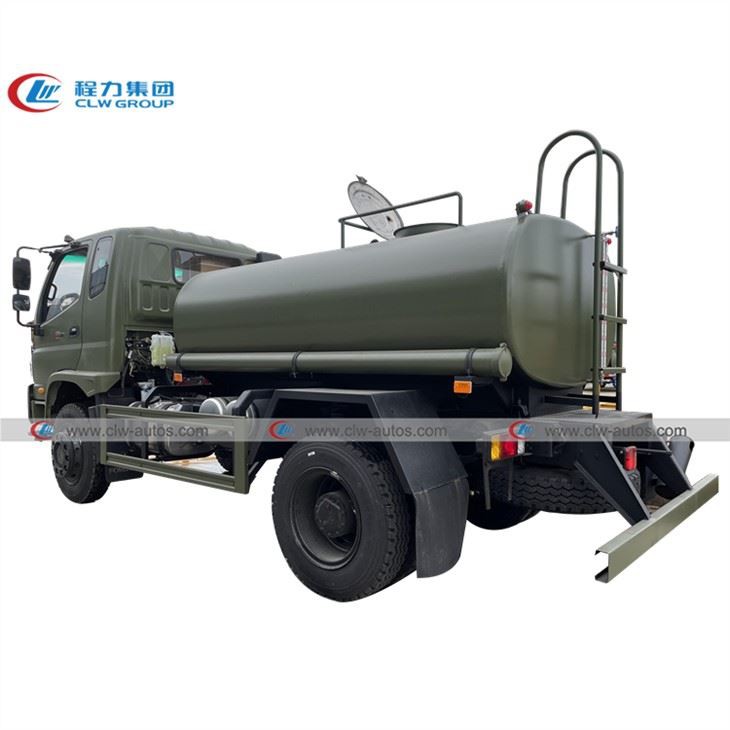

Reference picture


Specification

General Technical Parameters

Overall Dimension

6200x2350x2670(mm)

Gross Vehicle Weight

12000 (Kg)

Loading Weight

5000(Kg)

Chassis Specification

Chassis Brand

Forland

Drive model

4*4

Cabin

L1995 type,Single and a half, Left Hand Driving,Without airbag/with power take-off/basic speed ratio of front and rear drum type/manual flip/no air deflector/no reversing radar/engineering dump (integrated plate core)/manual air-conditioning/inner tube radial tire 8.25R20/manual doors and windows and Rear view Mirror/No Driving Recorder/No Stabilizer Bar/MP3/No ABS/Power Steering/Knitted Ordinary Seat/

Number of Passengers

2

Engine

Brand

Cummins

Model

F3.8s3141

Type

4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling

Power

105KW/141HP

Emission standard

EURO

Displacement

3760(ml)

Fuel type

Diesel

Min. Fuel Consumption

195 g/KW.h

Gearbox

WLY6TS55,6 Forwards & 1Reverse

Brake System

Drum pneumatic brake

Wheel Base

3400(mm)

Tire

8.25R20, 6 pcs + 1 spare tire

Max Driving Speed

90(km/h)

Superstructure Specification

Water Tanker

Dimension

3400*1600*1100(mm)

Material

food degree Stainless Steel 304-2B

Tanker volume

4000L

Thickness of Tanker

4mm at end plate and 4mm at tank shell

Water Pump

Stainless Steel material 40/45

Other Configuration

² High quality Stainless Steel water pump;

² power take off;

² stainless steel ball valves;

² Stainless steel pipeline;

² DN450 manhole;

² Fence&ladder;

² Vice-beams, anti-wave clapboard;

² Level gauge at rear of truck


Key word: 4X4 water truck,off road water truck,drinking water delivery truck,stainless steel water tanker,4X4 water bowser,drinking water tank truck,forland water truck,military water truck,water supply truck,water sprinkler truck,4000L water tanker,4tons water truck,4t water tank truck
