Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of fuel tank trailer with pump in China. If you're going to buy high quality fuel tank trailer with pump, welcome to get more information from our factory. For price consultation, contact us.
Product Description
Fuel tanker trailer can be divided into many compartments to load and transport different types of fuels, lubricant, crude oil, alcohol...
---- High quality tank material has options of carbon steel, stainless steel, aluminum alloy.
---- JOST kingpin, JOST / FUWA landing gears
---- Axles are of top Chinese brand FUWA or German brand BPW
---- Bottom loading system including vapor recovery and overfill detection system can be equipped.
Specification
| |
Shape | Round or Square |
Dimension | 12000mm×2490mm×3990mm ( The exact size depends on the final design.) |
Tare weight | About 8000kg-12800kg |
Total Volume ( m3 ) | 35 m³ |
Tanker Body Material | 5mm or 6mm/ Q235 carbon steel |
End Plate | 5mm or 6mm /Q235 carbon steel |
Manhole Cover | Carbon steel or aluminum alloy API manhole cover, 500mm(diameter) |
Bottom Valve | Aluminum API Pneumatic Bottom Valve |
Discharging Valve | Diameter is 3 or 4 inch |
Compartments | Optional |
Discharging Pipe | 4" rubber hose, 2 pcs , 6m/each |
Cat Walk | With (Common model or special design) |
| |
Main Beams | Welded design or Special design I beam, connected by bolts and nutsQ345 carbon steel material |
Axle | 2 or 3 axles, BPW/FUWA/HUAJING brand |
Landing Gear | JOST (D200T ) or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/Germany or America type /air suspension |
Leaf Spring | 90(W)mm×13(Thickness)mm×10layers or 10mm×12mm×12 /without |
Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber (TKL brand ); one piece of 45L air tank |
Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
Tire | 12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
ABS | Optional |
Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats. |
Accessories | One standard tool box |
Shipping Terms | By bulk cargo, RORO or 40HQ Containers |

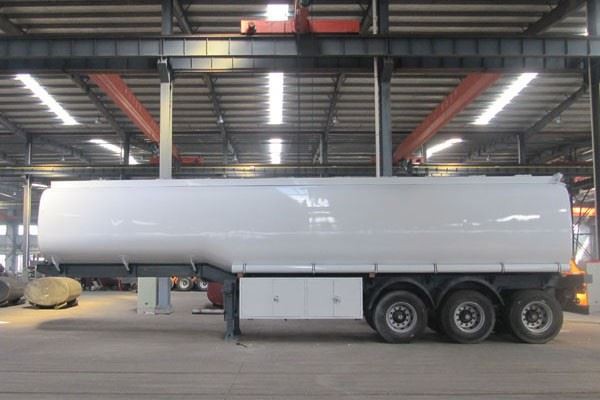

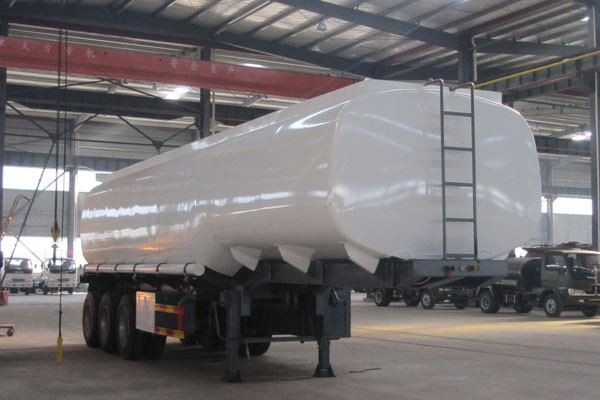

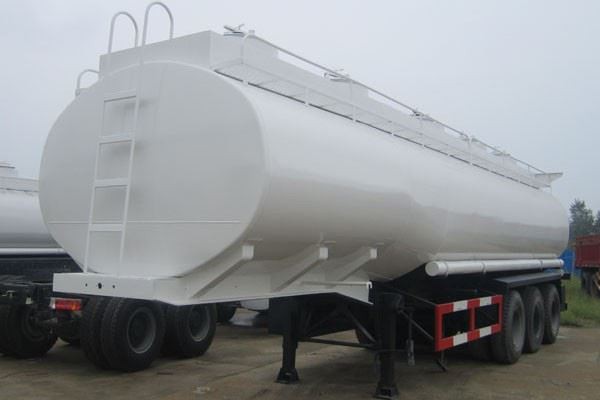

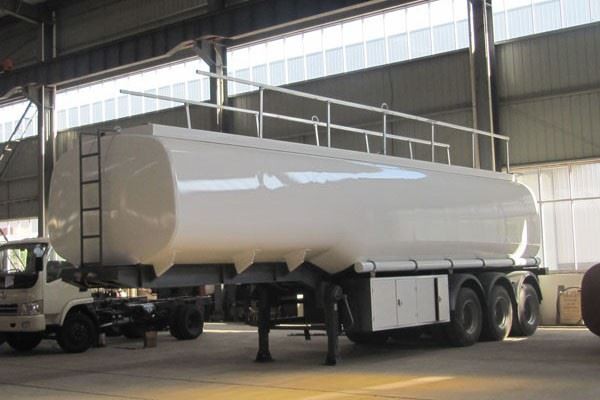

Reference Picture
Packing and Shipping
RORO: The fuel tank trailer is driven to the ship inside directly and fixed well. It can protect the truck being rusty and broken during shipping.
BULK: The fuel tank trailer is lifted by crane then put on the vessel deck. This model is much cheaper.
Production Process
1.Steel auto cutting
2.End plate bulging machine makes end plate more accurate
3.Canning machine makes tanker body more beauty and tight
4.Tanker body auto welding
5.Chassis welding by experienced worker
6.Dust-free painting
Customer Inspection
Overseas Exhibition
Our Service
1. We can provide operation videos for the stainless steel fuel dispenser truck.
2. The fuel tank trailer is supplied with vulnerable parts
3. CKD and SKD are available.
FAQ
Q1. Can you produce the fuel trailer according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2. Do you test all your fuel trailer before delivery?
A: Yes, we have 100% test before delivery.
Q3. What is your terms of payment?
A: T/T 40% as deposit, and 60% before delivery. We'll show you the photos of the products and packages before you pay the balance.
