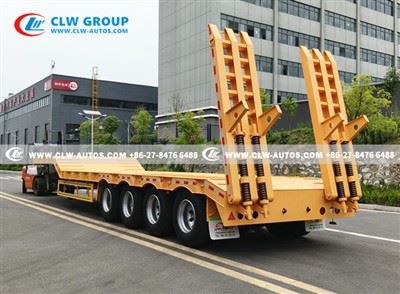

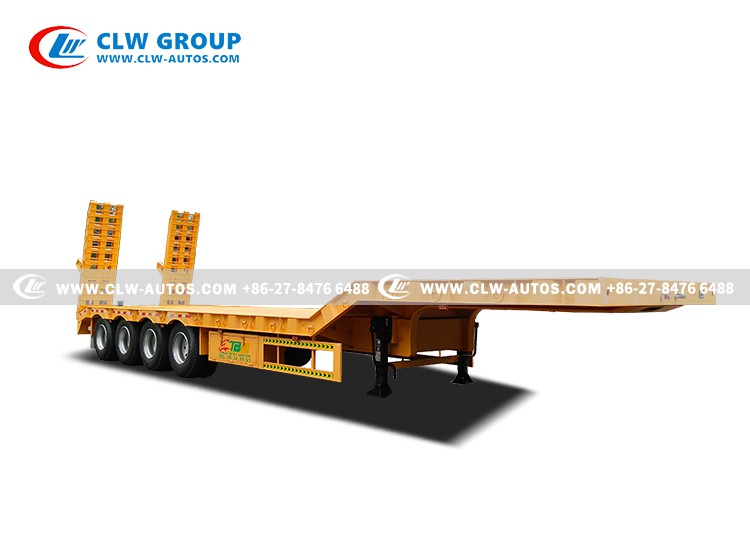

4 Axle 80T Low Loader Trailer
4 Axle Lowbed Low Loader Lowboy Semi Trailer. 80T-100T Loading Capacity with Mechanial lamp. FUWA axle/BPW, L1 other brand Axle available. 13.5 Meters Length. 3 meters width. For Heavy Construction Machinery loading
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4 axle 80t low loader trailer in China. If you're going to buy high quality 4 axle 80t low loader trailer, welcome to get more information from our factory. For price consultation, contact us.
We are FAW Truck's Sole Agent in Togo!
100% Original Factory Selling, OEM Customized.
Products Description
This 4-Axle 80T Low Loader Trailer is the workhorse of heavy haulage in construction. Its combination of immense load capacity, the critical low-loading height facilitated by the hydraulic gooseneck and deployable ramps, and its robust construction make it indispensable for moving massive, ground-operated machinery efficiently and safely from site to site.
This specialized semi-trailer is engineered for the efficient and safe transportation of heavy construction equipment such as excavators, bulldozers, mobile cranes, and compactors.
Main Specification:
Loading Capacity: 80tons-100tons;
Axles: FUWA brand 16Tons, 4 pieces; Front Axle with Air Bag
Suspension: Heavy duty mechanical type.
Landing Leg: 28T JOST brand;
King Pin: 3.5'', 90# JOST brand, Floor:
5mm thickness checker plate;
Platform Length: 10 meters; Tire: 12R22.5 or 12.00R20, 16 pieces with 1 Spare. with 2 pieces mechanical ramps.
Painting as the requirement
Purpose: To provide a stable, low-level platform for loading, transporting, and unloading heavy construction equipment efficiently and safely over public roads or job sites.
Loading Process:
The trailer is positioned on firm, level ground.The hydraulic gooseneck is lowered , bringing the main deck close to the ground.

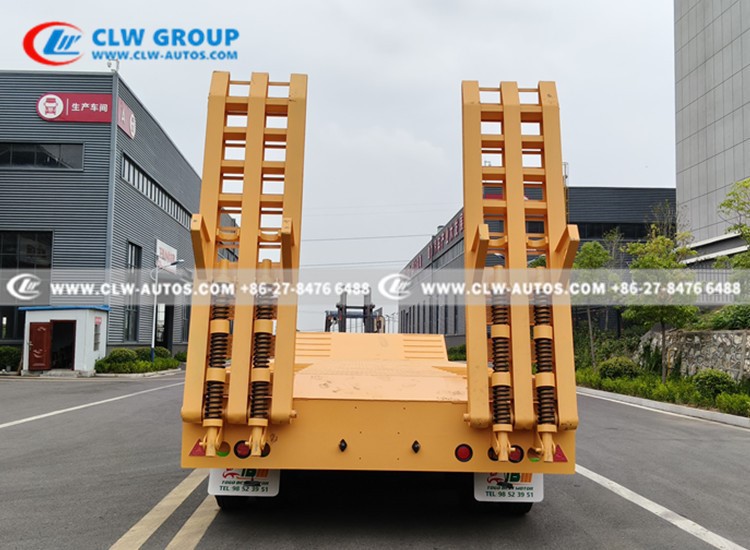

The heavy-duty ramps are deployed from the rear of the trailer, creating a gently sloping approach.
Construction machinery (excavator, dozer, etc.) drives or is carefully winched up the ramps onto the low main deck under its own power or with assistance.
Equipment is precisely positioned over the trailer's strong points.
Machinery is secured using chains, binders, and the deck's tie-down points. Ramps are stowed and the gooseneck raised (if needed for road clearance) before transit.

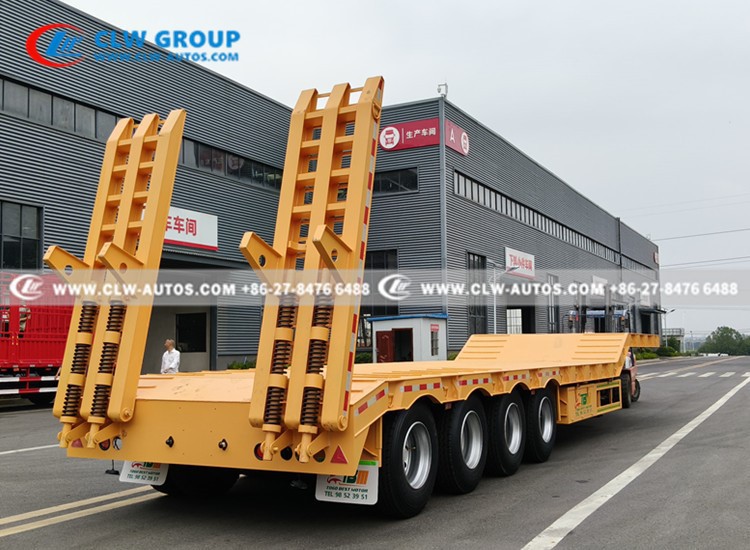

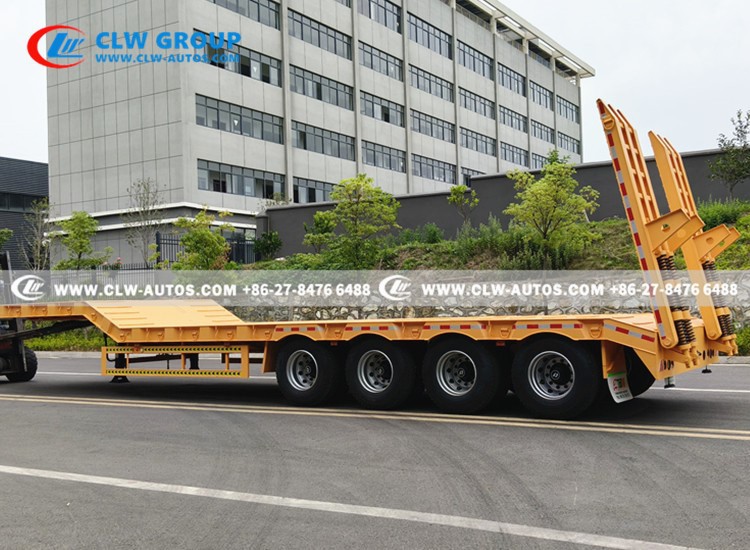

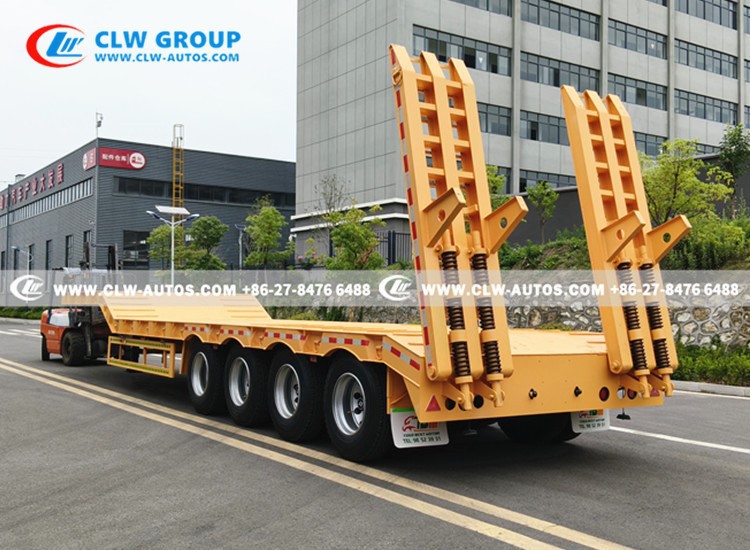

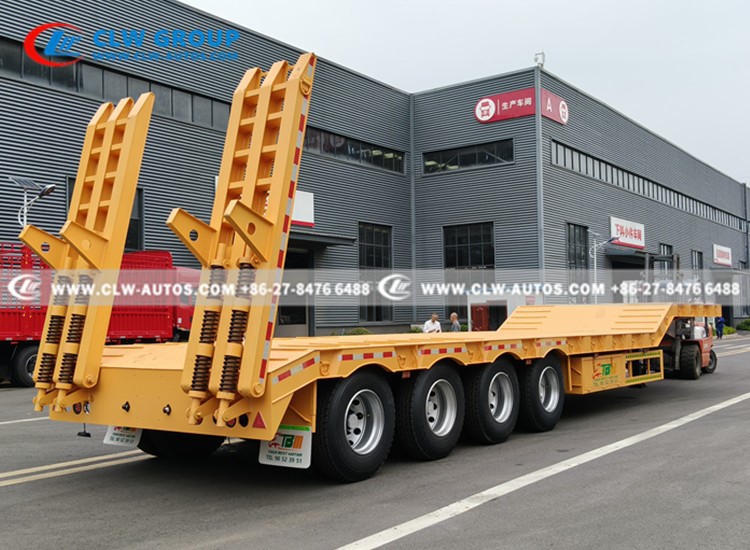

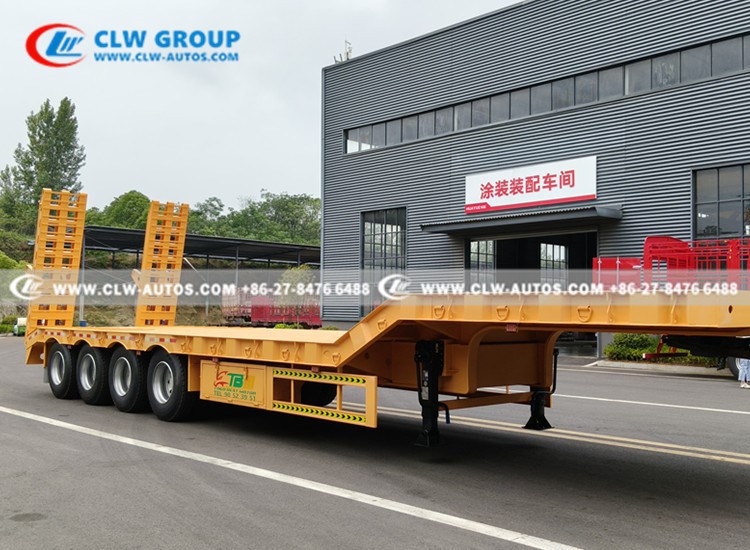

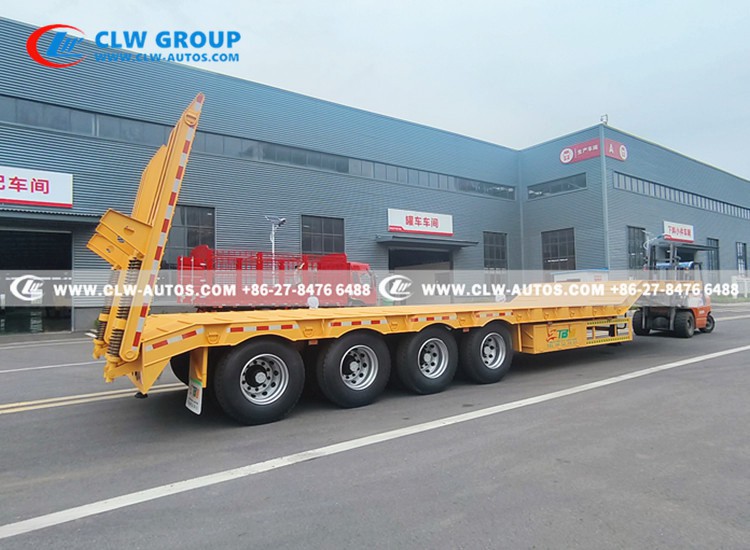

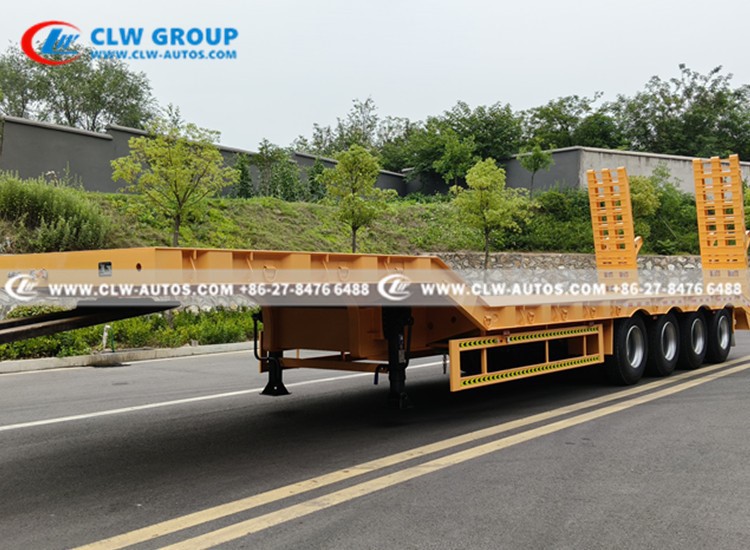

More Lowbed Trailer pictures
Products Key Features
- High Capacity: Rated for a maximum gross load of 80 metric tonnes (80,000 kg / 176,000 lbs) , enabling it to handle the most common large construction machinery.
- 4-Axle Configuration: Features four axles (typically grouped as two tandem axles) equipped with robust mechanical leaf springs or heavy-duty air suspension. This provides exceptional load distribution, ground pressure management, and stability under extreme weights.
- Low Loader Design:
Hydraulic Gooseneck: The front section (gooseneck) lowers hydraulically to significantly reduce the deck height during loading/unloading. This creates a shallow approach angle.
Low Deck Height: When lowered, the main deck sits very close to the ground (typically 600mm - 900mm / 24"-36"), minimizing the ramp incline needed for machinery to climb on/off safely.
Long, Flat Main Deck: Provides a substantial, unobstructed platform for positioning large equipment. Lengths typically range from 8 to 12 meters (26' - 40')
4.Heavy-Duty Loading Ramps: Equipped with robust, long, and wide steel ramps. These detach or fold hydraulically/mechanically for loading/unloading. Designed to withstand the immense point loads and abrasion from tracked or heavy-wheeled machinery climbing aboard.
5. Reinforced Deck: The main deck is constructed from high-tensile steel plate, often with an anti-slip surface (chequer plate or weld beads) to prevent machinery slippage during transit. It's heavily reinforced to handle concentrated loads from tracks or outriggers.
6. Tie-Down Points: Numerous heavy-duty D-rings, lashing rails, or stake pockets strategically placed around the deck perimeter for secure chain-down and strapping of machinery.
7. Detachable Sides/Extensions (Optional): May feature hydraulic or removable side extensions to widen the deck for exceptionally wide loads.
8. Braking System: Equipped with a high-capacity air braking system compatible with the prime mover (truck/tractor), essential for safely stopping such heavy loads.
9. Suspension: Heavy-duty leaf spring systems designed to absorb road shocks and maintain stability while protecting both the cargo and the trailer structure.
