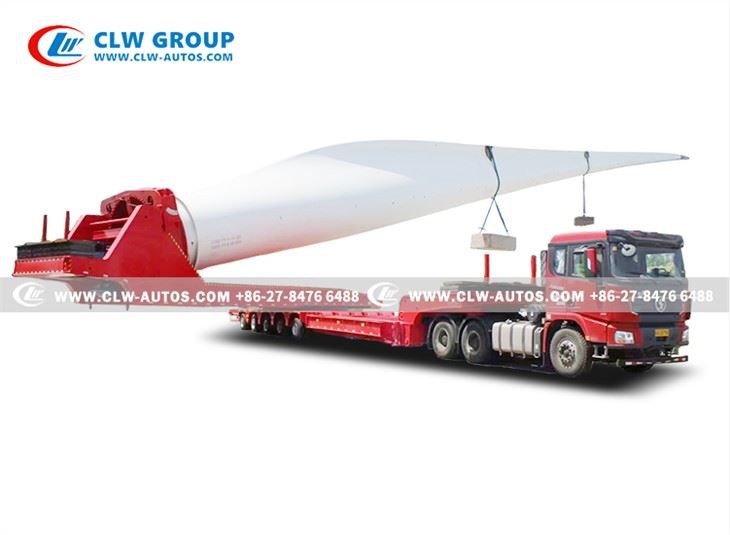

5 Axle Wind Turbine Blade Lowbed Trailer With Turntable
This trailer is mainly used to transport wind turbine blades. This is designed for complex and harsh road transportation environments. In hilly areas, the transportation environment with many curved roads can play a greater advantage.
Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 5 axle wind turbine blade lowbed trailer with turntable in China. If you're going to buy high quality 5 axle wind turbine blade lowbed trailer with turntable, welcome to get more information from our factory. For price consultation, contact us.
Goods Description:
There are 2 type of methods to transport wind turbine blade:
1. Length Extendable wind blade trailer For normal transporting on the road. depends on different length of wind blades,trailer could make 3 steering axles ,or 4 steering axles ,wind blade trailer could be made 15m-23m before extendable , and extend to 45m-78mters during wind blades semi trailer working.
2. Wind blade Transport Lowbed Trailer with Turntable For mountain region transporting
Comparing with telescopic extension wind blade trailer, The rotation wind turbine blade adapter can raise, swing, and rotate the blades. It can avoid various obstacles such as trees, mountains, and wires on the way, effectively solve the problem of wind power blade transportation in mountain areas, and directly grasp the wind blades by the hydraulic power station .Hold in mid-air to transport a longer wind blade(more than 75meters) with a shorter length. In the case of high wind, the blades can rotate 360 degrees to avoid the wind, and participate in the balance through the counterweight to ensure transportation safety.
Parameters for 5 Axle Wind Turbine Blade Lowbed Trailer With Turntable:
Items | Low bed semi trailer | Low bed semi trailer |
Loading Capacity | 60-80tons | 80-100 tons |
Axle | 4 pieces, 13T FUWA/BPW axle | 5 pieces, 13T FUWA/BPW axle |
Tyre | 12 pieces, 10.00R20 | 16 pieces, 11.00R20 |
Dimensions(LxWxH) | 15000 -53000mm x 3000 x 1650mm | |
Tare weight | 25 tons | |
Rims | 8.5-20, 9.0-20 | |
Lifting Cylinder | Cylinder diameter 320mm Lift angle 0-55° | |
| Hydraulic station | 12-41 KW Four-cylinder diesel engine | |
| Operation vales | Manual (remote control) duel using valves | |
Suspension System | Leaf spring suspension / air suspension | |
Brake System | Dual line pneumatic brake system with WABCO emergency relay valve | |
Main Beam | Height 500mm Q345 carbon steel | |
Chassis | upper 20mm, lower 20mm. Mid web 12mm | |
Rear Loading Ramps | 2 nos, 720 mm width, spring loaded & manually operated with safety chain | |
Kingpin | 2’ or 3.5’ interchangeable,JOST brand | |
Landing Gear | 28 Tons , Two speed manual operation | |
Electrical System | 1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard | |
Lights and Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |
Painting | Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm;Any color will be available | |
Tool Box | One tool box with a set of standard trailer tools | |
Spare Tyre Carrier | One piece or two pieces | |

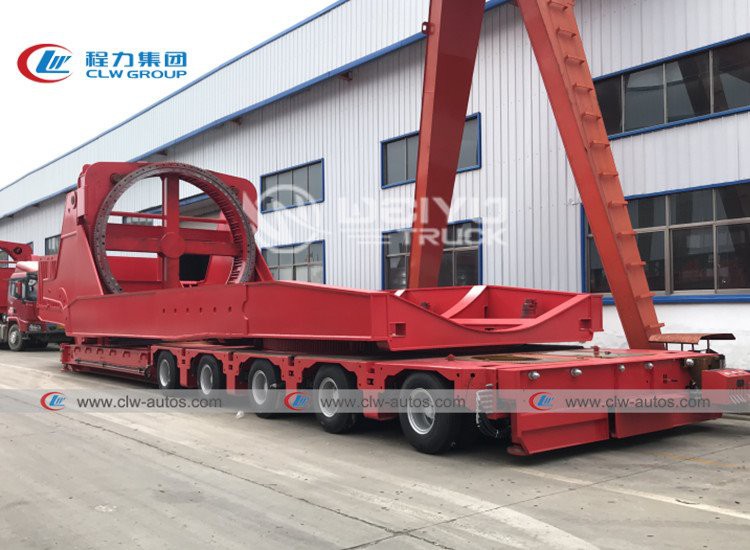

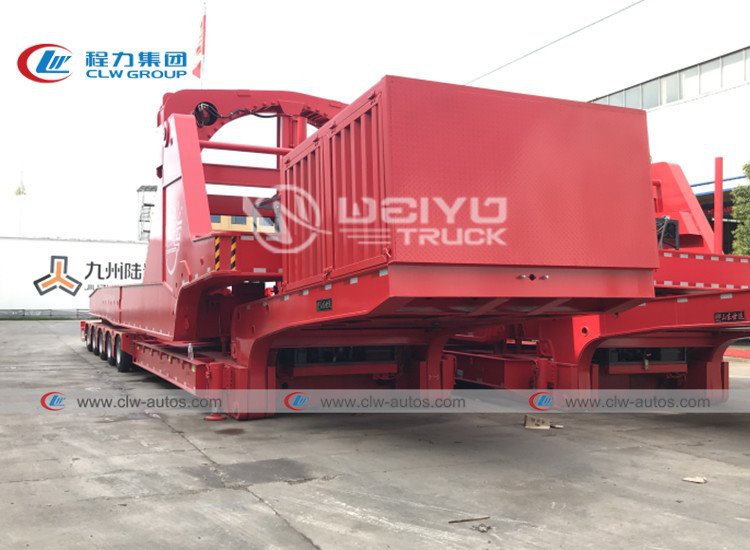

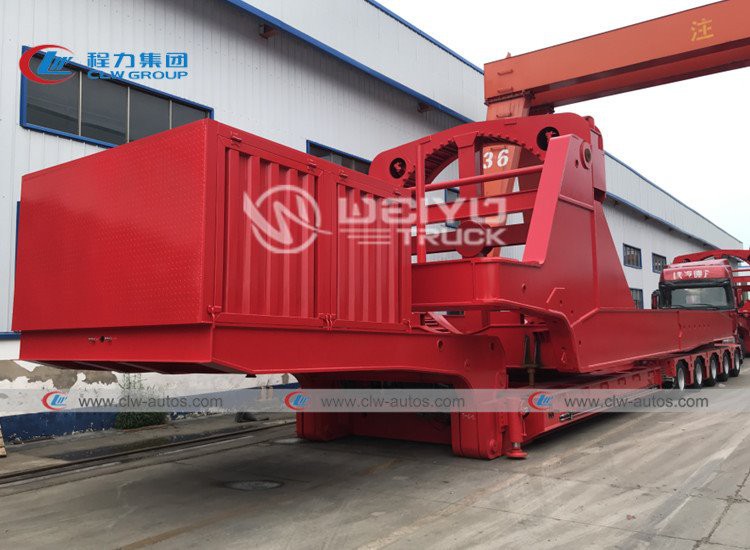

More pictures for 5 Axle Wind Turbine Blade Lowbed Trailer With Turntable:

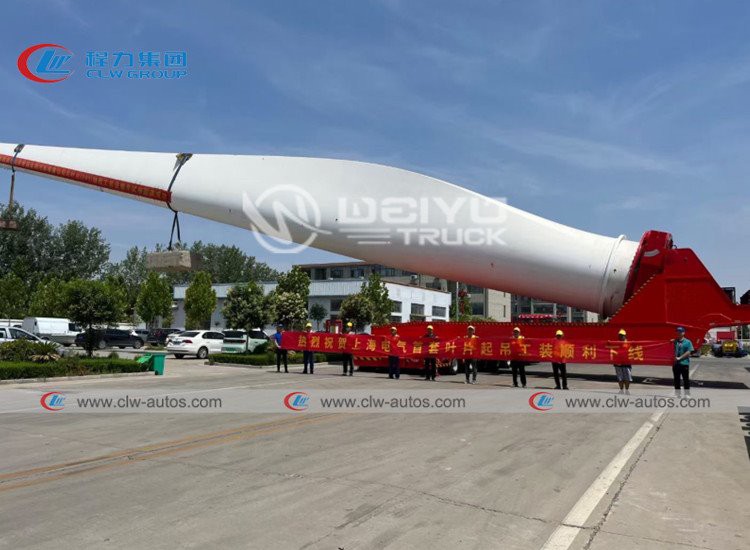

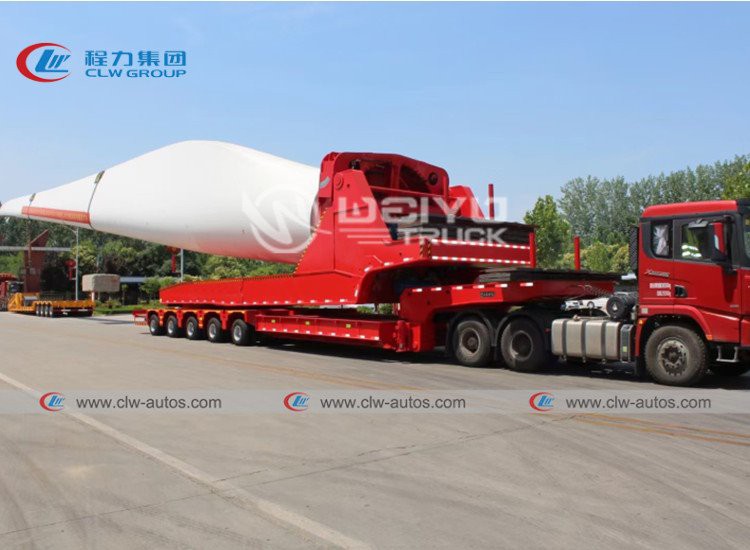

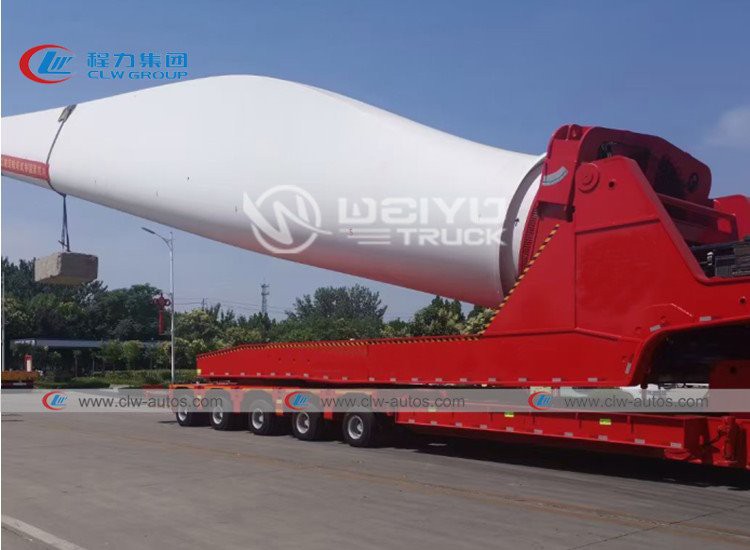

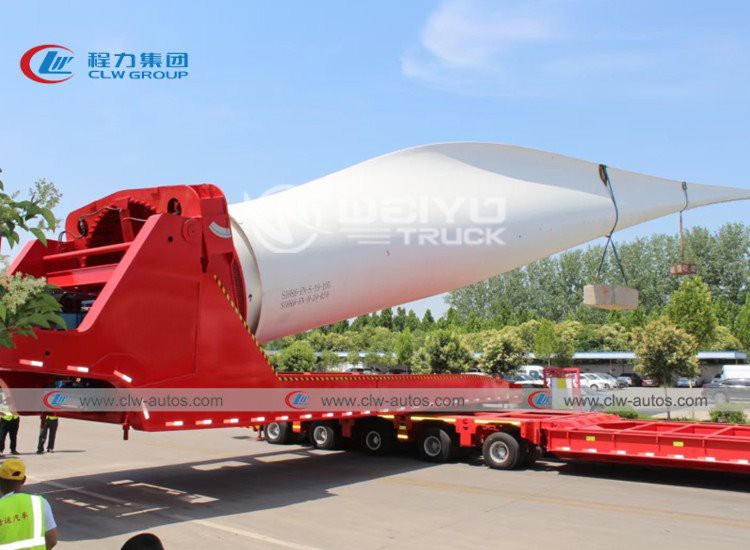

Successful Cases Pictures for 5 Axle Wind Turbine Blade Lowbed Trailer With Turntable:
Main Features
1. Torsion – resistan of side beam and Main Beam are with “I” high strengh steel. more durable than normal trailer steel , ensure low bed trailer driving stability and handle bed roads.
2. Steel Plate reinforcement on low bed trailer gooseneck, the width of gooseneck is 360mm. This design can improve the loading capacity to 120 tons .
3. Heavy duty type ramp: manganese plate butt welding, This design that ensure the ramp support the heavy duty marchine safely.
4. Stability when loading heavy duty marchine. The low bed trailer can equipped with extra legs on the rear of trailer. This ensures loading machines more safety.
