Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 59.5cbm 30tons lpg road tanker semi-trailer in China. If you're going to buy high quality 59.5cbm 30tons lpg road tanker semi-trailer, welcome to get more information from our factory. For price consultation, contact us.
Product Description
-LPG Road Tanker(also calledlpg bridger truck,lpg tanker trailer,lpg truck trailer,25tons lpg truck,25mt lpg truck,50m3 lpg truck,propane tanker trailer,lpg tanker,lpg semi trailer) is used to transport liquid petroleum gas/propane gas/cooking gas/lpg in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.
-Optional for tank size from 40,000litera to 61900liters,from 20tons to 30tons.
-Design standard: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
-Optional accessories :ROCHESTER level gauge,flow meter,sun shelter,lpg pump,lpg dispenser machine,filling hose.
-Material: Q345R,Q370R,Q420R;
-Optional for axle brands:BPW,FUWA,L1 and so on.
Tank Production Procedure
-1. Steel Plate Cutting &Rolling;
-2. Tanker Body Welding;
-3. X-ray Welding Seam Detection: each vertical and circular welding seam will be X-ray tested, to prevent welding defective like bubble & cracks;
-4. Whole Tanker Heat Treatment;
-5.Water Pressure Test: hydraulic water pressure test: 2.22 Mpa, to make sure tanker meet designed pressure;
-6. Painting with customize logo.

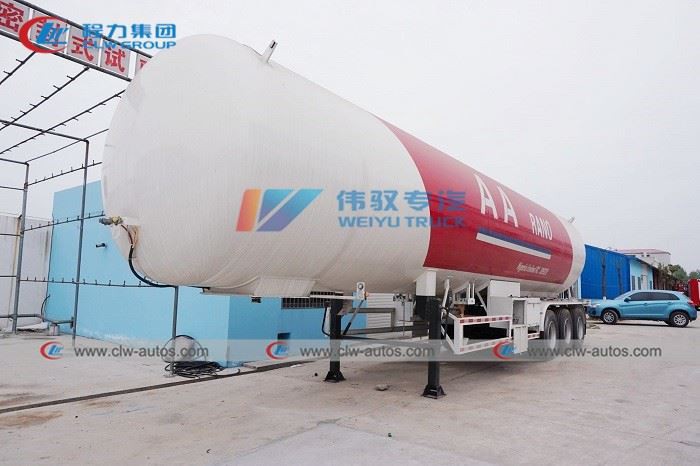

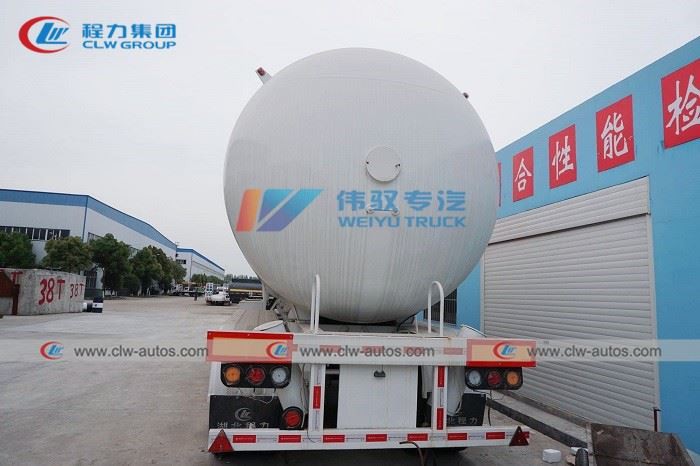

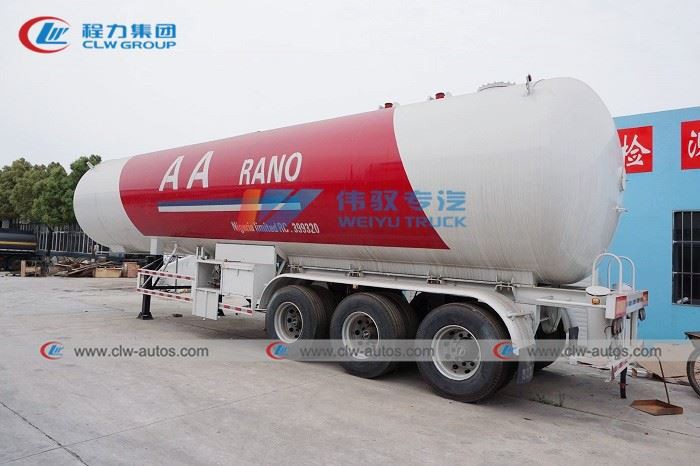

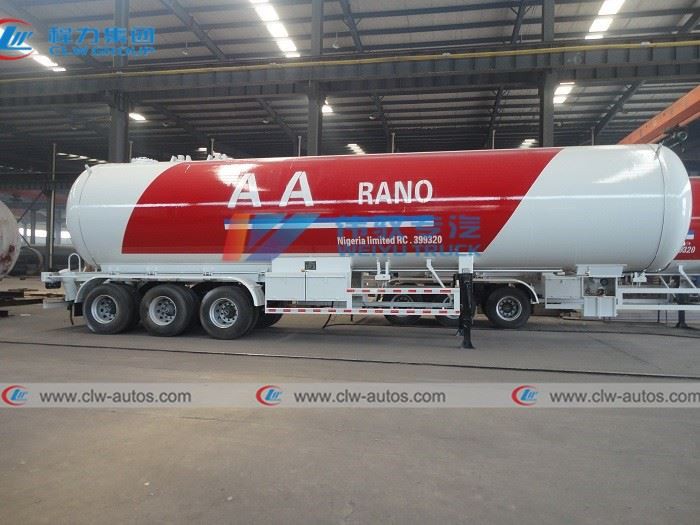

Reference photos
We provide customized drawings for every semi-trailer
Product Specification
Tanker Essential Information | |
Volume of Tank (cbm) | 59.5 |
Overall Dimensions(L*W*H)(mm) | 13000*2500*3990 |
Tank Dimensions(Inner Diameter*thickness*Length) | 2475*12*12837 |
Estimated Tare Weight (kg) | 15000 |
Payload(kg) | 25000 |
Total Weight(kg) | 40000 |
Wheelbase(mm) | 7230+1310+1310 |
Shell of Tanker | |
Products | Liquefied Petroleum Gas (propane) |
Fluid Property | Flammable |
Design Temperature(℃) | -19℃~50℃ |
Design Pressure(MPa) | 1.61 |
Corrosion Allowance(mm) | 1.00 |
Weld Joint Factor | 1 |
Major Materials of Bearing Pressure | Tanker body:Q345R,12mm, |
End plate：Q345R,12mm,double ellipse | |
Main beam:16Mn | |
Detection | |
Heat Treatment | Overall treatment in a furnace,600℃ to 640 ℃ |
Flaw Detection | 100% Flaw detection |
Hydraulic Test(MPa) | 2.21 |
Manhole (As Customer’s Requirement) | |
Quantity | 1;on top,DN450 |
Safety Valve(As Customer’s Requirement) | |
Quantity | 2 |
Location | On the top of tanker |
Size | DN50 or As Customer’s Requirement |
Level Gauge 3*13T Fuwa | |
Type | Manuel rotation type |
Location | At the rear of the end plate |
Running System | |
Axles | 3*13T FUWA brand |
Tire | 12R22.5 Tubeless tire ,12 with one spare tire |
Landing leg | JOST |
King Pin | #50(2 inch) or #90(3.5 inch) |
Control System | |
Emergency Cut-off Valves | 2 |
Ball Valve | 2 |
Liquid Gauge | 1 |
Thermometer | 1 |
Pressure Gauge | 1 |
Accessories | |
Tool Box | 2 |
Wheel Carrier | 1 |
Fire Extinguisher | 2 |
Fender | 6 |
Painting | As Customer’s Requirement |
