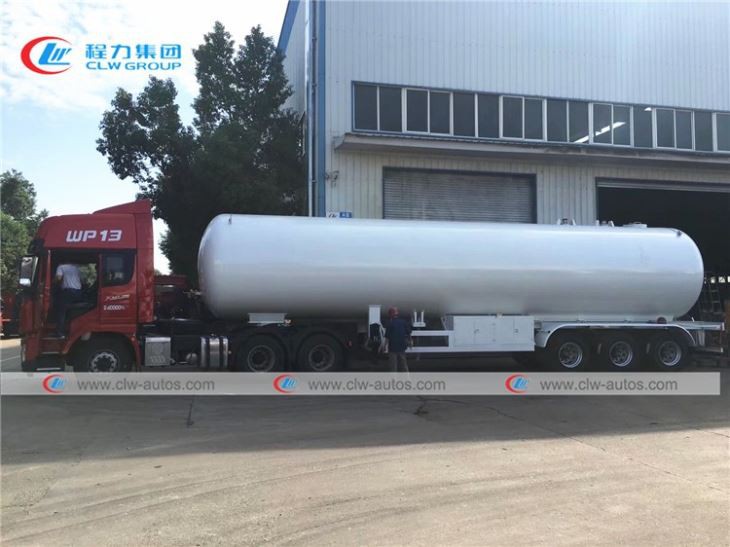

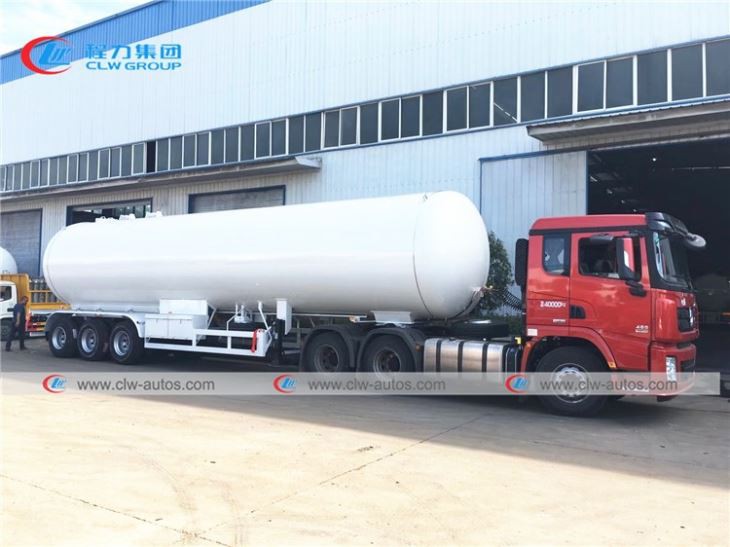

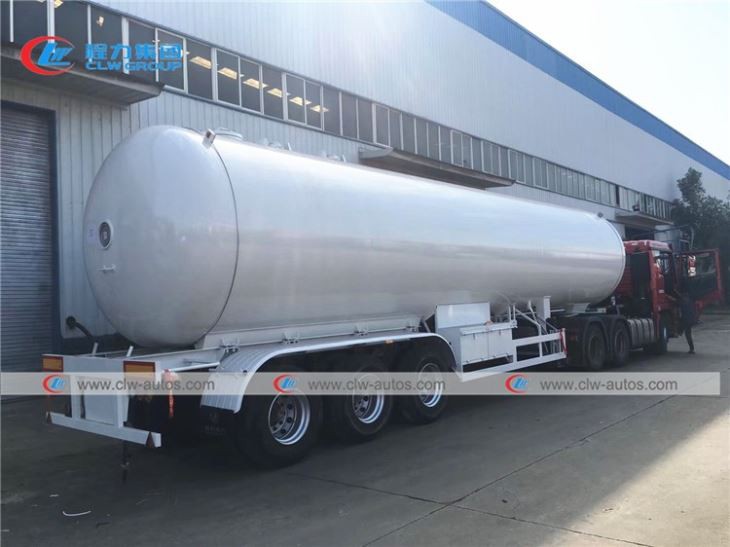

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 30tons 59520liters lpg road tanker in China. If you're going to buy high quality 30tons 59520liters lpg road tanker, welcome to get more information from our factory. For price consultation, contact us.
--LPG Road Tanker(also calledlpg bridger truck,lpg tanker trailer,lpg truck trailer,25tons lpg truck,25mt lpg truck,50m3 lpg truck,propane tanker trailer,lpg tanker,lpg semi trailer) is used to transport liquid petroleum gas/propane gas/cooking gas/lpg in large quantity and in long distance from depot or terminal station to smaller lpg stations in other cities.
--Optional for tank size from 40,000litera to 61900liters,from 20tons to 30tons.
--Design standard: GB-150, ASME, U STAMP, CCC, ISO9001 : 2008
--Optional accessories :ROCHESTER level gauge,flow meter,sun shelter,lpg pump,lpg dispenser machine,filling hose.
--Material: Q345R,Q370R,Q420R;
--Optional for axle brands:BPW,FUWA,L1 and so on.
--high quality steel specialled for pressure vessel production from chinese top steel company;
--Reliable design for tough road with reliable performance;
--X-ray testing for every welding line before delivery;
--Hydraulic testing for every lpg tanker;
--Heat treatment 600~640 ℃ to relief stress;
--leakage test;
--customized painting and logo design;
Specification
Tanker Essential Information | |
Volume of Tank (cbm) | 59.52 |
Overall Dimensions(L*W*H)(mm) | 13000*2500*3990 |
Tank Dimensions(Inner Diameter*thickness*Length) | 2475*12*12837 |
Estimated Tare Weight (kg) | 15000 |
Payload(kg) | 25000 |
Total Weight(kg) | 40000 |
Wheelbase(mm) | 7230+1310+1310 |
Shell of Tanker | |
Products | Liquefied Petroleum Gas (propane) |
Fluid Property | Flammable |
Design Temperature(℃) | -19℃~50℃ |
Design Pressure(MPa) | 1.61 |
Corrosion Allowance(mm) | 1.00 |
Weld Joint Factor | 1 |
Major Materials of Bearing Pressure | Tanker body:Q345R,12mm, |
End plate：Q345R,12mm,double ellipse | |
Main beam:16Mn | |
Detection | |
Heat Treatment | Overall treatment in a furnace,600℃ to 640 ℃ |
Flaw Detection | 100% Flaw detection |
Hydraulic Test(MPa) | 2.21 |
Manhole (As Customer’s Requirement) | |
Quantity | 1;on top,DN450 |
Safety Valve(As Customer’s Requirement) | |
Quantity | 2 |
Location | On the top of tanker |
Size | DN50 or As Customer’s Requirement |
Level Gauge 3*13T Fuwa | |
Type | Manuel rotation type |
Location | At the rear of the end plate |
Running System | |
Axles | 3*13T FUWA brand |
Tire | 12R22.5 Tubeless tire ,12 with one spare tire |
Landing leg | JOST |
King Pin | #50(2 inch) or #90(3.5 inch) |
Control System | |
Emergency Cut-off Valves | 2 |
Ball Valve | 2 |
Liquid Gauge | 1 |
Thermometer | 1 |
Pressure Gauge | 1 |
Accessories | |
Tool Box | 2 |
Wheel Carrier | 1 |
Fire Extinguisher | 2 |
Fender | 6 |
Painting | As Customer’s Requirement |
