Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo industry vacuum loader truck in China. If you're going to buy high quality howo industry vacuum loader truck, welcome to get more information from our factory. For price consultation, contact us.

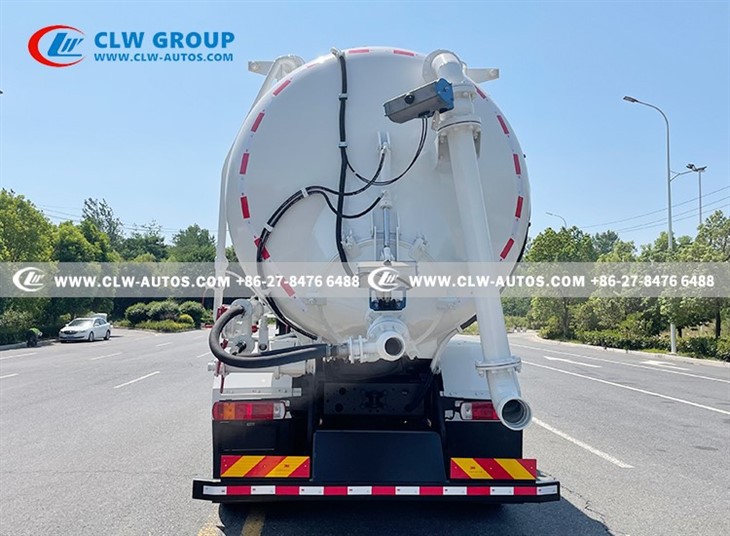

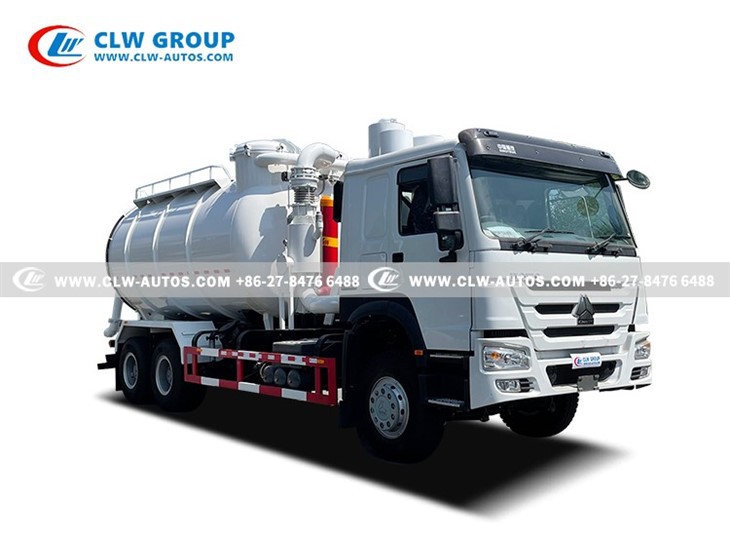

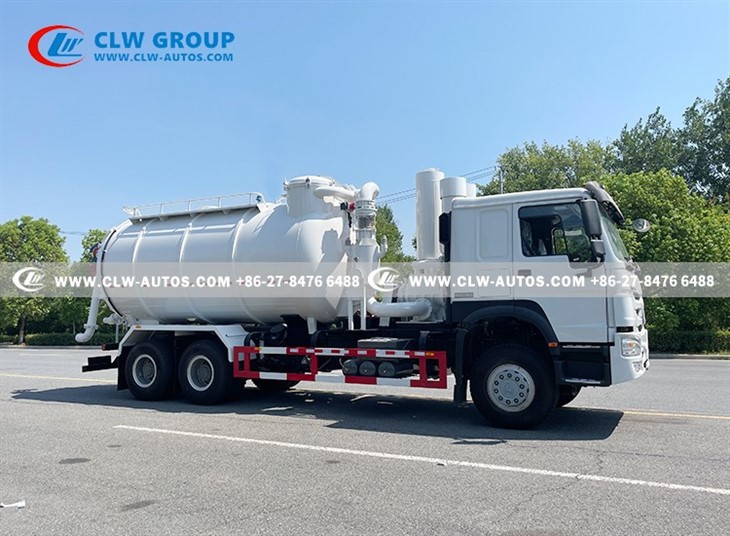

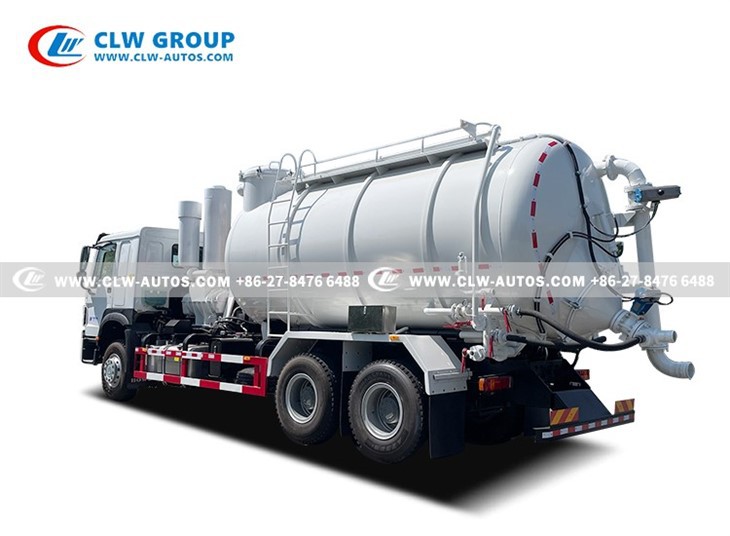

Industry Vacuum Loader Truck
Industry Vacuum Truck Major Application
◆ Metallurgical Steel Industry
Used for the collection, transportation and delivery of dust materials generated in the following processes:
Iron-making, steel-making, sintering, coking, raw material yards, gas fired lime kilns, smelting desiliconization, dephosphorization agents, coke powder, coal powder, mill chips, lime powder, limestone dust removal ash, mixed dust removal ash.
◆Energy and Chemical Industry
Responsible for the purification and dust removal of calcium carbide furnaces, gas fired lime kilns, raw material batching stations, transfer stations, trestle conveyor systems, system floor kangs, bulk or spilled materials (pulverized coal/lime) and dust, petrochemical tank catalysts, etc. Pressure cleaning, collection and transfer processing work.
◆Electric Power Building Materials Cement Industry
Coal conveying area, boiler room, conveyor, coal conveying corridor, transfer station, coal crusher, sampling room, unloading conveyor, boiler room and other corners of the workplace. It is used for the collection, transfer and transportation of nearly hundreds of dust and powder materials under various working conditions.
Industry Vacuum Truck with Vacuum and Filtration System
|
Vacuum Extraction Truck Specification |
|
|
Overall Size：LxWxD mm |
11140×2530×3920 |
|
Engine Capacity |
340HP |
|
Engine Model |
WP10.340E22 |
|
Driving Mode |
6X4 |
|
Turning Radius |
≤22 m |
|
Tire |
12.00R20, 10pieces + 1 Spare |
|
Wheel Base(mm) |
≈5350+1350 |
|
Gearbox |
|
|
G.V.W(kg) |
25000 |
|
Tare Weight(kg) |
18000 |
|
Tank Body |
|
|
Tank Volume(m³) |
18 |
|
Tank Diameter(mm) |
2200 |
|
Tank Material |
6/Q345B |
|
Dish End |
Front Butterfly Dish End, Rear Hemi-spherical Dish End |
|

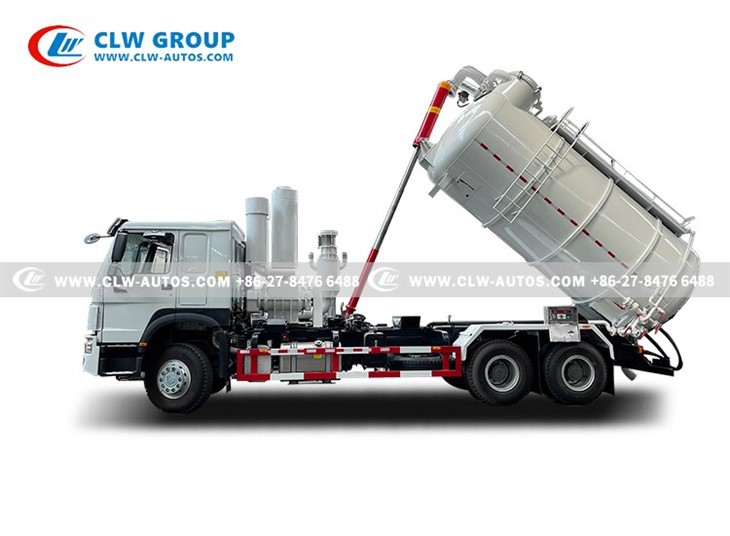

Tank Tipping Angle(°) |
≧40 |
|
Max Vacuum Pressure(mpa) |
-0.078 |
|
Suction Loading System Data |
|
|
Ways of Driving |
PTO Driven |
|
Vacuum Pump |
Roots Vacuum Pump |
|
Suction Ways |
Negative pressure suction material |
|
Max Working Vacuum Pressure (mpa) |
-0.078 Above |
|
Suction Speed(t/h) |
30-60 |
|
As per actual material & working condition |
|
|
Suction Hose(mm) |
150 |
|
Dust filtration system |
Gravity inertial dust removal, cyclone dust removal, cloth bag filtration |
|
Filter Bag Cleaning Method |
Blowing by Positive Pressure |
|
Exhaust Dust Content(mg/m³) |
20 |
|
Discharging System Data |
|
|
Ways of Discharging |
Open Rear Door & Tipping |
|
Opening Ways of Rear Door |
Manual |
|
Opening Angle of Rear Door |
120º |
|
Locking Ways of Rear Door |
Bolts Locking |
|
Rate of Remaining Material In Tank |
2‰ |
|
Air Source |
Air Compressor or Outsource Air Supply |
|
Air Compressor |
Chinese Compressor BDW-10/2 |
|
Ways of Discharging |
1. Positive Pressure Discharging |
|
2. Emergency Rear Door Discharging |
|
|
Max Working Pressure(mpa) |
0.2 |
|
Pressure Discharging Speed(t/h) |
30～60 |
|
(Outsource air supply with 20meter Discharging Height, use cement powder as reference) |
|
|
Discharging Hose Diameter mm) |
100 |
|
Discharging Hose Material(mm) |
6/Q345B |
|
Hydraulic Tipping Data |
|
|
Hydraulic Pressure(mpa) |
16 |
|
Hydraulic Cylinder Volume(L) |
≈80 |
|
Tipping Cylinder |
Hyva or Chinese Jiaheng |
|
Valves Specification |
|
|
Suction Valves |
Valve DN150 with Pipe DN150 |
|
Discharging Valves |
Valve DN125 with Pipe DN100 |
|
Other Valves |
DN50～DN200 |
