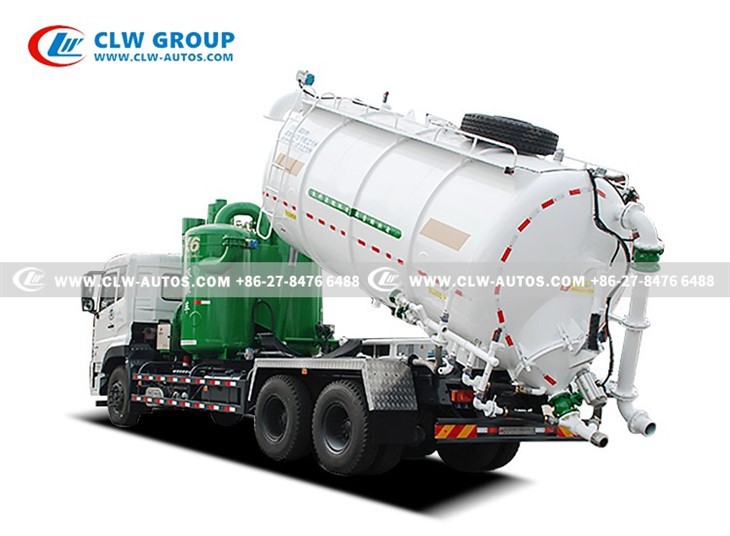

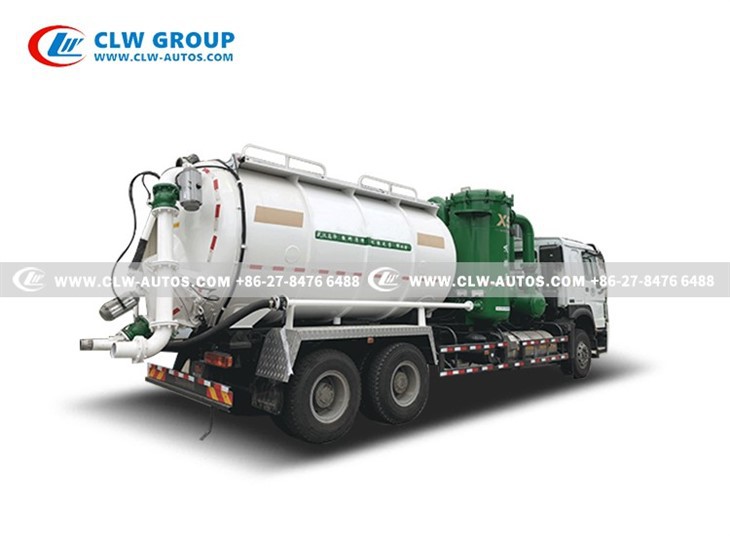

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of howo vacuum loader extraction truck in China. If you're going to buy high quality howo vacuum loader extraction truck, welcome to get more information from our factory. For price consultation, contact us.
Industry Vacuum Loader Truck
is used for the transportation of dust removal. Negative pressure loading is used for loading, and positive pressure discharging is used for unloading (lifting and opening the back cover for dumping in emergencies); the filtered dust-laden air meets environmental protection emission standards.
Vacuum Truck Industry Use-Major Application
Advantage of Industry Vacuum Truck
Industry Vacuum Truck System
Truck Brand Option:
|
Vacuum Loader Truck Data |
|
|
Overall Size：Length xWidth xDepth mm |
11200×2550×3950 |
|
Engine Power |
380HP |
|
Engine Model |
Weichai Diesel Engine, WP10.380E22 |
|
Driving Mode |
6x4 / 3 Axle |
|
Turning Radius |
≤22 m |
|
Tires |
12.00R20, 10pieces + 1 Spare |
|
Wheel Base(mm) |
=5300+1300 |
|
Gearbox |
|
|
G.V.W(kg) |
25,000 |
|
Tare Weight(kg) |
18,000 |
|
Tank Body |
|
|
Tank Volume(m³) |
16 |
|
Tank Diameter(mm) |
2200 |
|
Tank Material |
6/Q345B |
|
Dish End |
Front Butterfly Dish End, Rear Hemi-spherical Dish End |
|
Tank Tipping Angle(°) |
≧40 |
|
Max Vacuum Pressure(mpa) |
-0.078 |
|
Suction Loading System Data |
|
|
Ways of Driving |
PTO Driven |
|
Vacuum Pump |
Roots Vacuum Pump |
|
Suction Ways |
Negative pressure suction material |
|
Max Working Vacuum Pressure (mpa) |
Larger than -0.078 |
|
Suction Speed(ton/hour) |
30-60 |
|
As per actual material & working condition |
|
|
Suction Hose(mm) |
150 |
|
Dust filtration system |
Gravity inertial dust removal, cyclone dust removal, cloth bag filtration |
|
Filter Bag Cleaning Method |
Blowing by Positive Pressure |
|
Exhaust Dust Content(mg/m³) |
20 |
|
Discharging System Data |
|
|
Ways of Discharging |
Open Rear Door & Tipping |
|
Opening Ways of Rear Door |
Manual |
|
Opening Angle of Rear Door |
120º |
|
Locking Ways of Rear Door |
Bolts Locking |
|
Rate of Remaining Material In Tank |
2‰ |
|
Air Source |
Air Compressor or Outsource Air Supply |
|
Air Compressor |
Chinese Compressor BDW-10/2 |
|
Ways of Discharging |
1. Positive Pressure Discharging |
|
2. Emergency Rear Door Discharging |
|
|
Max Working Pressure(mpa) |
0.2 |
|
Pressure Discharging Speed(t/h) |
30～60 |
|
(Outsource air supply with 20meter Discharging Height, use cement powder as reference) |
|
|
Discharging Hose Diameter mm) |
100 |
|
Discharging Hose Material(mm) |
6/Q345B |
|
Hydraulic Tipping Data |
|
|
Hydraulic Pressure(mpa) |
16 |
|
Hydraulic Cylinder Volume(L) |
≈80 |
|
Tipping Cylinder |
Hyva or Chinese Jiaheng |
|
Valves Specification |
|
|
Suction Valves |
Valve DN150 with Pipe DN150 |
|
Discharging Valves |
Valve DN125 with Pipe DN100 |
|
Other Valves |
DN50～DN200 |
|
|
Powder Suction & Blowing in the factory
Powder Suction in Open Area
