Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 40ft 50tons warehouse cargo semi trailer in China. If you're going to buy high quality 40ft 50tons warehouse cargo semi trailer, welcome to get more information from our factory. For price consultation, contact us.
Tri Axles Fence Semi Trailer Warehouse side barn Cargo Transport Trailers for Agricultural Sideline and animal carryting petal-basket structured back gate optional
Goods Description:
Suitable for the agricultural, sideline products and other light products' transportation. The design is convenient for products' unloading, and it's not only satisfy the rated load also reduce the burden of the compartments.
Loaded by Bulk ship, 3 units put into one package. Or Loaded by container ship. 2 units put into one 40HQ container.
| 40ft 3 axle fence trailer | |||||
| No | ITEM | Unit | Quantity | MODEL | |
| 1 | Axle | Piece | 3 | 13T FUWA, 220mm width braking pad With 4S/2M ABS, made in China | |
| 2 | Tyre | Piece | 13 | 11.00R20, with a spare tire | |
| 3 | Rim | Piece | 13 | 8.0-20 | |
| 4 | Suspension | Set | 3 | Standard mechanical reinforced type | |
| 5 | Leaf spring | Set | 6 | 10pcs, 90mm width, 13mm thickness | |
| 6 | Kingpin | Piece | 1 | 3.5" bolted type.JOST KZ1412 | |
| 7 | Emergency relay valve | Piece | 1 | WABCO | |
| 8 | Landing gear | Set | 1 | 28T two sides operation | |
| 9 | Cross beam | W type, interval space 450mm | |||
| 10 | Chamber | 6 | T30/30 4 pcs | ||
| 30 2 pcs | |||||
| 11 | Electrical system | Set | 1 | Plug 7 lines, 24 volt, LED lights. | |
| Main Specification of Trailer | |||||
| NO | Specification | Numerical value | |||
| 1 | Overall dimension(L*W*H) | 12500*2550mm Side wall:600mm closed, open downward 600+600 mm mesh, open backward 100mm interval space Intal side wall height 2000mm Each side 6 nos ratchets Front welded small ramp and canvas bracket, tarpaulin rod Detail refer to the confirmed drawing | |||
| 4 | Floor | 3 mm thickness flat | |||
| With 6 pcs 6.3# channel pad steel | |||||
| 5 | Spare wheel carrier | 2 pcs, normal | |||
| 6 | Upper and lower wing-plate thickness | 10/10mm, width 146mm | |||
| 7 | Side beam | 140mm bending plate, thickness 2.5mm | |||
| 8 | Height of the beam | 500mm, web plate thickness:5mm | |||
| 9 | Water tank | 1500mm length, ∮550 location designed by the engineer | |||
| 10 | Paint | High quality paint, whole trailer waxed | |||
| 11 | Color | According to your required color code | |||

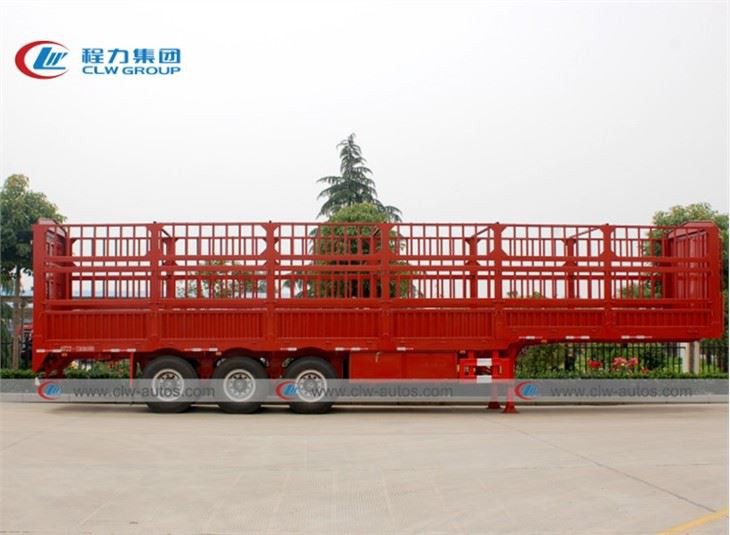

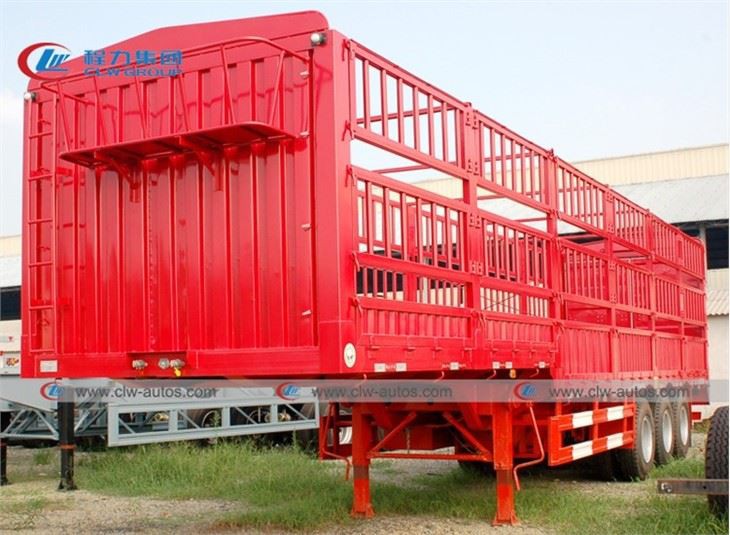

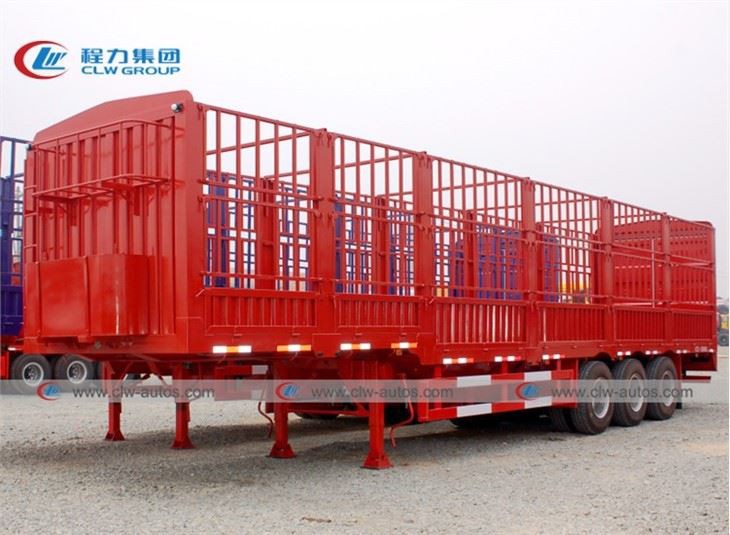

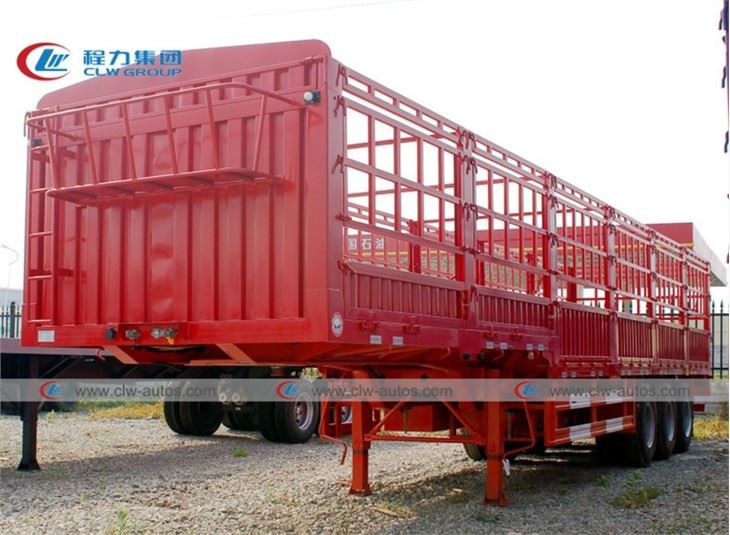

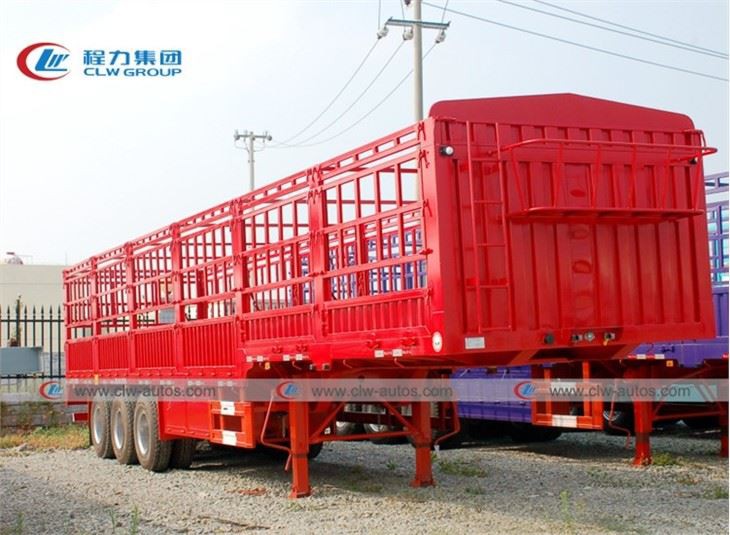

More pictures for 40FT 50Tons Warehouse Cargo Semi Trailer:
