Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng dfac 10 tons fire fighting water sprinkler truck in China. If you're going to buy high quality dongfeng dfac 10 tons fire fighting water sprinkler truck, welcome to get more information from our factory. For price consultation, contact us.

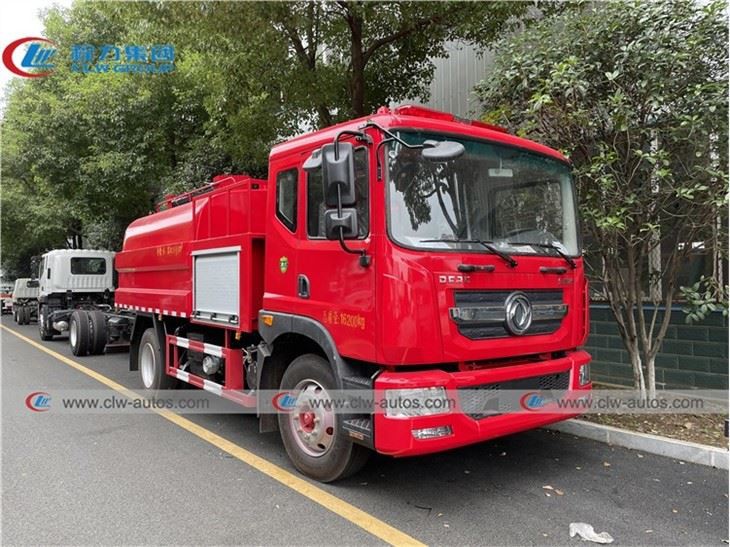

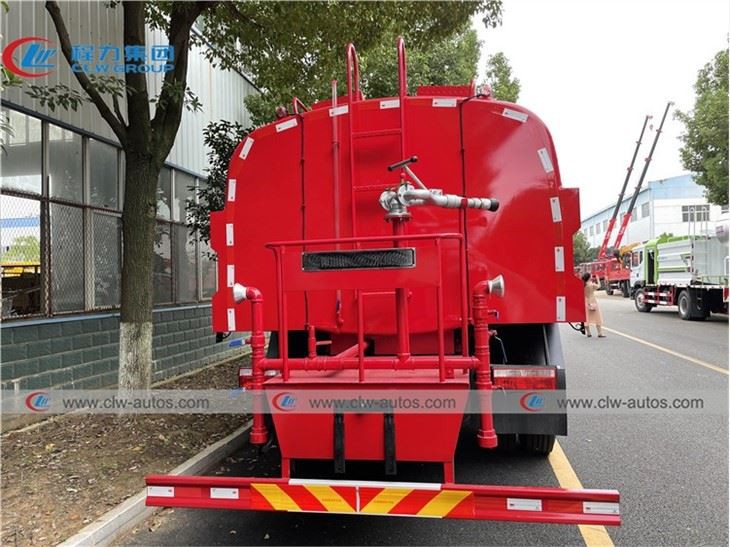

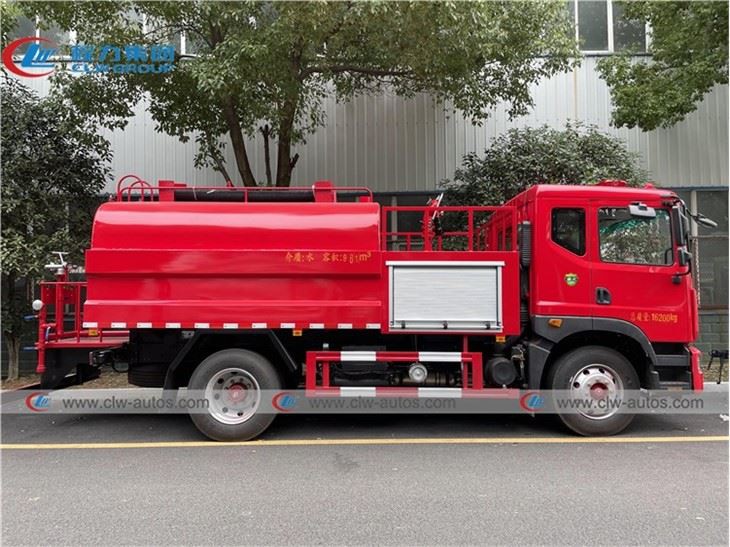

Dongfeng DFAC 10tons fire fighting water sprinkler truck
Product Description
Water sprinkler truck, is also called as the water bowser truck, water spray truck, and multi-function green watering truck.
It is mainly used in city road, large factory area, army, landscape garden and other departments for leaning the pavement, sanitation, dust-proof, watering, and spraying farming chemicals for beautify the environment and for fire brigade.
From another point, while being urgent, the sprinkler is also used as the fire fighting truck.
The sprinkler is equipped with front, rear and side sprinkler head, and then it covers large watering fields, making great efficiency.
This kind of the watering truck could be one most important kind in all environmental trucks.
1. Optional chassis brand: Dongfeng, Sinotruk, Foton, Faw, Shacman, Isuzu;
2. Water Tank Material: High Tension Steel Q235/Q345,stainless steel 304B for option.
3. Reliable and high quality water pump
4. Optional for insulation layer which is suitable for warm water delivery.
Product Specification
Product name | Dongfeng DFAC 10tons fire fighting sprinkler truck | ||||
Total mass (kg) | 12400 | Tank volume (m3) | 9-10 | ||
Rated mass (kg) | 6270,6205 | Dimensions (mm) | 7360X2480X3150 | ||
Curb weight (kg) | 6000 | Cargo compartment size (mm) | N/A | ||
The number of passengers in the cab (person) | 2,3 | Maximum loading weight(kg) | 10,000 | ||
Approach angle/departure angle (°) | 17/12 | Front suspension/rear suspension (mm) | 1250/2160 | ||
Axle load (kg) | 4300/8100 | Maximum speed (km/h) | 88 | ||
Remarks: | Remarks: The vehicle is equipped with tank body, piping system, operating system, sprinkler pump, power take-off, and the water pump is driven by the transmission shaft to complete the sprinkling work; the effective volume of the tank: 9-10 cubic meters, the overall size of the tank (long/long axis) /Short axis) The tank demension is (mm): 3800/1900/1200. | ||||
Chassis technical parameters | |||||
Chassis Brand | Dongfeng | Chassis Model | Duolica D9 | ||
| Manufacturer | Dongfeng Motor Group Co., Ltd. | ||||
Number of axes | 2 | Number of tires | 6 | ||
Wheelbase (mm) | 3950 | ||||
Tire specifications | 8.25R20, 9.00R20 | ||||
Number of leaf spring | 8/10+7 | Front track (mm) | 1820 | ||
Fuel type | Diesel | Rear track (mm) | 1800 | ||
Emission standard | GB18285-2005, GB17691-2018 Euro IV | ||||
Engine model | Engine manufacturer | Engine capacity | Engine power | ||
YCS04160N-60 | Guangxi Yuchai Machinery Co., Ltd. | 4156 | 118kw/160hp | ||
Product Pictures
