Product Details

Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of dongfeng dust depression fog sraying truck with water sprinkler in China. If you're going to buy high quality dongfeng dust depression fog sraying truck with water sprinkler, welcome to get more information from our factory. For price consultation, contact us.

What is a City Disinfection Truck / Dust Control Truck?

City Disinfection Truck is also named Dust Control Truck. It is designed for the envoronment cleaning purpose.

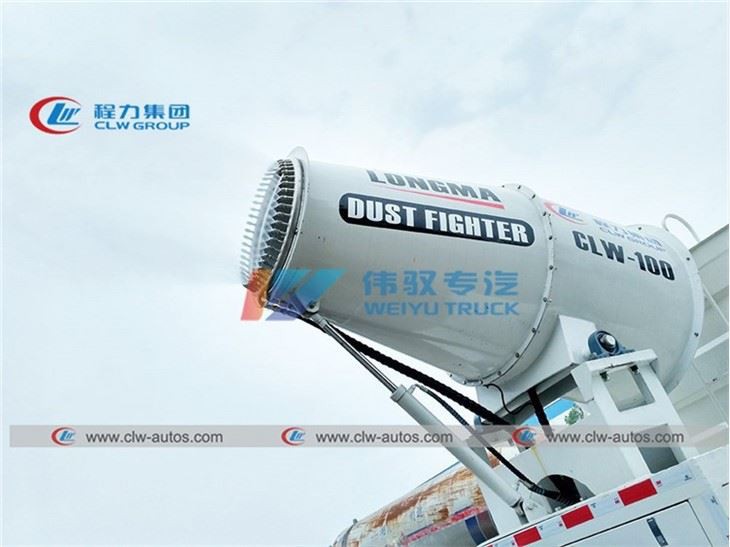

It is originated from an Water Sprinkler Truck, adding an separated Fog Generated System. The generated fog is just an nature drizzle, which will absorb the dust in the air and keep the air cleaning. By adding the disinfect into the water, the fog can also served as air disinfector, which assist to fight against the COVID-19 in the publice area outside area.

With all the water sprinkler fuction, it can be served as water truck for future use.

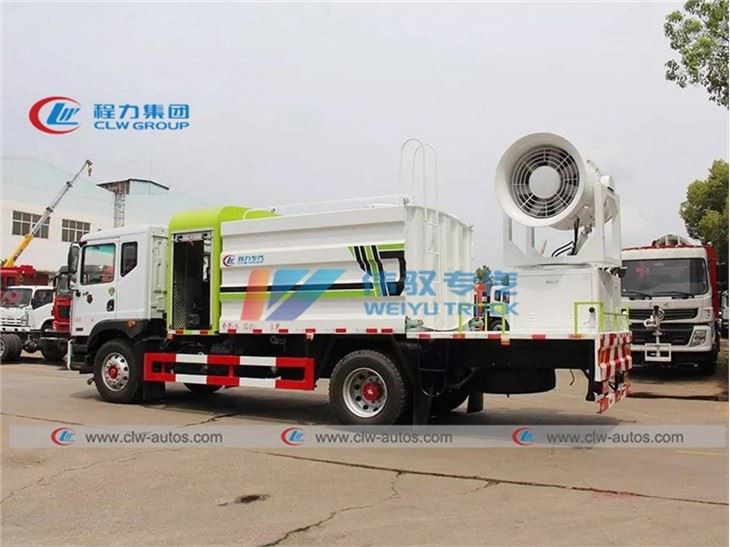

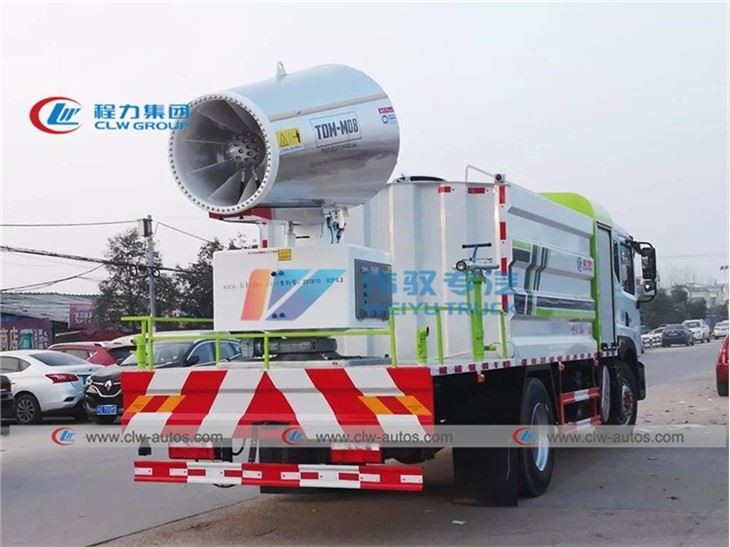

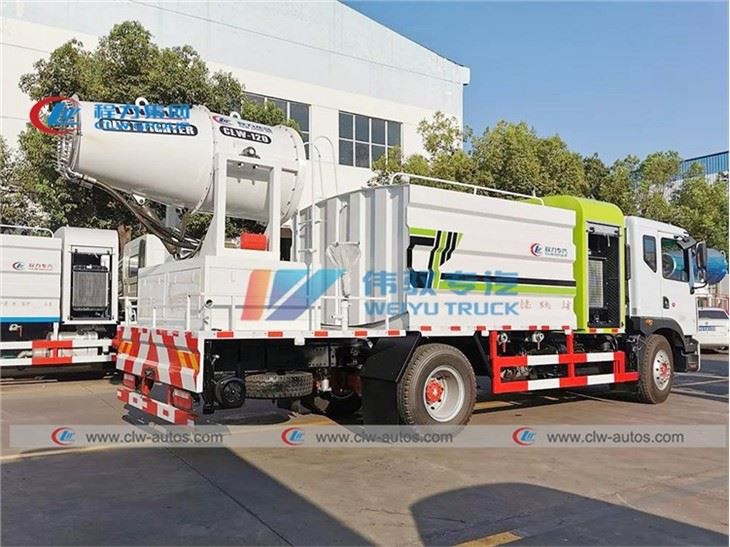

Dust Control Fog Spraying Truck
Outside dimension		10500×2500×3800 mm
Loading mass		15,000 Kg
Kerb mass		14280 Kg
Chassis Model /Manufacturer		Two beds, left hand drive.
Driving type		8×4
Cabin		Dongfeng, Flat head, Tippable, Two sleeper with A/C
Wheelbase		4600+1350 mm
Engine
Model		Cummins Engine B190 33
Type		Diesel, 6-cylinder in line with water cooling, turbo-charging &electrical control inner Euro 2
Max. Power		190hp
Max. torque		2200rpm
Displacement(ML)		6750ml
Cylinder bore×Stroke(mm)		130x126mm
Company of engine		Dongfeng Cummins
Compression ratio		17:01

Transmission		FAST 8 Forwar & 1 Reverse
Clutch		Φ430 Diaphragm type
Braking	Service Brake	dual circuit compressed air brake
	Parking Brake	spring energy, compressed air operating on rear wheels
	(Emergency Brake)
	Auxiliary Brake	engine exhaust brake

Front axle		5T Rigid stub axle with double T-cross section
Rear axle		10T double reduction driving axle

Tyre		10.00R20
Max Speed		90 Km/h
air condition		With
Volume of tank		10,000 ltrs water tank truck
