Hubei Chengli Special Automobile Co., Ltd is one of the leading manufacturers and suppliers of 4*2 knuckle boom skylift truck in China. If you're going to buy high quality 4*2 knuckle boom skylift truck, welcome to get more information from our factory. For price consultation, contact us.
Product Description
1. Safe and reliable, easy to operate: imported key parts ensure reliable operation. Four stabilizers can be controlled separately, with high adaptability. mutual locking and soft leg protection ensure safe operation, boom is restricted to slew when horizontal leg is not extended, but lifting is not limited. To ensure safety operation, it is equipped with an emergency power system.
2. High configuration, high cost performance
The unit is equipped with imported key parts, overall structure use high strength plate, safe and reliable, can meet the needs of user with good cost performance. High configuration, high cost performance: the unit is equipped with imported key parts, overall structure use high strength plate, can meet the needs of user with good cost performance.
Product Specification
| |
Chassis brand: | Dongfeng Tianjin |
Drive type: | Manual, left hand drive,optional right hand drive |
Drive wheel: | 4*2 |
Tyre: | 9.00-20, 6+1pieces |
Control system: | Electrically hydraulic system |
Transmission: | Six speed levers, |
6 speed forward with 1 reverse | |
Chassis dimension: | 7120*2462*2710mm |
Braking system: | Air braking |
Clutch: | dry clutch, hydraulic remote control |
Wheel base: | 3950mm |
Axis number: | 2 pieces |
Cab Passengers: | 5 passengers |
| |
Engin: | Cummins,EQB160-20 |
Horse power: | 185HP |
Exhaust: | 6700CC |
electric system: | 24V |
Emission standard: | Euro 3 |
Max speed: | 90km/h |
Fuel: | Diesel,optional gasoline |
| |
Overall size: | 9200*2470*3610mm |
Overall G.W.: | 9900kg |
Curb weight: | 6320kg |
Fact load: | 1000kg |
Srpings: | 8/11+8 |
Approach/departure angle: | 31/20. |
Overhang F/R: | 1250/2050mm |
Axis load: | 4500/6995 |
Warrenty: | 1 year |
Certification: | CCC, ISO... |
| |
Max Working Height | 22m |
Max Platform Height | 20m |
Max Working Radius | 8300 mm |
Angle Of Rotation | 360 ° |
1. Working platform rating loading=200kg, working platform | |
rating allowable passengers=2 | |
2. Working platform dimension:1100*570*1000mm,360°turning(left or right), | |
4 H-shape legs. | |
3. Clients can choose hydraulic parts made in China or Italy,to be mentioned. | |
4. Rotating speed 0-2 r/min | |

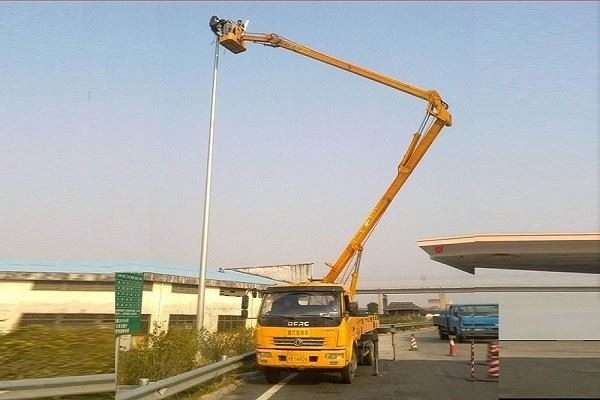

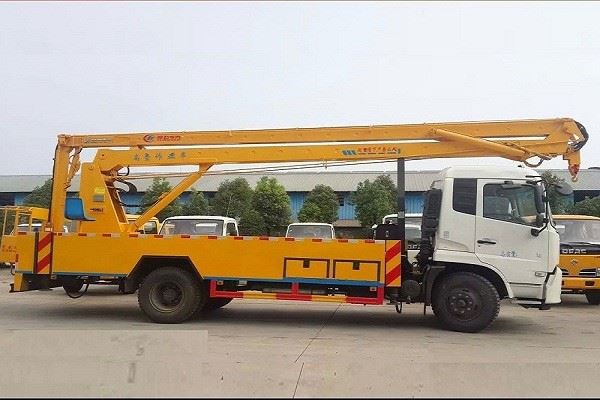

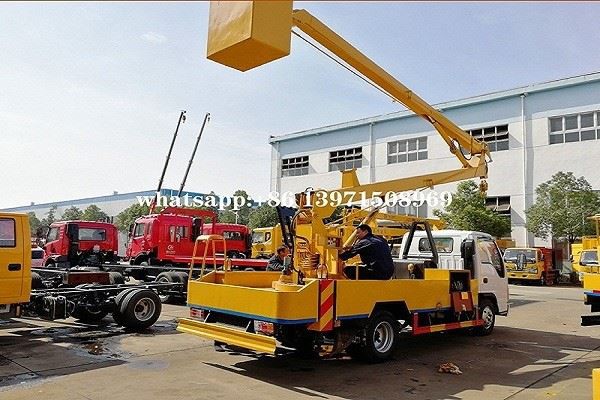

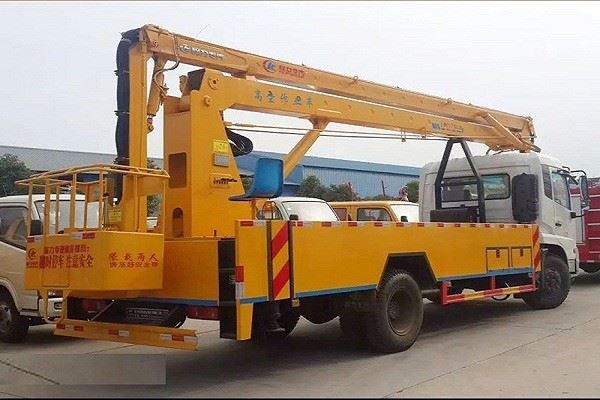

Reference Photos
Our Advantage
1. The operating mode is divided into two types: hydraulic control and electric control (optional). Station arm, the operation of the double station operation of the lifting of the arm rack, can be rotated 360 degrees.
2. Leg operation by the operator on the ground|: Open the operating box, the operation of the valve.Operate the handle to make the legs extend outside and downward.
3. All operations have corresponding operation design and nameplate nameplate, valve position ergonomic operator, after simple training can get operation, there are instructions for the operator to learn to use.
Successful Case
Customer Visiting
Overseas Exhibition and After-sales Service
Sales Service
1.We have professional sales personnel who can answer your questions and meet your requirements according to your enquiry. At the same time, our professional senior engineers can design and produce according to your requirement for the product.
2.Our technical service engineers will solve all the problems of products in time. Spare parts will be provided to our customers at the cost price.
3.Factory direct supply: reliable quality and fast delivery.
FAQ
Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q2: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q3.What's your Terms of delivery?
A: EXW,FOB,CRF,CIF,DDU
